SPECIFICATIONS

Alarm Type: Vehicle Backup Cameras

Brand Name: NONE

Certification: CE

Chip: HD Imported Chip

Choice: yes

Eyeglass: All Glass 6 Lenses

Fit: Universal Camera

Fit Display: LCD Screen with AV signal

Guiding Line: Yes

High-concerned chemical: None

Length of Video Cable: 2m,6M

Lens Angle: 170 Degrees

Lens Material: Plastic + Glass

Material: ABS

Night Vision: Starlight Night Vision

Origin: Mainland China

Pixel: 1080P

Power Supply: DC12V

Product Name: Starlight Fisheye Lens Rear View Camera

Shell Material: Plastic

TV System: Default NTSC Pixel

Waterproof Level: IP68 Waterproof

Wire or Wireless: Wire

AHD 1080P Feature:

1. System: AHD / NTSC

2. Effective Pixels: 1280*720P Pixels.

3. Power: DC 12V

4. Video Signal:CVBS/AHD 1080P

5. Parking line:Support

6. Night Vision

7.170 Degree Golden Fisheye Lens

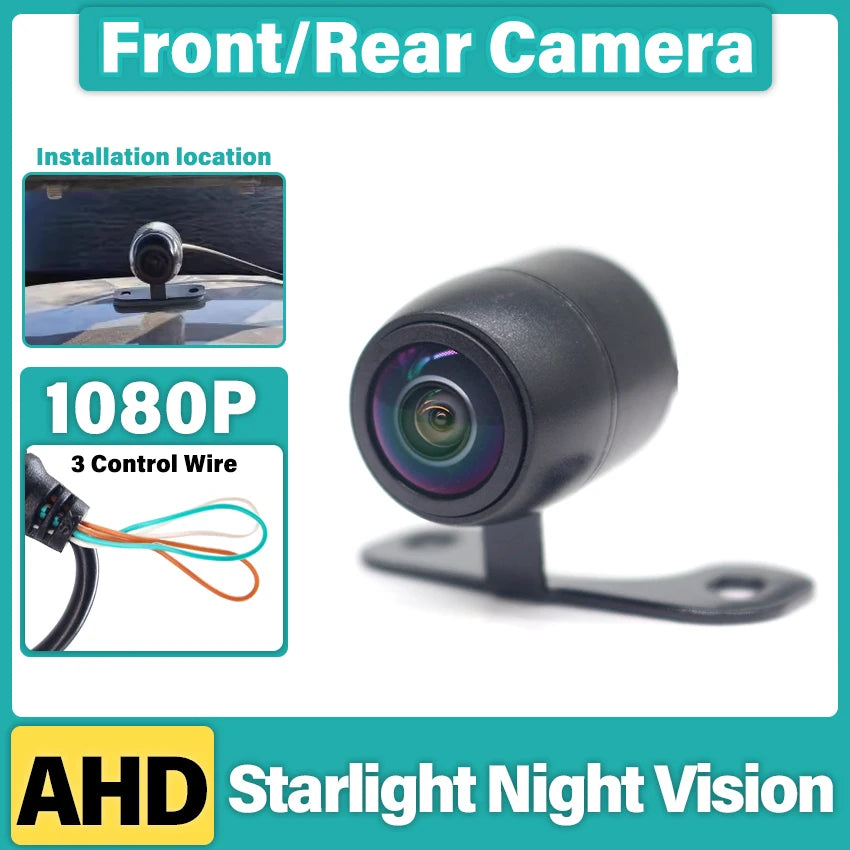

8.Support front/Rear Camera

Universal Camera Features:

Chip: HD Chip

Waterproof: IP68

Image Sensor: CCD

Power Supply: DC 12V

Current: DC12V >= 80mA

TV System: PAL/NTSC pixel

Operating temperature: - 30 ℃ to +80 ℃

Screen Display: Can support ruler lines

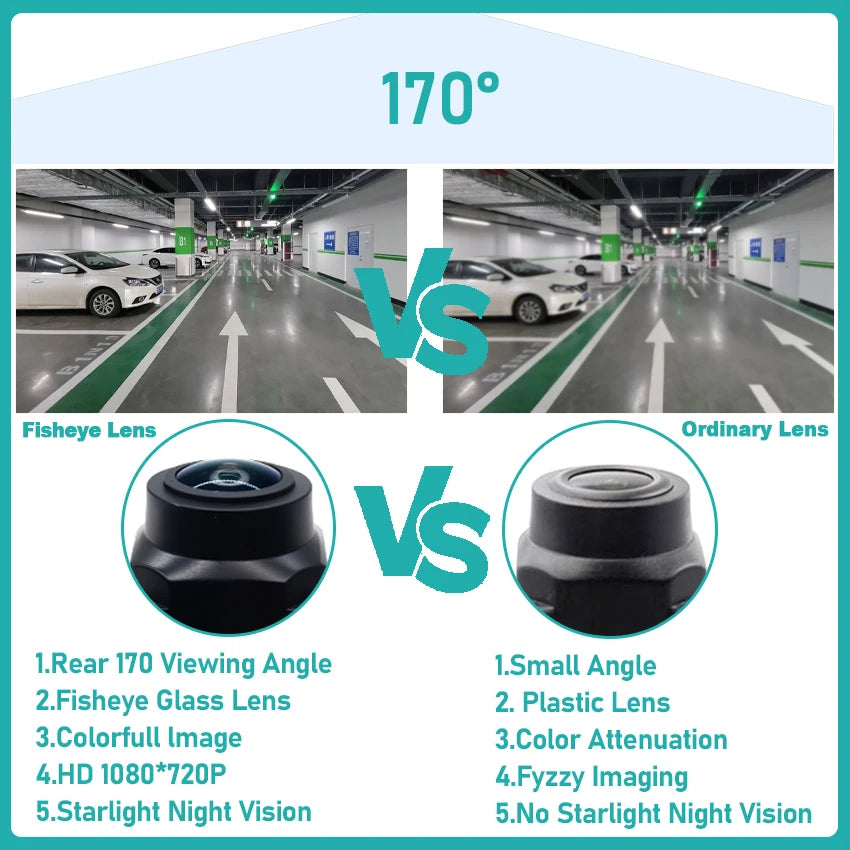

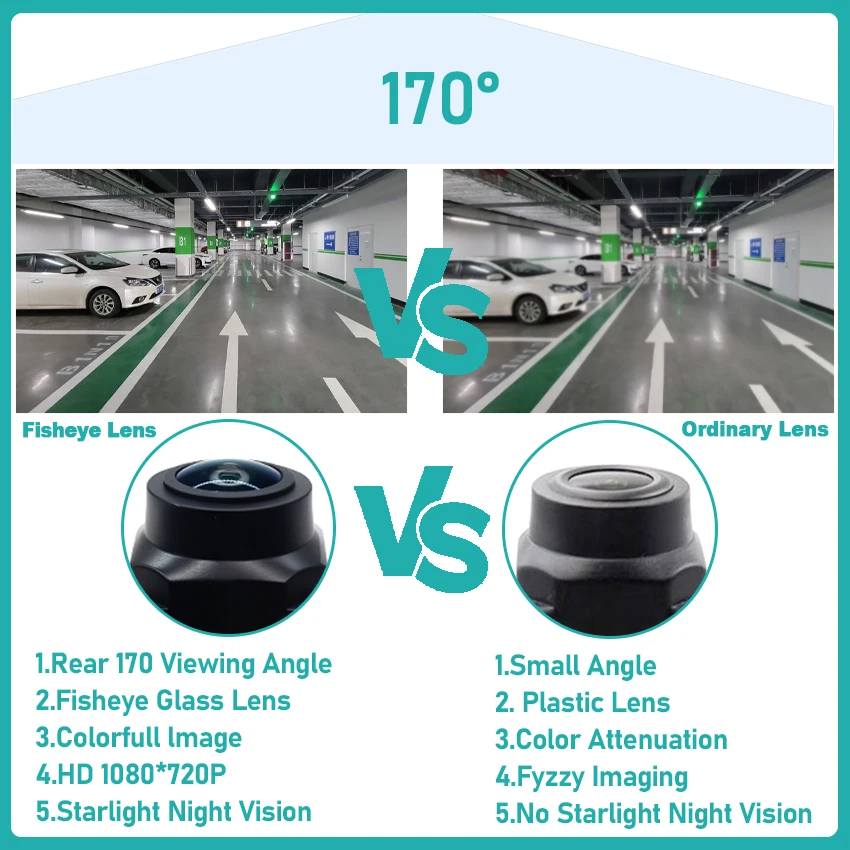

Product Lens: SixL ayer Glass Fisheye Lens

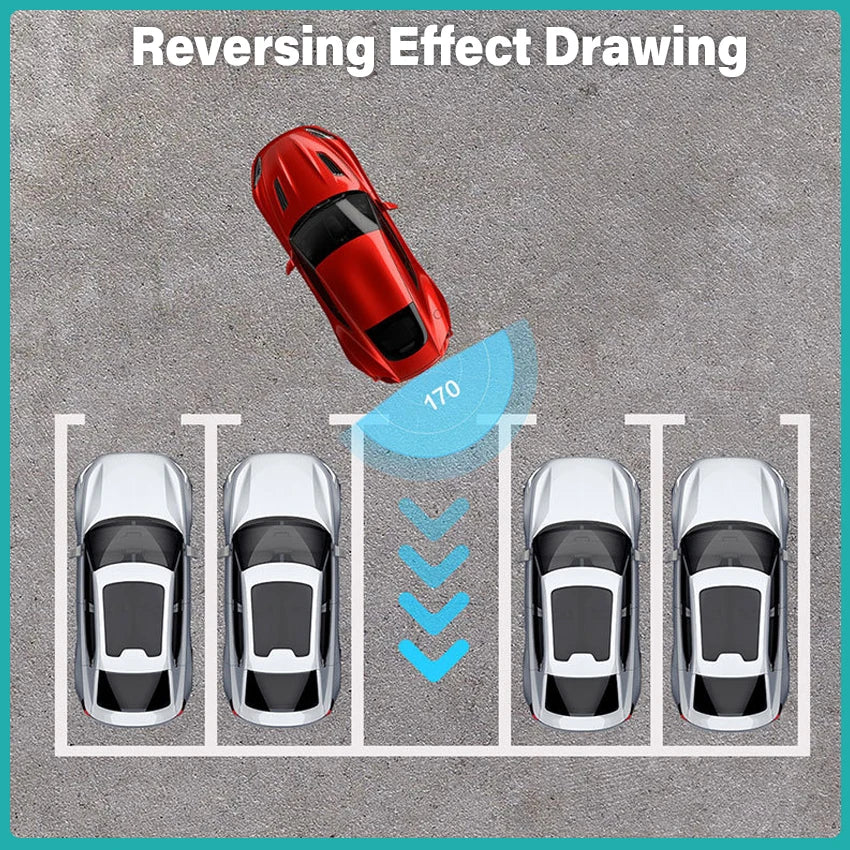

Viewing Angle: Real 170 Degrees Visible Range

Screen: Suitable for original car screen or Android navigation screen

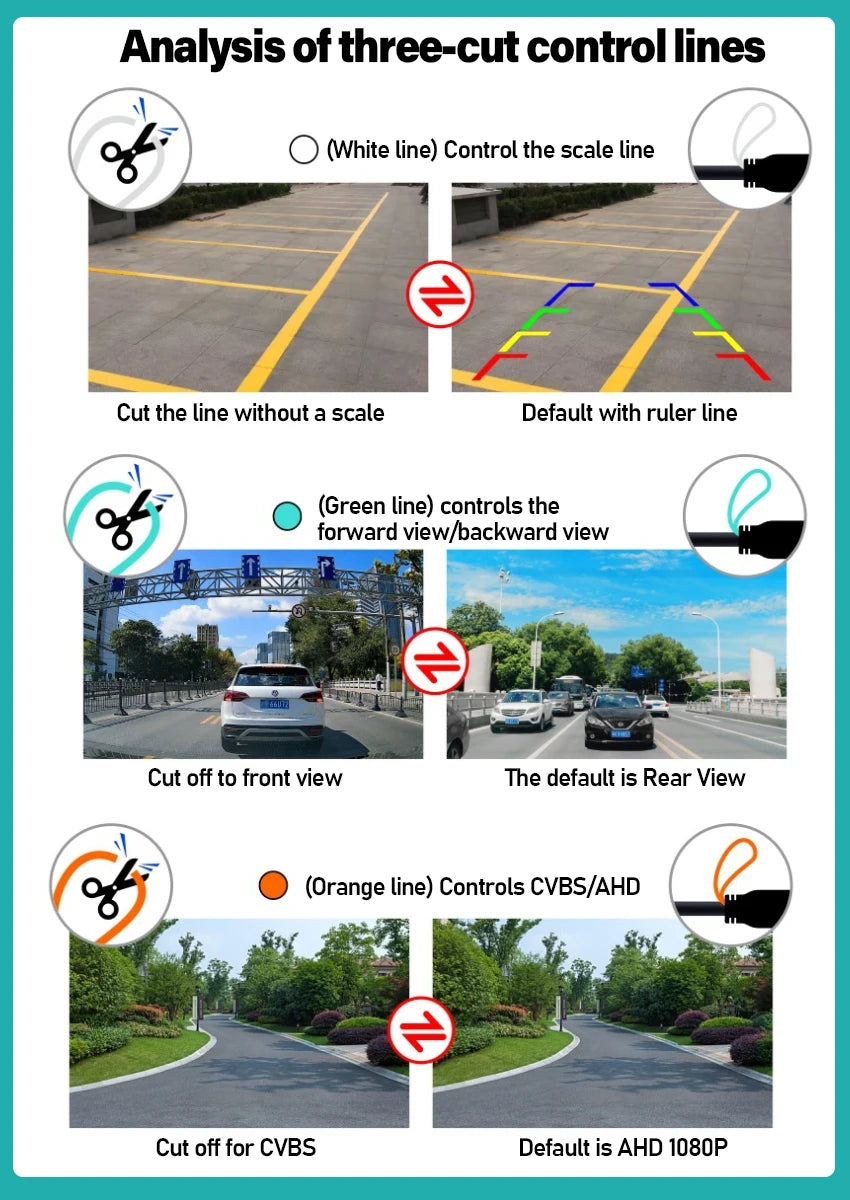

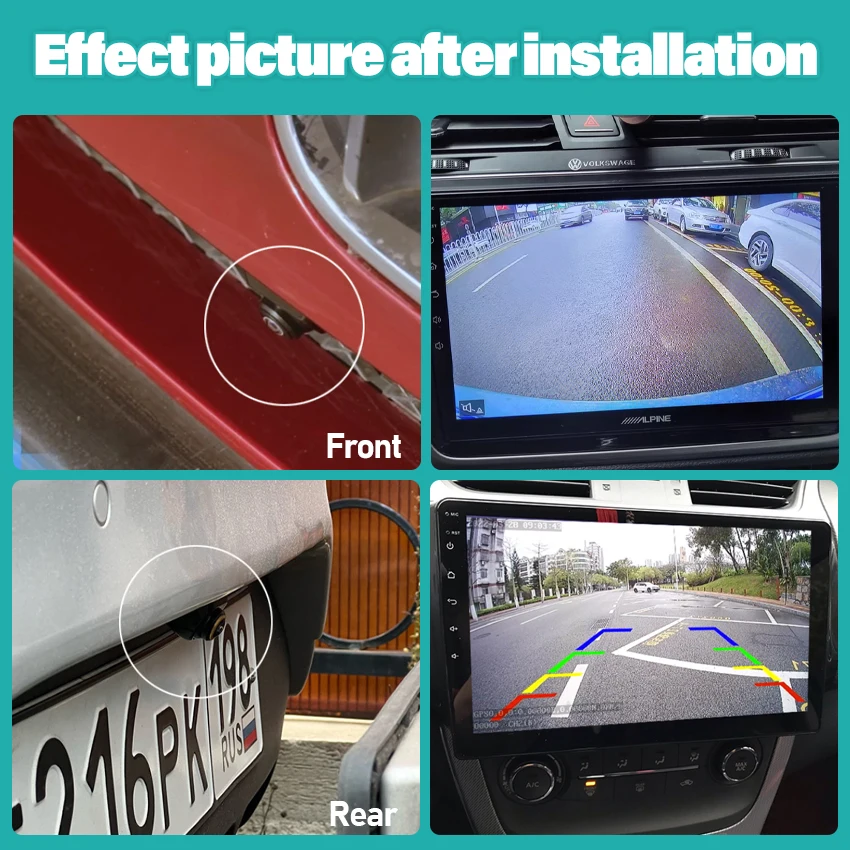

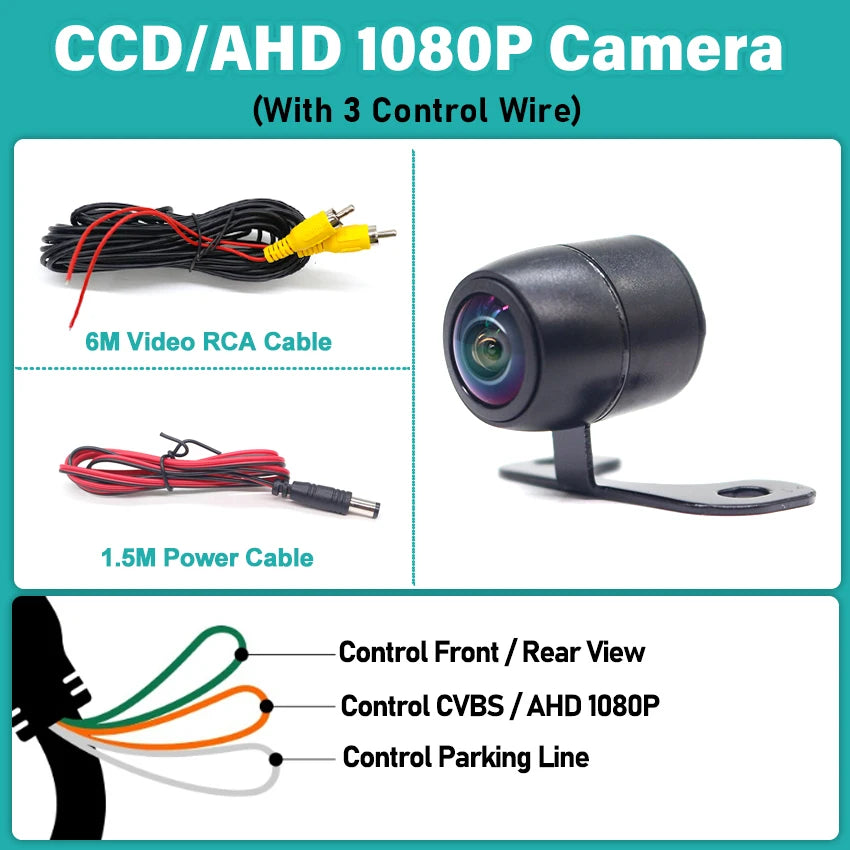

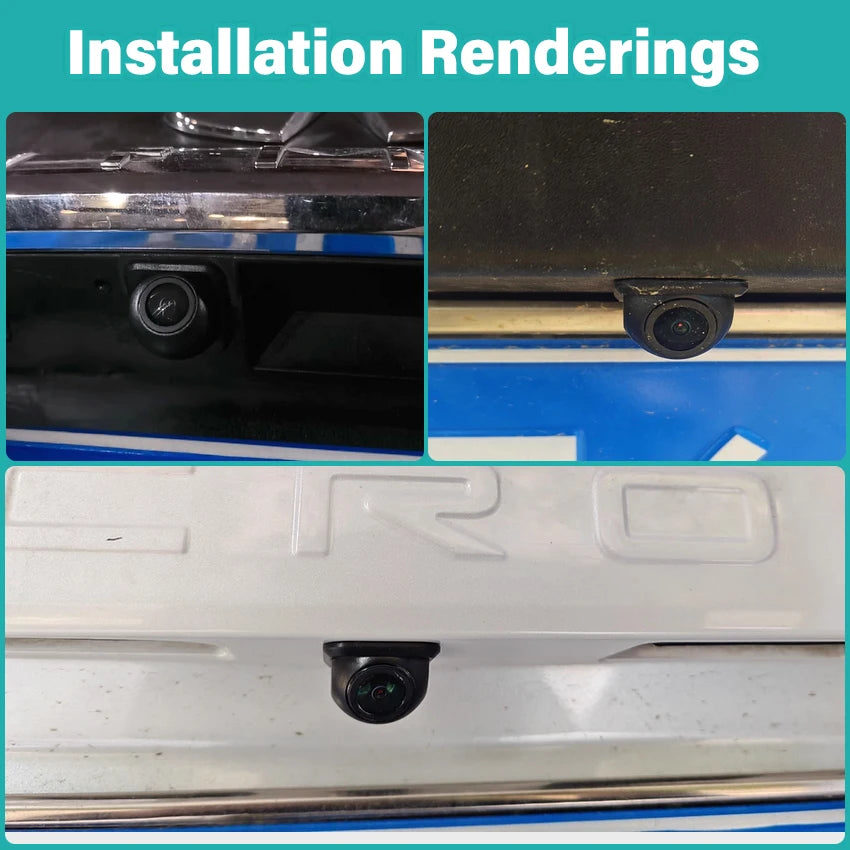

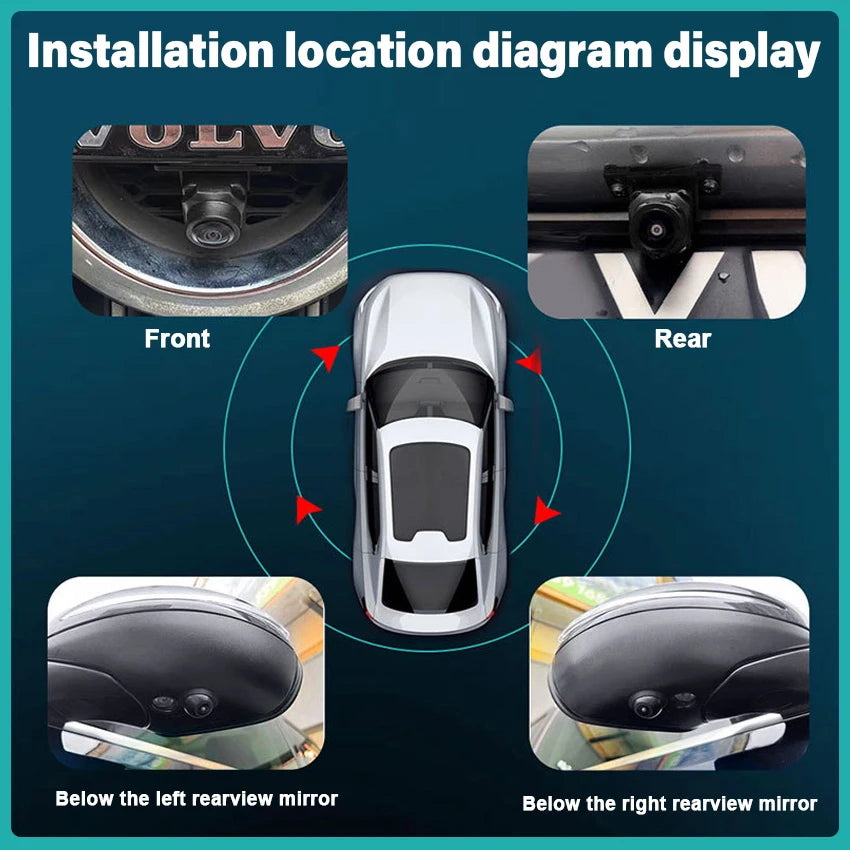

It can be installed at the front or back, and the green line controls the mirroring

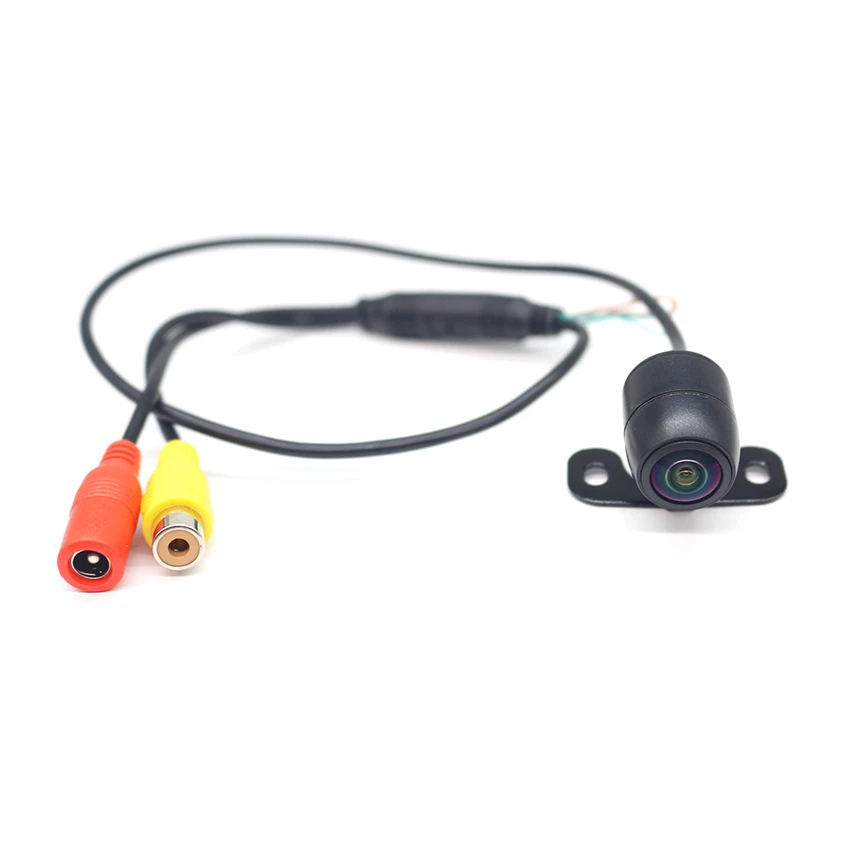

Video Output: RCA lotus plug, lotus (AV) interface, image default image with ruler

Requirements for use: use voltage 12V, do not support 24V cars, do not support the use of high-power transformers.

FAQ：

After connecting the rearview camera, the screen shows no signal, a black screen, and no picture, what should I do?

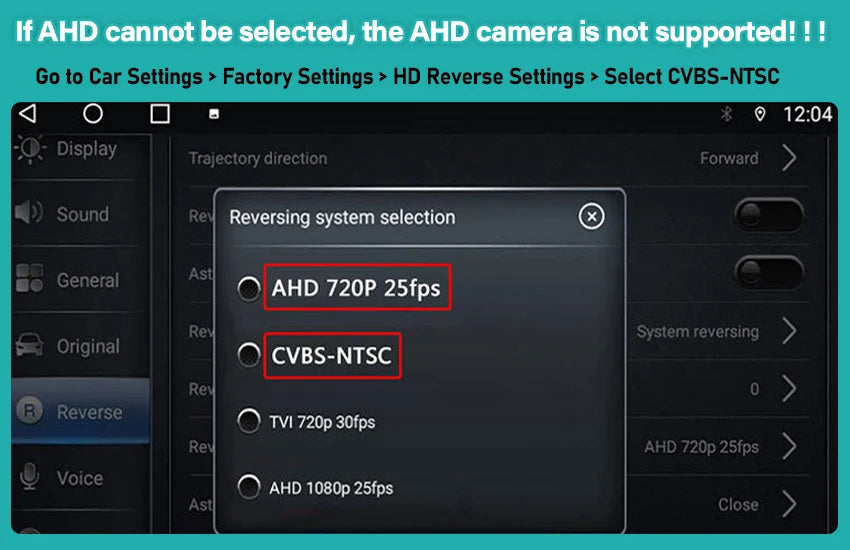

A) Please check your signal format (AHD/CVBS), and choose the right signal to run the camera.

B) Please check your connection, the red trigger line should connect to your reverse light and monitor the reverse-in Cable.

After connecting the rearview camera, the screen shows black and white, what should I do if there is no color?

A) Choosing the wrong camera system(such as PAL/NTSC) will cause the screen to be black and white. Please select the right system to run the camera and restart the camera power. CVBS camera is an NTSC system, and the AHD1080P camera is a PAL system.

B) Please check whether the 6M line is normal, please replace it with another 6M cable to test the camera.
