SPECIFICATIONS

Brand Name: NONE

Communication interface: Ethernet and 2G/3G/4G are optional

Condition: New

Current stabilization accuracy: ≤±1%

Harmonic distortion (THDi): ≥5%

High-concerned chemical: none

Input voltage: AC400V±20%

Input Voltage: 400V±20%

Interface Standard: GB/T,CCS1,CCS2,CHAdeMO,NACS

Model Number: GEVD-1201K

Origin: Mainland China

Output Current: DC

Output Power: 240KW

Output voltage: DC200-750V/DC200-1000V

Peak efficiency: ≥96%

Place of Origin: Guangdong, China

Protection functions: Overcurrent,overvoltage,undervoltage,integrated surge protection

Purpose: for retrofit/upgrade

Reliability: MTBF≥100,000 hours

Touchscreen: No

Voltage stabilization accuracy: ≤0.5%

Warranty: 24 months,warranty extension possible

Wireless Support: Other

Welcome, my friend! If you need other models of this product, feel free to let me know and I'll send you the link. The shipping fees on AliExpress may be inaccurate. Please message me before placing an order to get the correct fees. Let me know if you need anything! For quick assistance, please contact me via WAP: +86 15107389816 or Email： maoyishunda@gmail.com



COOPERATION MODE



Device Sales

Provide high-quality ODM/OEM products and supporting after-sales (including management platform and payment system) services.

Advantage

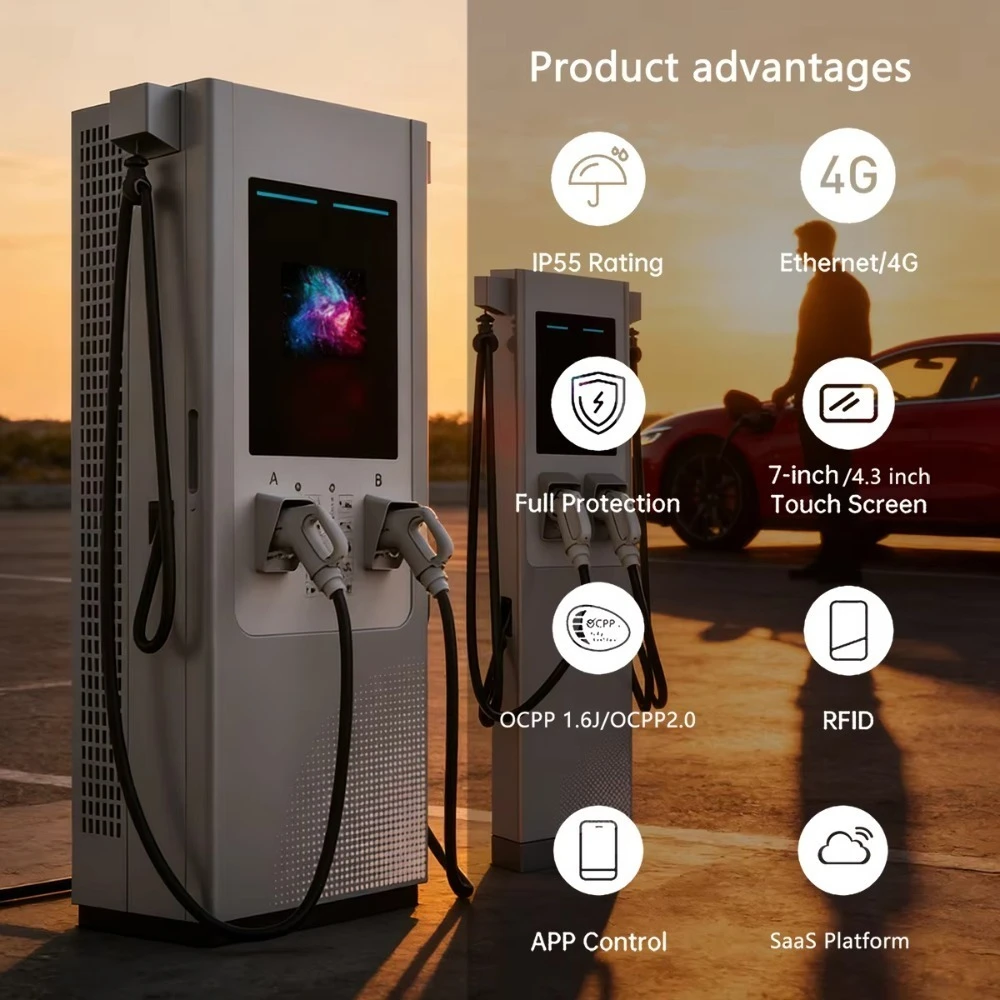

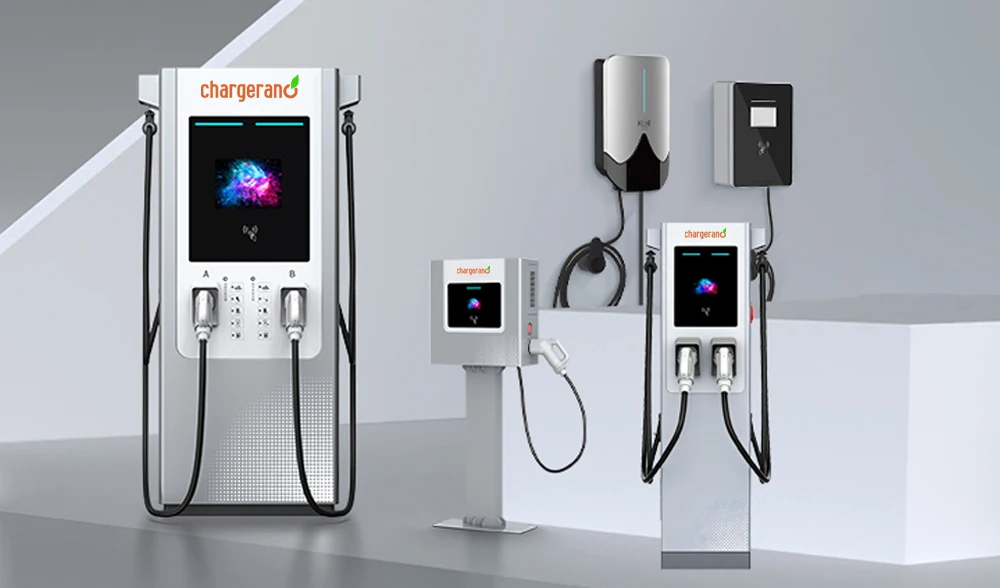

1.We provide charging station products from 7kW to 960kW full power segment 2.Our products include AC charging stations, DC fast-charging stations (split-type included), 600A liquid-cooled DC charging terminals, and supporting charging facilities. 3.comprehensive product certifications 4.OCPP 1.6J/OCPP 2.0 protocol 5.the use of high-quality components



Joint operation

Jointly bear the initial investment,reduce unilateral financial pressure, through the integration of multi-party resources and capabilities, to achieve rapid profitability.

Advantage

1. Off-grid/hybrid power supply scheme can be provided 2. Provide financing plan 3. Extended warranty period (8 years) 4. Localization adaptation scheme 5. Provide SaaS management platform 6.Co-operation model for rapid profitability





OEM/ODM service

We can meet all your customization needs!



For example: product color, logo,product application language, product function customization, function customization,cable length, shell redesign, electrical accessories brandrequirements, etc.

Product Description

Applicable Scenarios

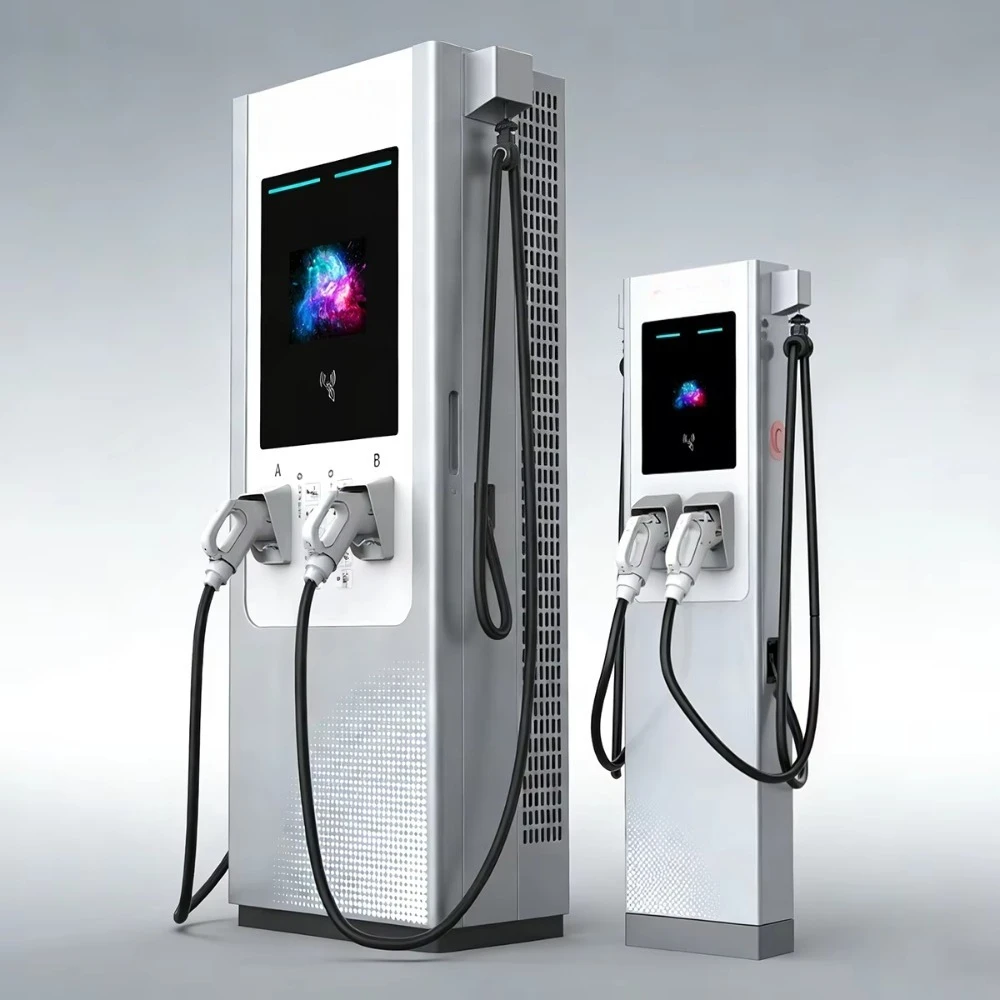

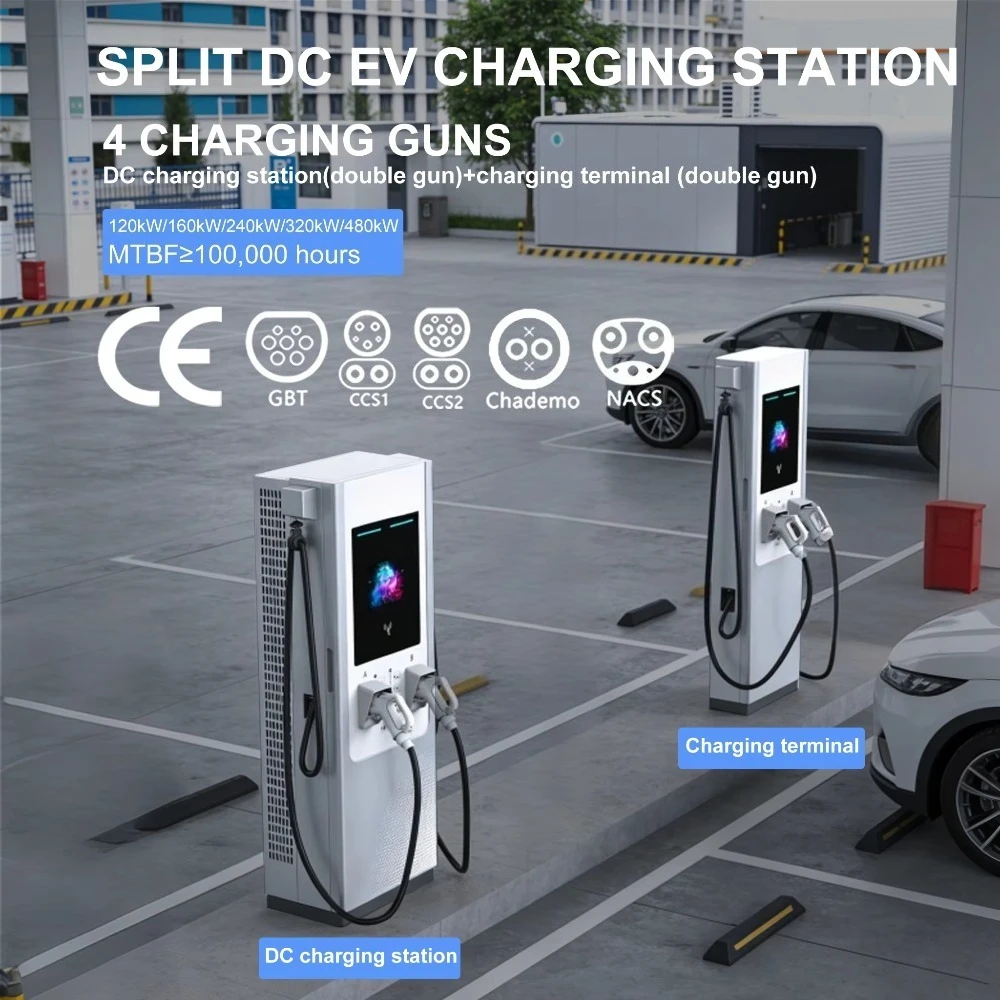

Suitable for large commercial buildings, highways, and charging stations. By separating the body of charging stack and the charging terminal, it can adapt to different power supply automatically, thereby achieving flexible charging.

Features
Ultra Low Power Consumption
High-efficiency charging module.Extremely low standby power consumption (less than 1%), which can effectively reduce operatingcosts.

High Service Life
Excellent electronic components, independent air ducts, and effectively extending the service life of the product.

Convenient For Installation and Maintenance
The equipment layout in the cabinet is reasonable, convenient for maintenance and can be installed against the wall, and the operating temperature of the module is <60°C.

Flexible Payment Methods

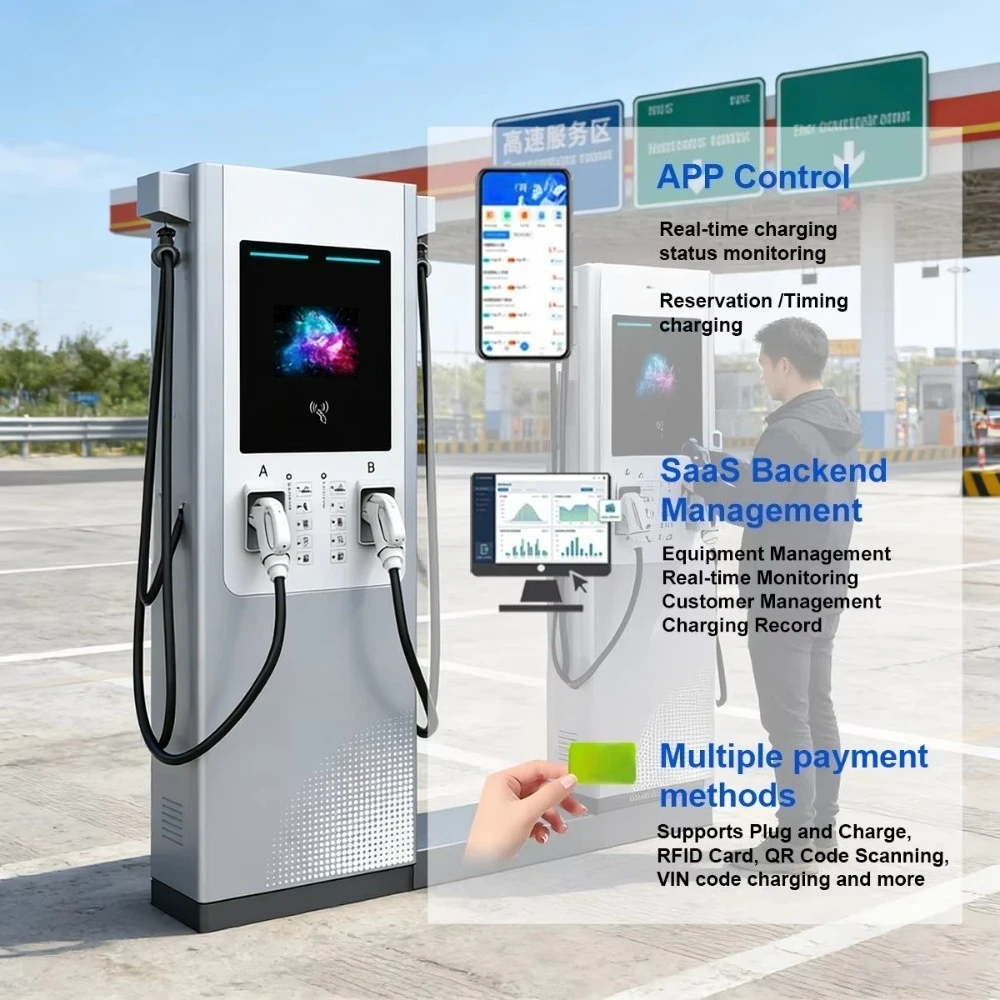

Plug-and-charge, card swiping charging, VIN code charging,and code scanning charging are available. Complete optional functions Full power supply is intelligently distributed, Optional 2-4 charging guns.

Specification

Model	GEVD-1201K
Product Name	Split DC EV charging station
Output power	120KW	160KW	240KW	320KW	480KW
Input voltage	AC400V±20%
AC frequency range	50/60HZ±10%
Output voltage	DC200-750V/DC200-1000V
coefficient	≤0.1%
Communication interface	Ethernet and 2G/3G/4G are optional
Safety regulation protection	Insulation resistance≥10MΩ,withstand voltage 2500VAC,protection level IP54
Protection functions	Overcurrent,overvoltage,undervoltage,integrated surge protection,PME(UK)
Warranty	24 months,warranty extension possible
Current stabilization accuracy	≤±1%
Harmonic distortion (THDi)	≥5%
Output current	CCS2:Standard:200A;Optional 300A(Nominal),400A(Peak) CHAdeMo:125A or 200A
Peak efficiency	≥96%
Voltage stabilization accuracy	≤0.5%
Reliability	MTBF≥100,000 hours
Operating environment	altitude≤2000m(apply derating when exceeding this altitude),temperature -40~70℃,humidity below 95%
Safety and compliance	IEC 61851-1;IEC 61851-23;IEC 61851-21-2;ISO 15118 Plug&Charge
Charging terminal	250A, double guns，4.3 inch touch screen
