4k new digital tv antenna receiver - indoor/outdoor hd digital terrestrial hdtv antenna

Compatible with various digital terrestrial signals: (dvb-t/t2, isdb-t, dmb-t/h, atsc, dtmb) hdtv

Just plugging in the antenna won't automatically give you channels. you need to search for them. remember, remember, remember!

You can receive the unit if all three conditions are met at the same time:

1. digital tv (if not, you can buy a ground wave digital set-top box) (you need a digital tv from recent years, old digital tvs may not be able to receive it}

2. **antenna placement:** ideally, place the antenna on the second floor or higher, in a location with good visibility, such as a window, balcony, or rooftop. in rural areas, a rooftop location is essential. avoid placing it on the first floor or next to the tv. the installation location is crucial, so experiment with different placements to find the optimal position. remember to rescan for channels each time you adjust the location.

3. there is a ground wave transmitting station in the local area

The maximum number of units accepted is determined by the number of units opened by the transmitting station)

Urban and rural areas should be no more than 30 kilometers away from the county seat.

General operating steps. actual tv operation may vary. please refer to your specific tv's instructions, but the underlying principles remain the same.

Step a:

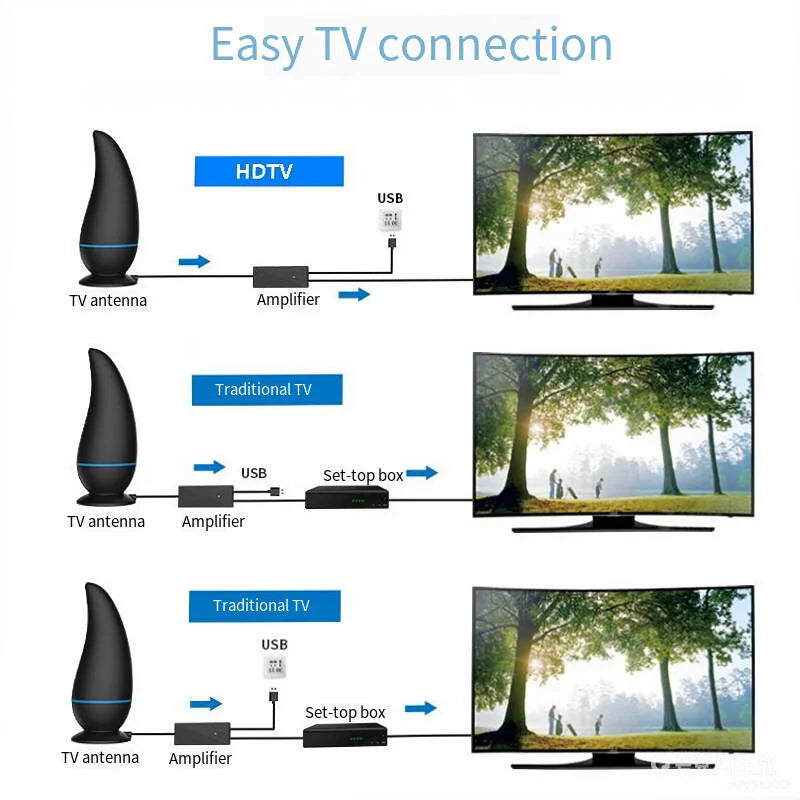

1. plug the antenna into the tv. place the receiver outdoors on a balcony or window at or above the second floor. in rural areas, install it on the roof (remember not to place it next to the tv or on the first floor).

2. use the tv remote control to click "source" or "source" to select "digital tv or dtmb or ground digital or ground reception, live tv or the signal source of the digital signal of the corresponding country" smart tv (new type) select "tv or tv" and confirm.

(if the screen shows "no signal" after selection, it's normal. proceed to the next step.)

3. use the tv remote control to search for channels (click "menu" - "channel" - "automatic search" on the remote control). some menu lists have channel search options below them.

Product parameters:

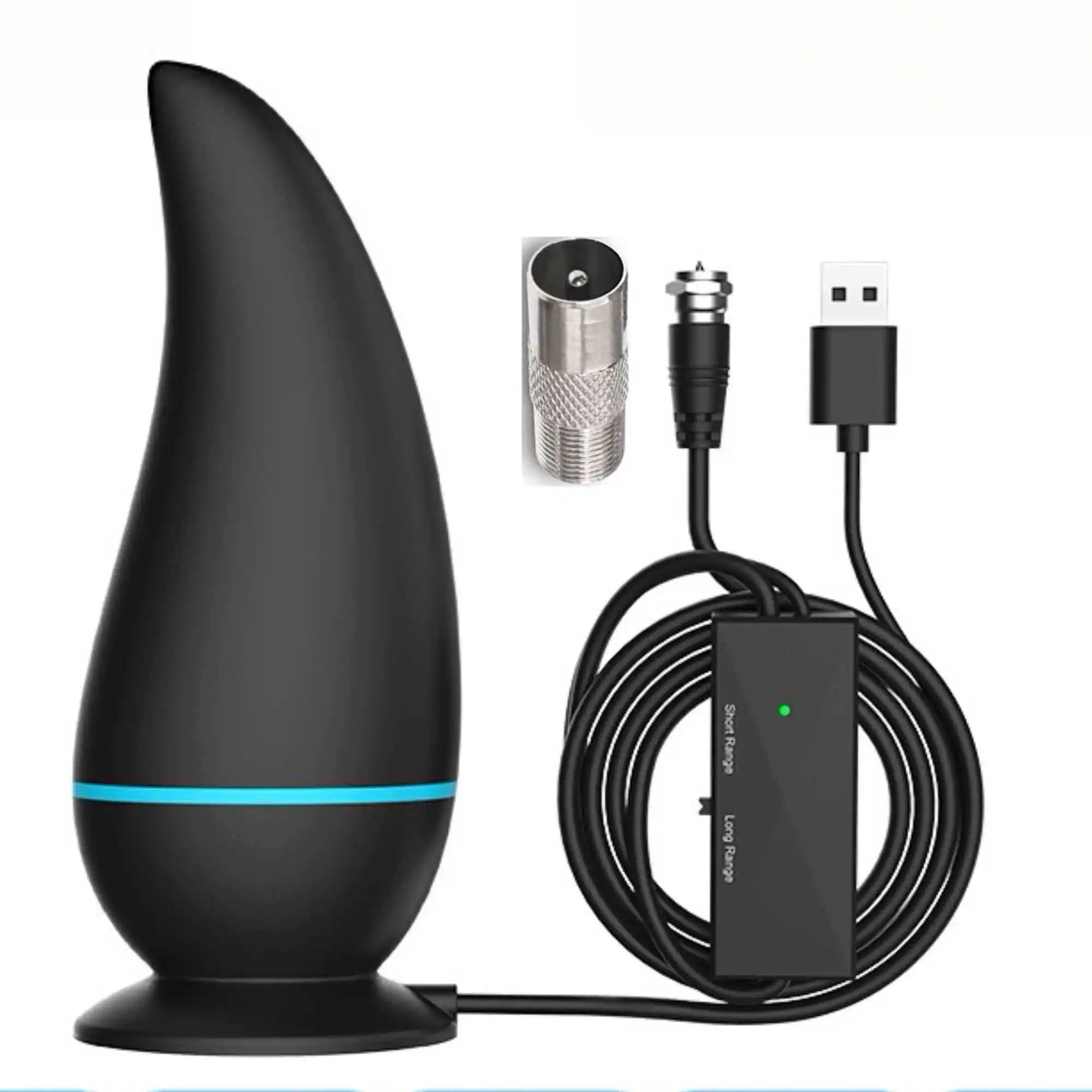

Product list: antenna + european and american standard universal adapter + user manual

(1) weight: 285g with packaging

(2) color of this model: black

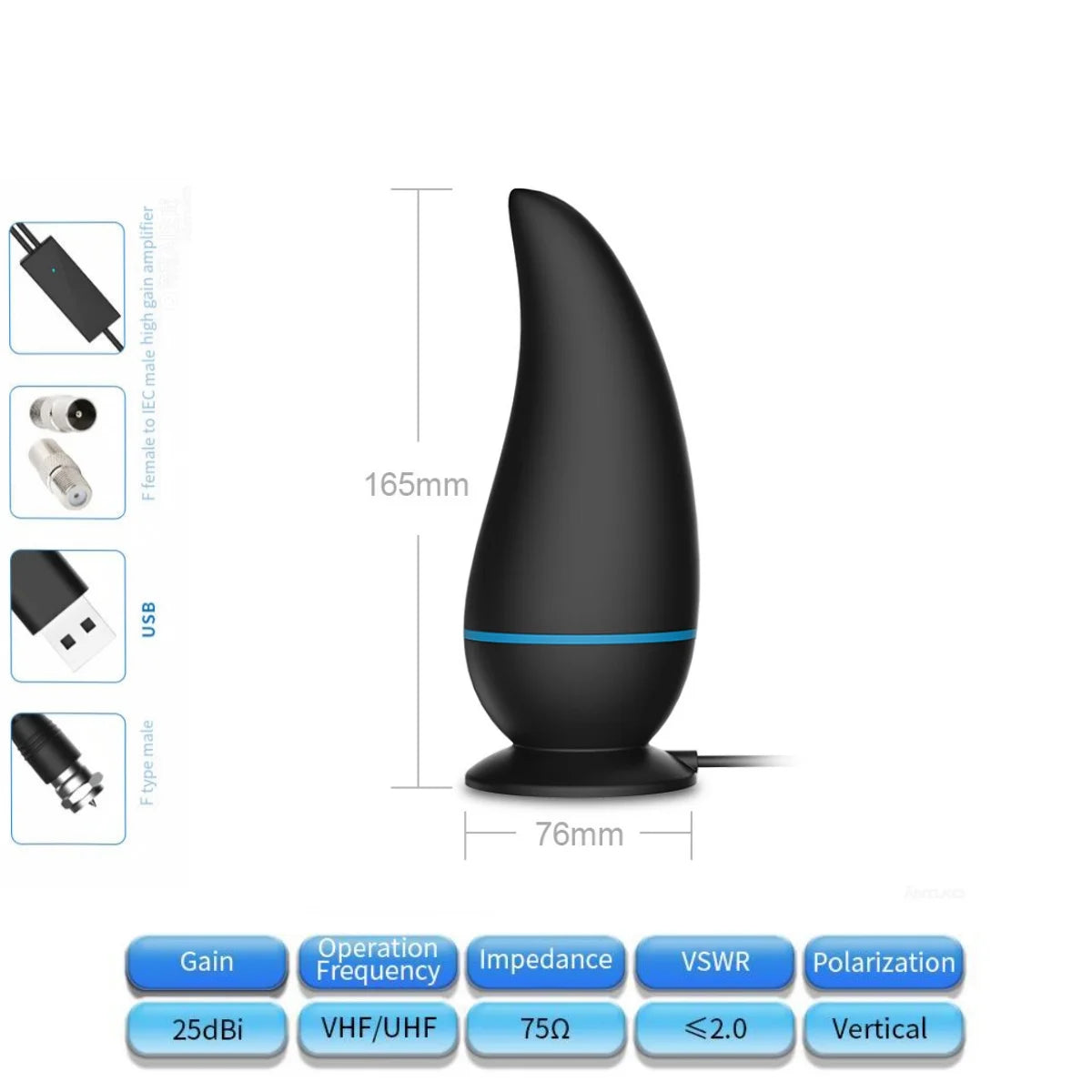

(3) product size (mm): 76*50*190mm

(4) 4m wire length

(5) support 1080 p hd mode

(6) 50-80 mile range (anything above 120 miles is generally inflated advertising; digital tv signal power is rarely, if ever, 5000w).

(7) cable length: 5m (can be personalized)

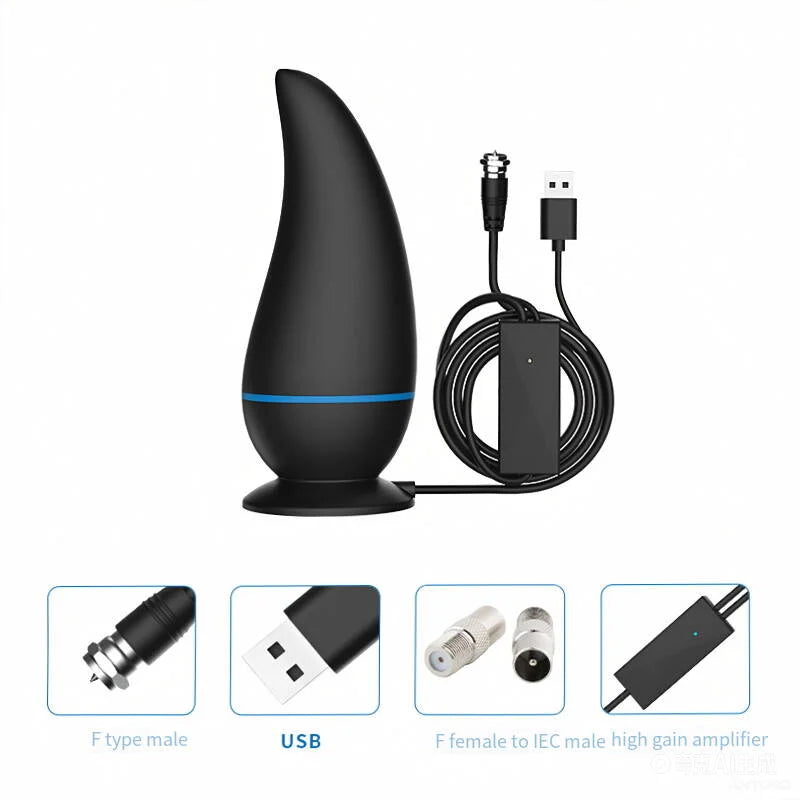

(8) connector type: f male or iec head

(9) standing wave ratio: ≤1.5, maximum value: 1

(10) impedance: 75 ohms

(11) can receive all "free" channels

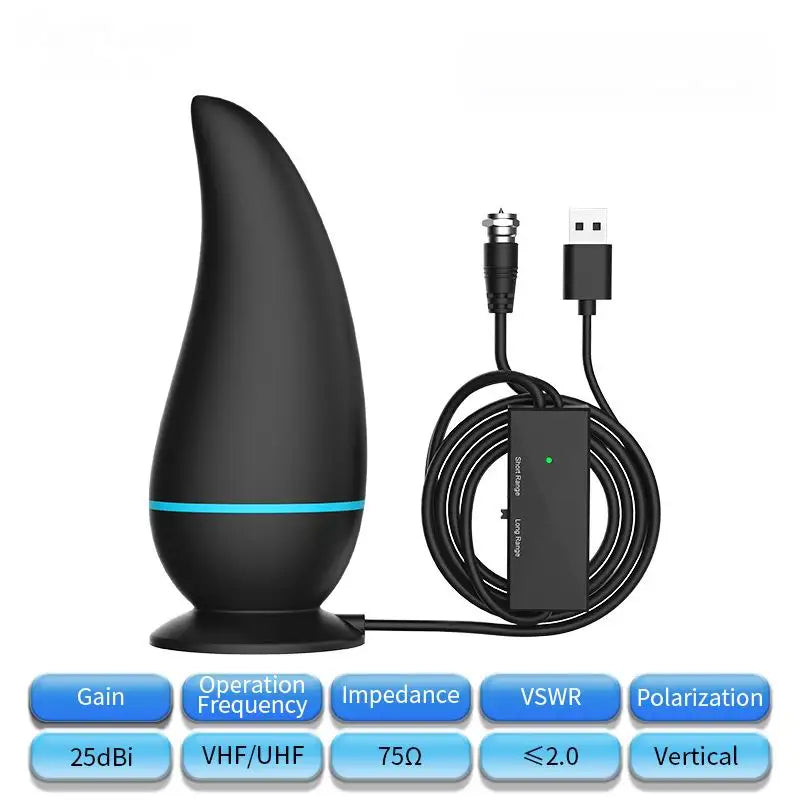

(12) gain: 25 dbi

(13) neutral color box packaging

(14) working frequency: 174~240mhz, 470~862mhz

(15) panel material abs

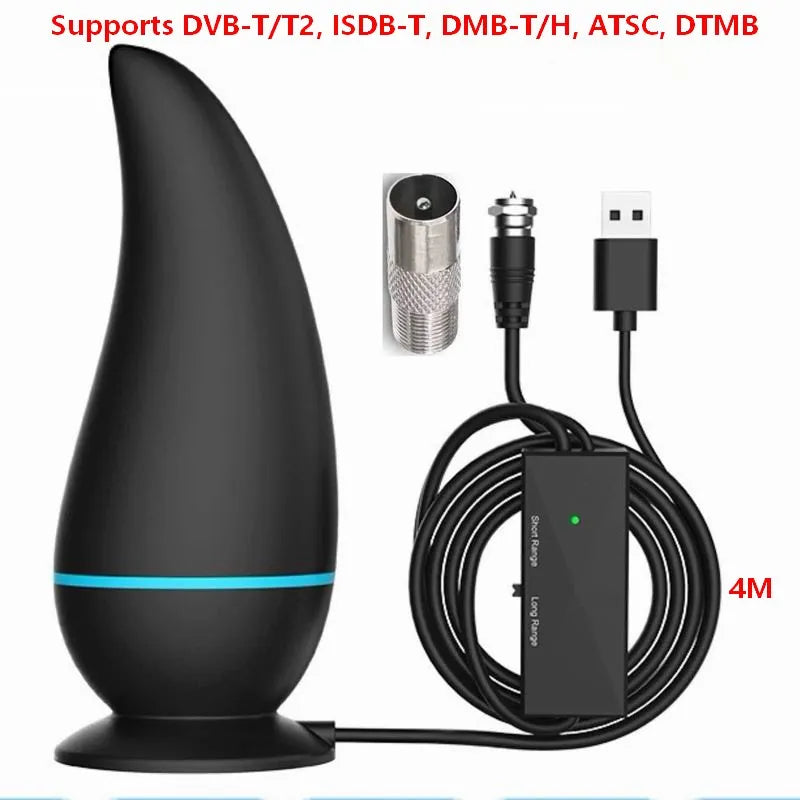

(16) globally compatible with signal support for: dtmb (china), atsc (north america), dvb-t (asia/africa), dmb-t (south korea), and isdb-t (brazil).
