SPECIFICATIONS

4G LTE: 4G OR 5G M.2 5G NR Optional

Battery: Non-removable 1300mah+Hot-swappable 4850mah

CPU: 12th Intel i5-1235U/ i7-1255U Optional

Feature: 4 G

Fingreprint: Built-in SPI fingreprint(Power on login)

GPS: U-blox neo-7 support satellite: GPS

OS: Winndows 11 pro os

Product name: rugged laptops

RAM/SSD: 16/32gb DDR5 ram +256GB/1/2TB SSD

Screen Size: 14/15.6"16:9,1920(H)*1080(V) FHD,1000nits

Wifi: wi-fi 6 802.11a,b,d,e,g,h,i,k,n,r,u,v,w,ac,ax

after-sales service: Return and Replacement

body material: Plastic

brand name: Genzo

cooling system type: DUAL FAN

display ratio: 16:09

display resolution: 1920x1280

graphics card brand: Intel

graphics card type: Dedicated Card

hard drive type: SSD

keyboard language: English

operating system: Windows 10

optical drive type: None

package: Yes

panel type: IPS

place of origin: Guangdong, China

plugs type: EU

port: 3*USB3.0

ppi: 160

private mold: Yes

processor core: Quad Core

processor main frequency: 4.70GHz

processor manufacture: Intel

processor type: Intel I5

products status: Stock

refresh rate: 65HZ

screen size: 14"

series: For Business

thickness: 21 - 25mm

video card: Intel Iris graphics

video memory type: GDDR5

warranty(year): 2-Year

weight: 2.5KGS

wlan: WiFi 802.11 a/b/g

10 Years Old Store Upgraded & Reopened

Product Description

Hardware
CPU	12th Intel i5-1235U, TDP15W,2P-Cores,8E-Cores,12threads;Speed: 0.9GHz~4.4GHz/ Optional i7-1255U, TDP15W,2P-Cores,8E-Cores,12threads;Speed: 1.2GHz~4.7GHz AI Laptop with 14th Ultra 5-125H / Ultra 7-155H
GPU	Intel® Iris® Xe Graphics eligible
RAM/ROM	16/32GB DDR5 （4800MHz）/  256GB NGFF SSD Removeable,  Optional 512GB/1TB SSD /2TB SSD
External Memory	Support TF*1,MAX 128GB

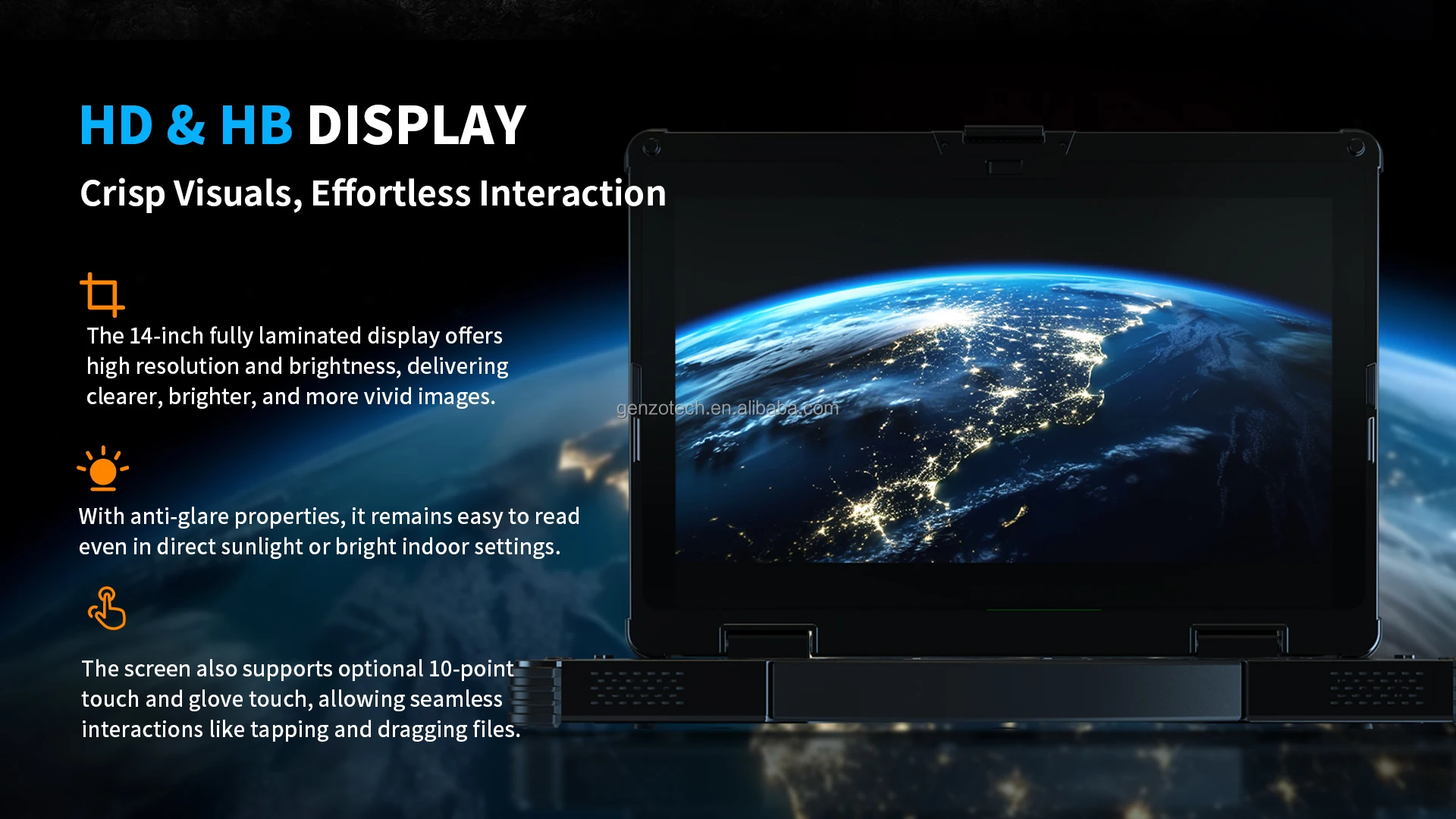

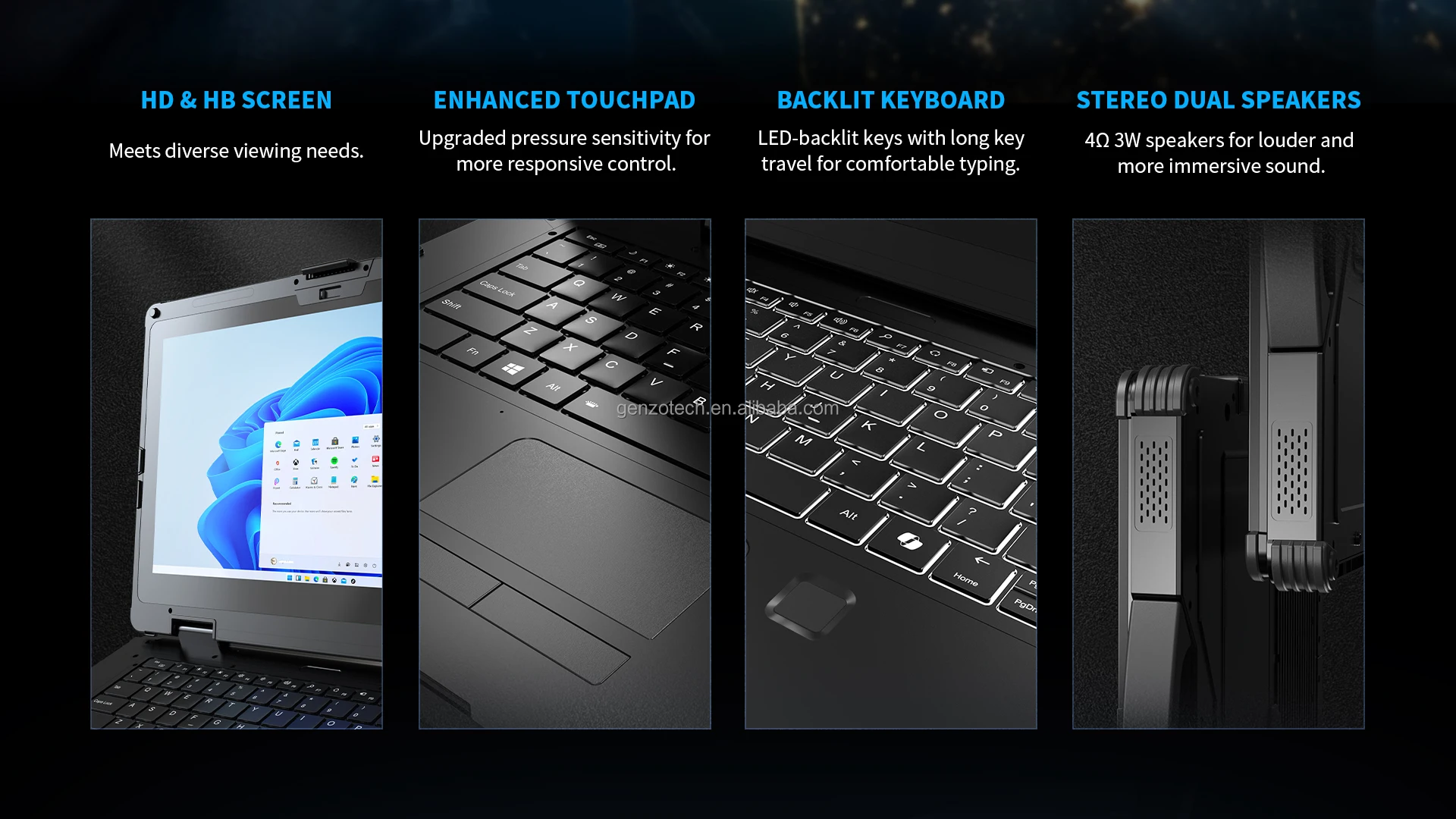

LCD Display	14 inch 16:9,  1920(H)*1080(V) FHD,      1000nis
Touch Panel	Optional 10 points Capacitive，G+G，Rigidity: above 7H-Anti-scratch, Support Corning gorilla and glove touch
Camera	Front 5.0MP, Anti camera LED

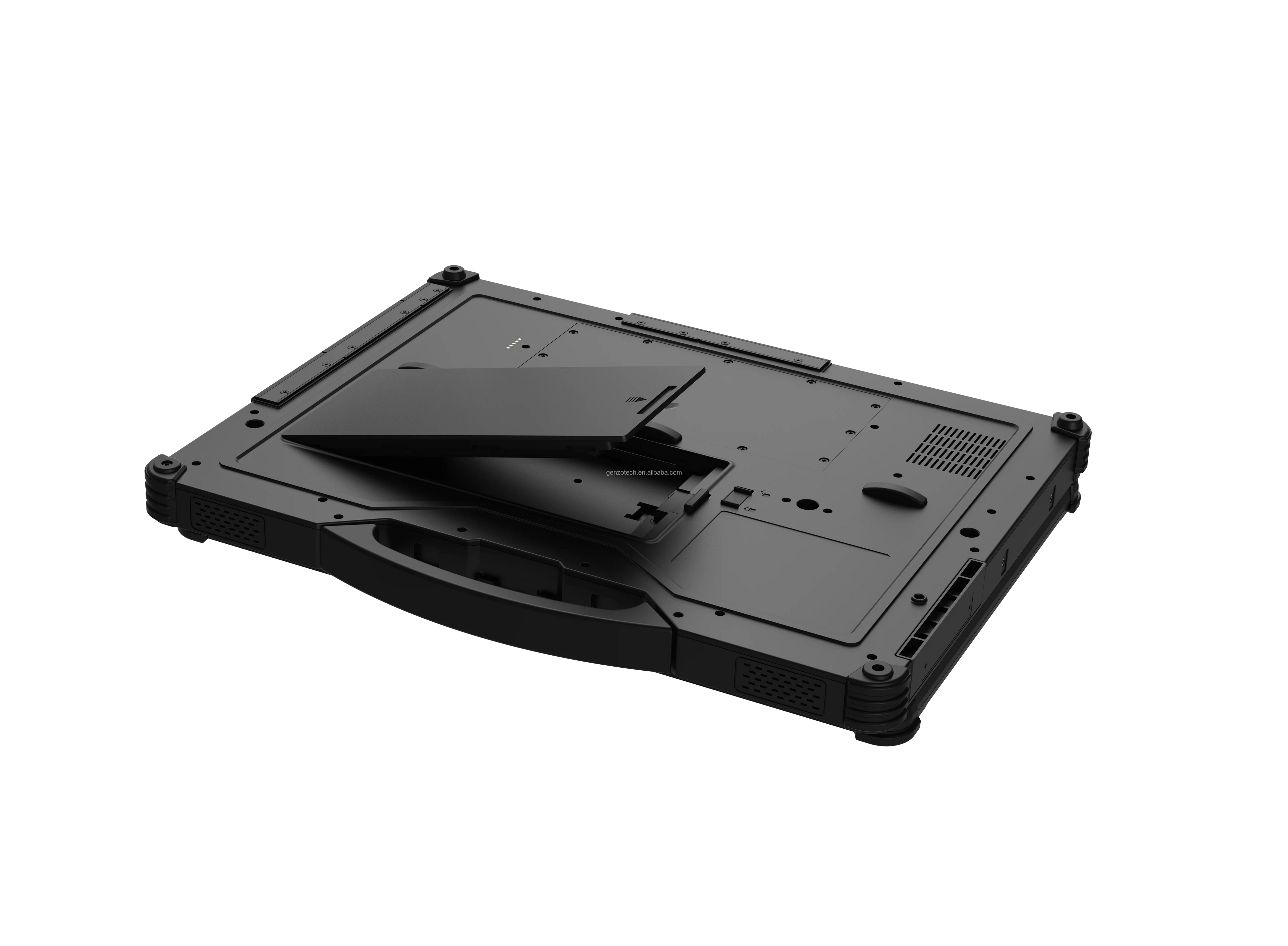

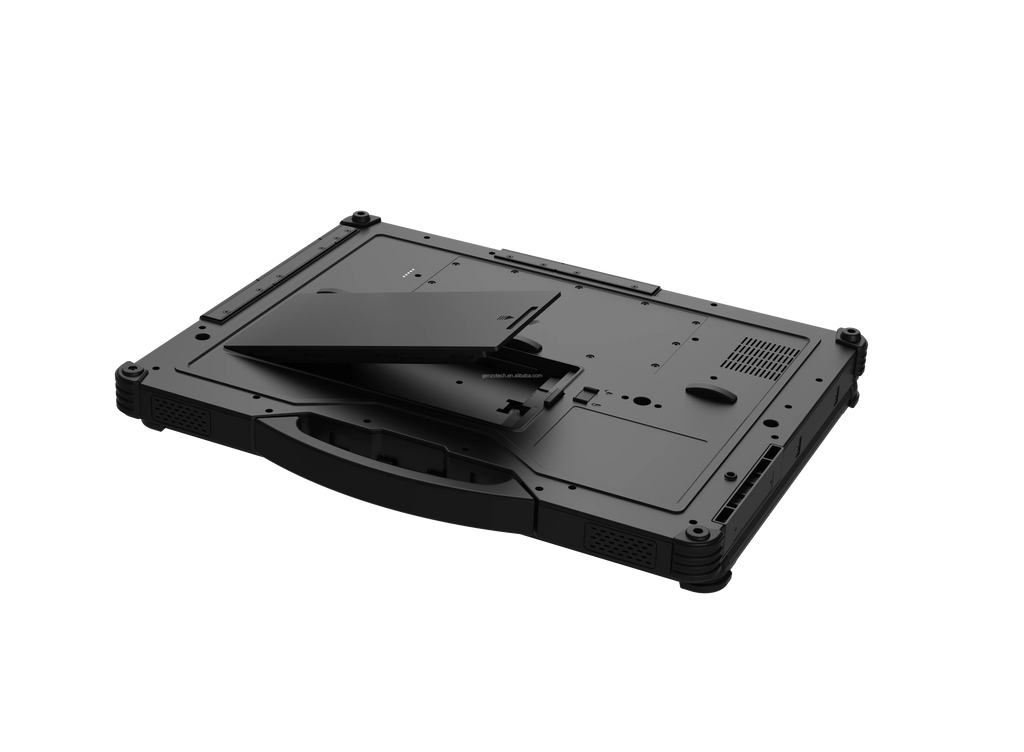

Battery	Lithium-ion ploymer battery. Dual Battery. Built-in Polymer Lithium-ion Battery, Non-removable 1300mah/11.1V (14.4WH) 1.5hrs (Default 50% volume, 200 lumens brightness,playing 1080P HD video) Removable Polymer Lithium-ion Battery, Hot-swappable 4850mah/11.55V（56WH） 7.5hrs (Playing 1080P HD video, Conditions: System in balance mode, 320 lumens, 70 dB at 10cm, WiFi and Bluetooth turned off.)
Speaker	Built in 4Ω/3W *2
Mic	Internal Digit MIC×2
TPM	Built-in TPM Security Chip SLB9665T2.0
Keyboard	US 104 button with backlight,IP65 German, Russian, French, Ukrainian, Spanish, Nordic keyboard Options available
Fingerprint	Built-in ×1 SPI Fingerprint (windows hellow boot login)
E-compass sensor	Built-in
Hall switch	Built-in
Gyroscope	Built-in
Data Collection & Networking
NFC	Optional NXP300,  13.56MHz, ISO/IEC 14443A/B,ISO/IEC 15693, ISO/IEC 18092
BT	BT 5.1

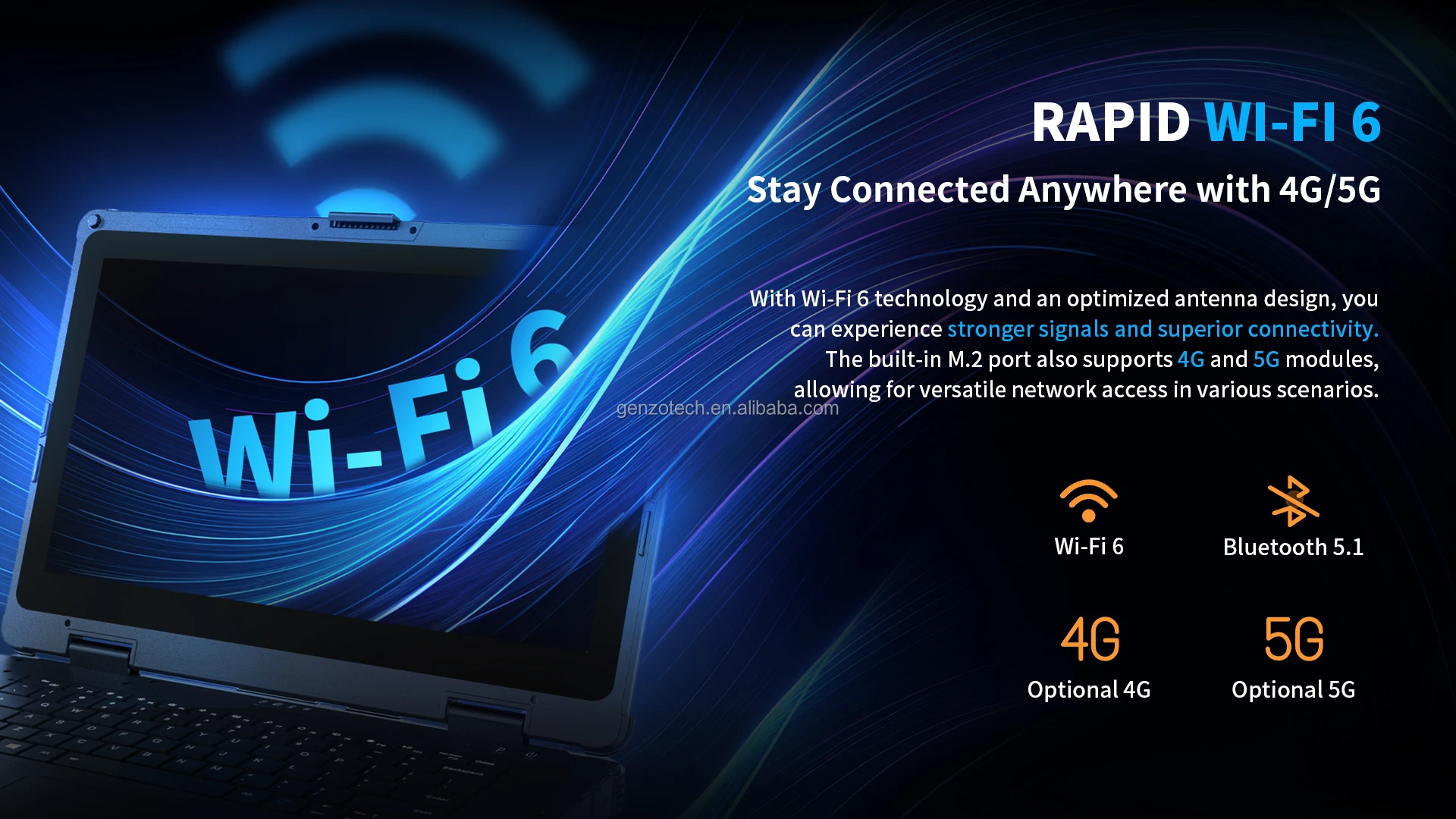

WIFI	WI-FI 6 802.11a,b,d,e,g,h,i,k,n,r,u,v,w,ac,ax
4G	Mini-pcie interface(USB and pcie signal compatibility)
GPS	Supports single GPS or single glonass, default GPS
OS	Windows 11 Pro inactivated os(Free) 64BITS, Optiona Home/IOT/LTSC - 64BITS

I/O Port & Appearance & Package

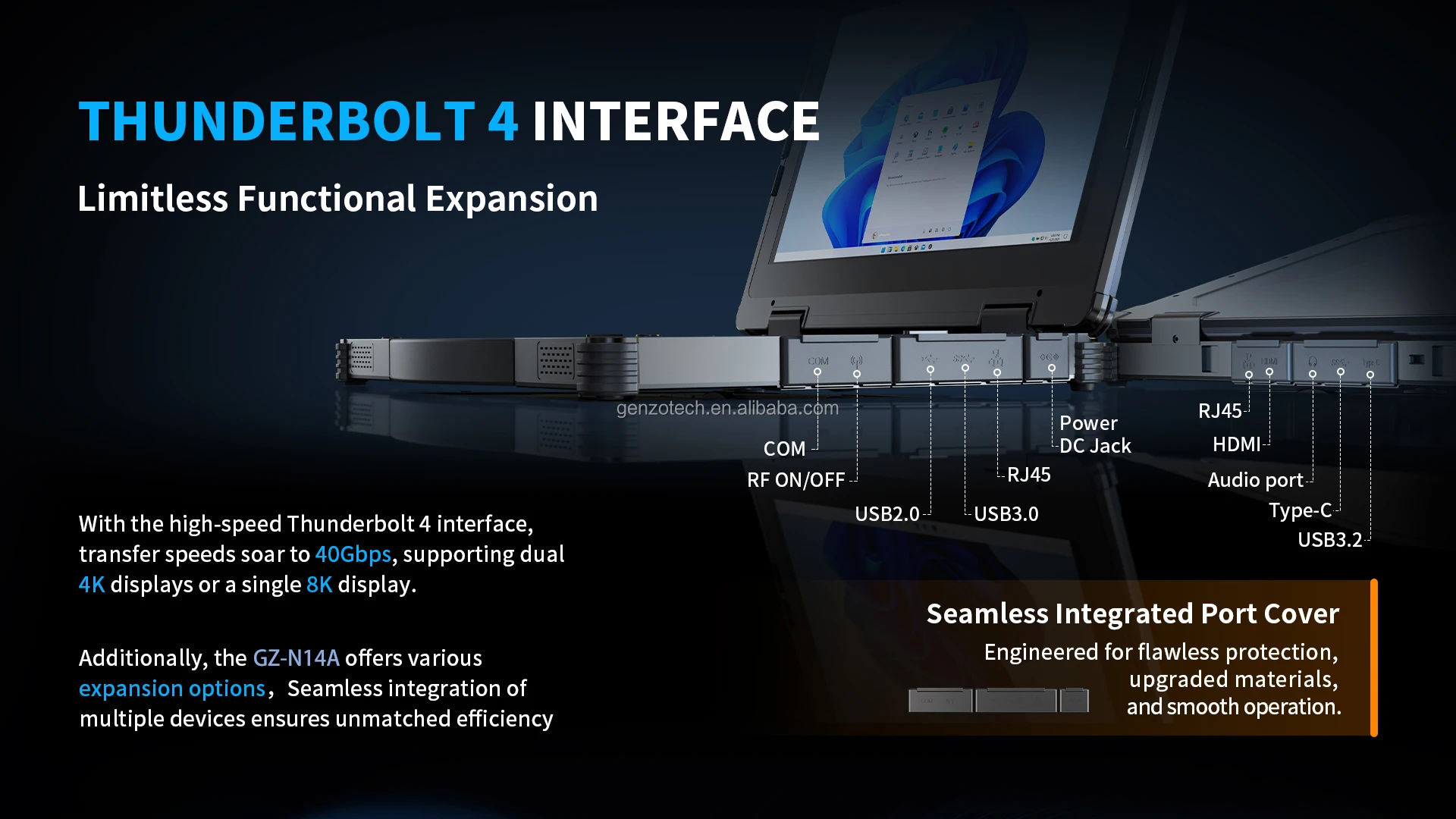

I/O Port	USB3.2 *1, USB3.0 *1, USB2.0 *1 TYPE-C, Supports Thunderbolt 4 ∮3.5mm Standard Earphone Jack *1 HDMI 2.0a mini x1, SIM *1, TF *1 Φ3.5mm standard earphone jack x 1,Φ5.5mm DC 19V 3.42A DC jack x 1 RJ45*1 10M/100M/1000M adaptive RJ45*1 10M/100M/1000M adaptive, Supports Gigabit Protocol RS232 *1, 9 fully functional lines DC19V/3.78A ∮5.5mm Power port *1 12PIN Pogo Pin (USB & charging) *1, Optional Anti-theft Lock Slot *1 Right-side Cooling Vent *1 Left-side expansion slot, Optional M.2-2280 PCIe interface *1, supports SSD; Optional: M.2, E-KEY, PCIE interface *1 for custom modules.
Keys	Power Button *1 P Key *1 (one-click screen off/on) RF *1 (toggle switch, enable/disable wireless functions)
Indicator light	Camera Indicator Light ×1, Constant white light when active, light off when inactivePower Indicator Light×1, Constant blue light when power on, light off when off Battery Indicator Light×1, (Dual-color red/green) Red when charging, green when fully charged, blinking red for low battery, light off during discharge Caps Lock Key×1 Red light on indicates caps lock on, off indicates caps lock off Airplane Mode Indicator Light×1, Red light on indicates airplane mode on, off indicates airplane mode off.
Power Adaptor	DC input 100-240VAC0.5A50/60Hz DC19V/3.78A 71.82W American Standard  UK/EU Standard Optional
Dimension	397*271*37 mm
Weight	Device unit: 3300g.
Package	DC19V/3.78A 71.82W/Packing box（Can be customized logo)
Certificate System & Reliability Design

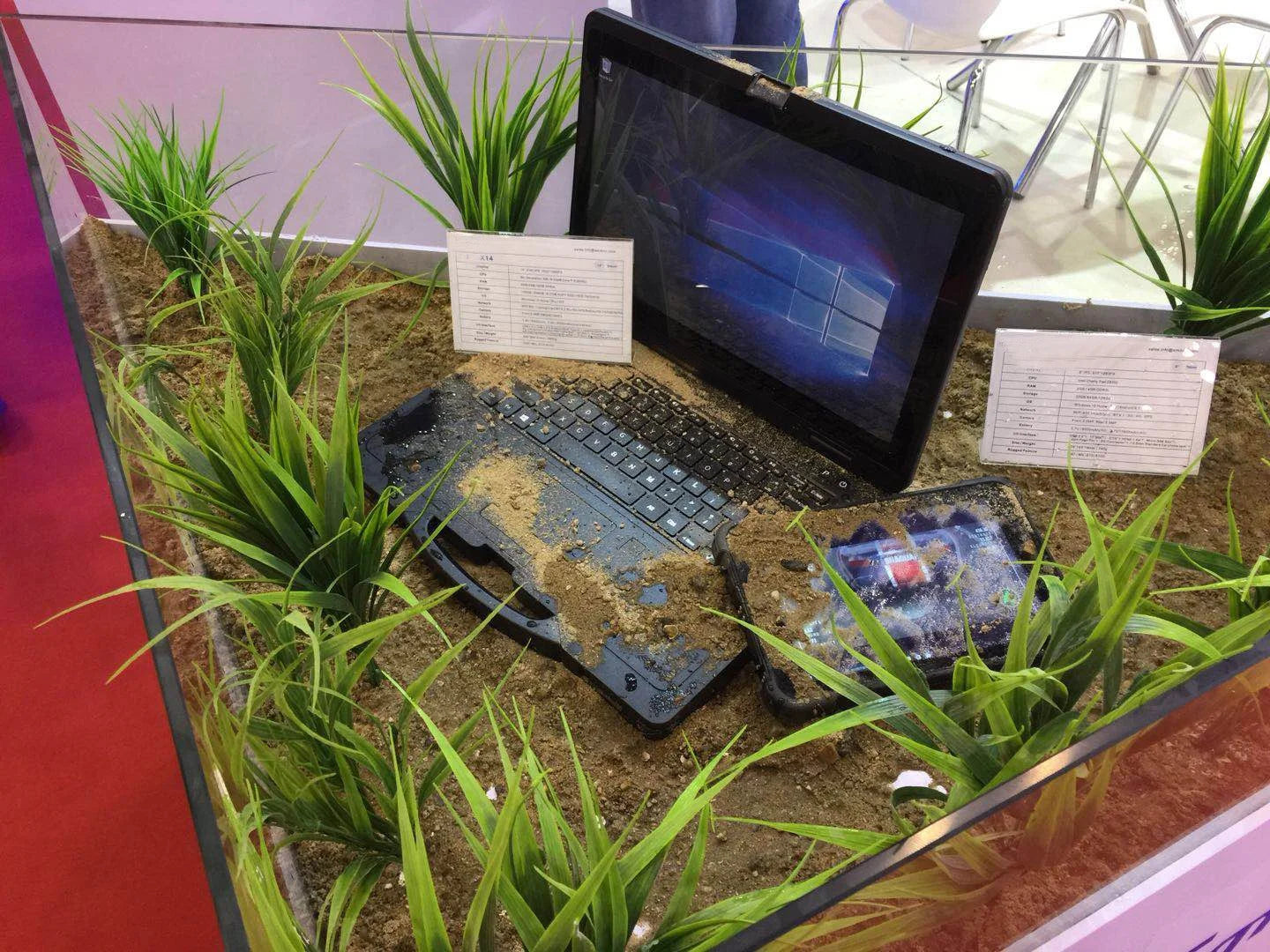

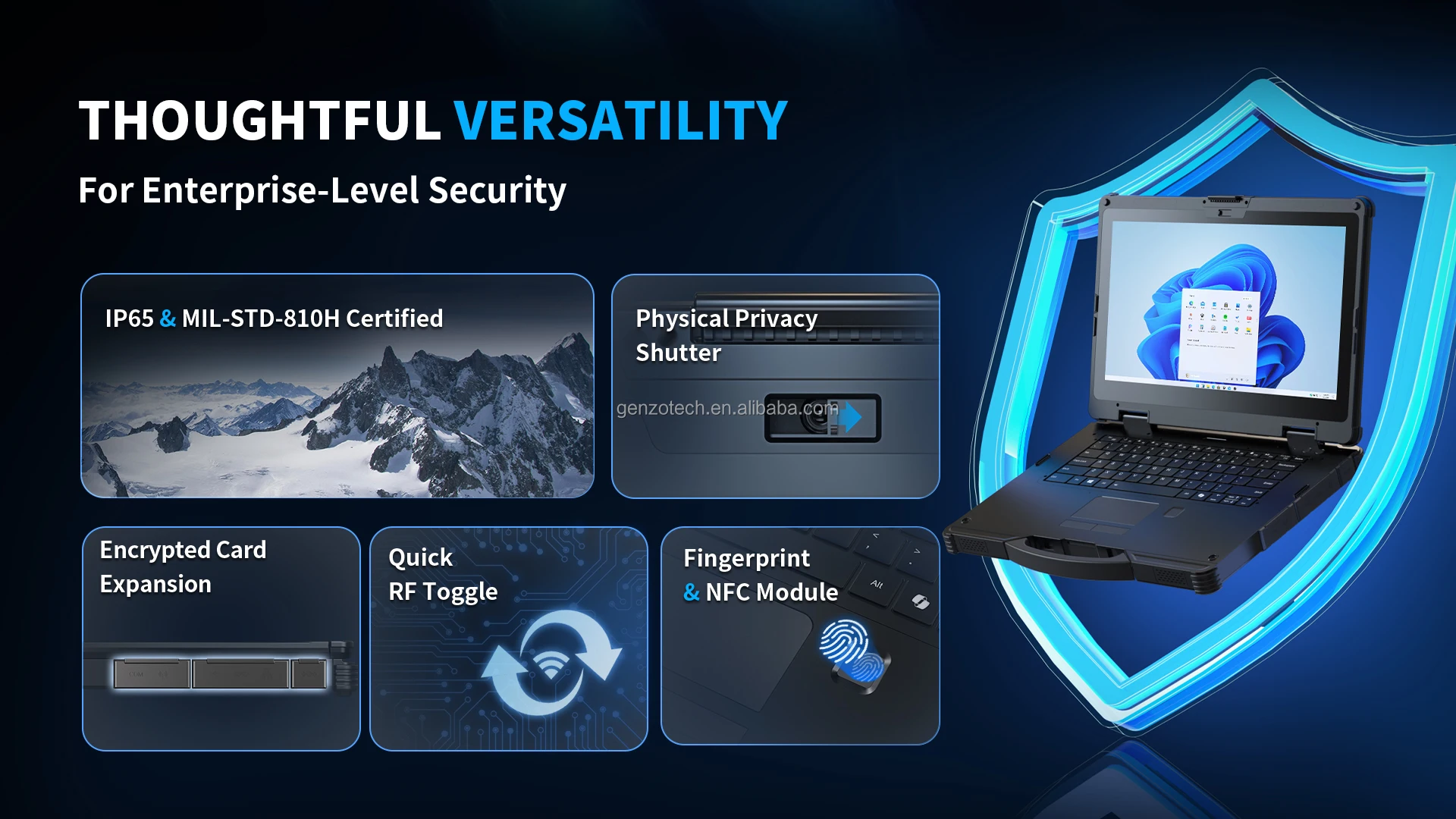

IP67/IP65	IP65 Report:Water Resistance:IP-X5，Dust Resistance:P-6X R a.Inner Nozzle Diameter:6.3mm；  b. Water Speed:12.5±0.625L/min；  c. Water Pressure:Adjust according to water volumn；  d.Central part of water volumn:A round with a diameter of about 40mm at the distance from the nozzle 2.5m.  e.Spray time in surface of panele: About 1 min/Square meter； f.Test time:at least 3min； g.Distance between nozzle and panel surface:2.5～3m.     After test,there is no water leakage in sample.
CE NB	YES
MIL-STD-810G	YES
Battery	UN38.3，MSDS,IEC62133
Drop Height	1.22m composite wood floors,in operation status
Operate Temperature	‘-20 °C to 60 °C
Store Temperature	’-30 °C to 70 °C
Humidity	Humidity: 95% Non-Condensing

Details Images

Payment & Packing &Shipping

Company Introduction

FAQ

Q :Are you manufacturer?
A: Yes, we are manufacturers.We can provide OEM / ODM customized service according to our customers’ various application and demands.All of our products are fully patented, ID/MD design, hardware and software,mold,assembly are done by our own team.

Q: Would you provide SDK for me?
A: Yes, we offer free SDK if you order sample.In addition, we also have support engineers to assist you with software development.

Q: What is the minimum order(MOQ)?
A: We accept one unit for standard products.we can even customized with your logo if needed. If require OEM, will see detailed requirements and confirm MOQ to you from our sales department.

Q: Can we get the free sample?
A: Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation.

Q: Can i choose multiple function into 1 device?
A: Yes, you can choose multiple fuction into onedevice, Different functions depending on the product model,optional functions:RFID(LF/HF/UHF)1 Fingerprint/ Bar code scanner.

Q: How to order and pay?
A: We accept T/T (bank transfer), Alibaba online,Western Union 1 Trade Assurance

Q: What's Your Products Warranty?
A: We Offer 18 Months Warranty after shipment sent.

Q: Can I extend the warranty?
A: We offer a deferred warranty for up to 36 Months, and the price for the warranty extension is 10% up.

Q: How long it will take for delivery?
A: For production lead time around 3-10 days depend on requirement, and shipping time by DHL/UPS/FEDEX/TNT, delivery time would around 3-5 working days. For some remote place, delivery time maybe a little bit longer.

Q:How to repair the device if any problem ?
A: We will provide technical support online to solve problem; If for the hardware problem , we could send the parts or components and teach customer to fit if they have technician or can also send backto us to fix it.

Q: Can you do customized and preload our software?
A:We are professional rugged device manufacture with 10 years experiences
