SPECIFICATIONS

Brand Name: Easloc

Card Capacity: 250 Pieces

Card Type: 13.56 KHz/ 125 KHz

Certification: CE, FCC

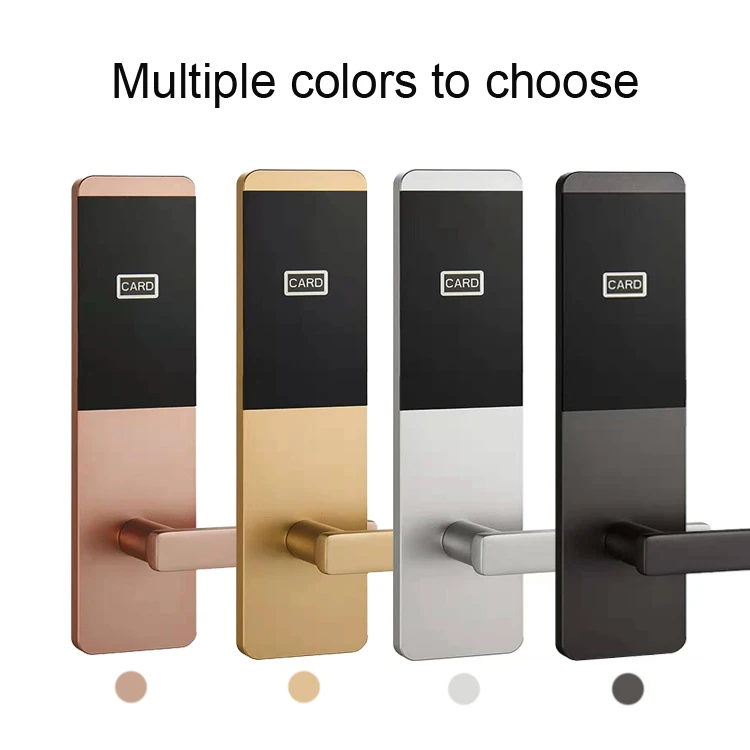

Color: Black/ Red Bronze

Data Storage Options: Cloud,Cloud

Door Type: Wood Door,Steel Door,Stainless Steel Door,Brass Door

Lock Cylinder Security Grade: Grade A

Material: Aluminum,Aluminium Alloy

Model Number: DSR723

Network: SDK

Place of Origin: Guangdong, China

Product Name: Hotel Door Lock

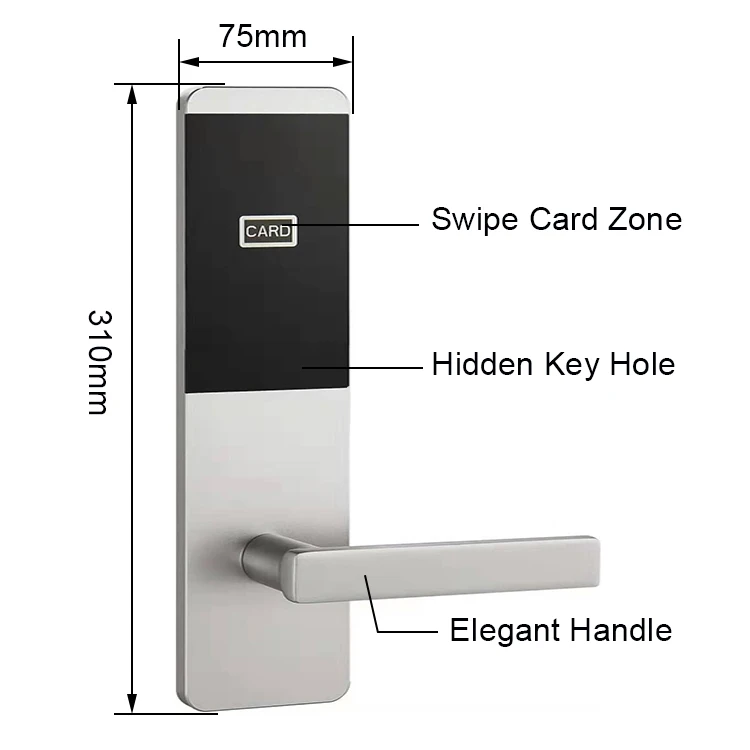

Size: 300*75 mm

Smart App: None

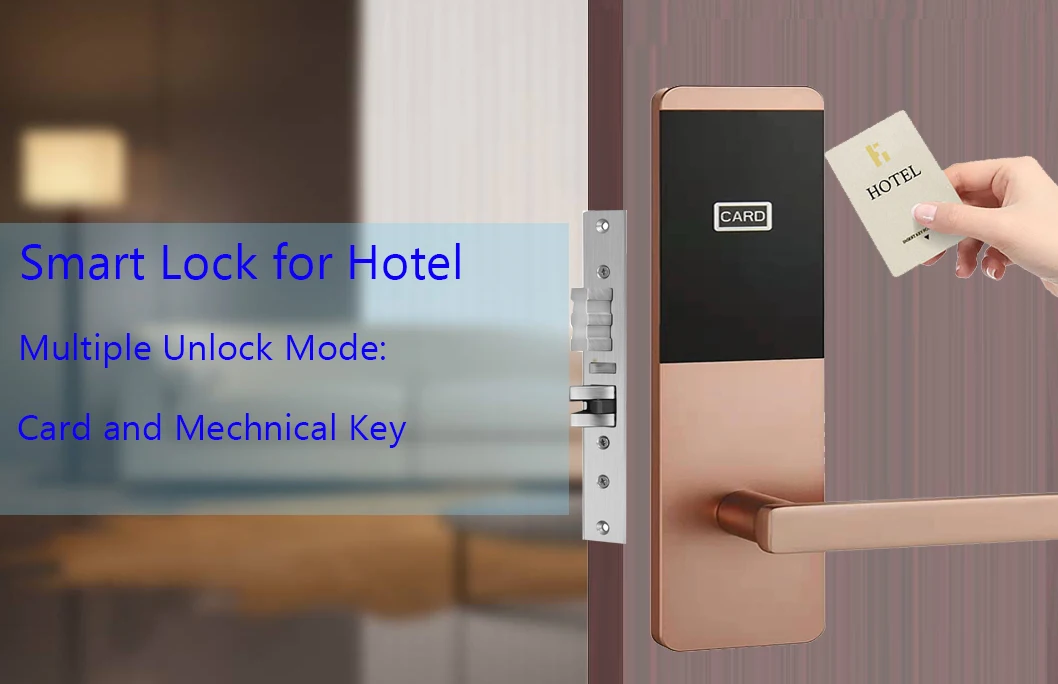

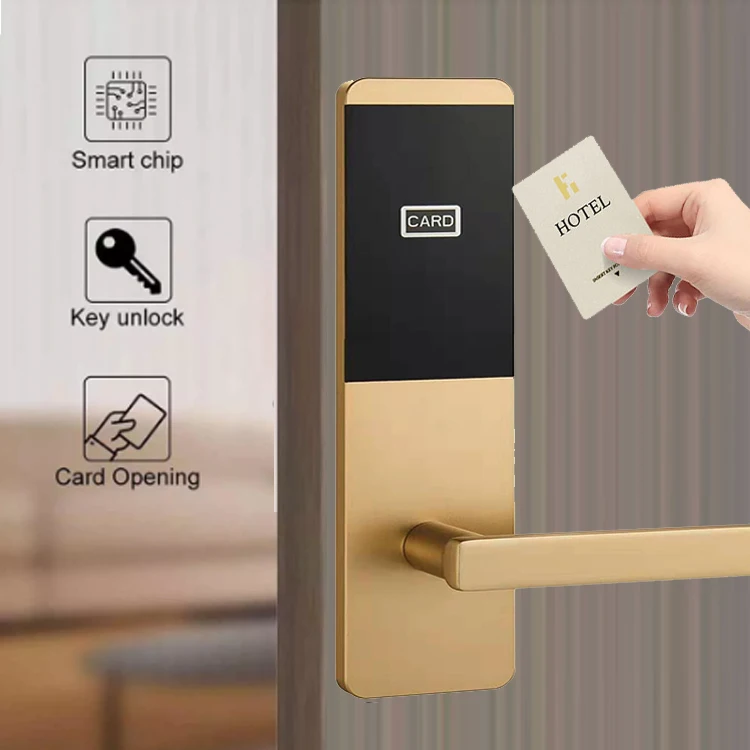

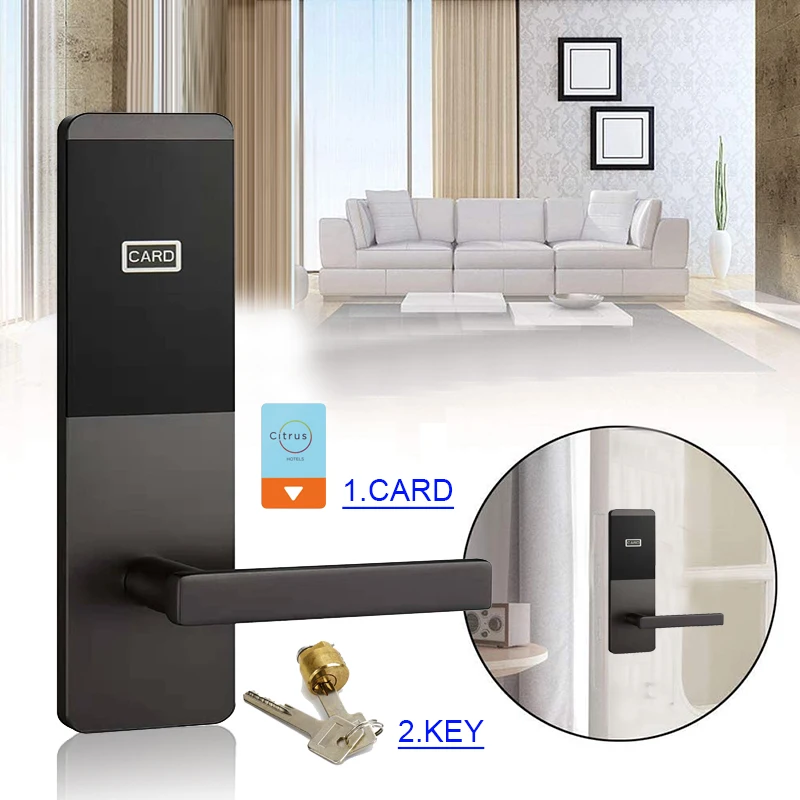

Unlock way: RFID Card + Mechanical Key

Warranty: 2 Years

Product Parameters

Model number	DSR723
Material	Aluminum alloy
Life span	about 5-10 years
Low voltage warning	Low voltage warning， when lock is low 4.8V
Power supply	4 AA Alkaline batteries
Unlock way	Card/ key
Read time	Less than 3 seconds
Card capacity	255 sets
Mechanical key	2 keys

Product Description

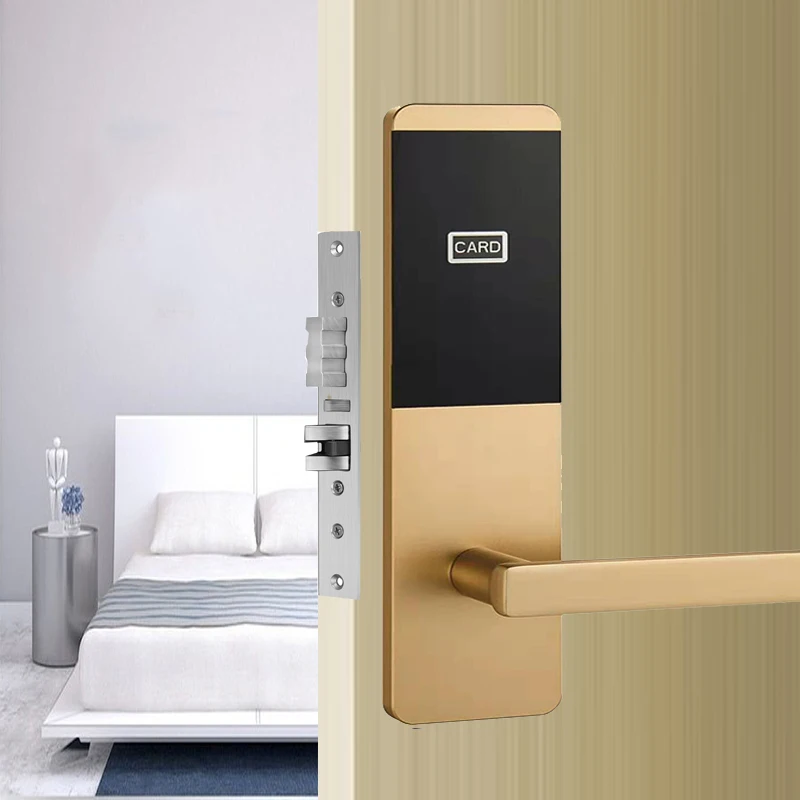

Overview of hotel smart lock
1. Card Type: M1fare S50 card, 13.56MHz, or Temic T5577 Card, 125KHz
2. Card Induction: Sensitive, inductive distance <3cm
3. Power Supply: DC 6V, 4 AA alkaline batteries. It can be used for more than one year in a normal state
4. Work Setting: Temperature: -10"C-60'C Humidity: 20%-90%
5. Door thickness require: 38-48mm (Pls inform if special requests)
6. Suitable Door: Wooden door, fire- proof door, metal door and so on
7. Application : Hotel, Home,high-grade apartments, offices, residential areas
8. Hotel Lock System: includes hotel locking software(offer free),encoder, RF card, energy-saving switch, data collector
9. Service: We can customize production according to your requirements, OEM/ ODM service

10. Warranty: 2 years

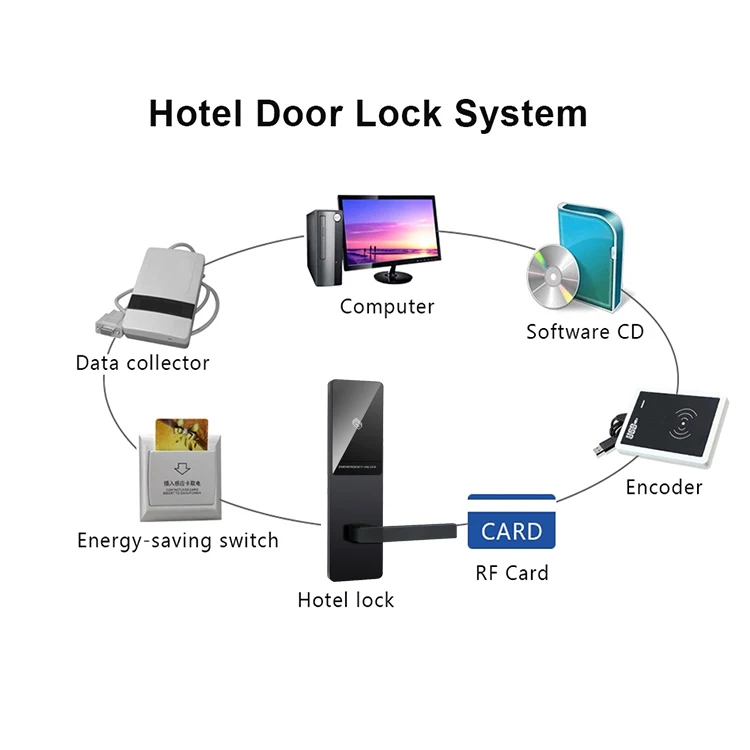

How EASLOC stainless steel Electronic hotel room key card door lock works?

1. Hotel card lock ( Installed on the hotel room door)
2. PC ( usually located on the reception desk of hotel lobby)
3. Hotel management software ( Download to PC,setting the system )
4. Encoder ( Connect to PC,Issue the cards)
5. Cards ( Open the doors)

Detailed Images

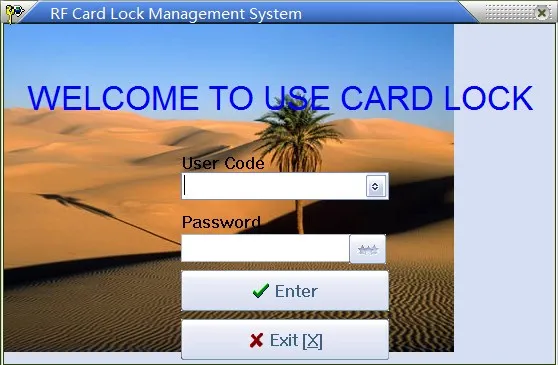

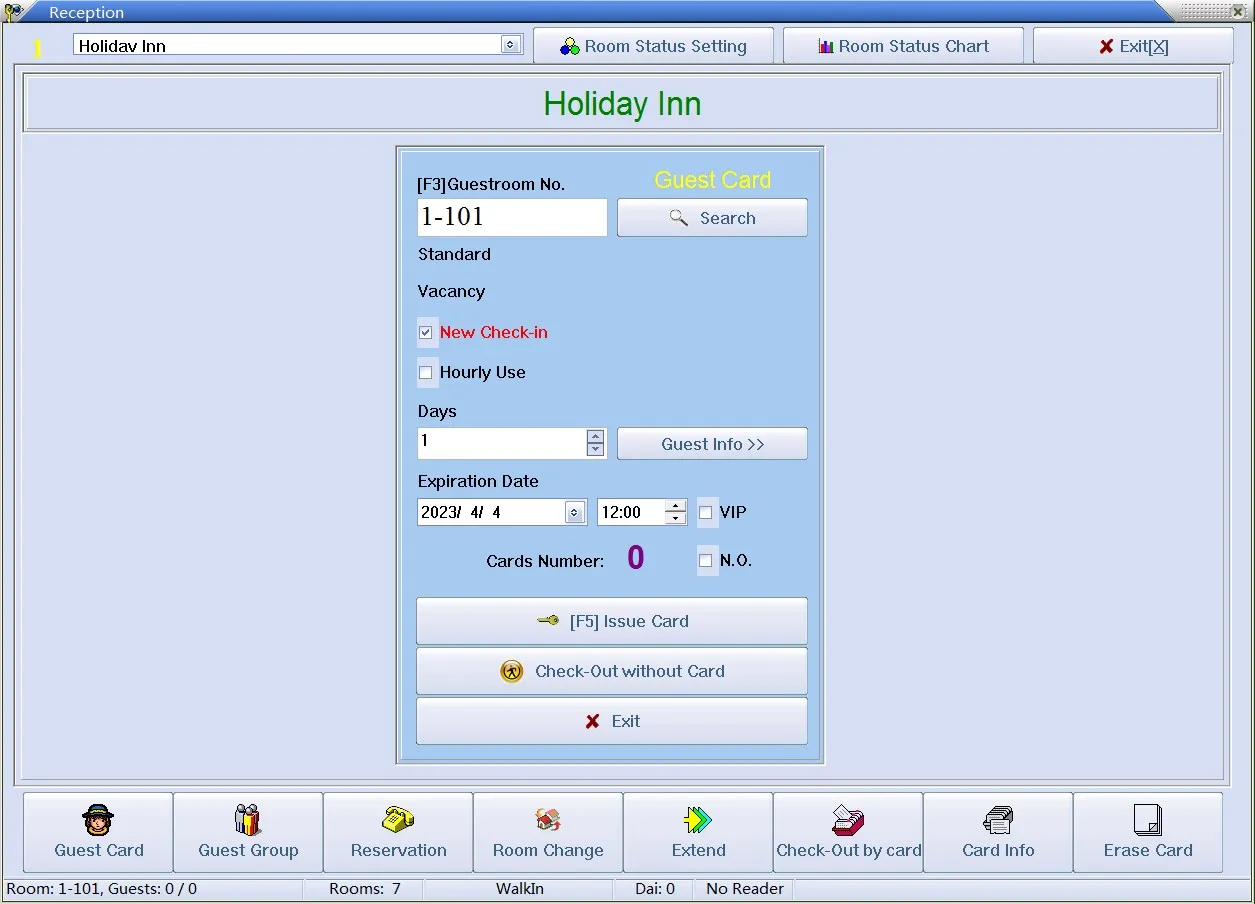

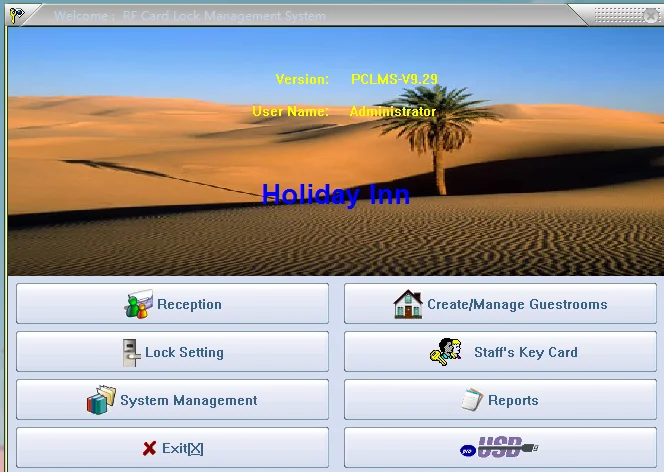

Smart door lock software

Hotel Lock System Details
Basic(necessary) components of hotel lock system include:
Software	Send you for free. It is management system. Work on window XP, 7, 8, and 10. Compatible with most of the common property management systems(PMS) interface
Computer	It is used to install lock management software, prepared by hotel.
Card encoder	Device for reading and encoding( issue ) the card. USB port.
RF cards	One Lock need at least one pcs card, for opend door. 100,000 times durable.
Locks	Install onto the door. Independent, wireless, battery-operated. It stores latest 250 events. Perfect reading.Advanced security performance.
Optional components:
Data collector	It is used to collect the unlocking records from the locks, and read on the computer.
Energy-saving switch	Device allow the key card to turn on the lighting system and air controller of the room.
Elevator/ Access reader	Device for controlling the elevator or public access.
