Indoor Outdoor Led Display Screen Stage Background Led Video Wall Complete System P1.9 P2.6 P2.9 Seamless Splicing LED Panels
cabinet 500x500mm
€264,95
Sale price
€264,95
Regular price
Skip to product information
Large quantity , better price !!! More Details ,Pls feel free to contact us !
Indoor Outdoor Led Display Screen Stage Background Led Video Wall Complete System P1.9 P2.6 P2.9 Seamless Splicing LED Panels
€264,95
Sale price
€264,95
Regular price
Taxes included.
Shipping calculated at checkout.
SPECIFICATIONS
Brand Name: COREMAN
Color temperature: 7500k
Display Function: video ,animation ,graphic ,messages,text
Drive method: 1/ 28 Scan
High-concerned chemical: none
Horizontal/Vertical Viewing angle: 160/160 degree
Life span: ≥100,000
Model Number: P2.976
Module resolution: 84*84dots
Module size: 250*250mm
Origin: Mainland China
Pixels: 2.976mm
Tube Chip Color: RGB
Usage: advertising
Use: Indoor
Working Temperature: 40-+65 degree
cabinet size: 500x1000mm
is_customized: Yes
key words: p2.9 led screen
led chip: kinglight or nation star
warranty: 3 years
working voltage: 110- 240 V
Indoor led cabinet 500x500mm
500x500mm Indoor Led Cabinet | ||||
Type |
P2.604 |
P2.976 |
P3.91 |
P4.81 |
Pixel pitch |
2.604mm |
2.976mm |
3.91mm |
4.81mm |
Module size |
250x250 |
250x250 |
250x250 |
250x250 |
Module resolution (pixel) |
96x96 |
84x84 |
64x64 |
52x52 |
Pixel density |
147492dots/㎡ |
112918dots/㎡ |
65536dots/㎡ |
43264dots/㎡ |
Pixel Configuration |
SMD1515 |
SMD2121 |
SMD2121 |
SMD2121 |
Cabinet size (mm) |
500x500 |
500x500 |
500x500 |
500x500 |
Cabinet resolution (pixel) |
192x192 |
168x168 |
128x128 |
104x104 |
Scan mode |
32s |
28s |
16s |
13s |
Cabinet Weight |
7kg |
|||
Average consumption |
180-250w/㎡ |
|||
Max power consumption |
300-430w/㎡ |
|||
Brightness |
≥1200-1500cd |
|||
Best View distance |
≥2m |
|||
Viewing angle V/H degree |
140º/140º |
|||
Contrast rate |
5000 : 1 |
|||
Refresh rate |
≥1920-3840hz |
|||
Waterproof grade |
IP31 |
|||
Grey Scale |
16bits |
|||
Working voltage |
110-220VAC/50Hz |
|||
MTBF |
≥5000hrs |
|||
Life span |
100000hrs |
|||
Certification |
CCC/CE/RoHS/FCC/ISO |
|||

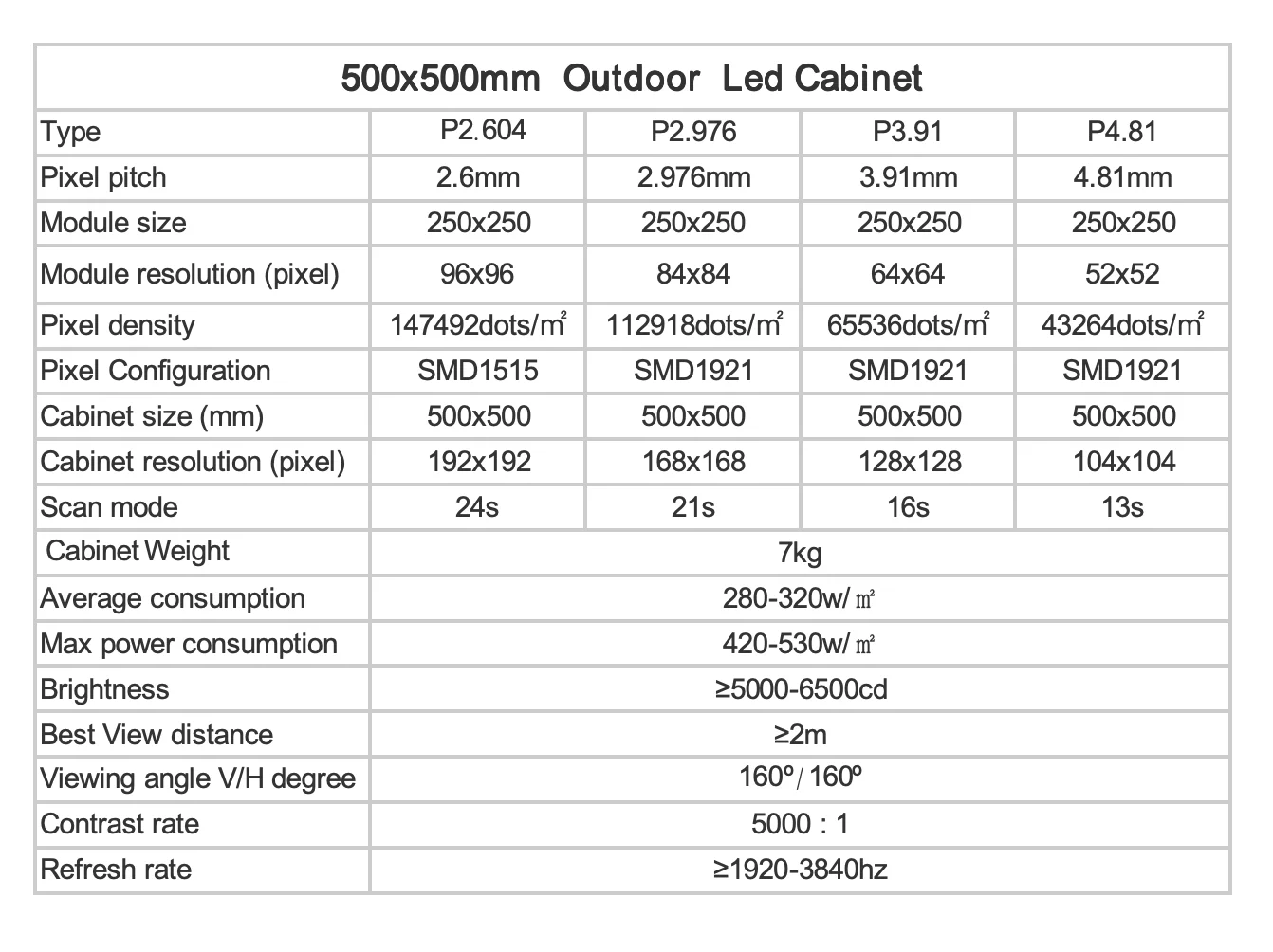

Outdoor led cabinet 500x500mm

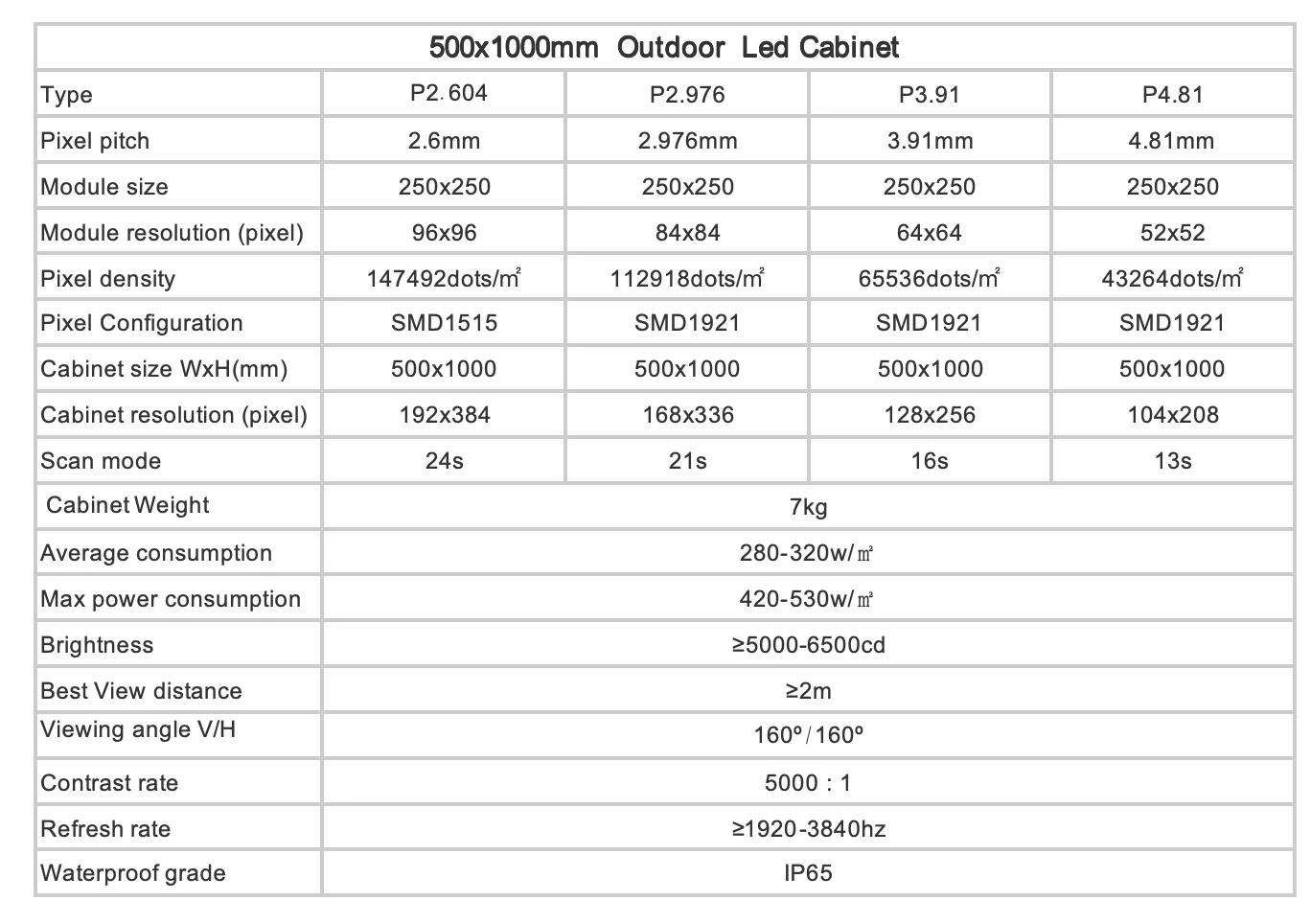

Outdoor led cabinet 500x1000mm

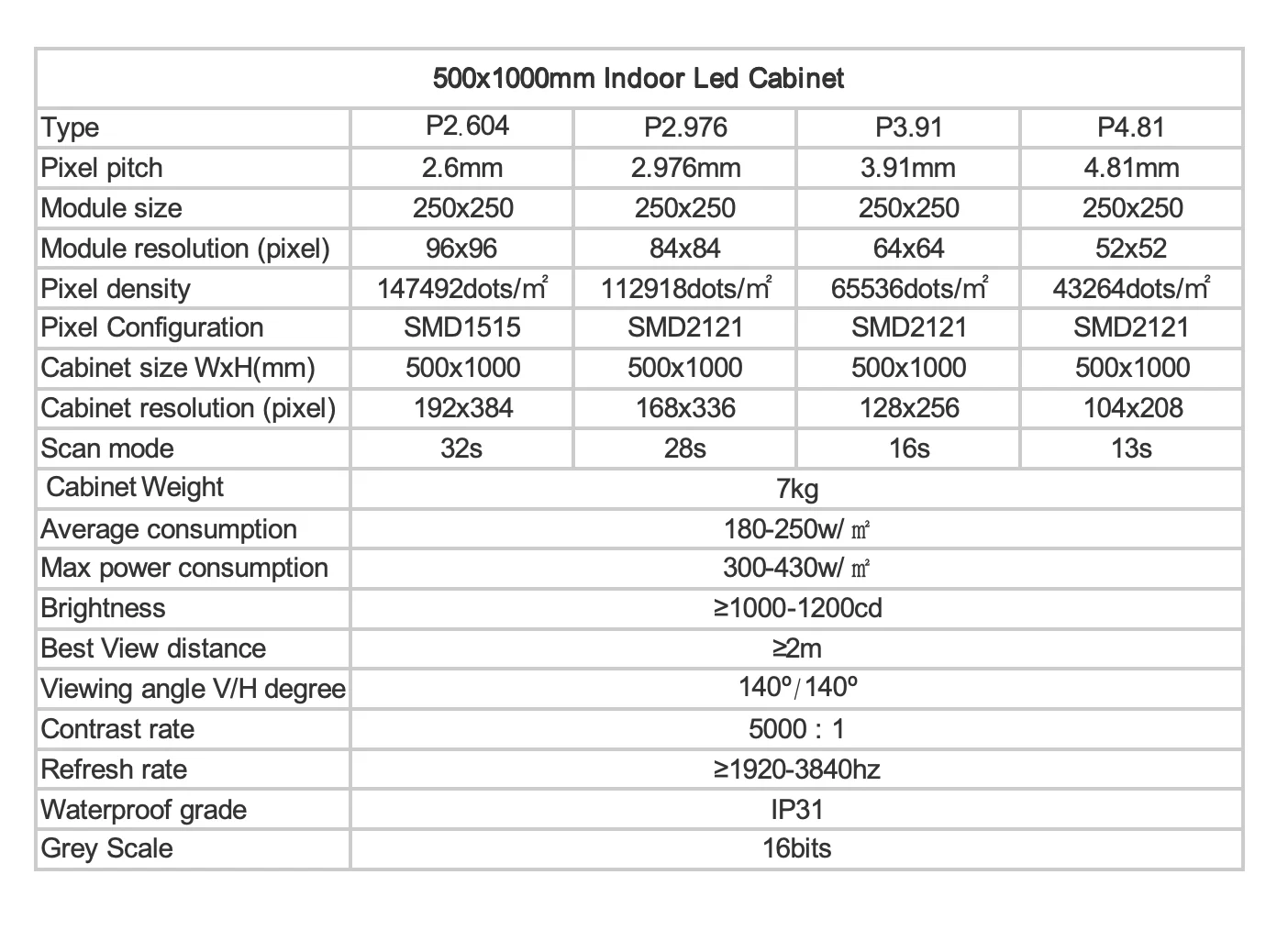

Indoor led cabinet 500x1000mm

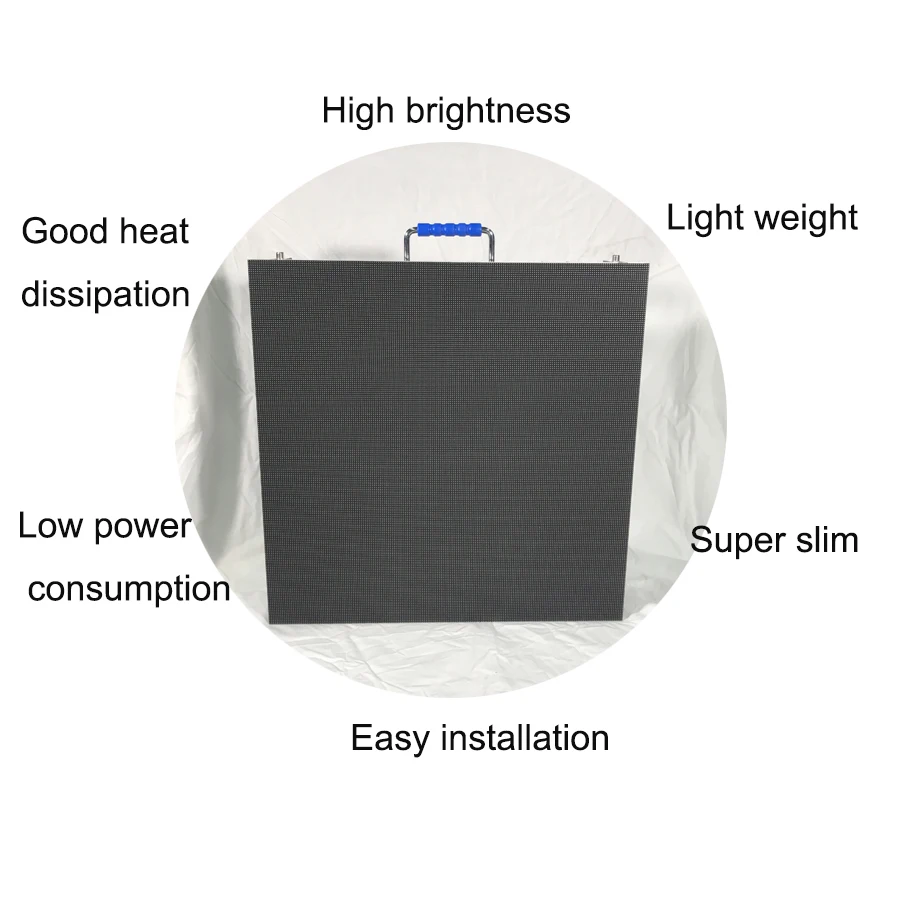

1.Thin and light design, one person can handle the installation;
2. 500x500mm big panel, speedily and easily mounting, perfect 16:9 colorful image;

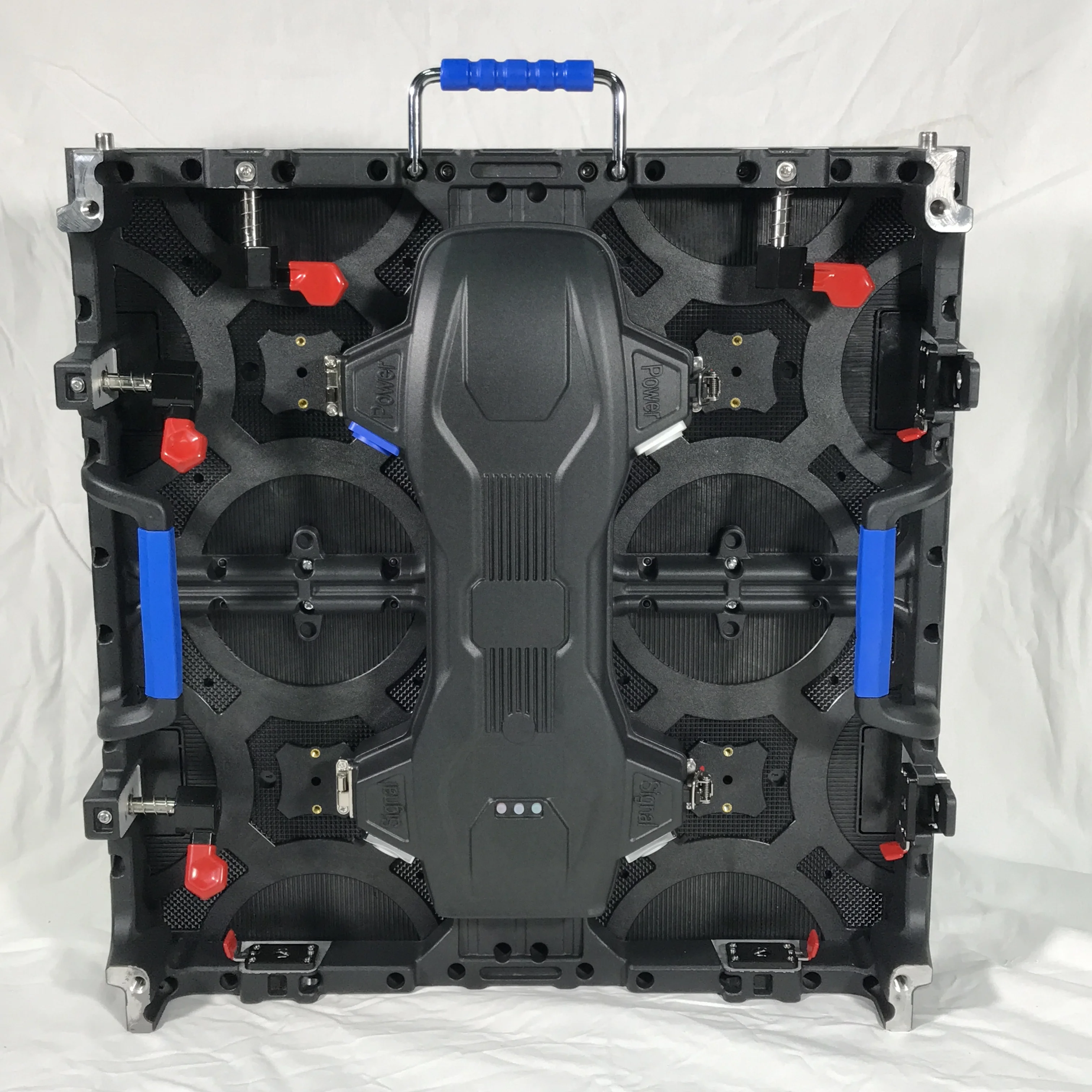

3.Ultra thin body, Die-casting aluminum structure, high-accuracy connection, error<0.1mm;
4.Natural aluminum heat conduction design (no-cooling fan),quiet world.
5. Application in concert, exhibition, wedding, conference, meeting, annual party, DJ bar and other events.
2. 500x500mm big panel, speedily and easily mounting, perfect 16:9 colorful image;
3.Ultra thin body, Die-casting aluminum structure, high-accuracy connection, error<0.1mm;
4.Natural aluminum heat conduction design (no-cooling fan),quiet world.
5. Application in concert, exhibition, wedding, conference, meeting, annual party, DJ bar and other events.
Our Factory
Project
Package
Large quantity , better price !!! More Details ,Pls feel free to contact us !
