SPECIFICATIONS

Applicable Models: UNIVERSAL

Brand Name: OBDSTAR,OBDSTAR

Car Fitment: ABG

Combination: SDK,ABS

Communication Interface: Wifi

External Testing Certification: ce

For Vehicle Brand: Multiple car brands

Hardware Version: NEW

Item Weight: 1kg

Model Number: D800

Operating System: Android

Origin: Mainland China

Place of Origin: Guangdong, China

Power: 12V

Type: Engine Diagnostic Analyzer

Voltage: 12V

Warranty: 12 Months

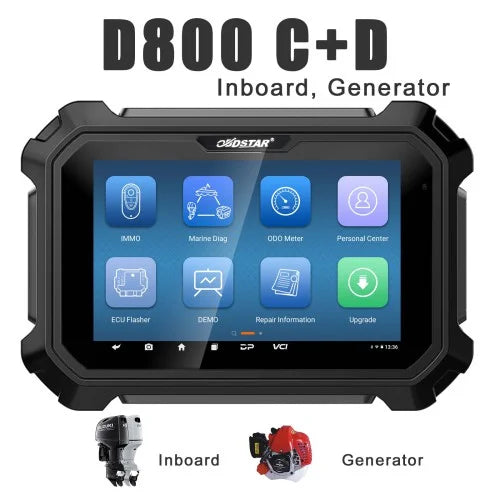

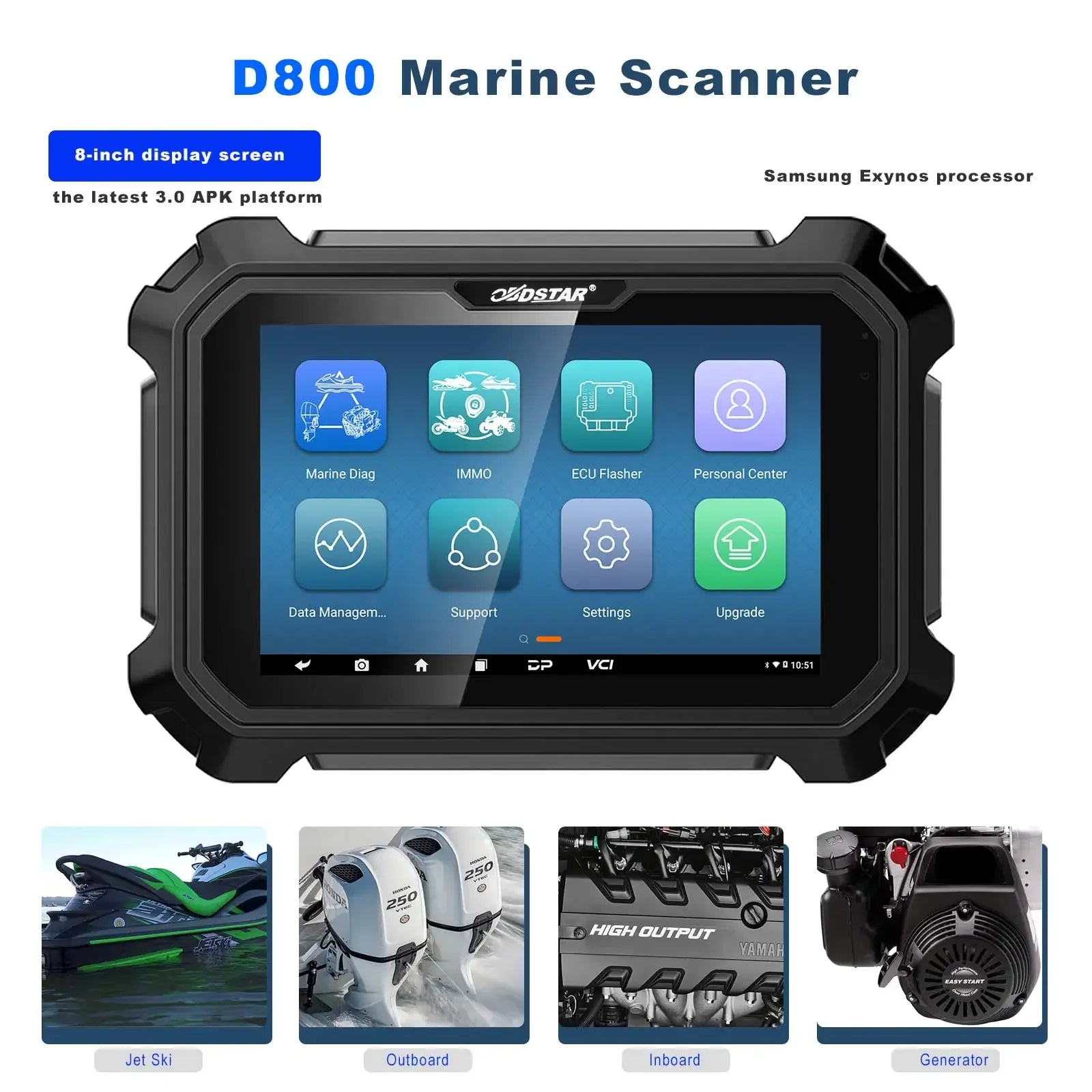

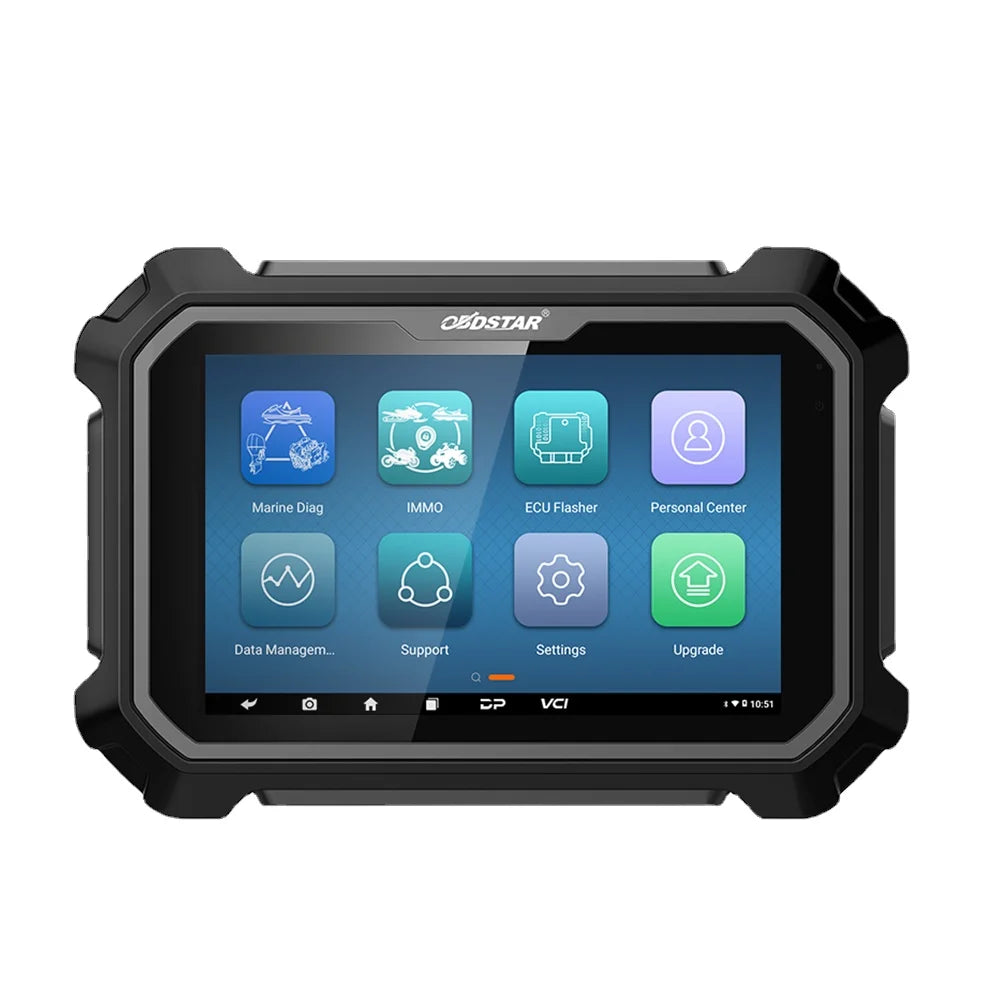

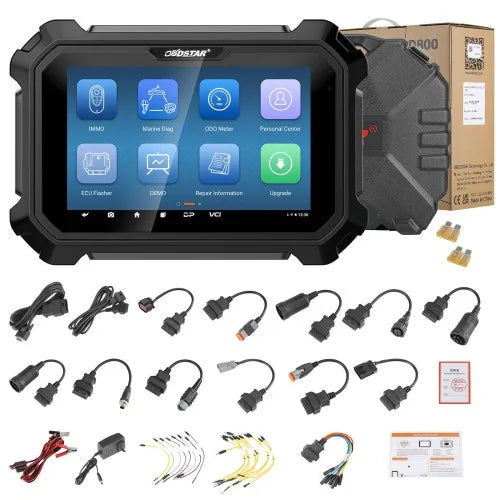

D800 is OBDSTAR's new generation device for marine (jet ski/ outboard/ inboard/ generator) intelligent diagnosis.

Based on Samsung Exynos processor, it is equipped with an 8-inch display screen, which is extremely fast and smooth.

D800 adopts the latest 3.0 APK platform and has shortcut functions such as auto-identification, intelligent retrieval, and one-click feedback. The equipment, with its fast upgrade performace and built-in help materials, is a good helper for marine maintenance engineers!

Functions

1. New android 5.1.1 operation system;

2. Simple and intuitive menu guidance allows you to quickly master the equipment operation;

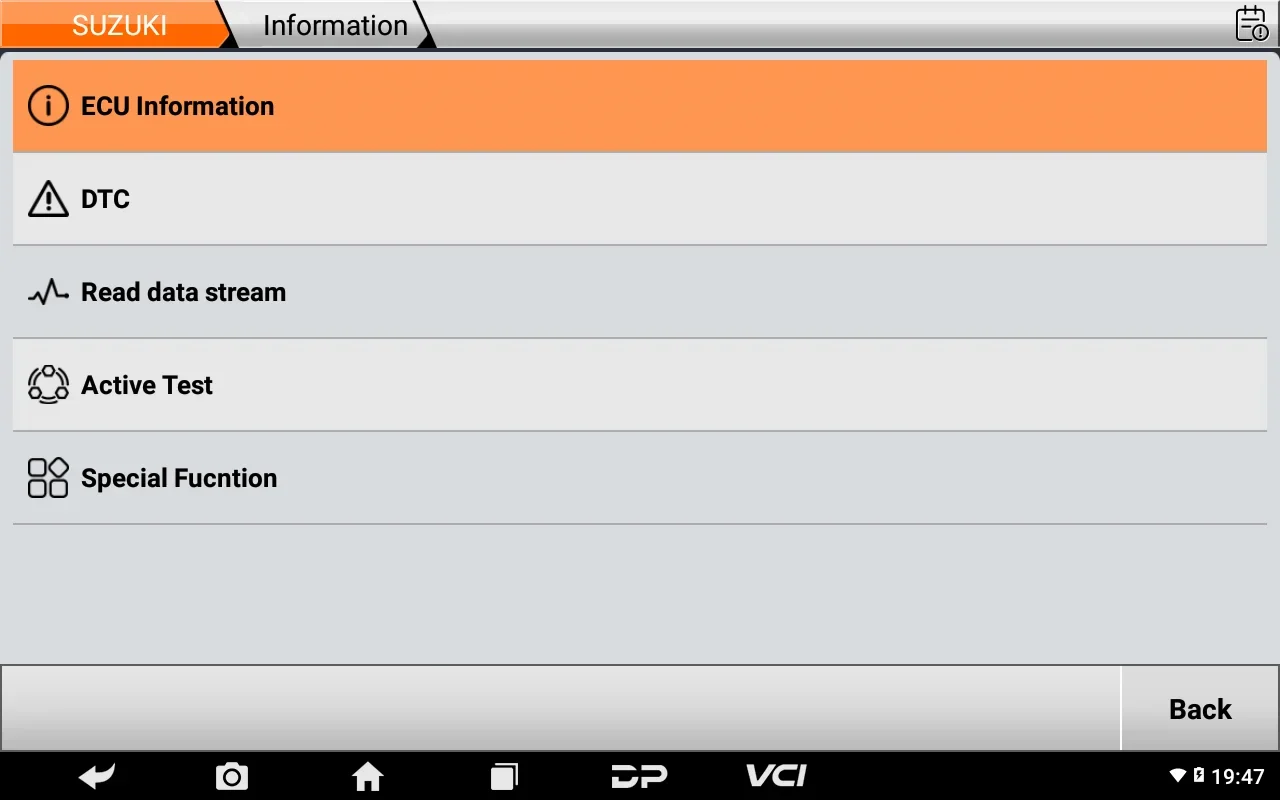

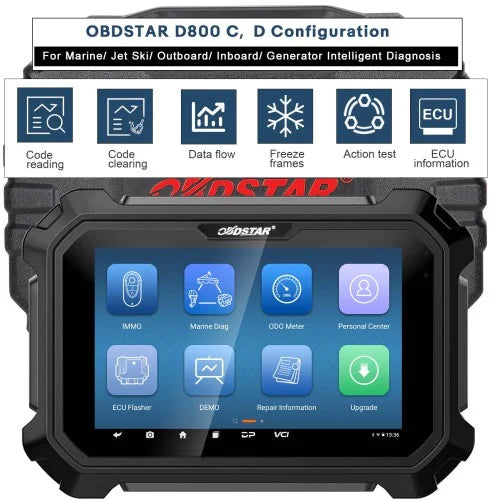

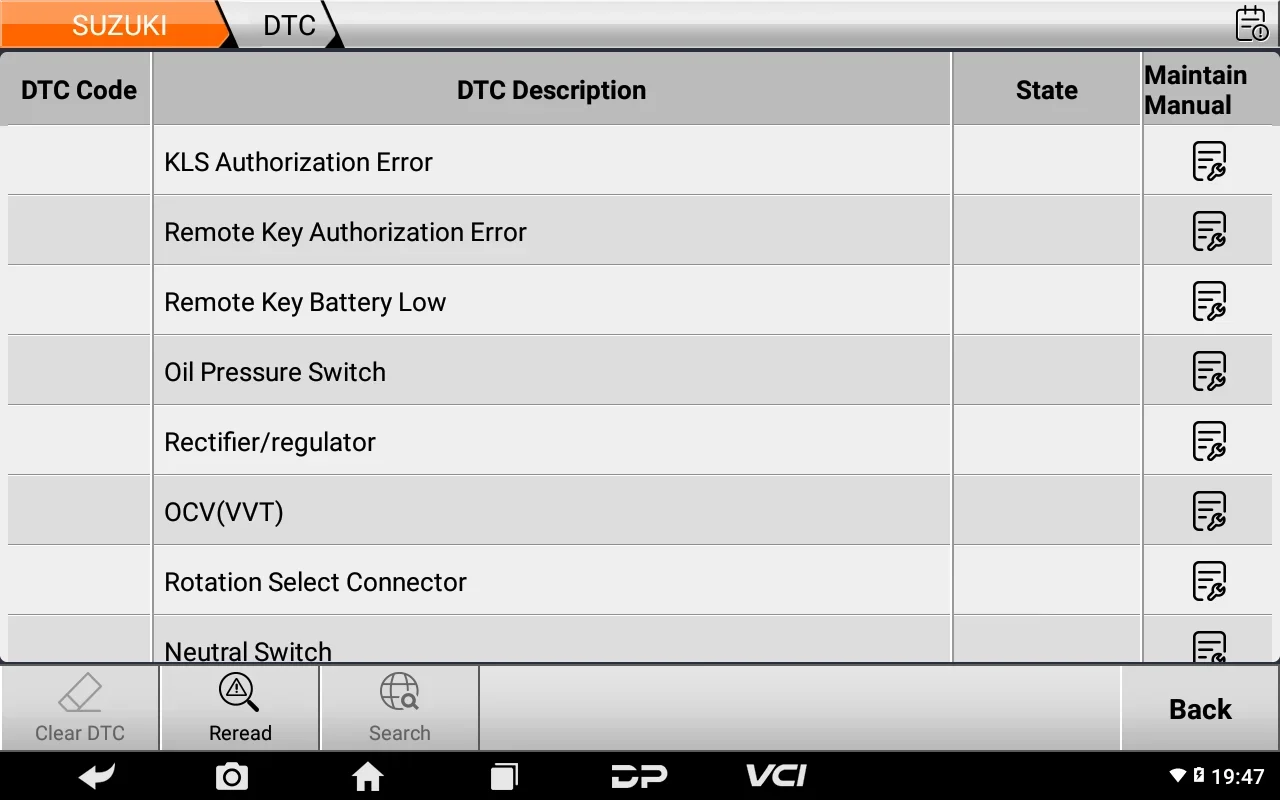

3. Provide complete diagnostic functions including ECU information, code reading, code clearing, data flow, freeze frames, action test, setting, coding etc;

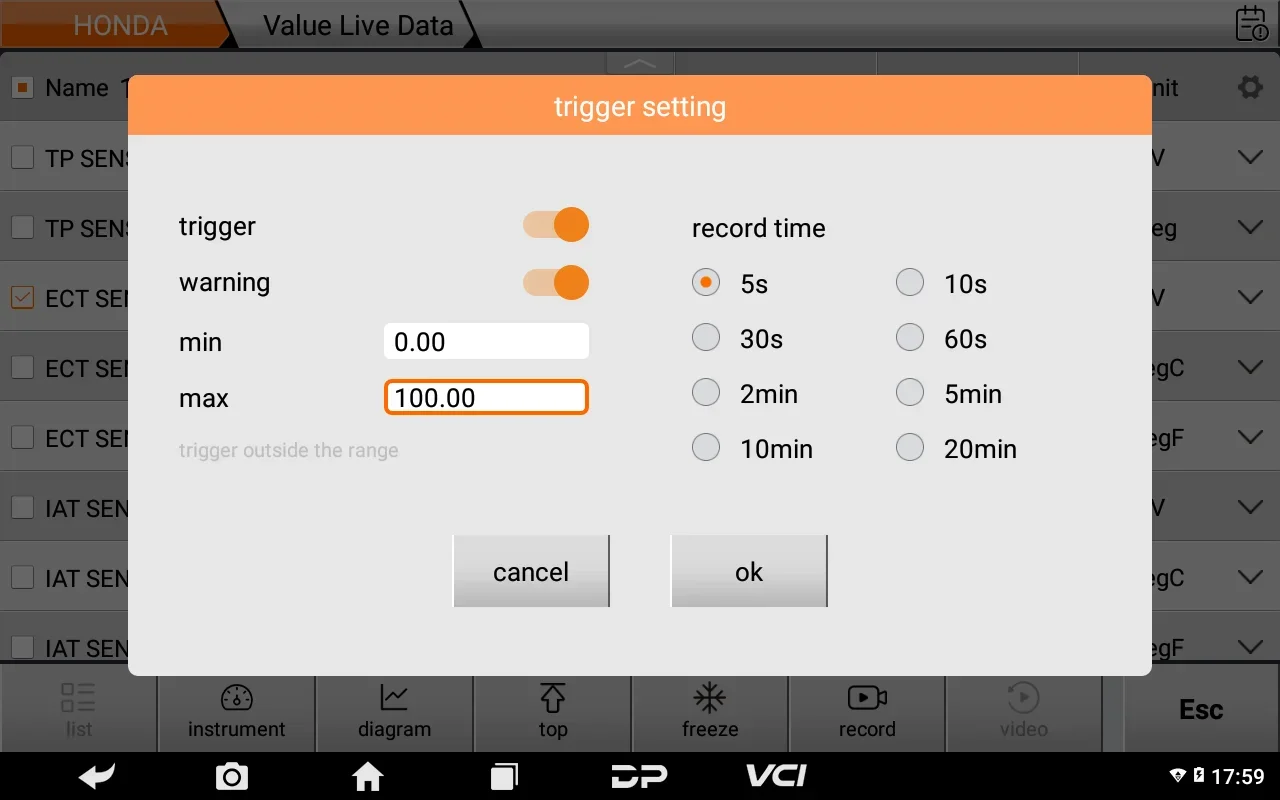

4. Record and play back real-time flow, quickly and accurately locate sensor and component faults;

5. Wi-Fi connection to the internet, one-click software upgrade;

6. One-click remote function, OBDSTAR technical staff remote assistance.

Language : English only

Update : 1 year free

Advanced Function

1. The OBDSTAR mobile APP integrates functions such as diag socket location, flash code query, technical bulletin, manual service function(service lamp reset), basic parameters, etc., working with D800 to make marine diagnosis more accurately and efficiently (some functions are only available for D800 users to check for free);

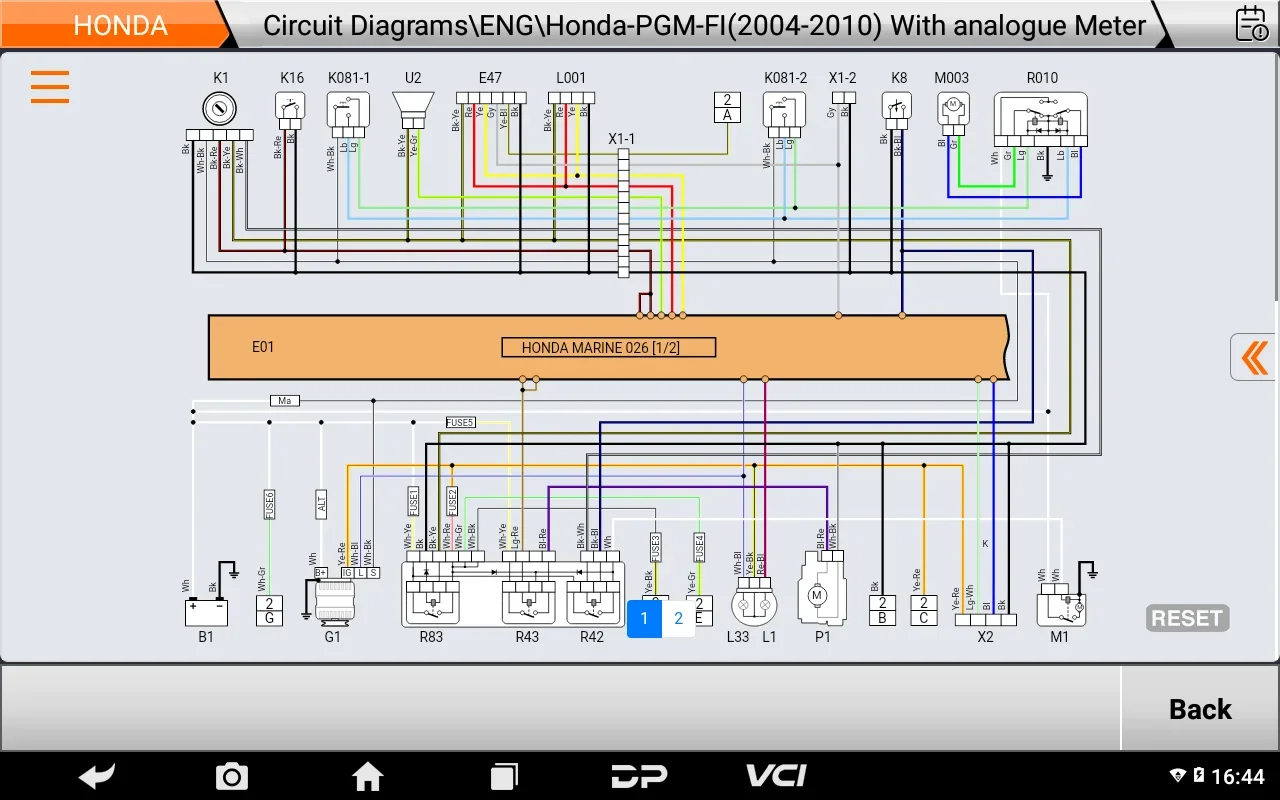

2. The exclusive interactive wiring diagram and electrical appliance description query function make your diagnosis worry-free;

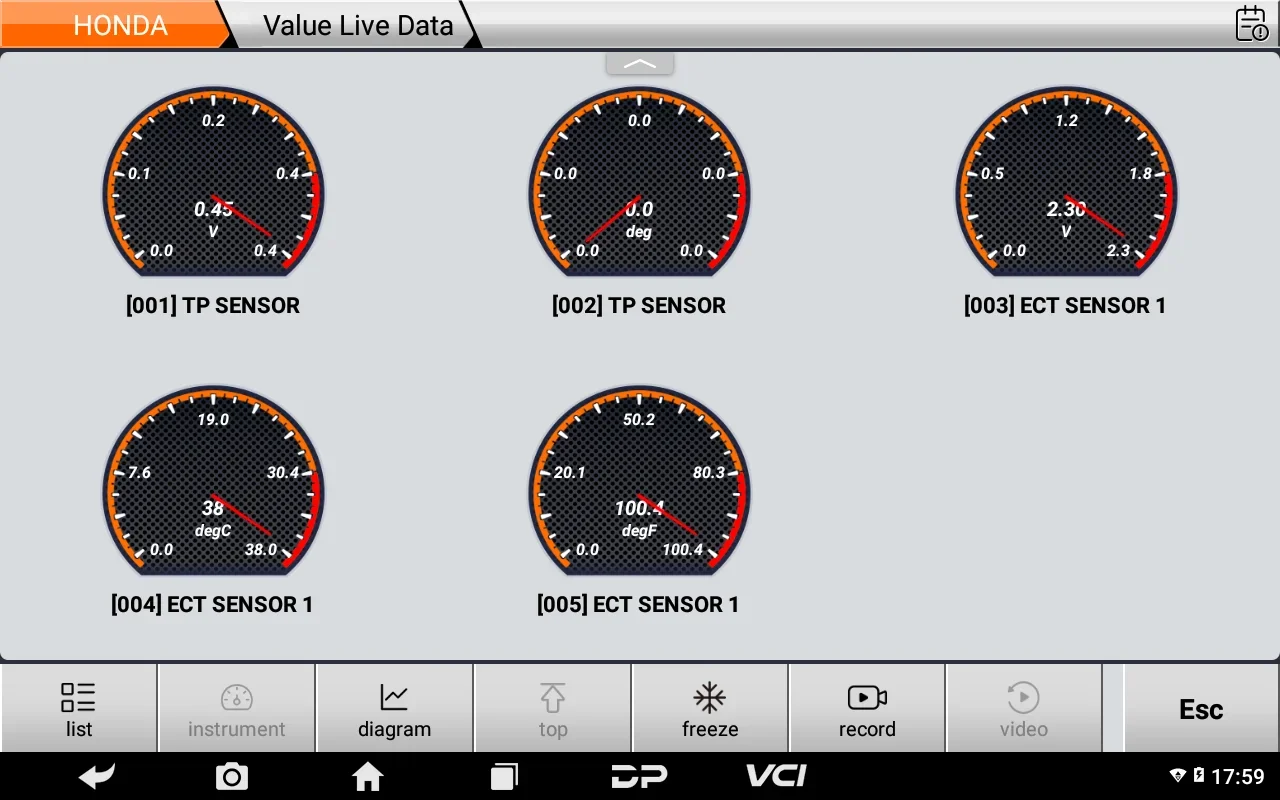

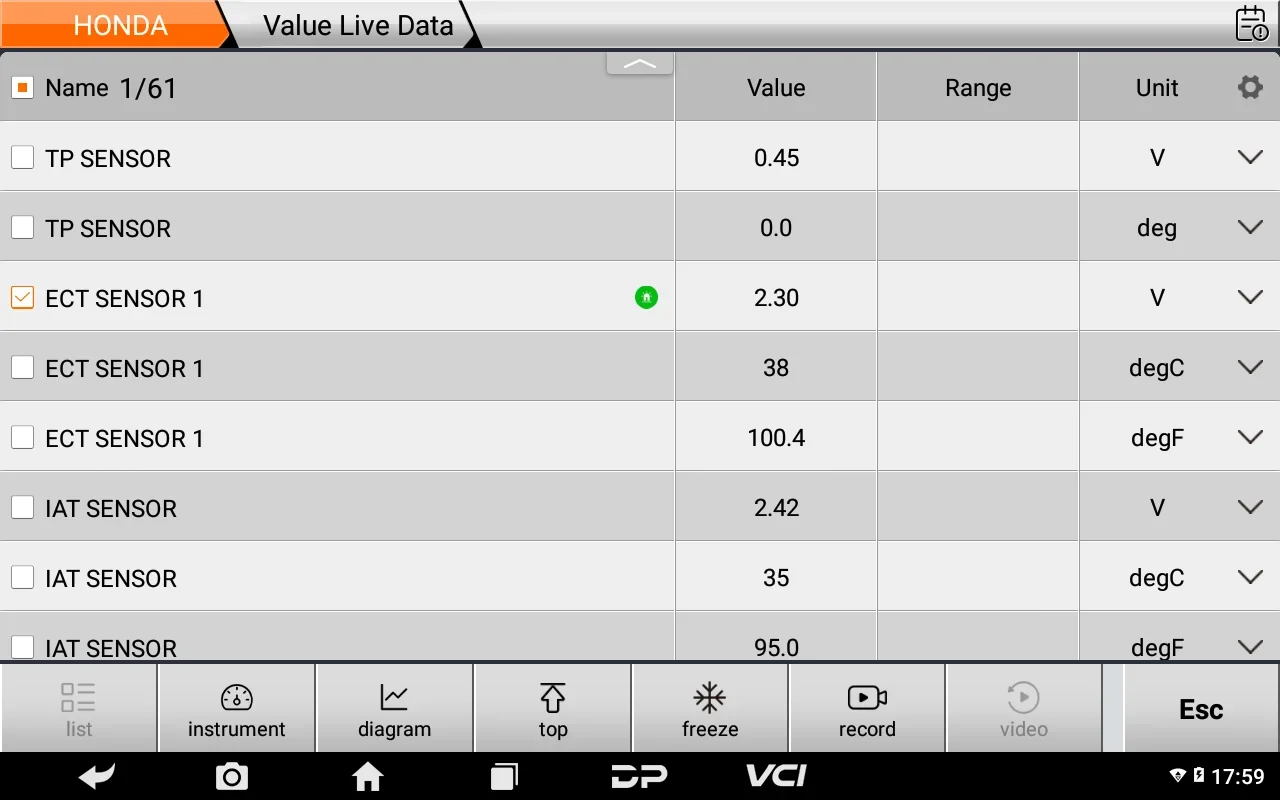

3. Various data flow display modes such as text, waveform diagram and instrument diagram allow you to easily analyse faults;

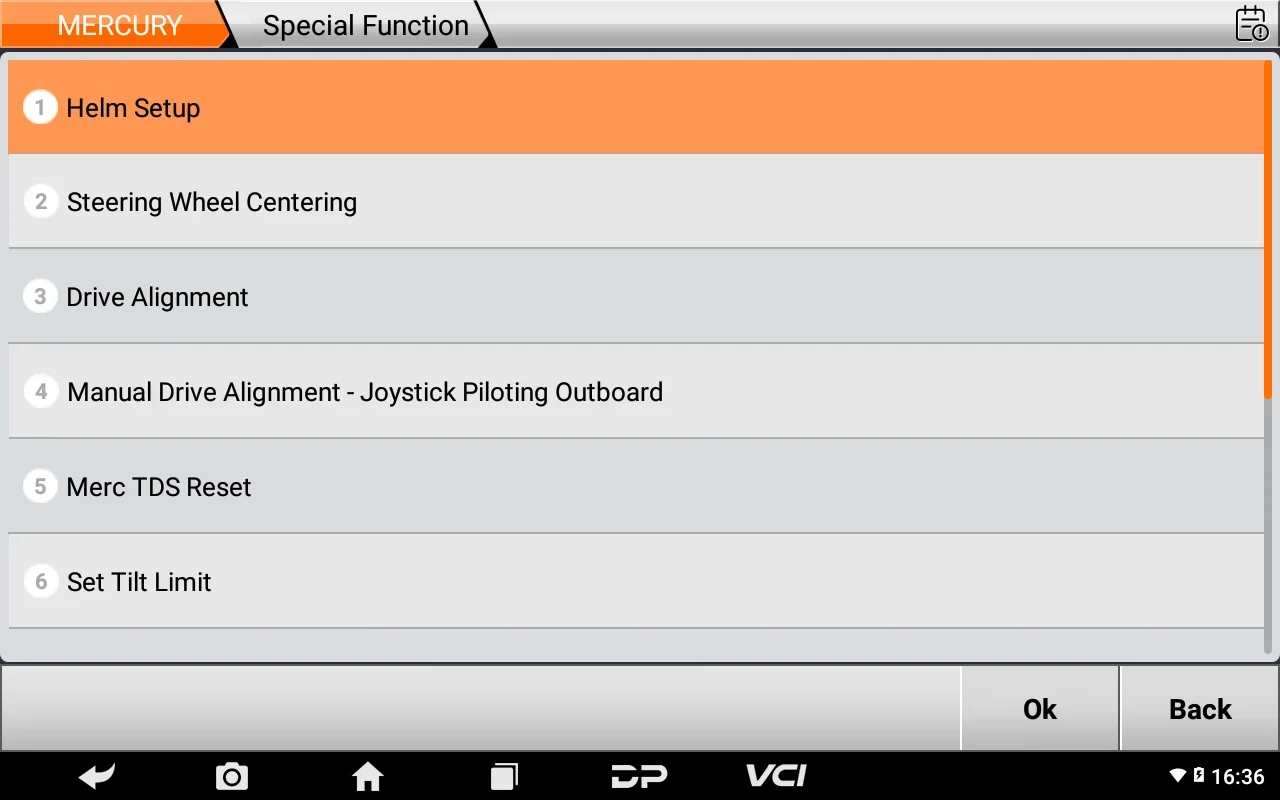

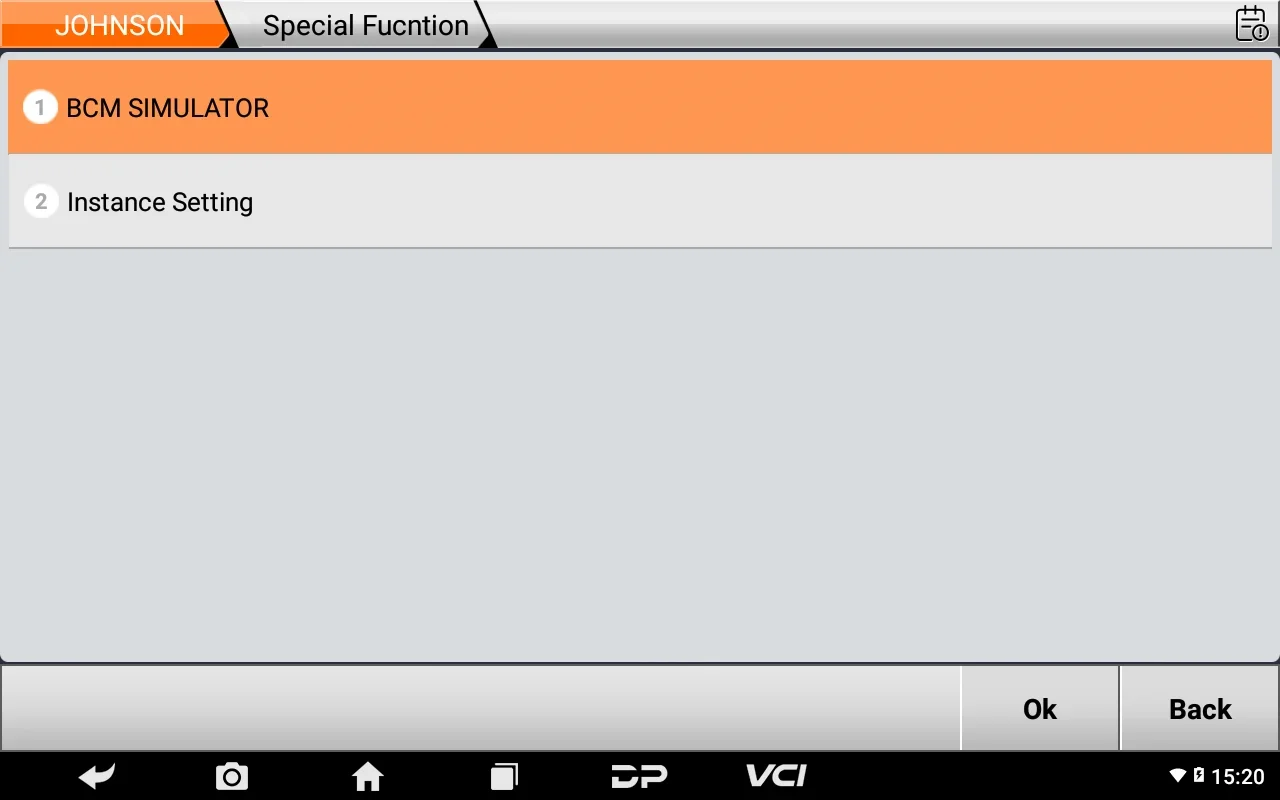

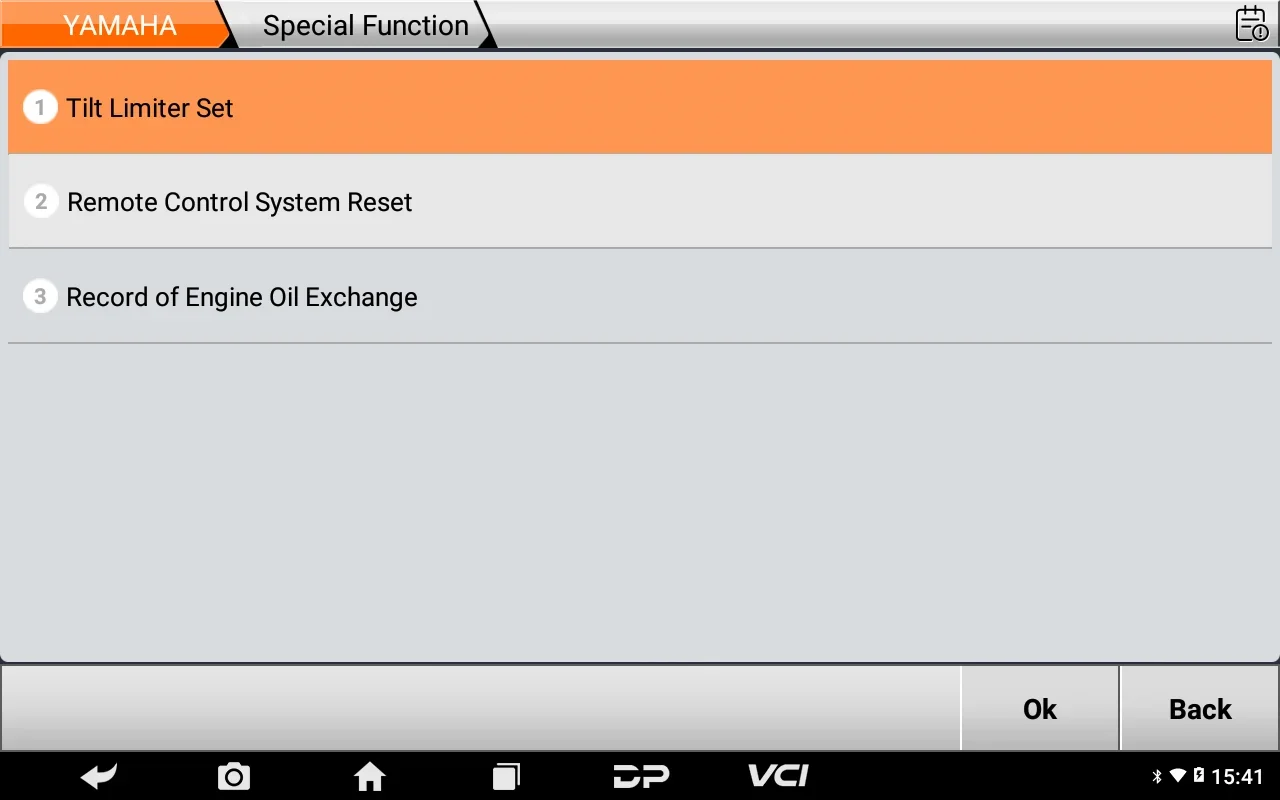

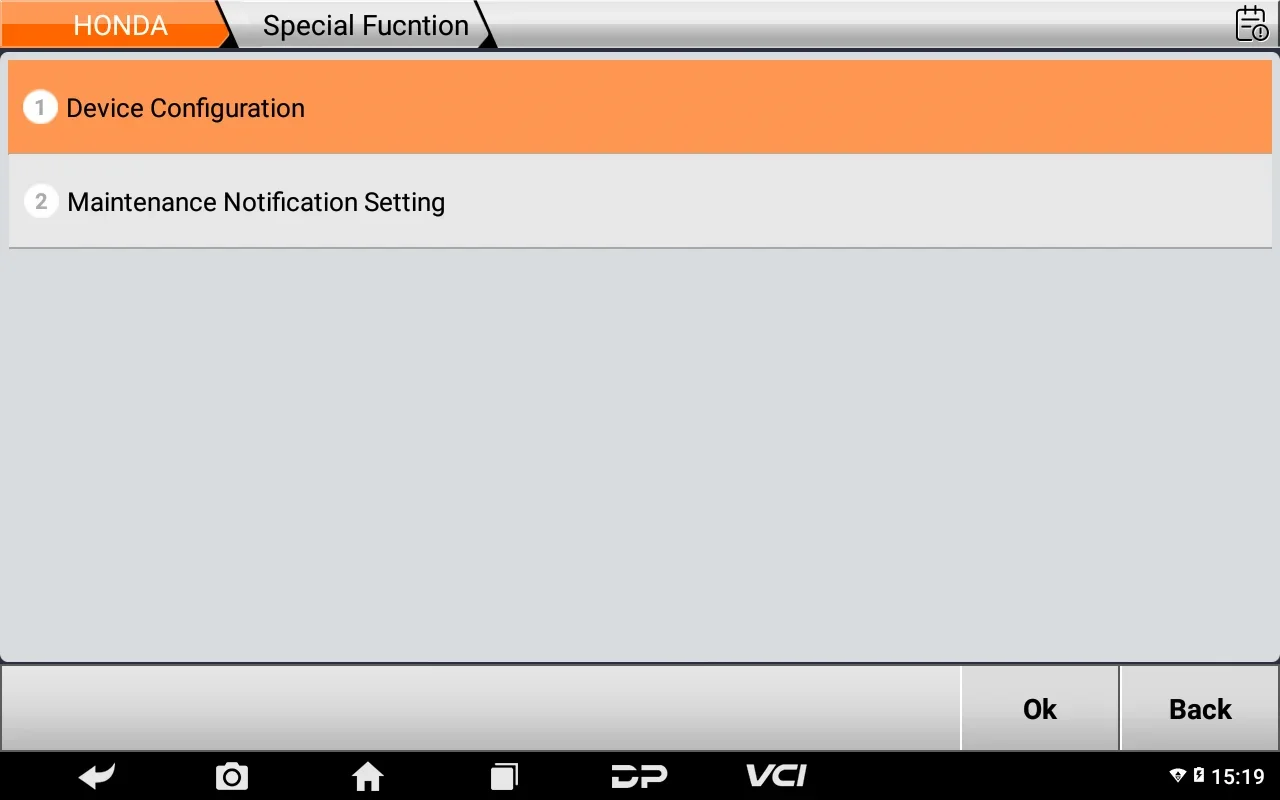

4. Auto Scan, Active Trim Configuraion, Active Trim GPS Configuraion, Auxiliary Joystick Congfiguration, BCM Simulator, Compass Congfiguration, Device Initialization, Drive Alignment, Helm Setup, Instance Setting, Maintenance Setting, Merc TDS Reset, Remote Control Reset, Set Engine Location, Set Tach Link, Set Tilt Limit, SMUX Congfiguration, Steeing Wheel Centering, Syetem Calibration, Torque Ajustment, Trackpad Configuration, Vessel Personality, and other functions.

Supported Brands

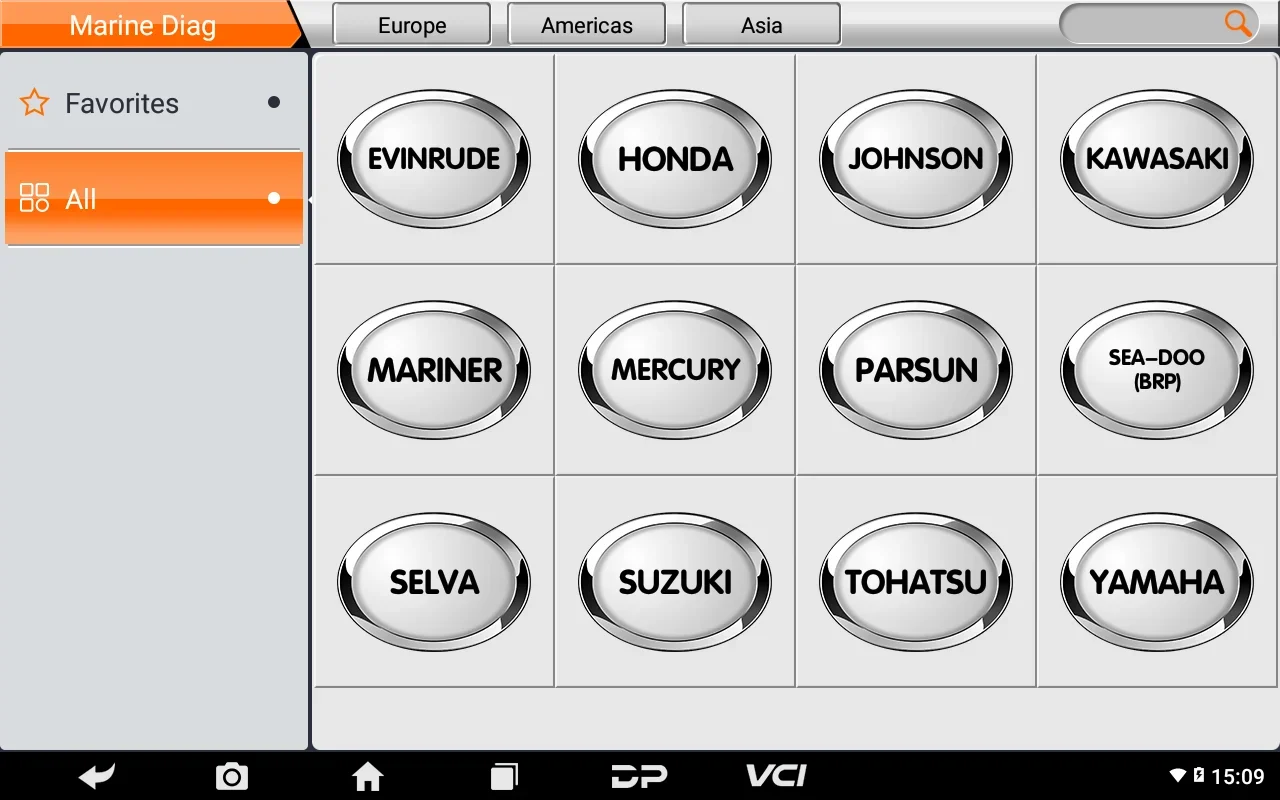

For EVINRUDE,for HONDA,for JOHNSON,for KAWASAKI,for MARINER,for MERCURY/MERCURY RACING,for PARSUN,for SEA-DOO(BRP),for SELVA MARINE,for SEVEN MARINE,for SUZUKI,for TOHATSU,for YAMAHA

Optional Brands

For CATERPILLAR,for CFMOTO,for CRUSADER ENGINES,for CUMMINS MARINE,for CUMMINS MERCRUISER DIESEL,for DAEDONG,for DAF MARINE,for FNM MARINE,for FORD MARINE,for FPT (Fiat Powertrain Technologies),for HYUNDAI SEASALL,for ILMOR,for INDMAR,for JOHN DEERE MARINE,for KODIAK MARINE,for KOHLER POWER SYSTEMS,for LOMBARDINI MARINE,for MAN MARINE,for MARINE POWER,for MTU,for PANTHER AIRBOATS,for PCM Marine Engines,for PERKINS,for SCANIA MARINE,for SISU,for STEYR MOTORS,for TOYOTA MARINE,for VM MOTORI,for VOLKSWAGEN MARINE,for VOLVO PENTA,for YANMAR

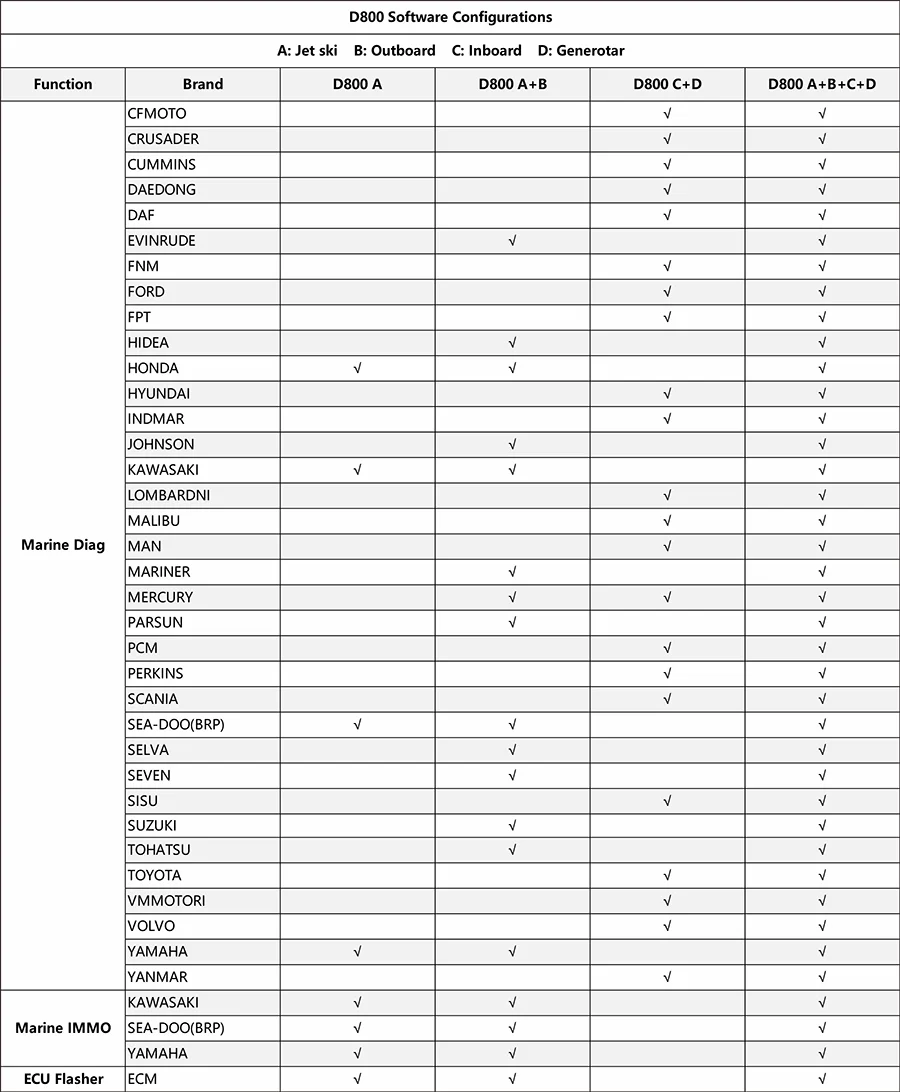

Model softwares vary with different configurations, please consult us firstly.

Function Display-(From OBDSTAR Mobile App)

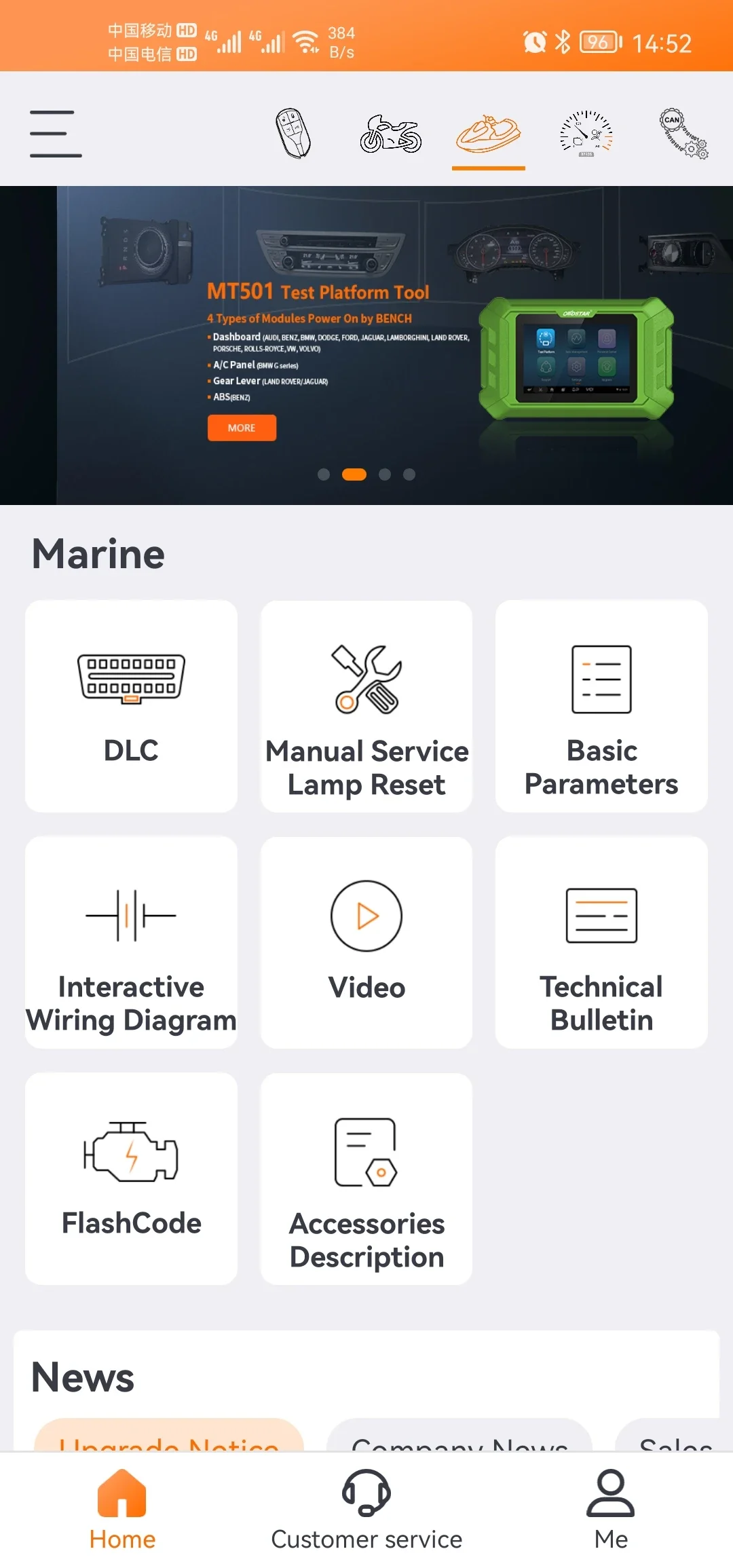

1) Main Page

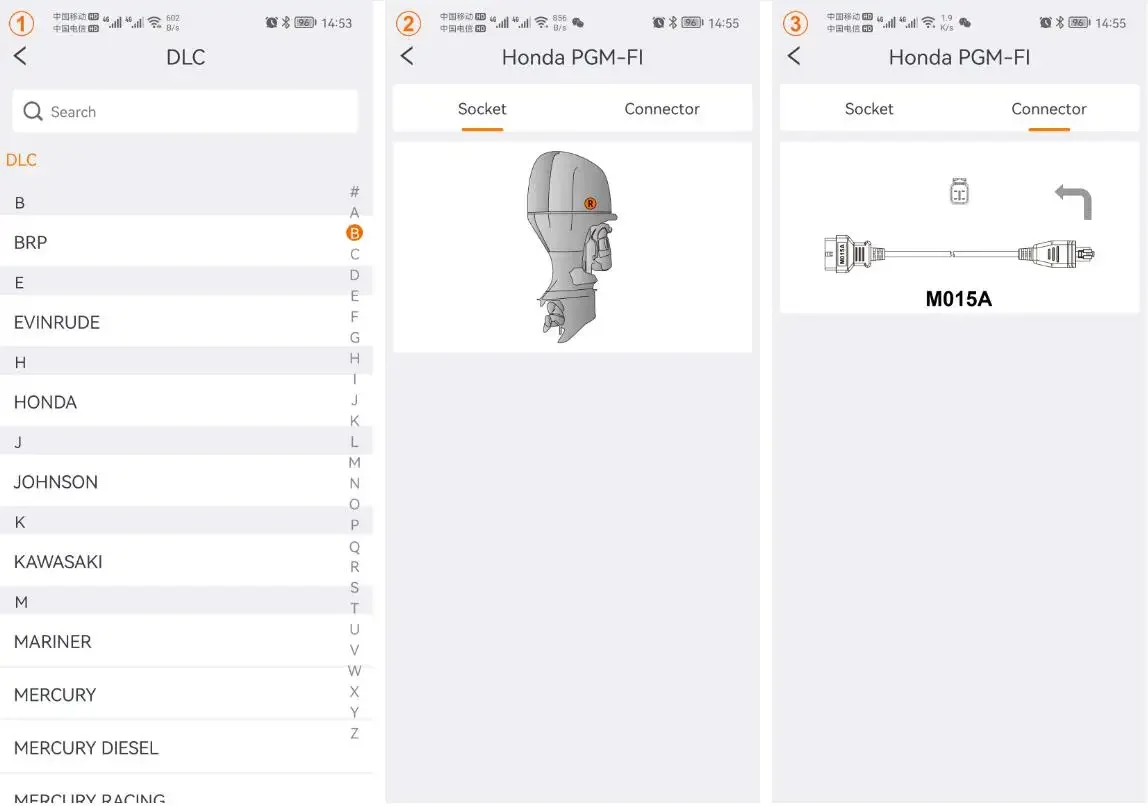

2) Diag Socket/Diag Connector Location

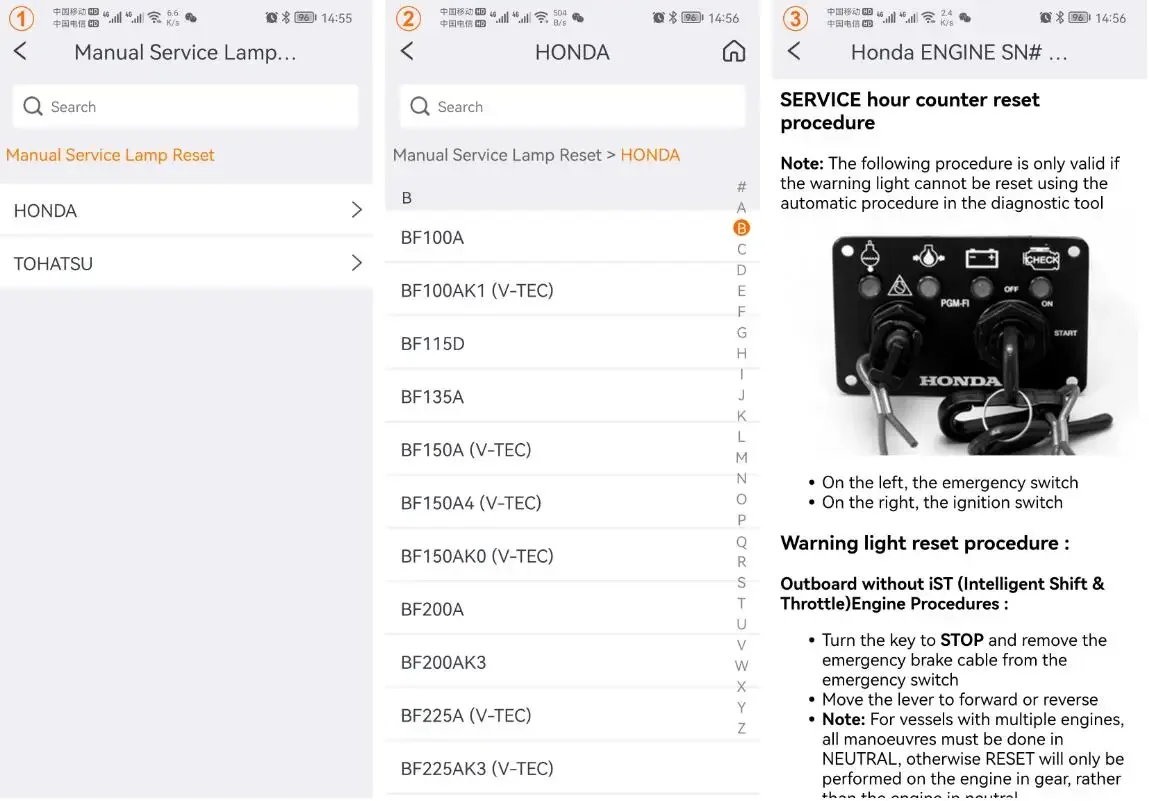

3) Manual Service Function(Service Lamp Reset)

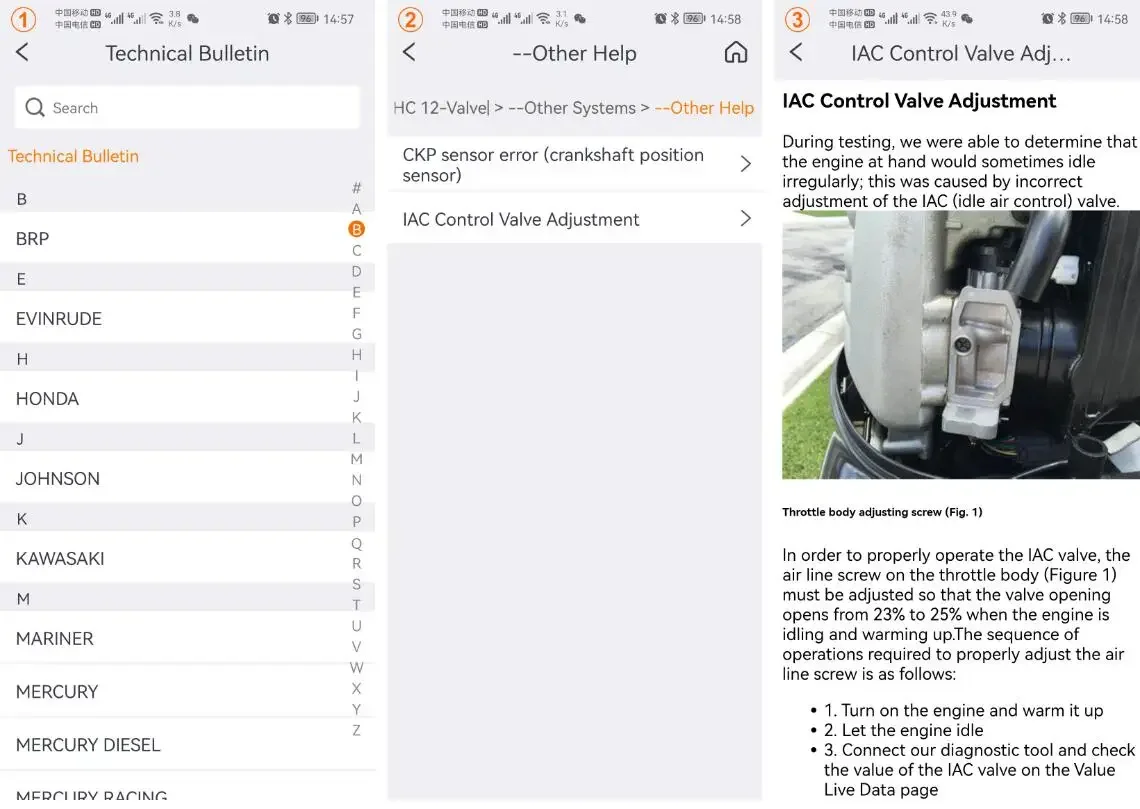

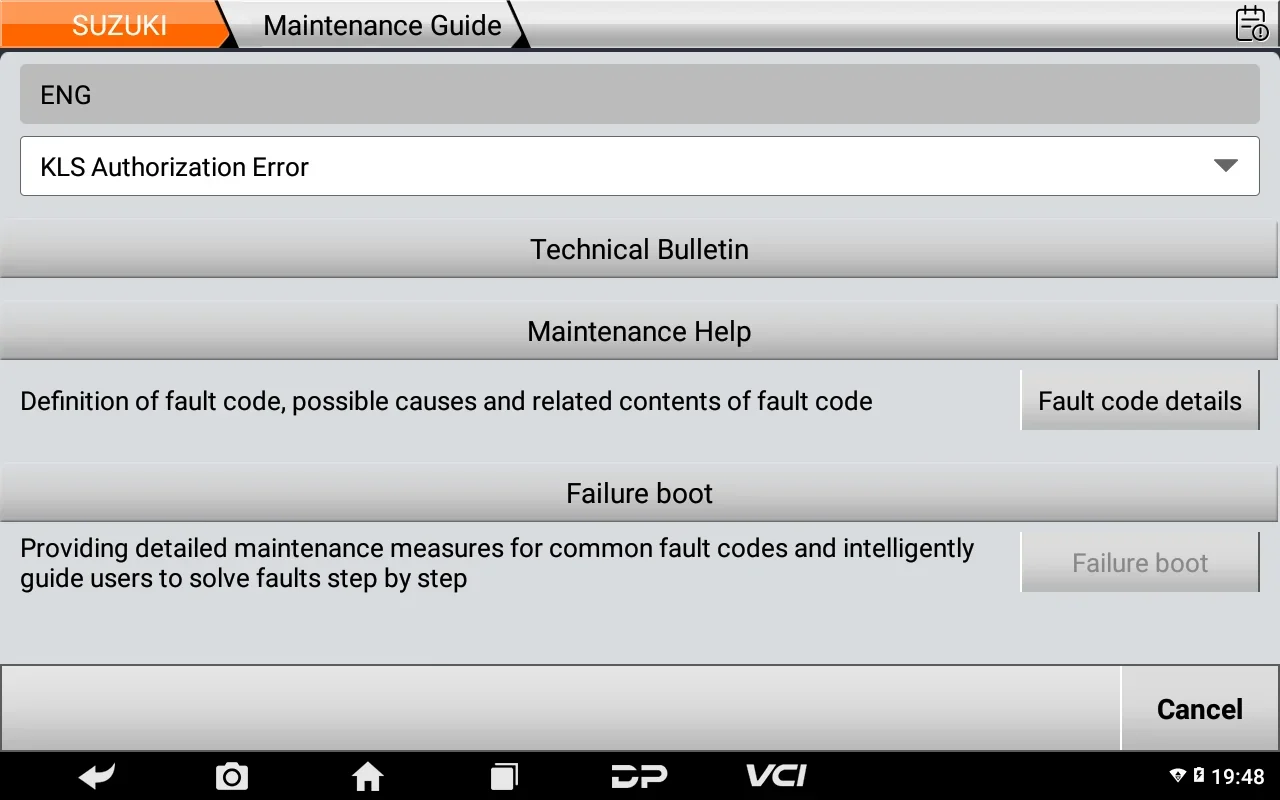

4) Technical Bulletin

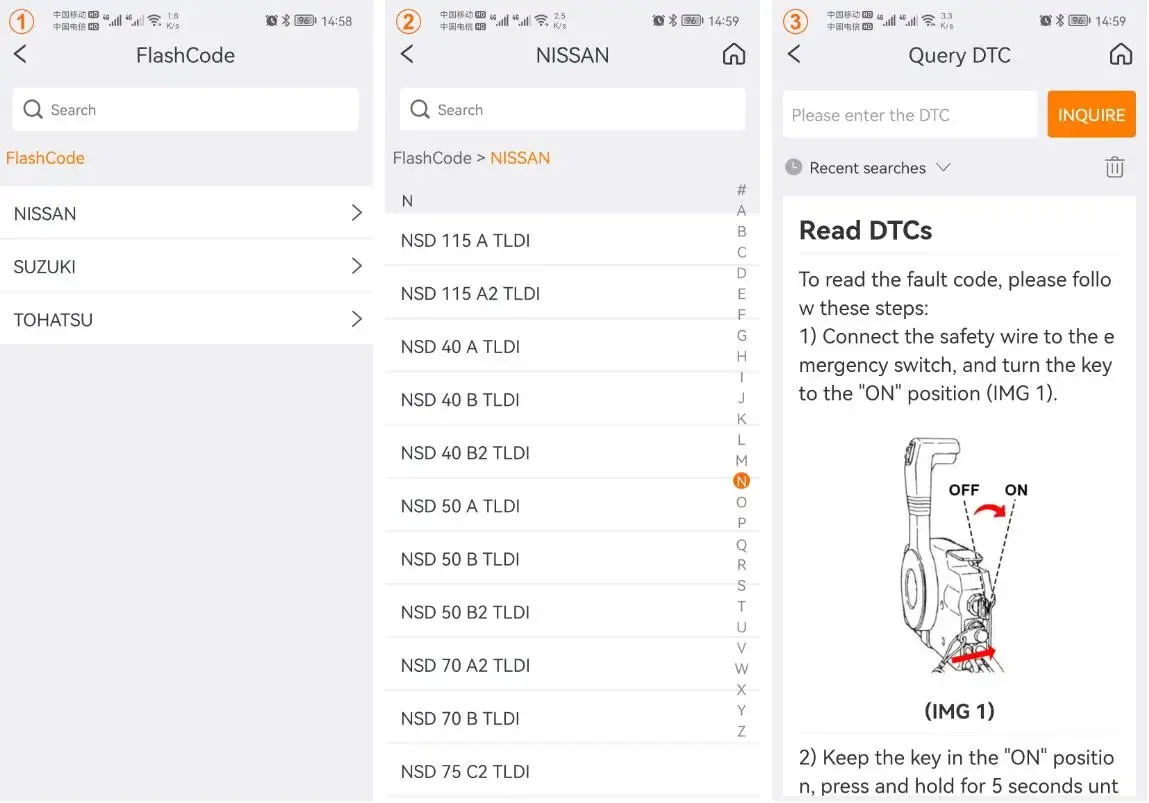

5) Flash Code

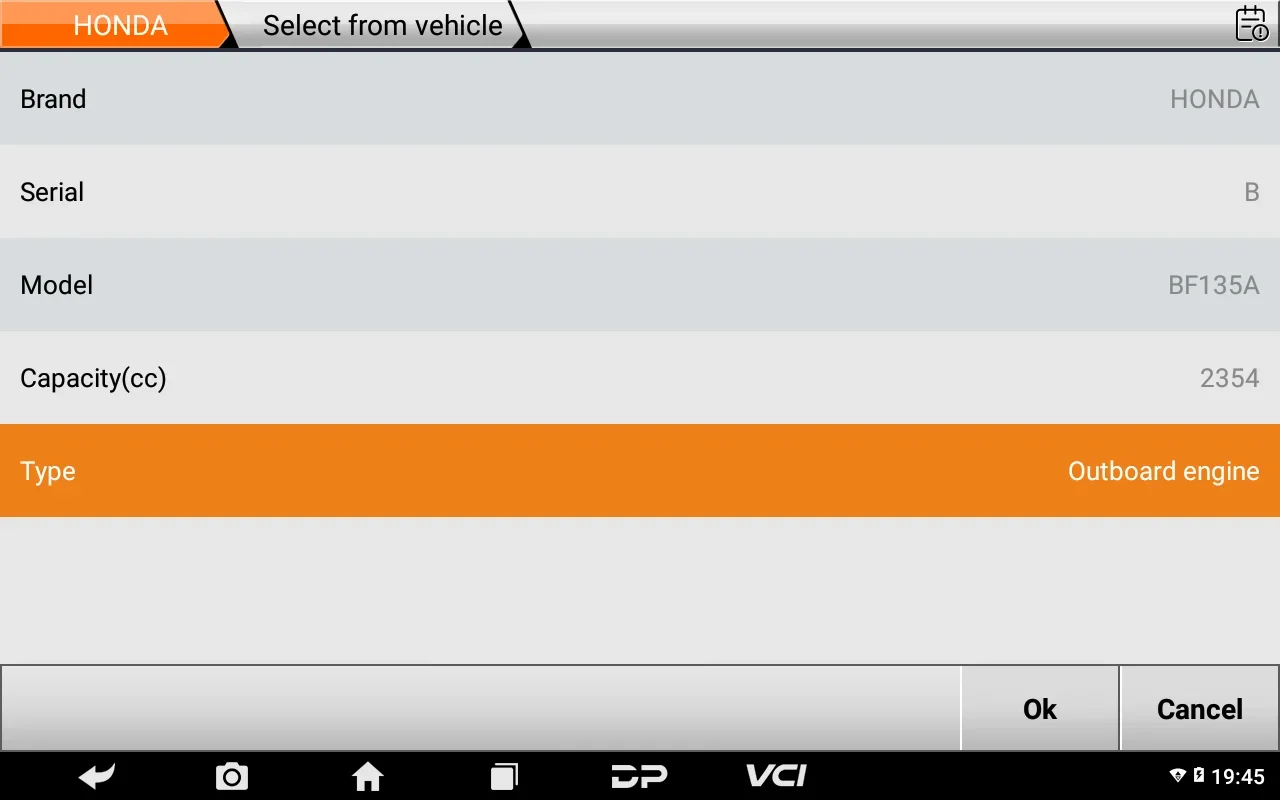

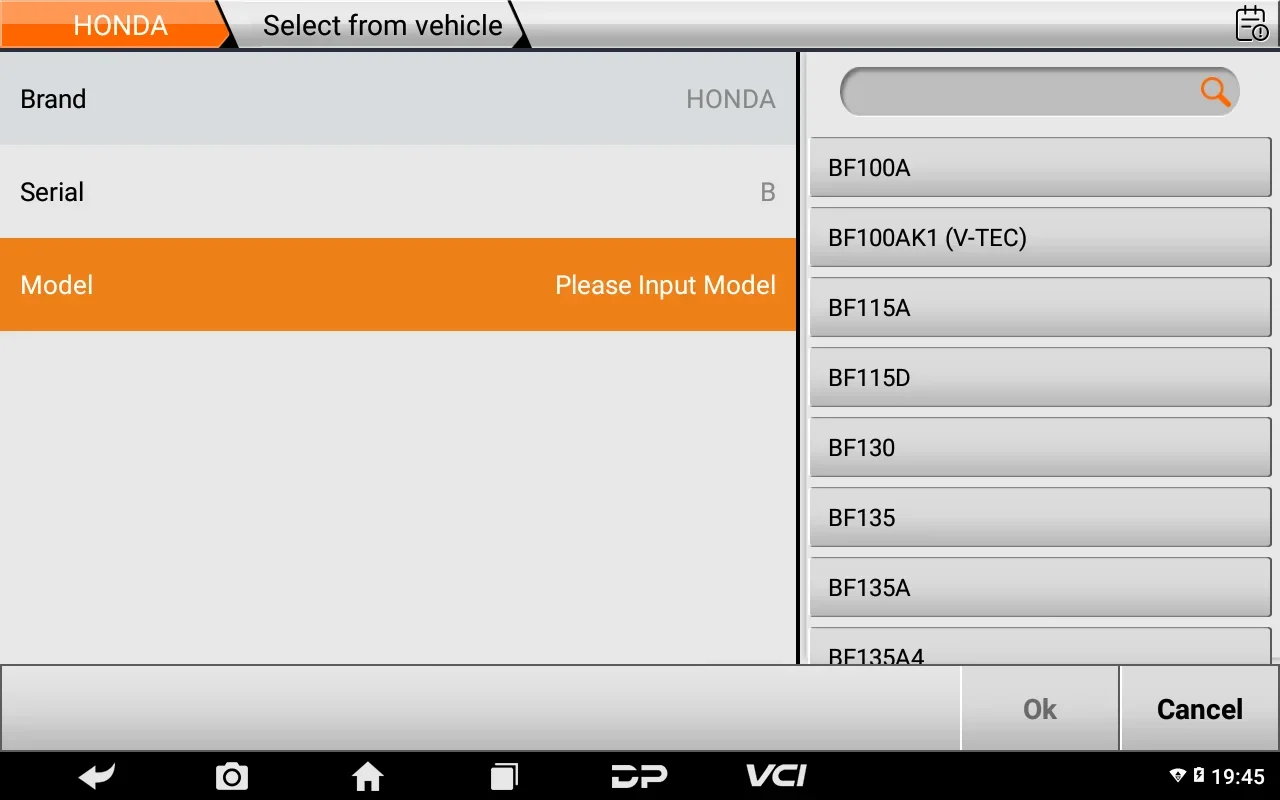

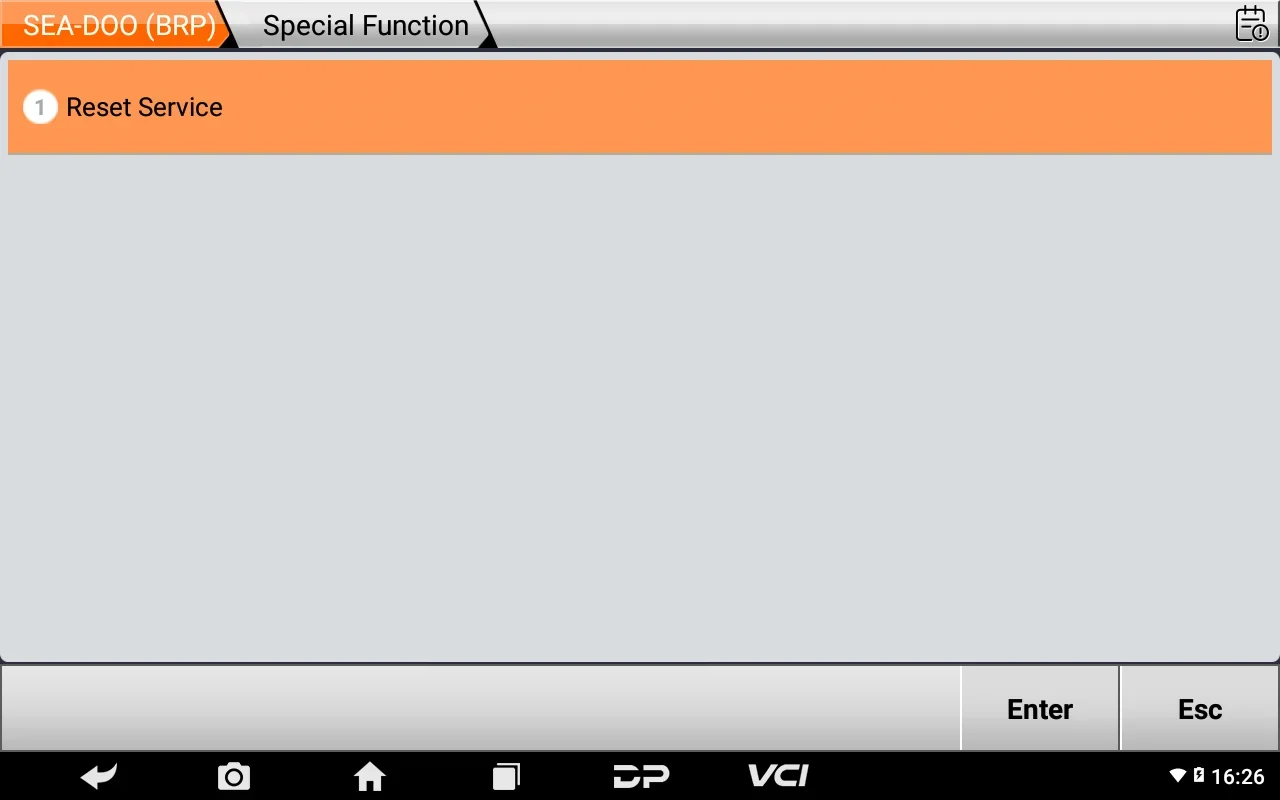

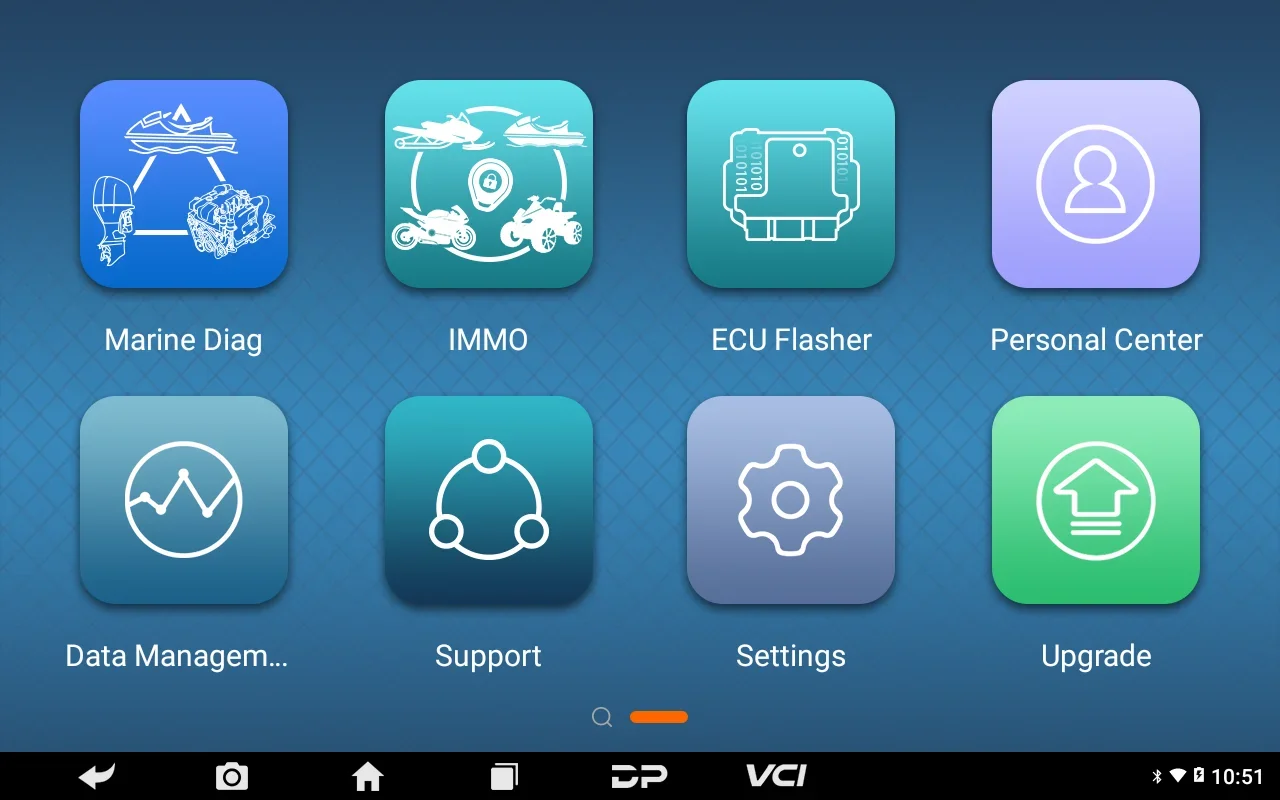

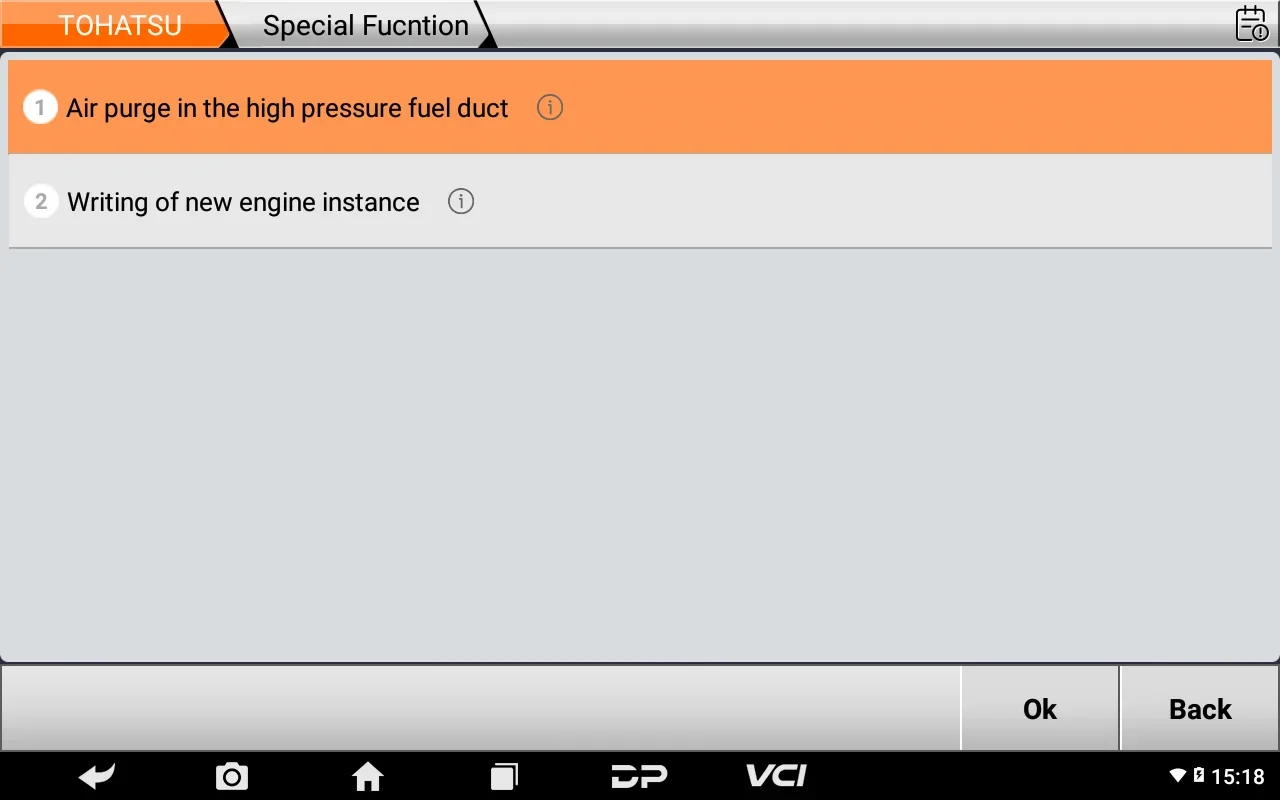

Function Display
