Orin Nano 4GB ReComputer J3010 Edge AI Device - Super Mode, 4xUSB 3.2, M.2 Key E/M

Re-computer J3010

€1.844,95

Orin Nano 4GB ReComputer J3010 Edge AI Device - Super Mode, 4xUSB 3.2, M.2 Key E/M

€1.844,95

Taxes included. Shipping calculated at checkout.

SPECIFICATIONS

-3dB bandwidth: -

Amplifier type: -

Board type: -

Brand Name: NONE

Current - Output/Channel: -

Current - Power Supply (Main IC): -

Current-output: -

D/C: -

Frequency - Switch: -

High-concerned chemical: none

IC/parts used: -

Installation method: -

Model: reComputer J3010

Module/Board Type: -

Number of A/D converters: -

Number of channels per IC: -

Origin: Mainland China

Output and type: -

Power-output: -

Sample rate (per second): -

Sensing type: -

Voltage - Input: -

Voltage - Power Supply: -

Voltage regulator type: -

Voltage-output: -

bit: -

characteristic: -

core processor: -

country of origin: China

data interface: -

describe: Orin Nano 4GB Edge AI Device

embedded: -

function: -

input range: -

longest time: -

output: -

package: -

platform: -

sensing range: -

sensitivity: -

series: -

socket: -

type: Development Board Module

Hello, we are an enterprise specializing in electronic components, dedicated to providing you with a premium shopping experience. Our store has a complete range of products with clear classifications, allowing you to pick your desired items according to your needs. If you are interested in our products, please visit the store homepage for a detailed browse. We are always ready to offer you help and support.Contact Information:WhatsApp: +86 19848088873 Email: lixinyuan230@gmail.com

About this item

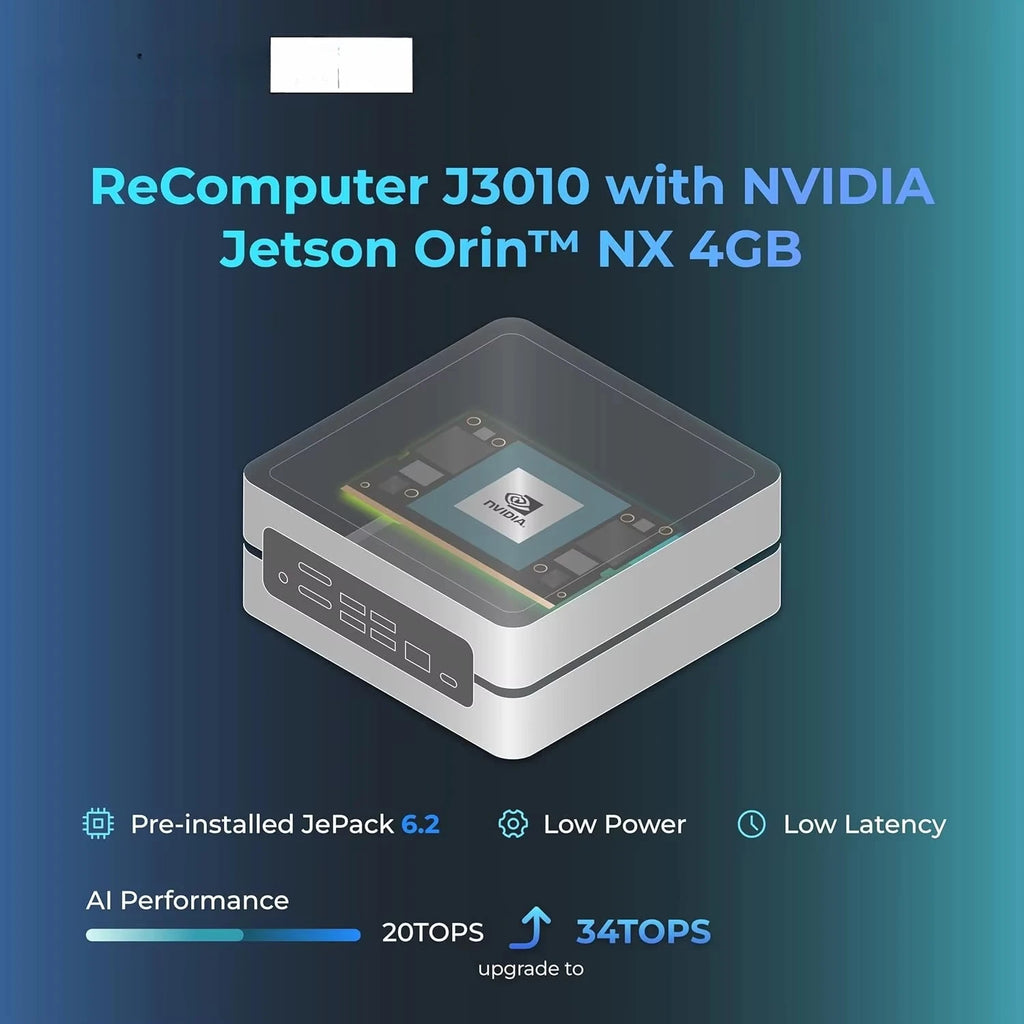

Brilliant AI Performance for production: The reComputer J3010 is equipped with the same NVIDIA Jetson Orin Nano 5GB production module. You can perform a self - upgrade to Jetpack 6.2. Once upgraded, you'll instantly experience a significant boost in computing power, with the performance leaping from 20 Tops to 34 Tops, offering capabilities comparable to those of the NVIDIA Jetson Orin Nano Super Developer Kit.

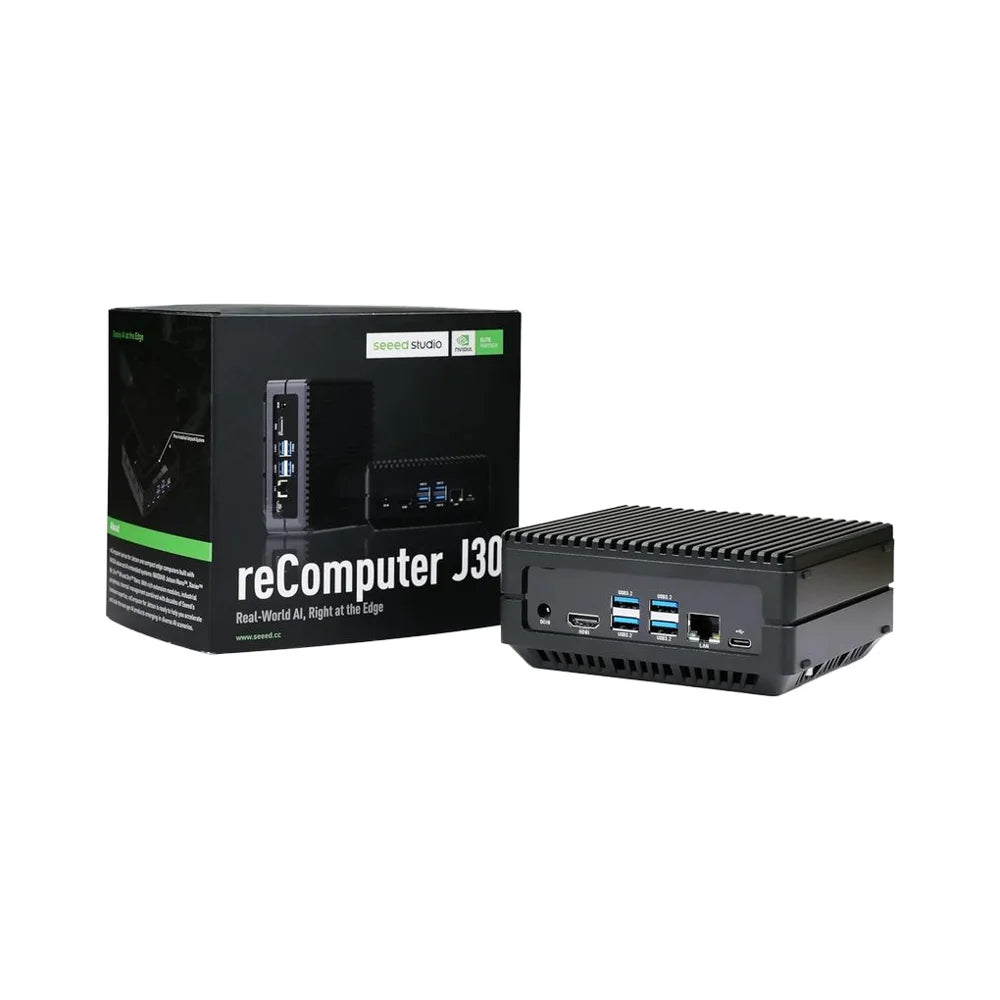

Hand-size edge AI device: compact size at 130mm x120mm x 58.5mm, includes NVIDIA Jetson Orin Nano 4GB production module, a heatsink, enclosure, and a power adapter. Support desktop, wall mount, fit in anywhere

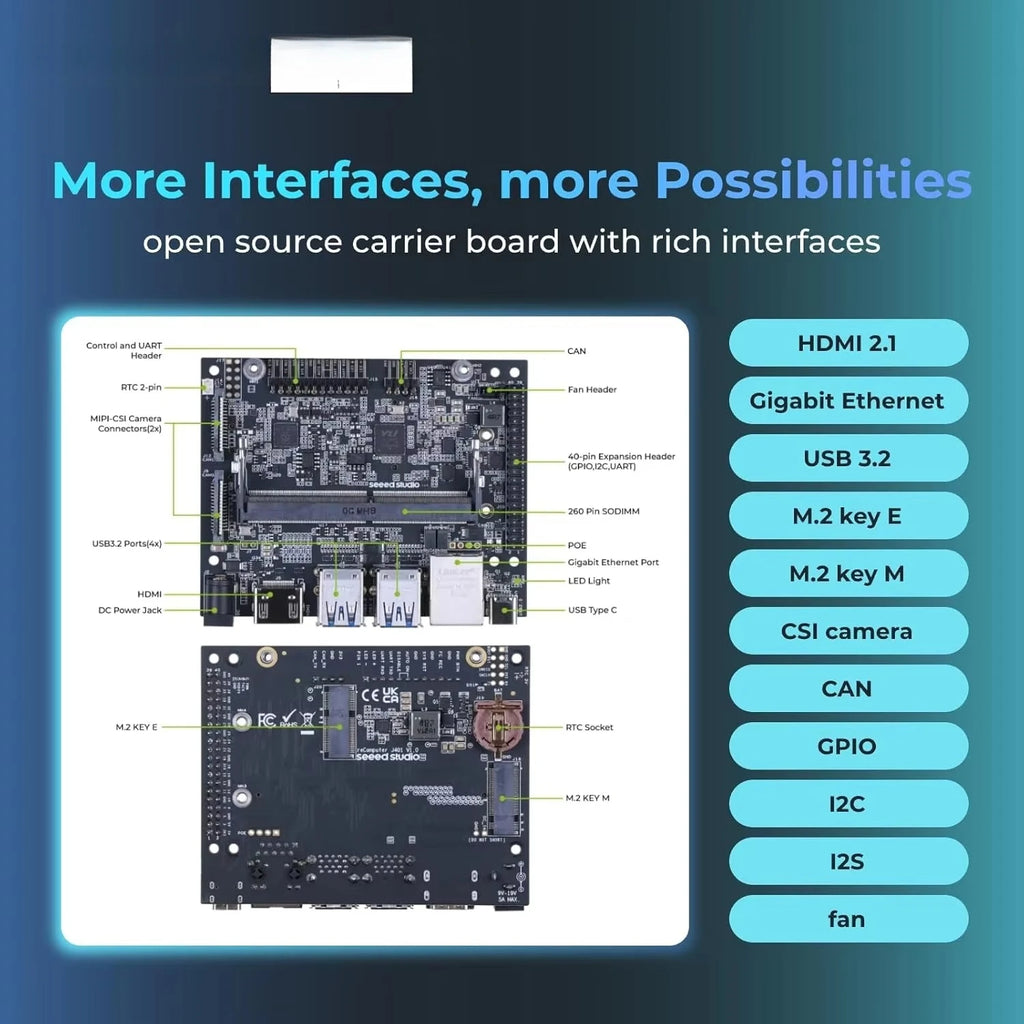

Expandable with rich I/Os: 4x USB3.2, HDMI 2.1, 2xCSI, 1xRJ45 for GbE, M.2 Key E, M.2 Key M, CAN and GPIO
Accelerate solution to market: pre-installed Jetpack with NVIDIA JetPack 5.1.1 on the included 128GB NVMe SSD, Linux OS BSP, 128GB SSD, WiFi BT combo module, Antennas x2, support Jetson software and leading AI frameworks and software platforms
Comprehensive certificates: FCC, CE, RoHS, UKCA
[Note]Power adapter needs to be purchased separately

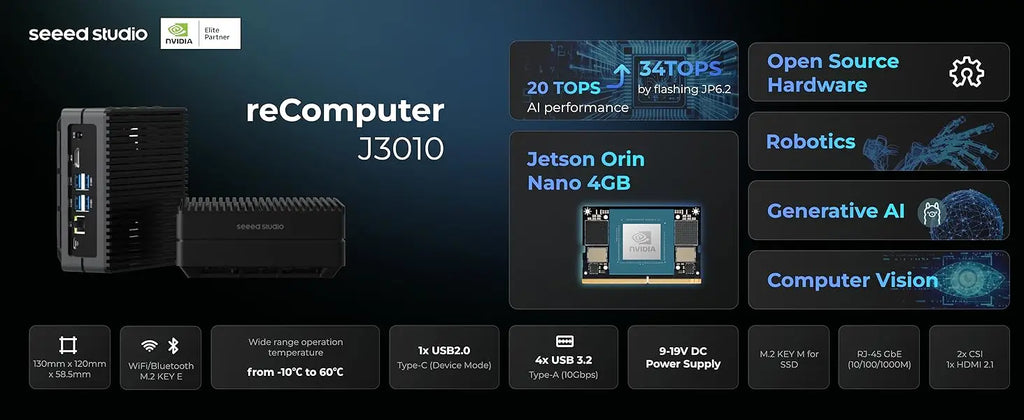

Specification

Orin Nano System on Module
AI Performance	reComputer J3011, Orin Nano 8GB - up to 67 TOPS		reComputer J3010, Orin Nano 4GB - up to 34 TOPS
GPU	1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores (Orin Nano 8GB)		512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores (Orin Nano 4GB)
CPU	6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3
Memory	8GB 128-bit LPDDR5 68 GB/s (Orin Nano 8GB)		4GB 64-bit LPDDR5 34 GB/s (Orin Nano 4GB)
Video Encoder	1080p30 supported by 1-2 CPU cores
Video Decoder	1x 4K60 (H.265) \| 2x 4K30 (H.265) \| 5x 1080p60 (H.265) \| 11x 1080p30 (H.265)
Carrier Board
Storage		M.2 Key M PCIe (M.2 NVMe 2280 SSD 128G included)
Networking	Ethernet	1x RJ-45 Gigabit Ethernet (10/100/1000M)
	M.2 KEY E	1x M.2 Key E(pre-installed 1x Wi-Fi/Bluetooth combo module)
I/O	USB	4x USB 3.2 Type-A (10Gbps), 1x USB2.0 Type-C (Device Mode)
	CSI Camera	2x CSI (2-lane 15pin)
	Display	1x HDMI 2.1

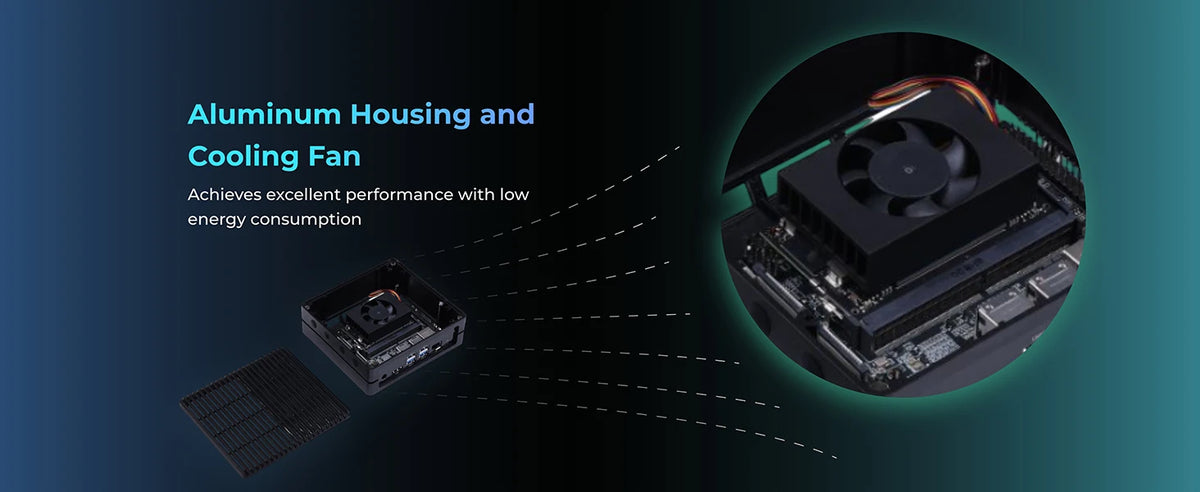

	Fan	1x 4 pin Fan Connector (5V PWM)
	CAN	1x CAN
	Multifunctional Port	1x 40-Pin Expansion header 1x 12-Pin Control and UART header
	RTC	RTC 2-pin, supports CR1220 but not included
Power Supply		9-19V DC
Mechanical	Dimensions (W x D x H)	130mm x 120mm x 58.5mm (with case)
	Installation	Desk, wall-mounting
Operating Temperature		-10℃~60℃
Warranty		1 Years
