SPECIFICATIONS

Brand Name: Gaqqee

Certification: CE

Choice: yes

DIY Supplies: Electrical

Electronic: No

High-concerned chemical: None

Origin: Mainland China

Type: Power Bank Shell

Features

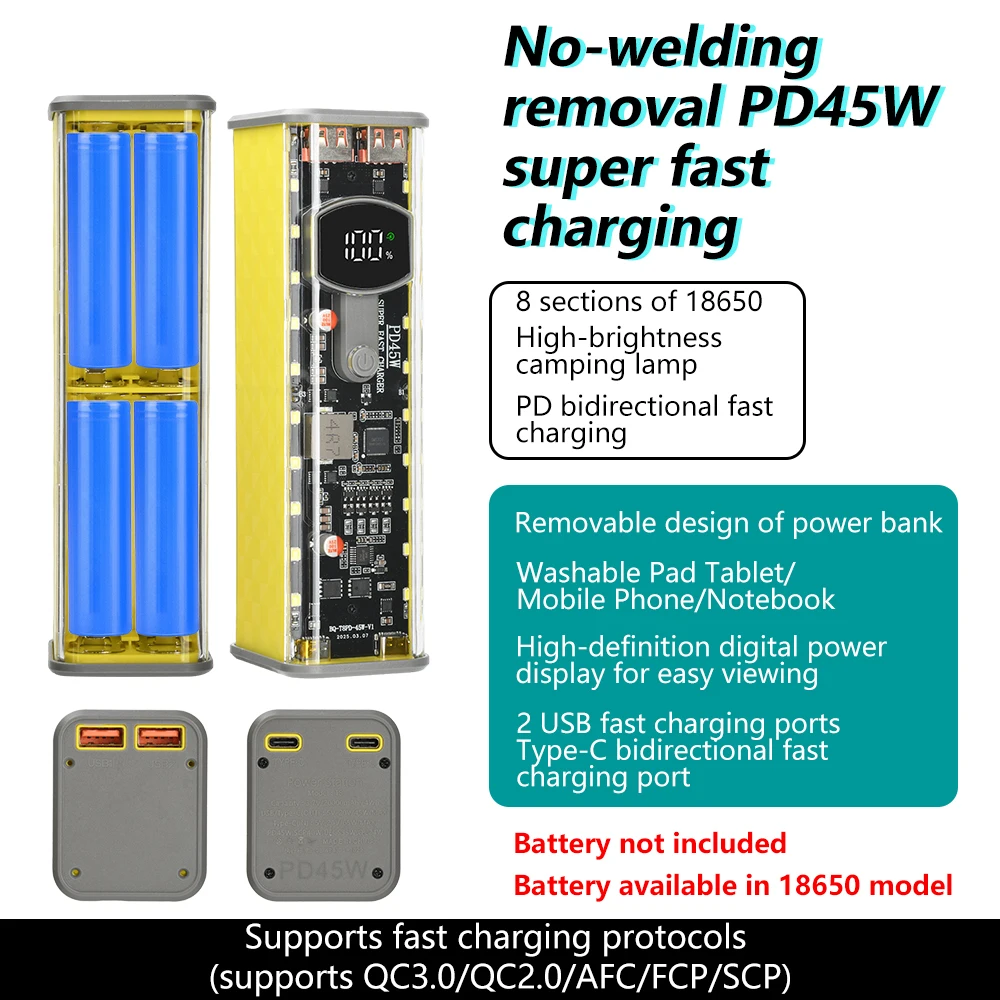

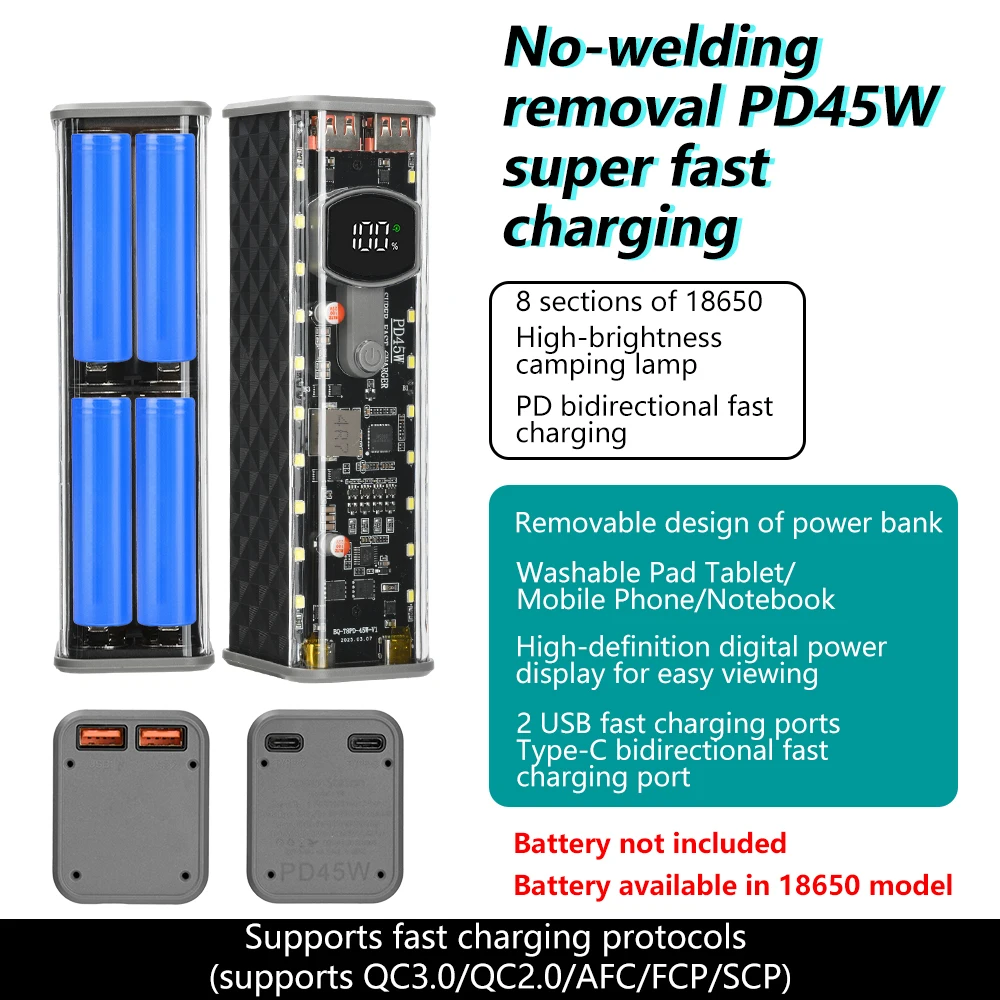

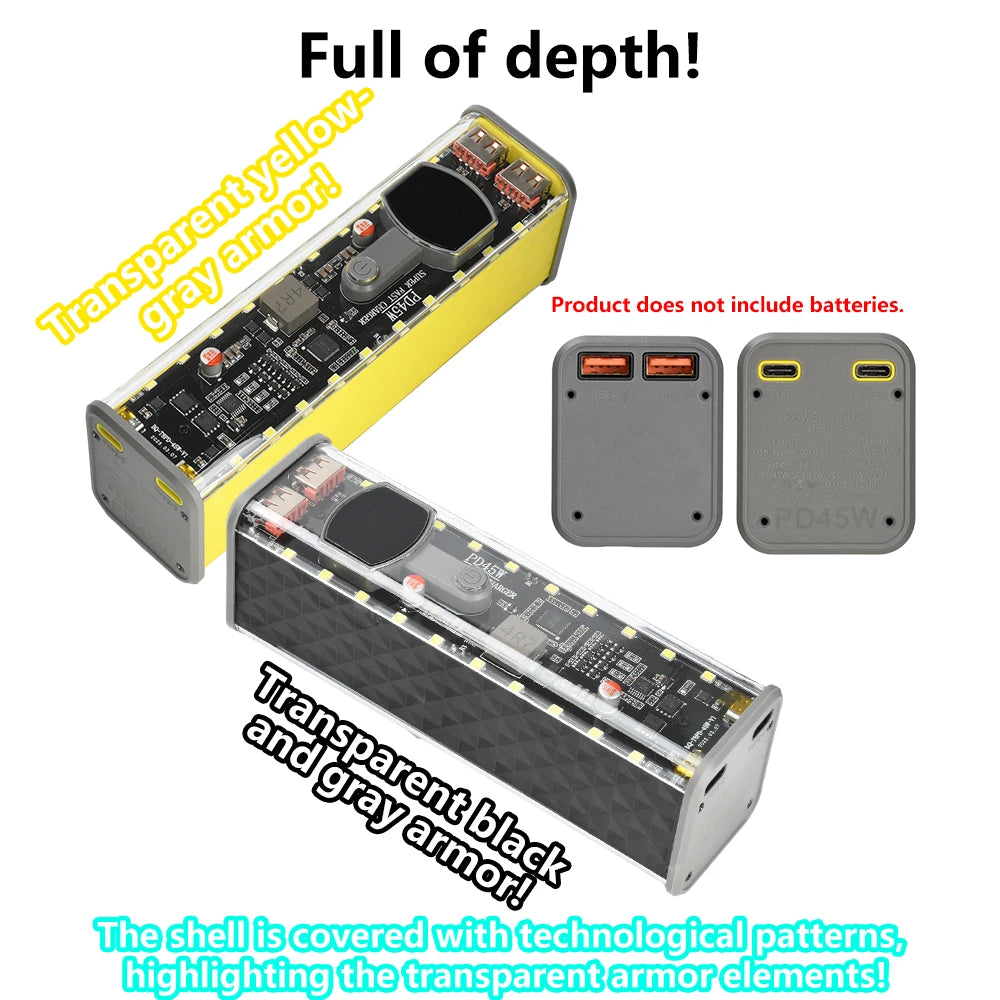

1.Mecha transparent design, full of sense of technology, internal structure at a glance, show personality

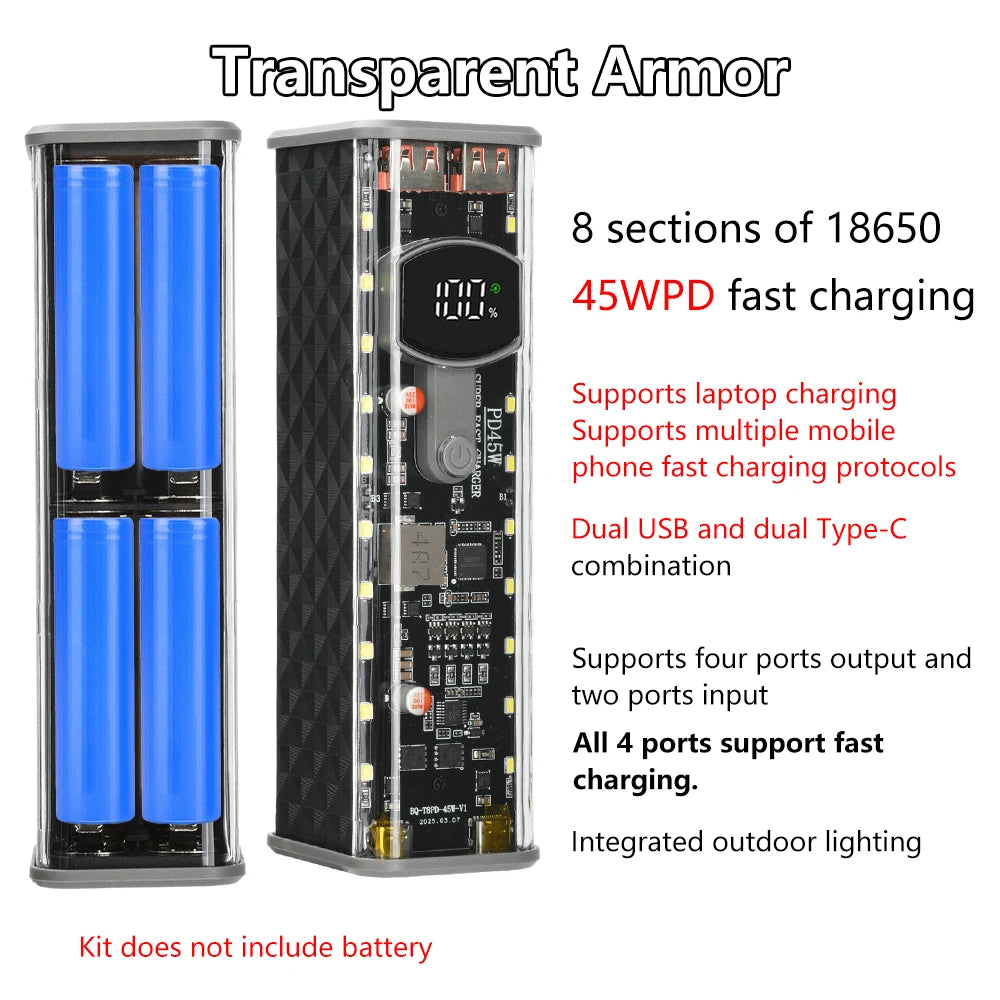

2.Support 8 18650 batteries installation, large capacity energy storage, to meet the demand for long time power consumption

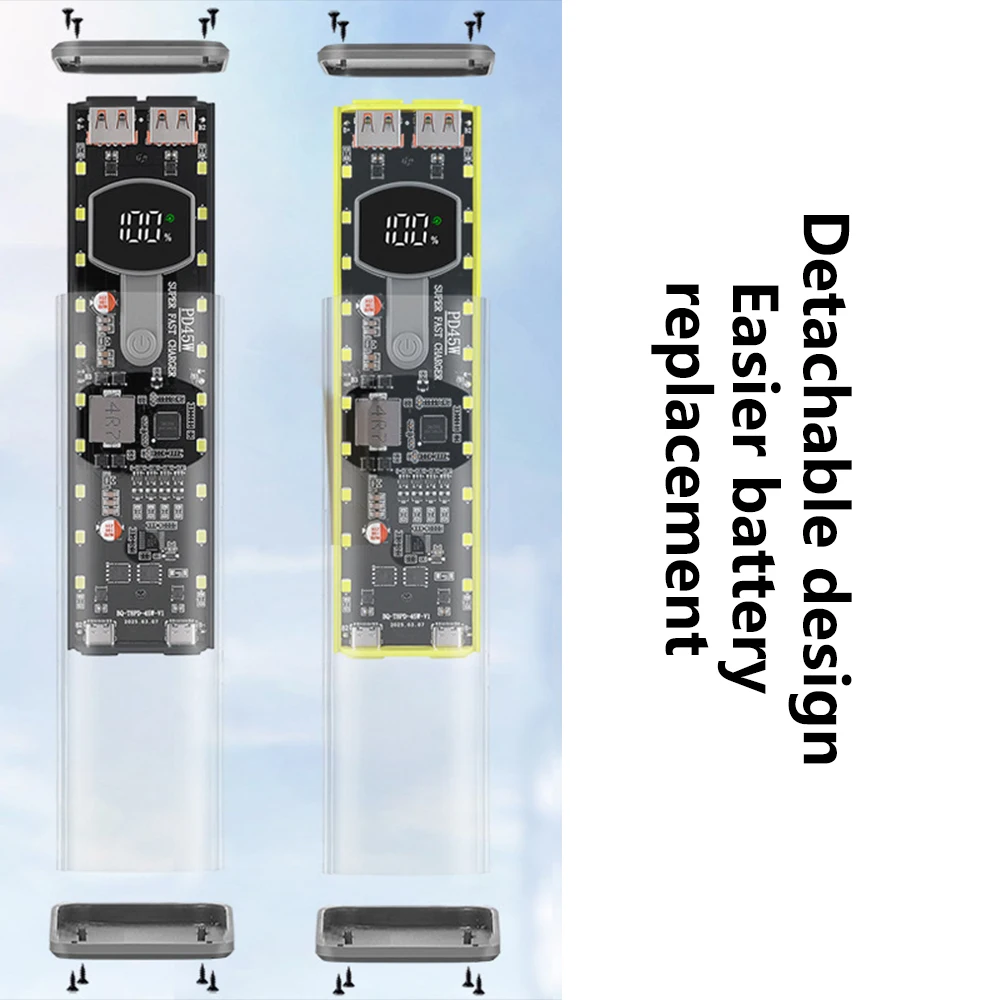

3. Welding-free design, easy and fast assembly, suitable for electronic enthusiasts to start making.

4.Equipped with PD fast charging protocol, compatible with a variety of devices, providing efficient and convenient charging experience.

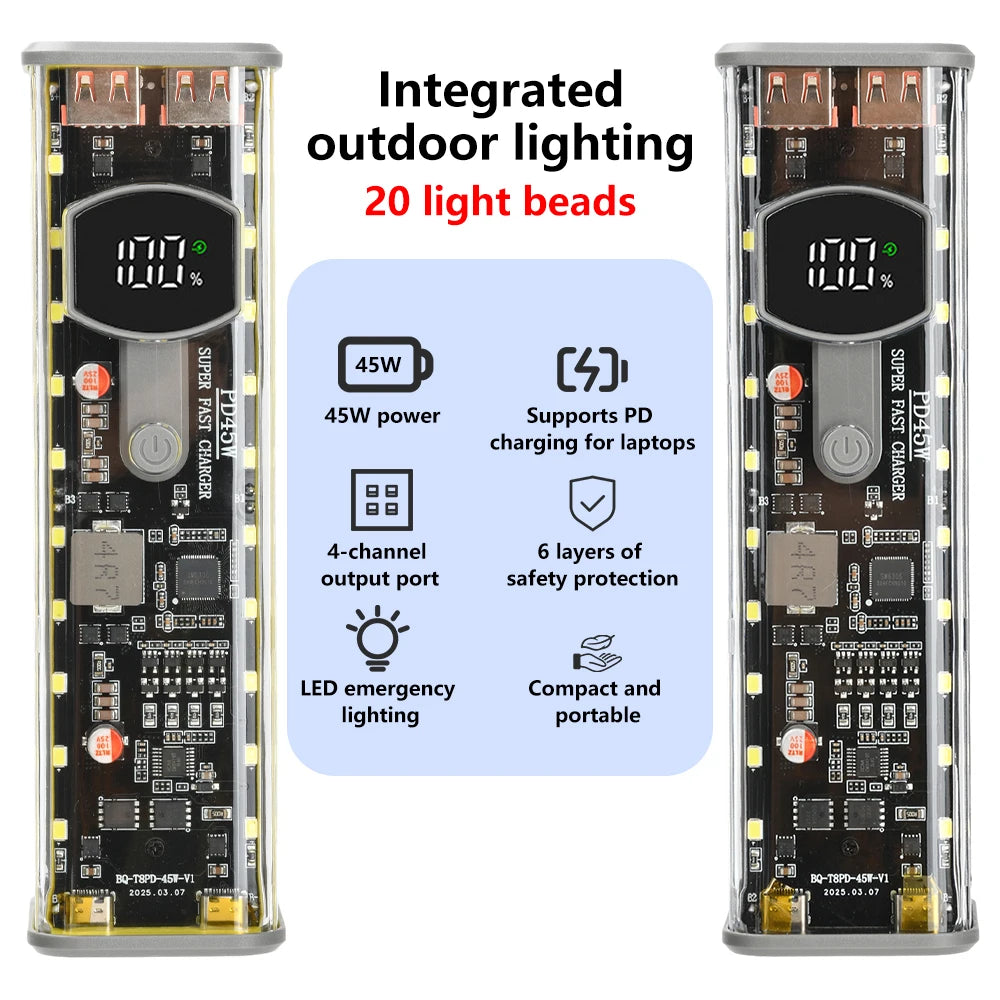

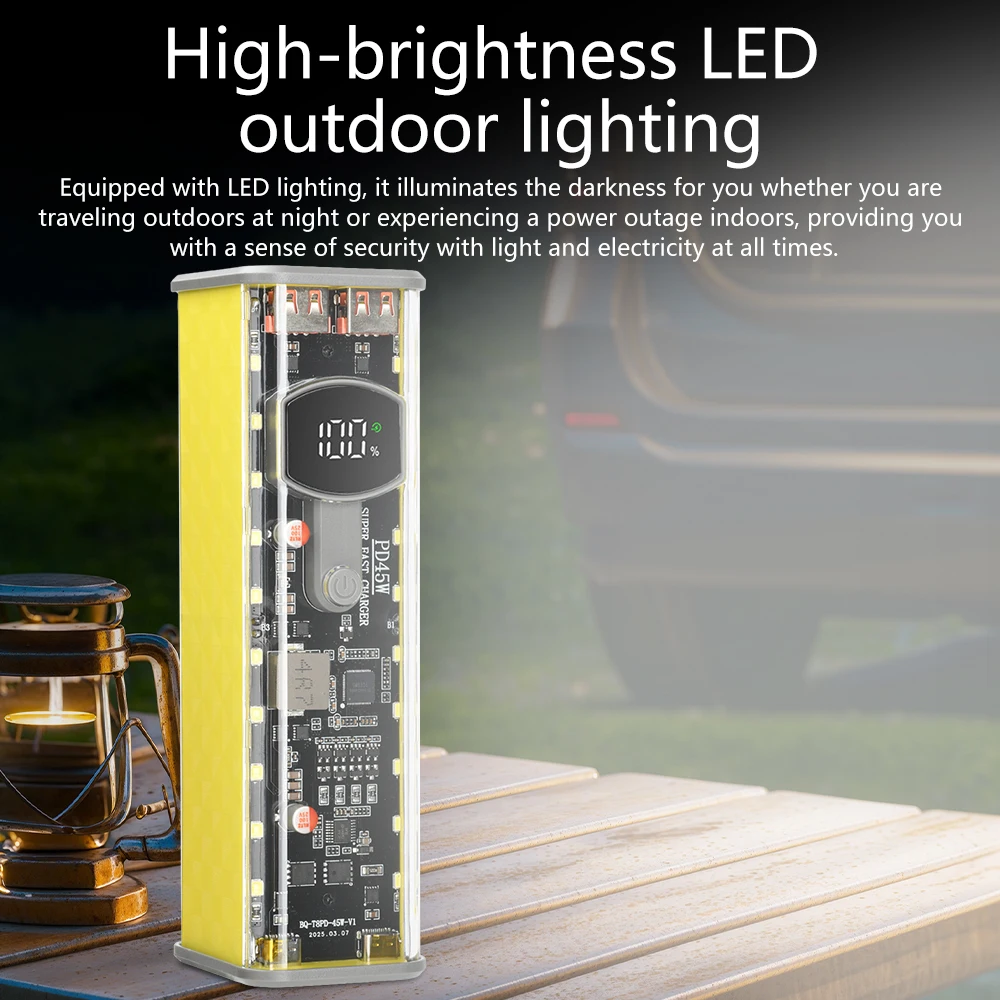

5. Built-in outdoor lighting, emergency lighting at night, multi-purpose, portable and practical

Parameter:

Output Power: PD 45W (Peak 48W)

Input Power: 30-65W

USB Output and Supported Smartphone Protocols:

5V/3.1A (Standard Output); SCP: 40W; UFCS: 33W;

SVOOC: 45W; VOOC 4.0: 30W (Requires High-Performance Fast Charging Cable); VOOC 1.0: 20W (requires fast charging cable);

PE 1.1: 7.5W; PE 2.0: 30W; QC 3+: 45W; QC 3.0: 36W; QC 2.0: 24W; AFC: 18W; FCP: 18W; SFCP: 18W;

Multi-port simultaneous output is limited to 5V;

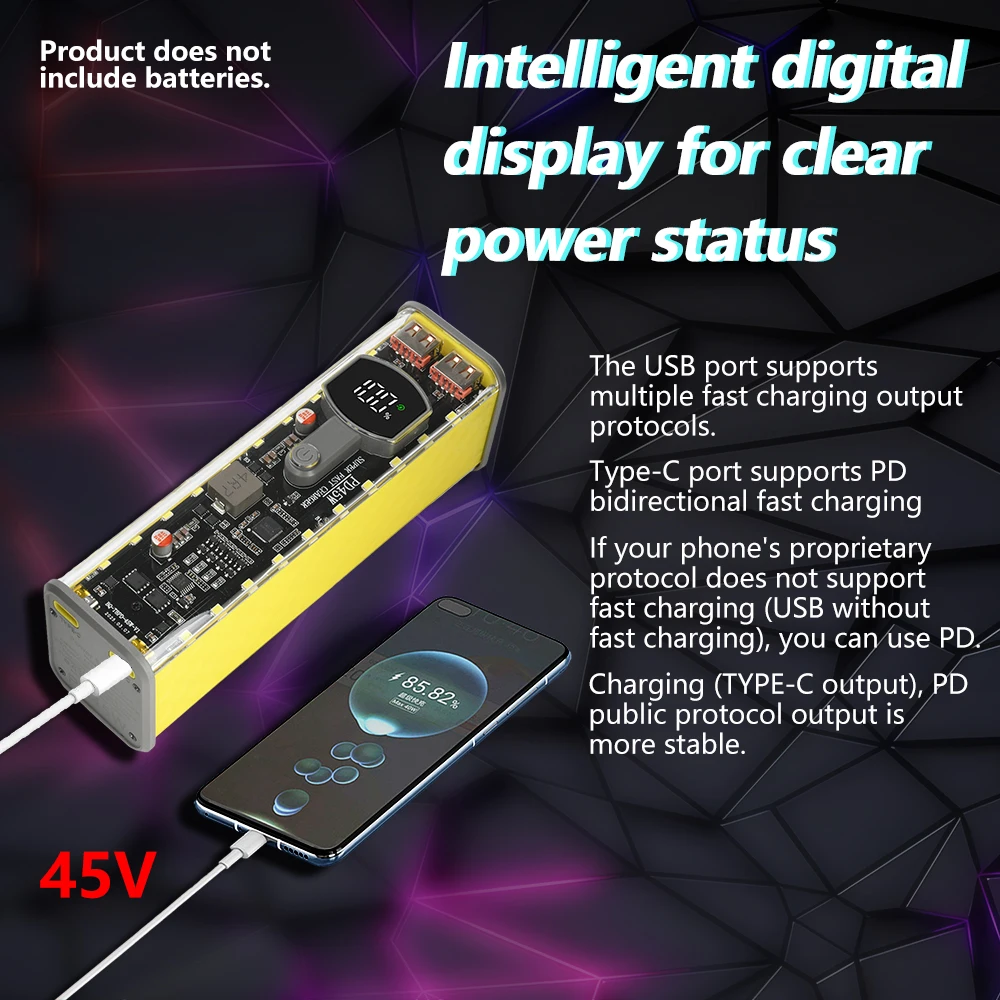

Type-C output and supported smartphone protocols:

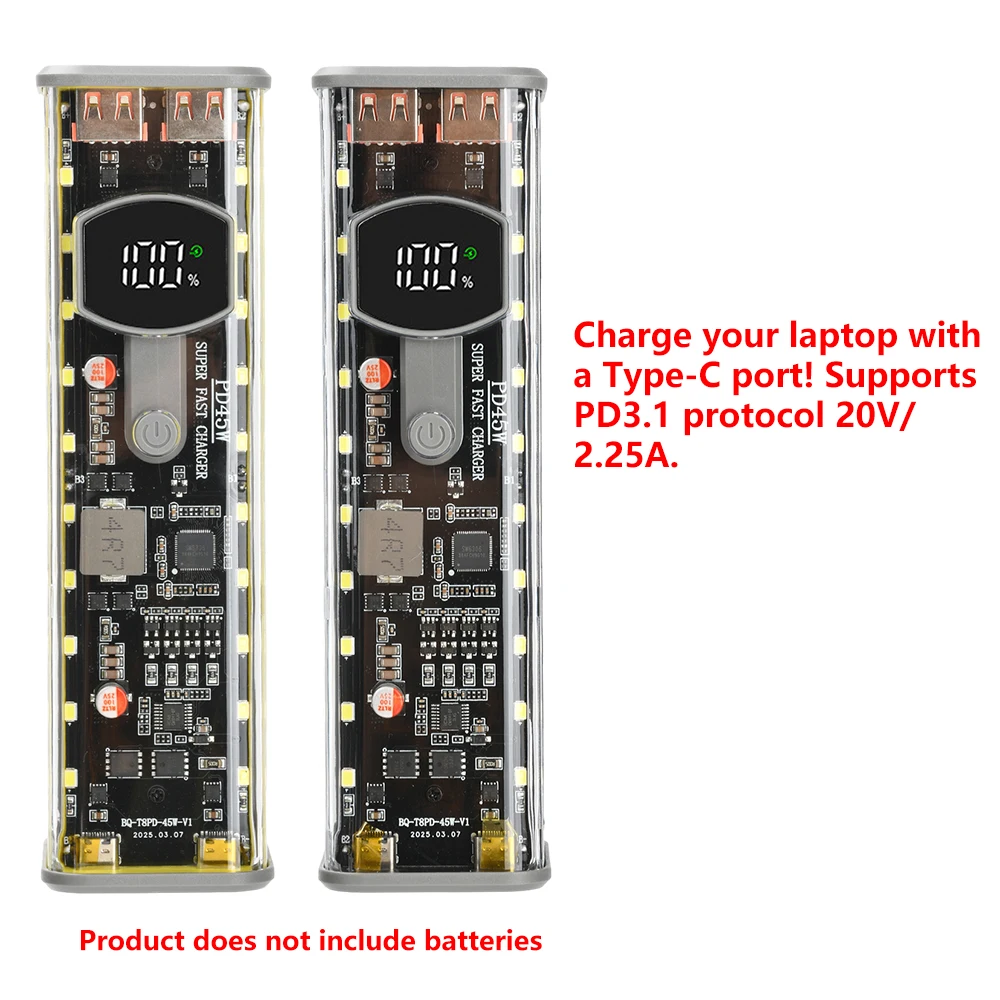

5V/3.1A (standard output); PD3.1: 45W; PPS: 44W;

SCP: 40W; UFCS: 33W; SVOOC: 45W;

VOOC 4.0: 30W (requires high-performance fast-charging cable);

VOOC 1.0: 20W (requires fast-charging cable); PE1.1: 7.5W;

PE2.0: 30W; QC3+: 45W; QC3.0: 36W; QC2.0: 24W; AFC: 18W; FCP: 18W; SFCP: 18W;

Multi-port output without fast charging;

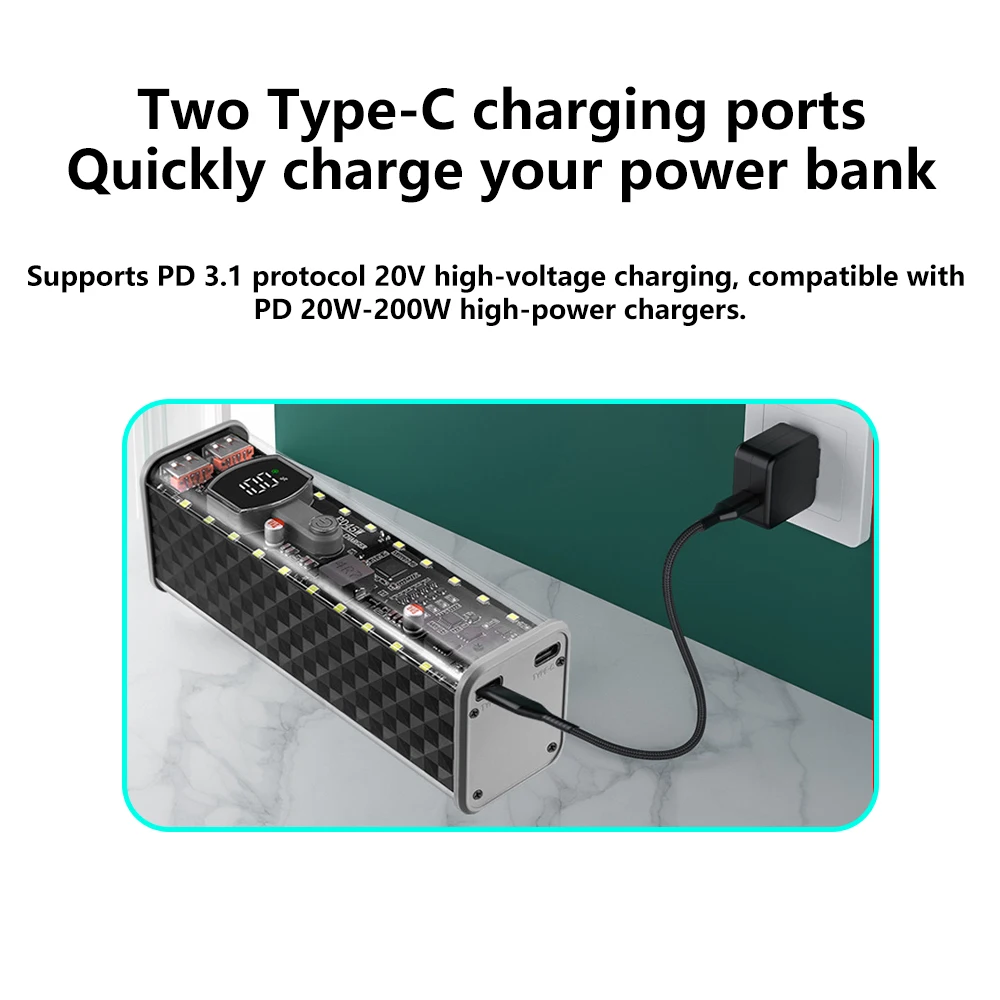

Type-C input and supported smartphone protocols:

5V/3.1A (standard input); PD3.1: 65W (MAX); SCP: 40W; UFCS: 33W; SVOOC: 45W; VOOC 4.0: 30W (requires high-performance fast-charging cable); VOOC 1.0: 20W (requires fast-charging cable); AFC: 18W; FCP: 18W;

Supports 5V charging and discharging simultaneously;

Button function: Long press to turn on LED light

Color: Black frame + gray + transparent, yellow frame + gray + transparent

Effective voltage: 12.3V-16.5V (spring has voltage drop)

Fast charging specifications (support protocols):

with data transmission charging cable, one of the following protocols can be successful communication handshake)

support 5V, 9V, 12V voltage stalls input/output

compatible with BC1.2, IP (charging cable control)

integrated SCP 22.5W super fast charging output protocol

integrated QC2.0/QC3.0 output fast charging protocol

integrated FCP, AFC input/output fast charging protocol

Support PPS, PE2.0, SFCP output fast charging

Support PD2.0/3.0, PE1.1 input/output protocols

Notice：

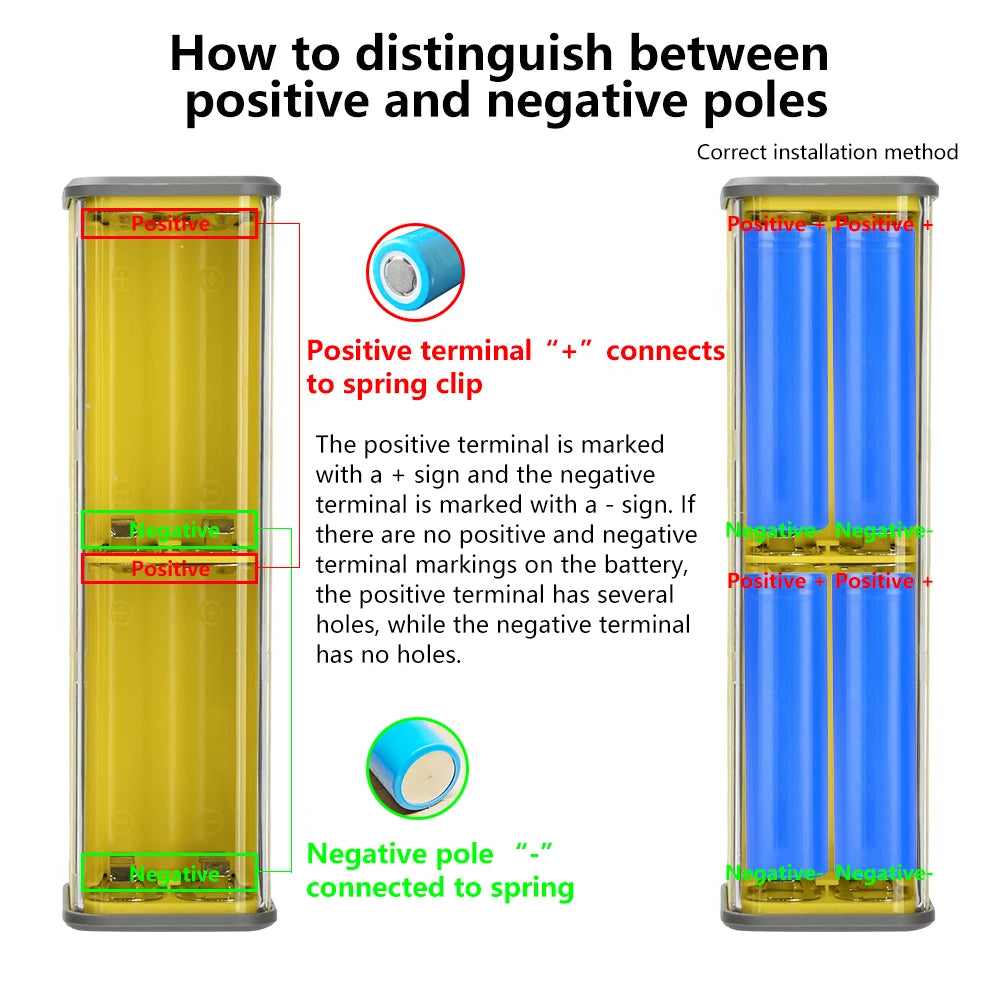

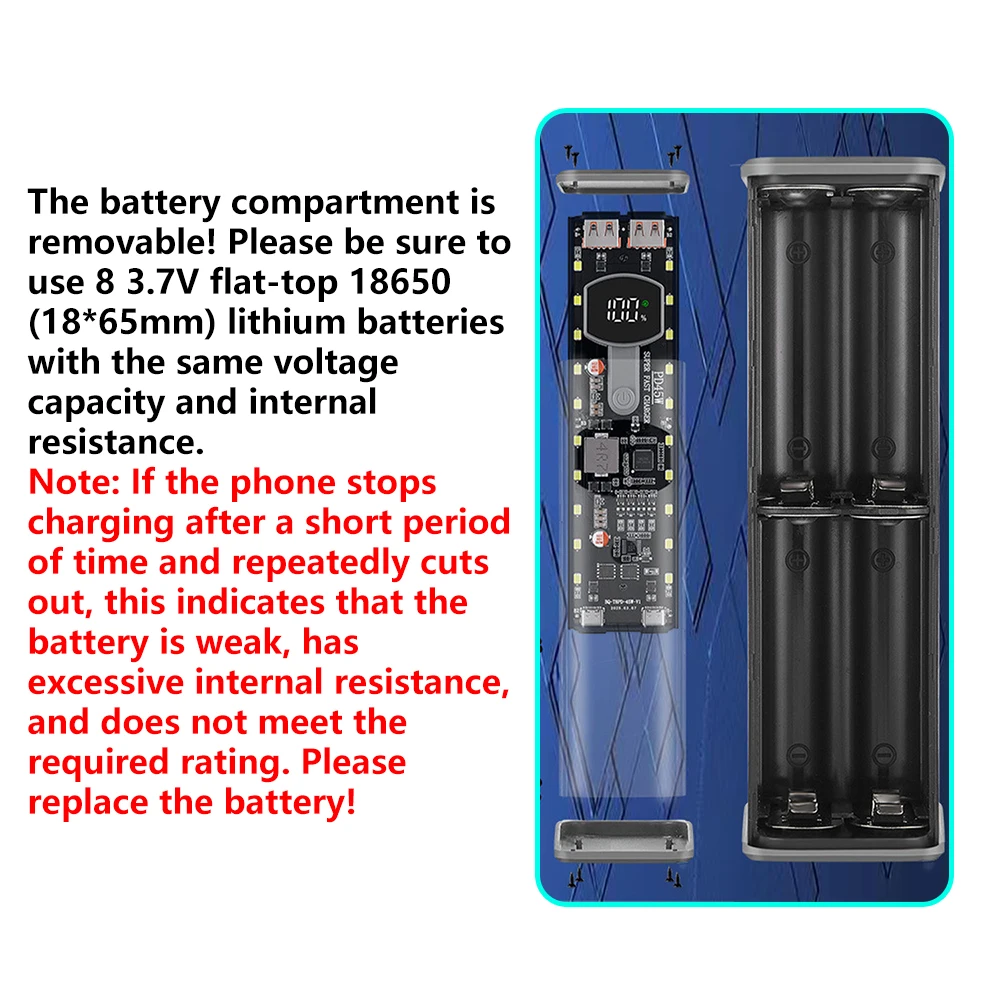

The charging box is equivalent to four independent circuits, a circuit board connected in series. If one of the circuits is not powered or the internal resistance and voltage are different, the entire set will be unusable. Therefore, the requirements for the battery are relatively high. The capacity, internal resistance and voltage of the battery all need to be consistent. If there is a difference, it cannot be used

Package include

Chargemaster case *1 (battery not included)

Accessory kit *1
