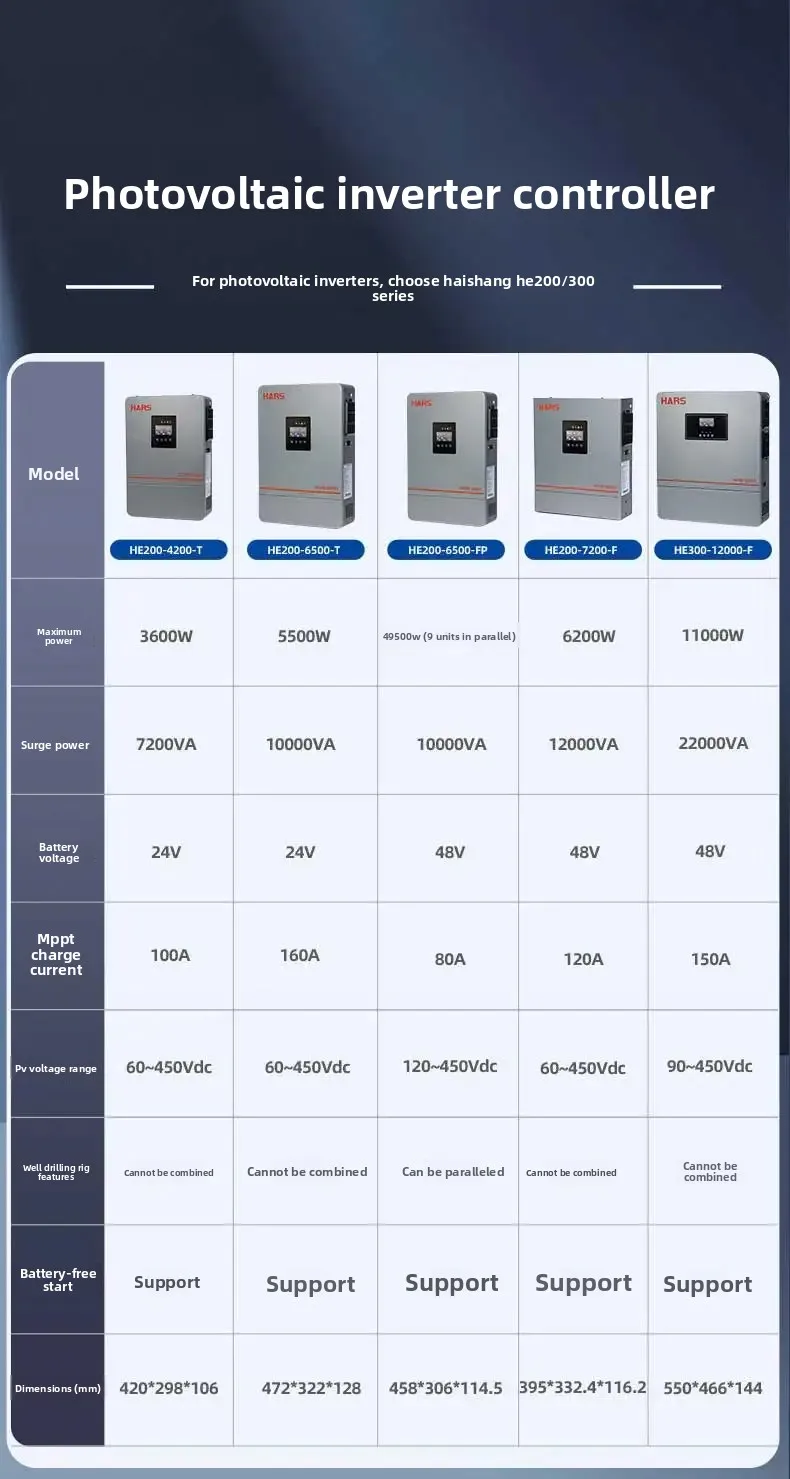

Maximum power: 3000w
BATTERY REQUIRED: Yes

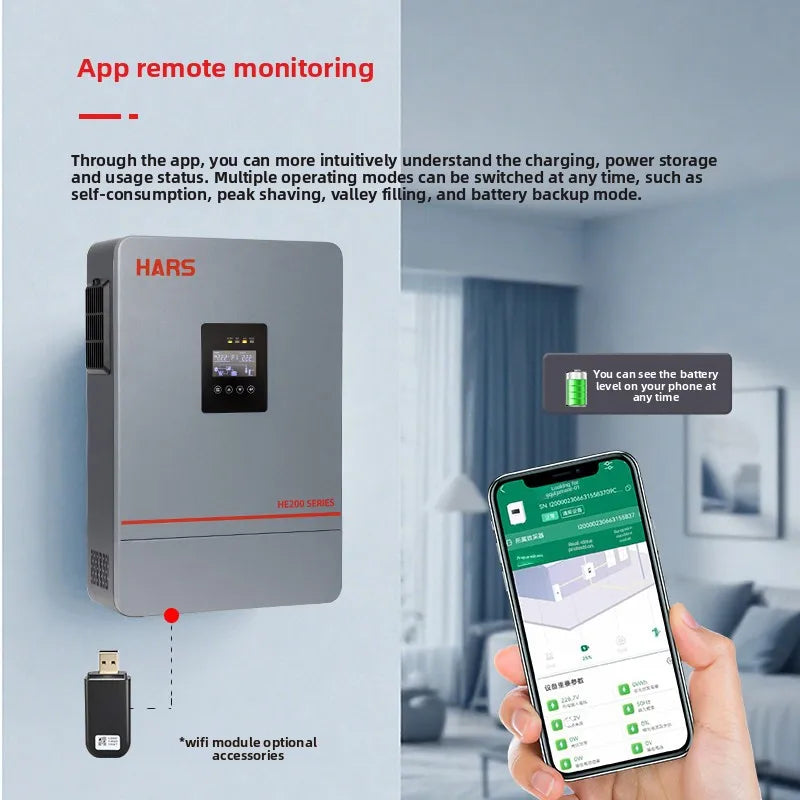

Wifi collector included: Yes
Series: HE300 SERIES
High frequency inverter: he300-4200-t
Surge power: 6000va
Battery voltage: 24v
Mppt charging current: 100a
Pv voltage range: 30~450vdc
Max input power of photovoltaic panel: 3000w
Weight: 7.5kg
Height, length and width (mm): 402 310 105

Maximum power: 3600w
Wifi collector included: Yes
Series: HE200 SERIES
High frequency inverter: he200-4200-t
Surge power: 7200va
Battery voltage: 24v
Mppt charging current: 100a
Pv voltage range: 60~450vdc
Parallel operation function: cannot be paralleled
Batteryless startup: supported
Height, length and width (mm): 420 298 106
Weight: 7.8kg

Maximum power: 6200w
Series: HE300 SERIES
High frequency inverter: he300-7200-f
Surge power: 12000va
Battery voltage: 48v
Mppt charging current: 120a
Pv voltage range: 60~450vdc
Max input power of pv panel: 8500w
Weight: 11.2kg
Height, length and width (mm): 420 315 120

Output power: 6500w

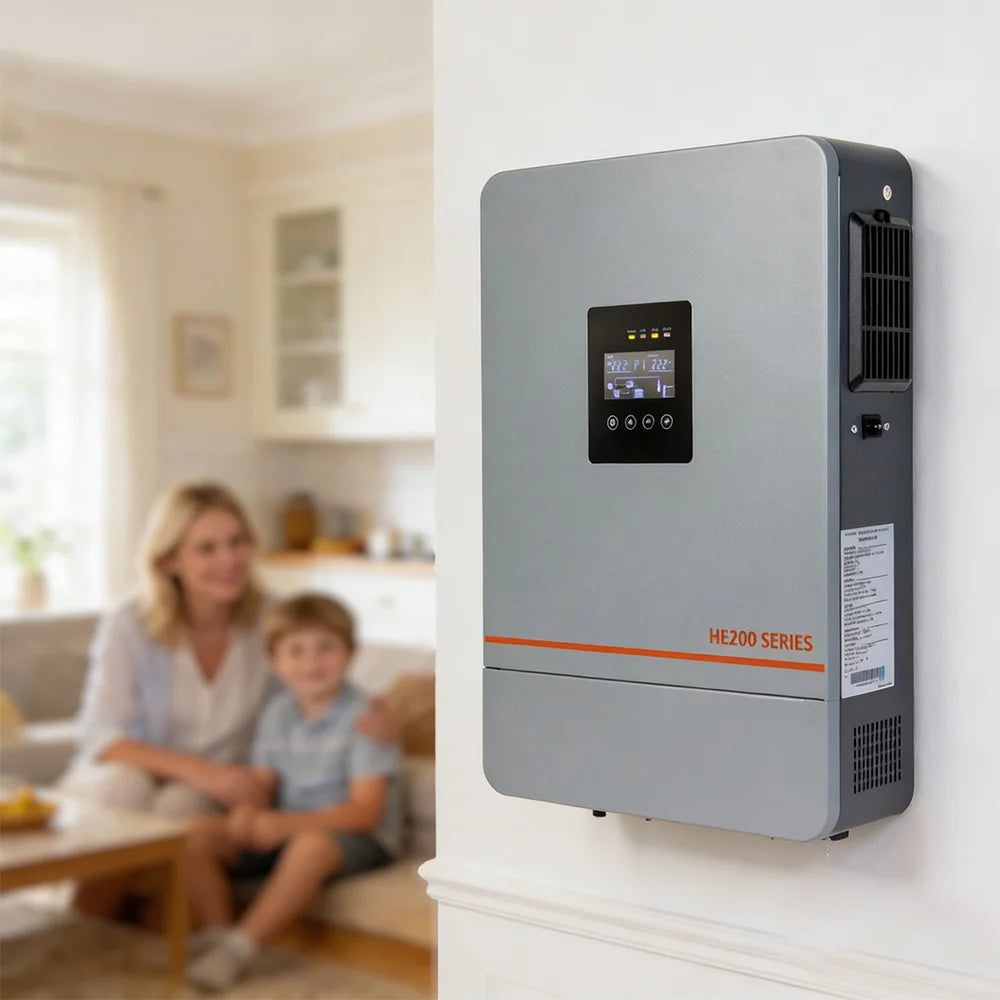

Series: HE200 SERIES
High frequency inverter: he200-7200-f
Surge power: 12000va
Battery voltage: 48v
Mppt charging current: 120a
Pv voltage range: 60~450vdc
Parallel operation function: cannot be paralleled
Batteryless startup: supported
Height, length and width (mm): 395 332.4 116.2
Weight: 9.7kg

Output power: 5500w
Series: HE200 SERIES
High frequency inverter: he200-6500-fp

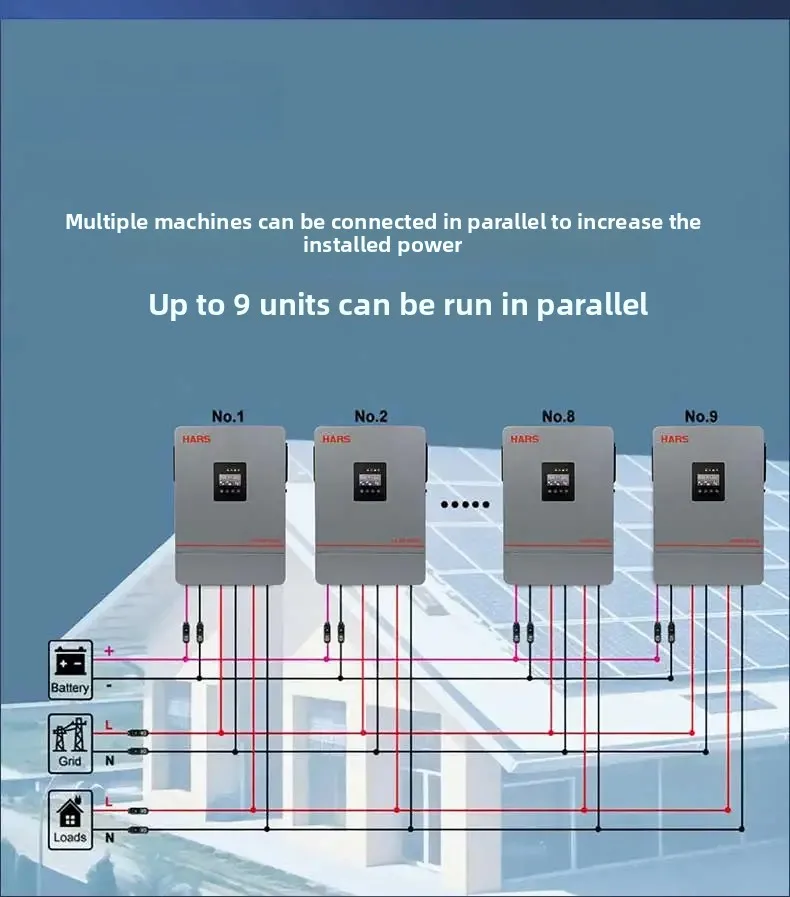

Maximum power: 49500w (9 units in parallel)
Surge power: 10000va
Battery voltage: 48v
Mppt charging current: 80a
Pv voltage range: 120~450vdc
Parallel operation function: can be paralleled
Batteryless startup: supported
Height, length and width (mm): 458 306 114.5
Weight: 10kg

Outdoor 3600W 24V
【Outdoor dedicated, rainproof】
Ingress Protection: IP54
Series: HE200 SERIES
High frequency inverter: he200-4200-t
Surge power: 7200va
Battery voltage: 24v
Mppt charging current: 100a
Pv voltage range: 60~450vdc
Parallel operation function: cannot be paralleled
Batteryless startup: supported
Height, length and width (mm): 460 335 125
Weight:7.8kg

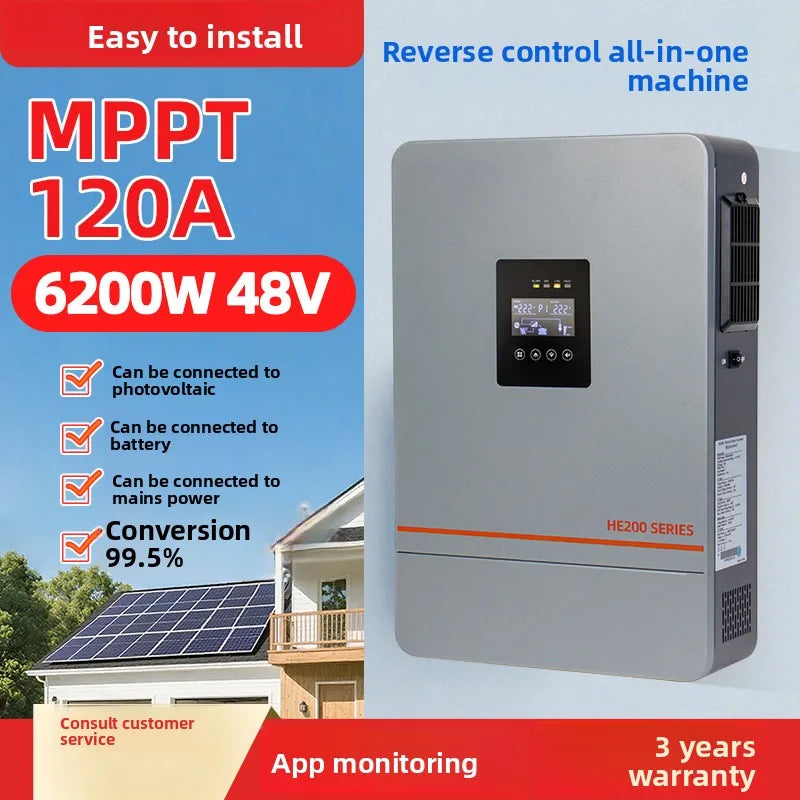

Outdoor 6200W 48V
【Outdoor dedicated, rainproof】
Ingress Protection: IP54
Series: HE200 SERIES
High frequency inverter: he200-7200-f
Surge power: 12000va
Battery voltage: 48v
MPPT: 120A
Pv voltage range: 60~450vdc
Parallel operation function: cannot be paralleled
Batteryless startup: supported
Height, length and width (mm): 500 359 126
Weight: 11.2kg

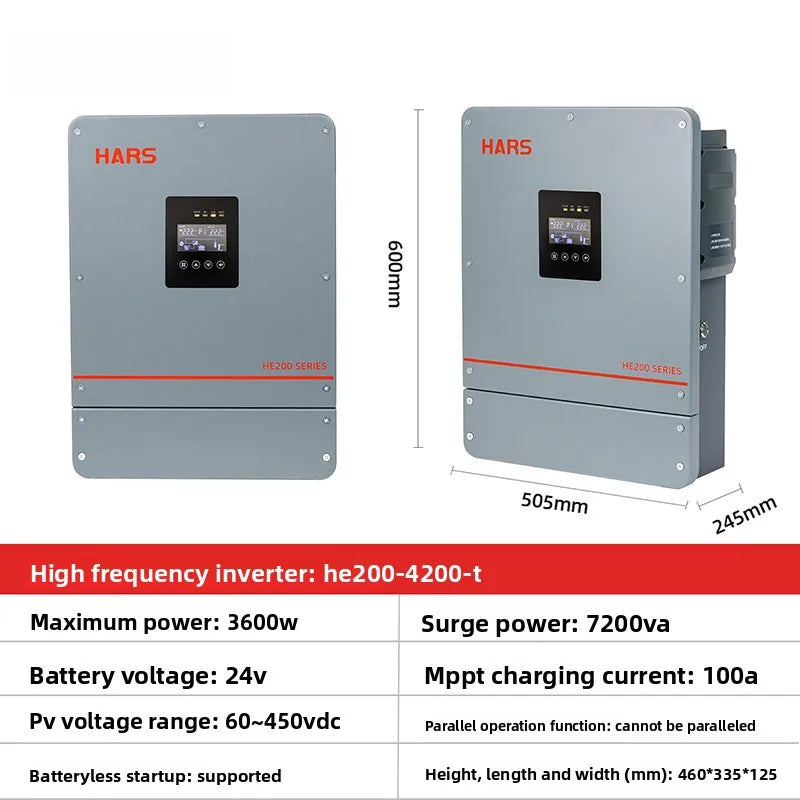

Parameter Item Parameter Value
Model: he200-4200-t
Maximum Power: 3600w
Peak Power: 7200va
Battery Voltage: 24v
MPPT Charging Current: 100a
PV Voltage Range: 60~450vdc
Parallel Function: Not Parallelizable
Battery-Free Startup: Supported
Dimensions (H × L × W): 460×335×125 mm

Parameter Item Parameter Value
Model: he200-7200-f
Rated Power: 6200w
Peak Power: 12000va
Battery Voltage: 48v
MPPT Charging Current: 120A
PV Voltage Range: 60~450vdc
Parallel Function: Not Parallelizable
Battery-Free Startup: Supported
Dimensions (H × L × W): 500×359×126 mm
