Product Features

Marine Air Conditioner
1.High effeciency rotary compressors
2. Cooling/Heating/Dehumidifying
3.Strong Anti-Corrosion performance
4.Compact design & Lightweight

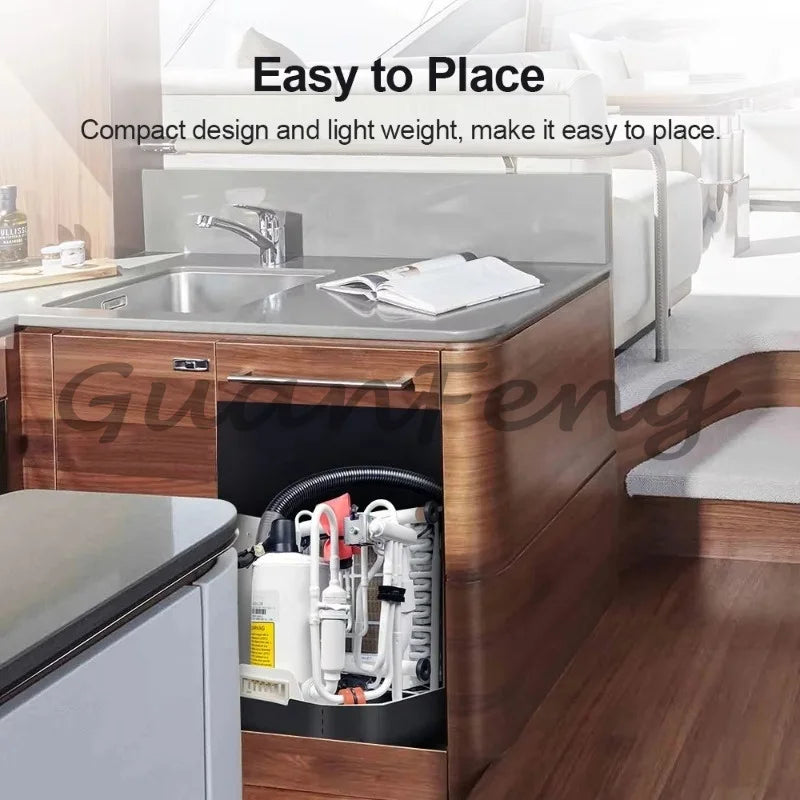

5.Easy to install & place
6.Low maintenance costs
7. Long service life
8. R410a refrigerant

Details Images

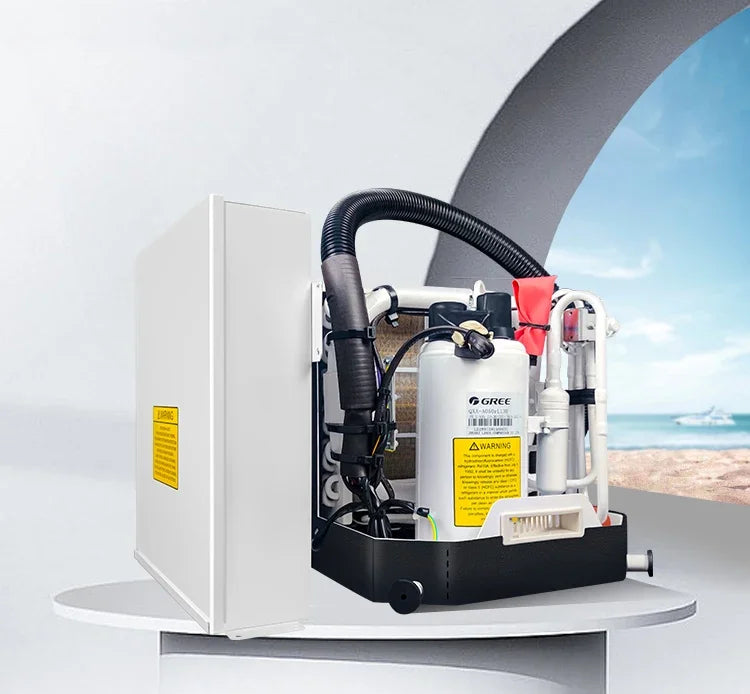

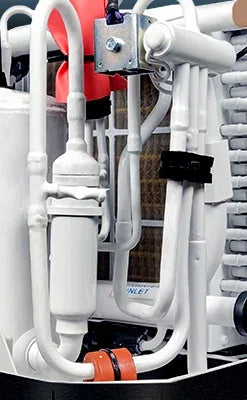

The Details of Marine Air Conditioner

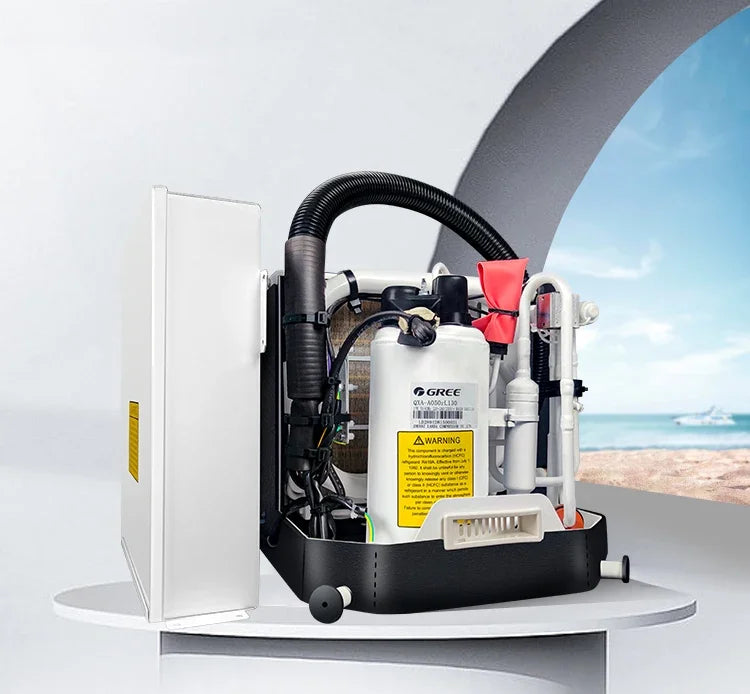

High efficiency compressors

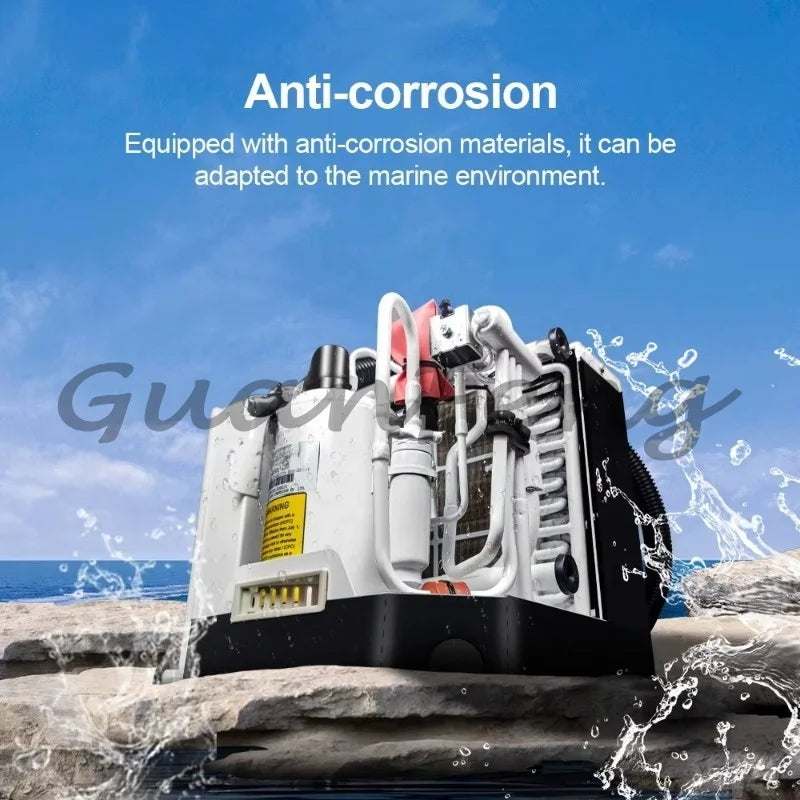

Strong Anti-corrosion
Cupronickel condenser coil

Product Usage

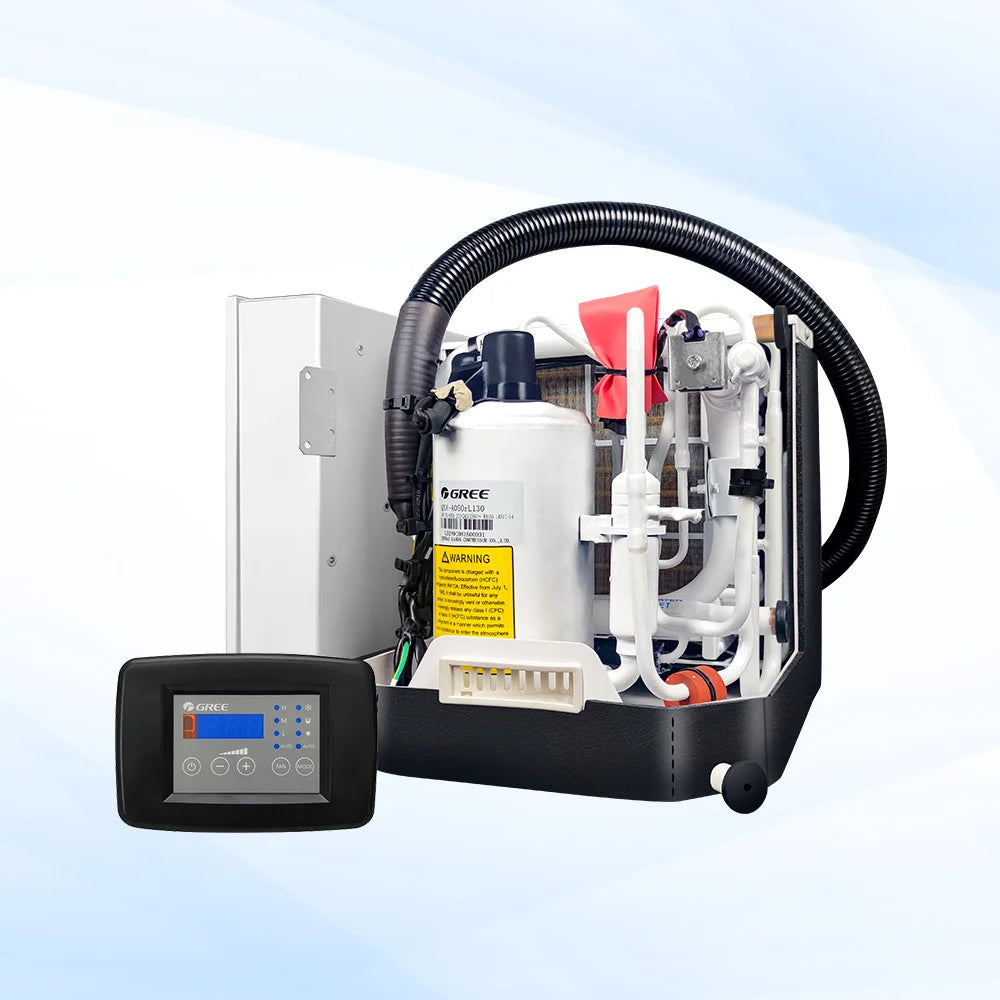

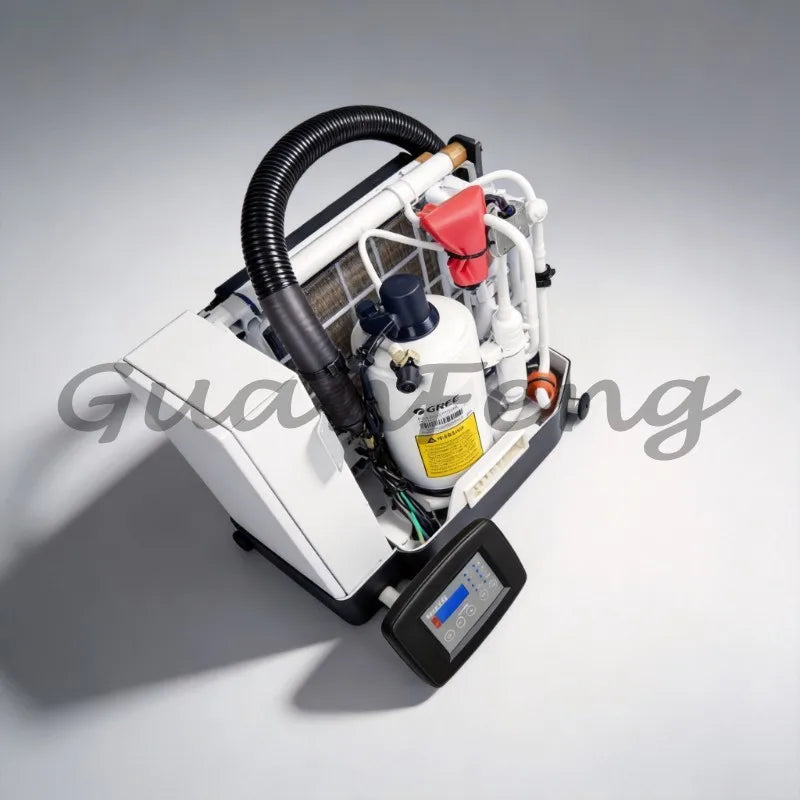

The Controller Panel
usage introduction
1.Remote receiver
2.Digital display
3.Fan speed display
（HIGH、MID、LOW、AUTO）
4.Dispaly of mode operation
（COOL、HEAT、DEHUMINDFY、AUTO）
5.Mode button
6.Fan control button
7.Temperature setting Button +
8. Temperature setting Button -
9.ON/OFF button
Description of product
use effect
1 .Comfort&Health
Provide a comfortable indoor environment by maintaining a cool and dry temperature,
2. Energy Efficiency
Reduce the overall energy consumption of the vessel.
3.Low Noise
Create a peaceful and relaxing environment on board.

Product Paramenters
Model
PMD9NaC-T
PMD12NaC-T
PMD16NaC-T
PMD24NaC-T
Capacity-Cooling(Btu/h)
9000
12000
16000
24000
Capacity-Heating(Btu/h)
9500
13000
16500
25200
Power supply(V,Hz,Ph)
220V    50/60Hz    1Ph
Refrigerant
R410a
Power input
(KW)
Cooling
0.92
0.95
1.25
1.8
Heating
0.86
1.10
1.25
2.1
Amp Draw
(A)
Cooling
4.0
4.3
5.6
11.9
Heating
3.9
4.6
5.6
14
Air flow
(m3/h)
High
470
580
750
1200
Middle
350
460
600
800
Low
280
380
450
600

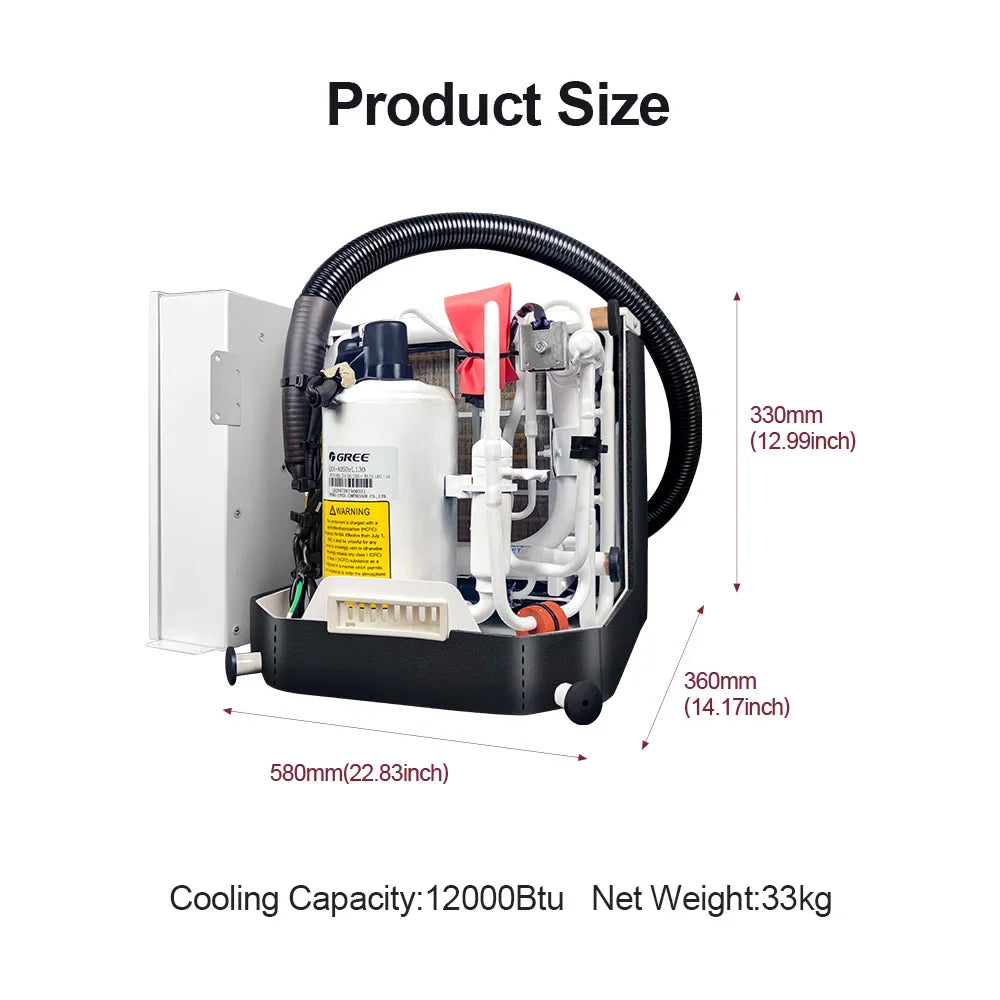

Dimension (mm)
Width
380
580
650
529
Depth
413
360
370
595
Height
330
330
330
386
Net weight(kg)
29
33
38
60
