SPECIFICATIONS

APP: Tuya wifi

Battery: 4pcs AA batteries

Brand Name: Bilixo

Color: Black

Data Storage Options: Cloud,Memory Card

Door Type: Wood Door,Steel Door,Stainless Steel Door,Aluminum Door

Fingerprint Capacity: 100 Fingerprints

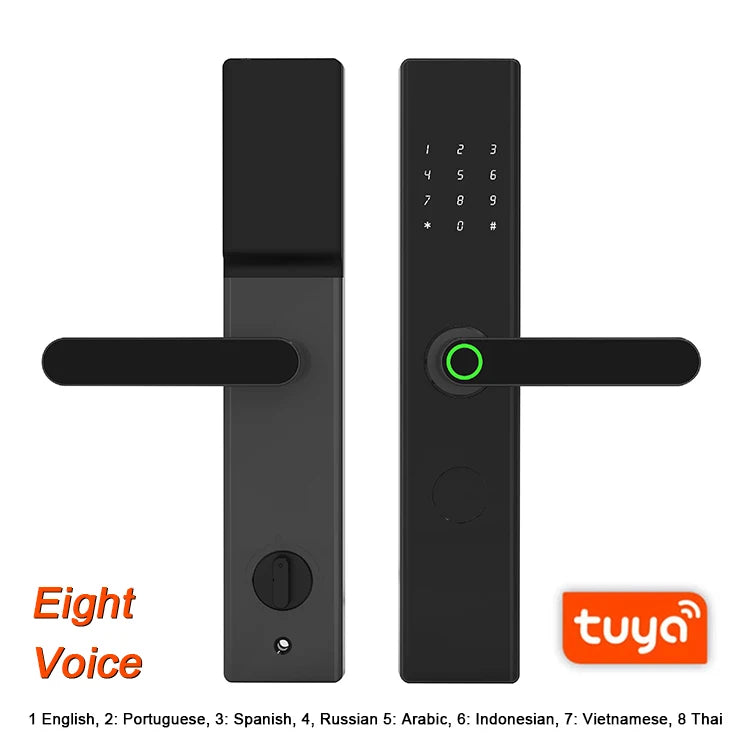

Language Voice (English): Portuguese, Spanish, Russian, Arabic, Indonesian, Vietnamese, Thai

Material: Alumium Alloy,Aluminum Alloy

Model Number: D11

Mortise: 6068/240*24mm/Customizable

Network: Wi-Fi

Place of Origin: Zhejiang, China

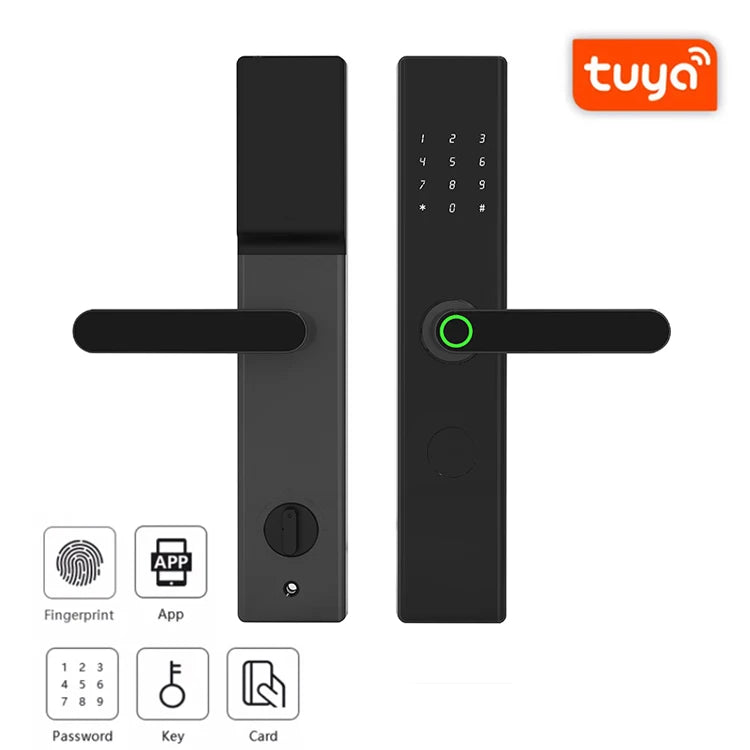

Unlock way: Tuya wifi+Fingerprint + Password + Card + Key

Warranty: 1 Year

Weight: 3kg

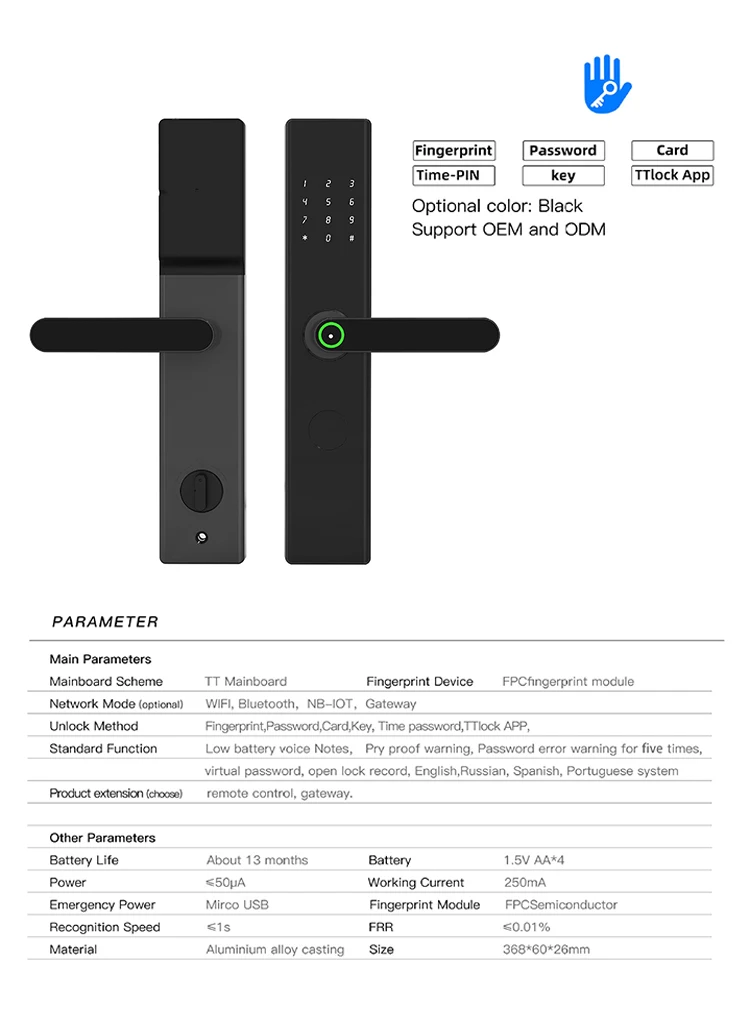

Products Description

Fingerprint	100	Static current	< 50uA
card	1000	Dynamic current	< 180mA
password	100	Flase rejection rate	< 0.1%
Low voltage alarm	4.6±0.2V	Flase recognition rate	< 0.0001%
working temperature	-20℃~80℃	Password Length	6digits
working relative humidity	20%~90%RH	Phantom password	32 digits
Unlock time	＜1s	Fingerprint sensor	Semiconductor
Power type	4pcs AA battery	Human Vocie	Yes

D11 Features:
1. Access by TTlock App, M1 Card, Fingerprint, Pass code, Wristband or key

2. TUYA & TT lock App version are available to choose.

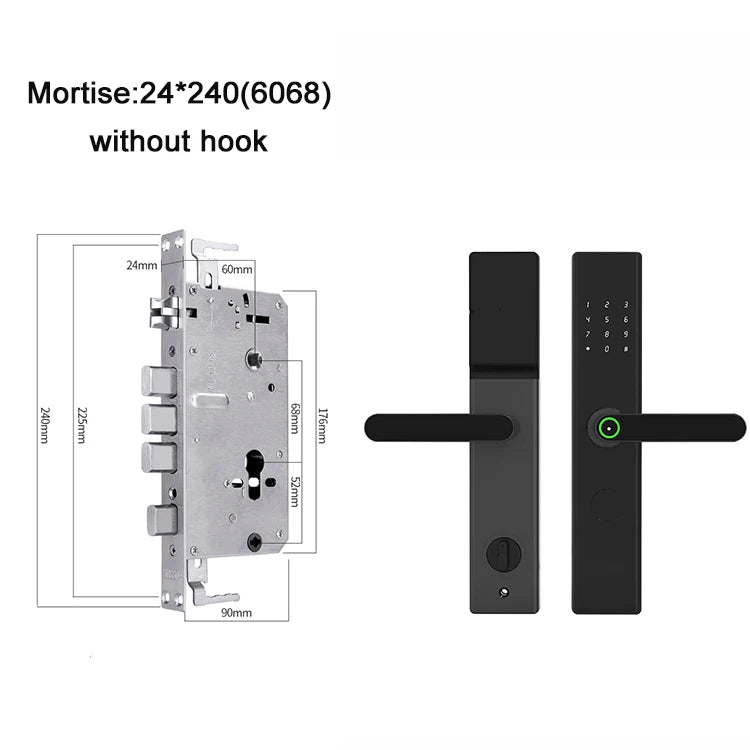

3. Compatible with mortise to 24*240（6068）

4. One-Touch-Access Biometric Fingerprint sensor on the reader.

5. Strong and secure Aluminum alloy lock panel, Anti-corrosion and study.

6. Back-up Type-C external power supply interface, in case the power is dead.

7. Reversible free style handle.

8. Upgraded structure with waterproof rubber, which can be used for outside gate.（option)

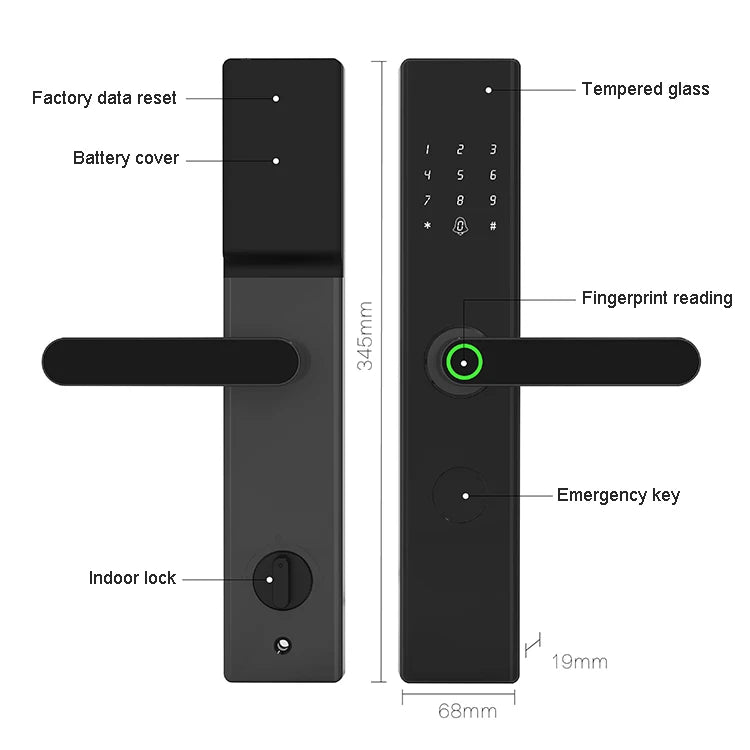

Indoor lock

Semiconductor fingerprint head

Password touch
