SPECIFICATIONS

Brand Name: Lunzo

Certification: UL,RoHS,LVD,FCC,CE,ce,FCC,LVD,ROHS,UL

Choice: yes

Current: 10A

Features: smart wifi wireless self-power switch

High-concerned chemical: None

Is Smart Device: Yes

Item Type: SWITCHES

Material: Plastic

Model Number: QX305-305jswf

Origin: Mainland China

Switch Type: Push Button Switch

Warranty: 2 years

Notice:

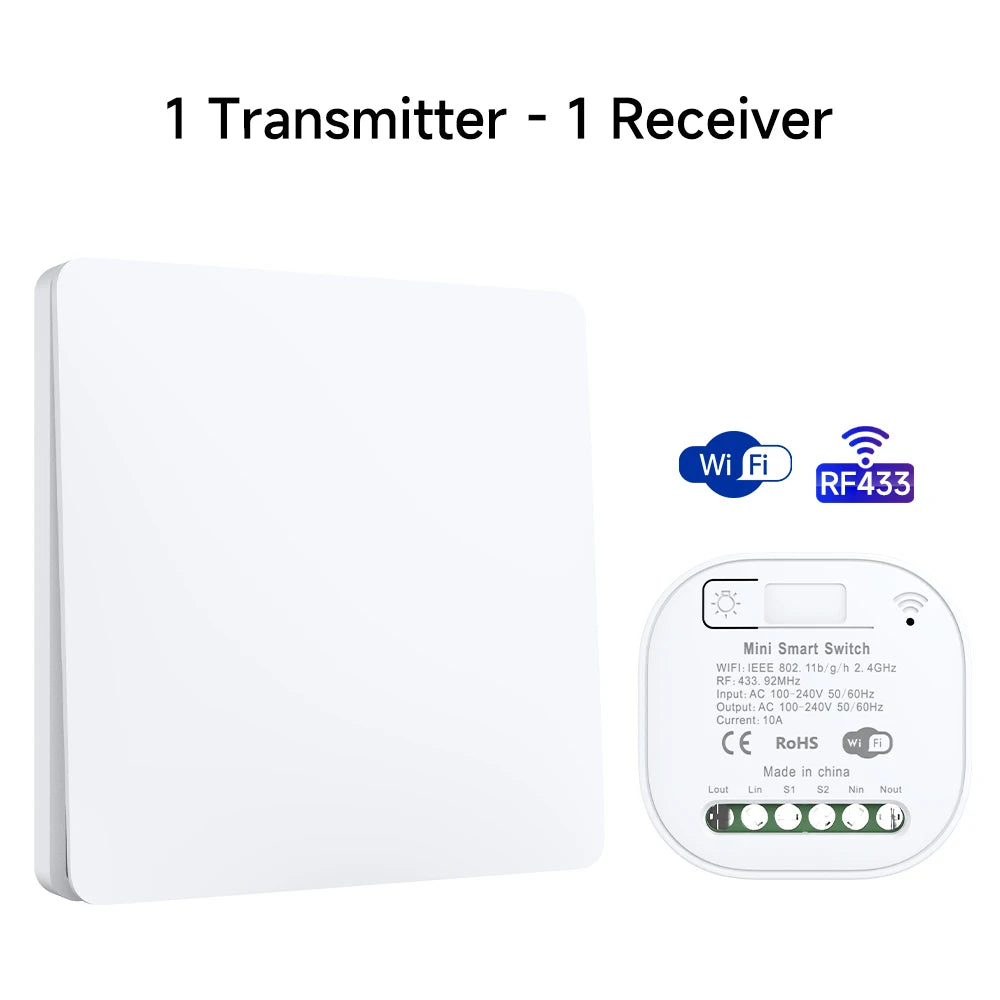

1. Our product needs to be used with a receiver, unless you have previously purchased our product and need to purchase additional accessories, otherwise purchasing a transmitter or receiver separately will not work.
2. Our product uses RF433 communication, but it cannot be mixed with other RF433 products because in addition to frequency, it also needs to meet the requirements of decoding and coding speed.
3.Wireless control does not require a power supply and can be used outdoors or in humid environments. Pressing to generate electricity does not pose a risk of electric shock
4.Cut off all power before installing the receiver.
5. Cannot be installed inside a metal box as metal will shield signals and cannot be used.

Description

Product Advantages

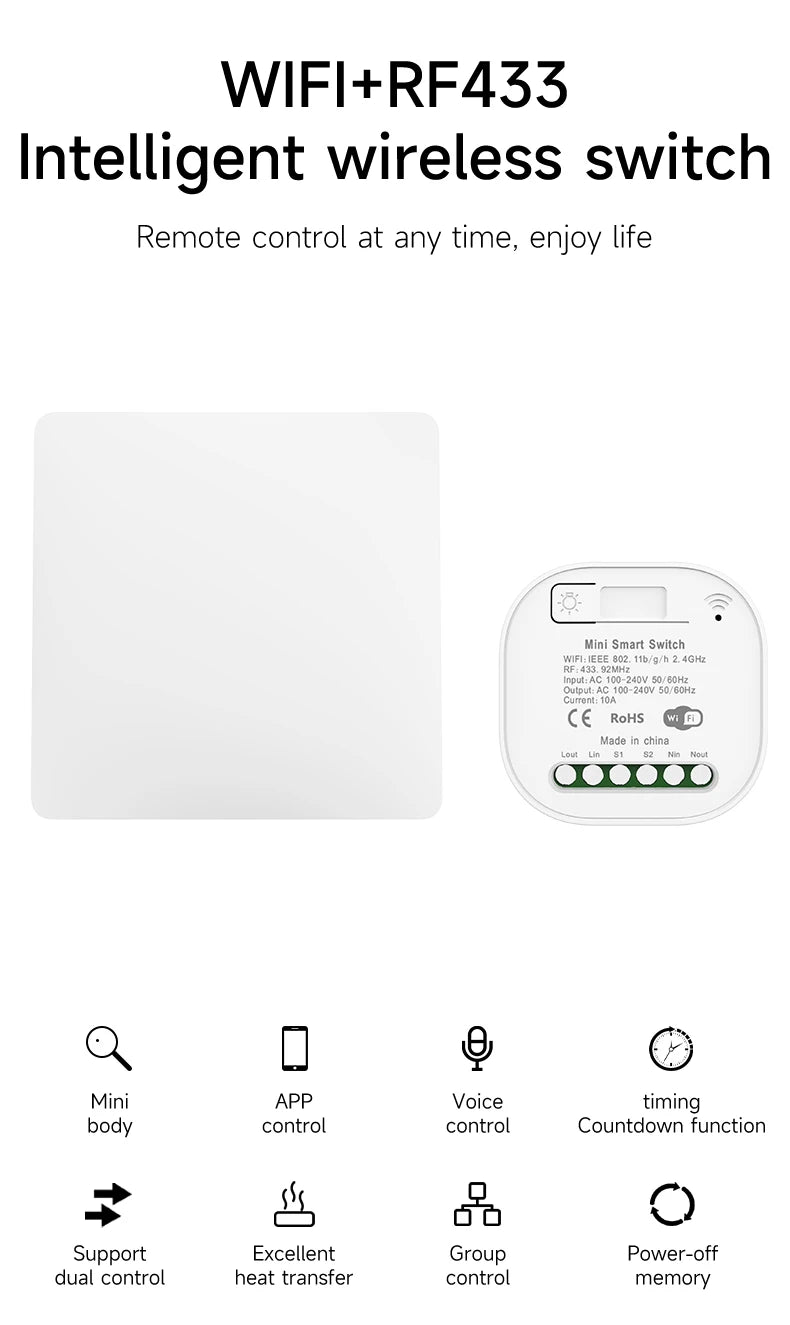

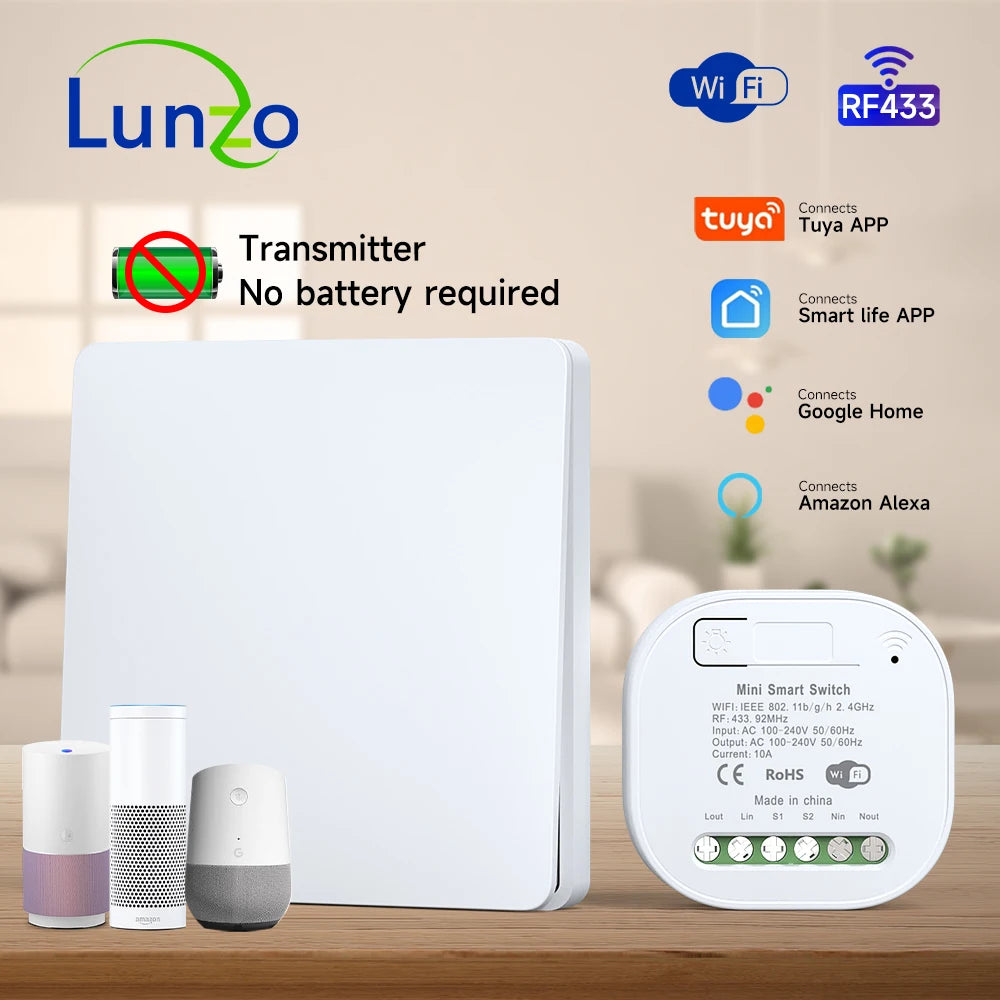

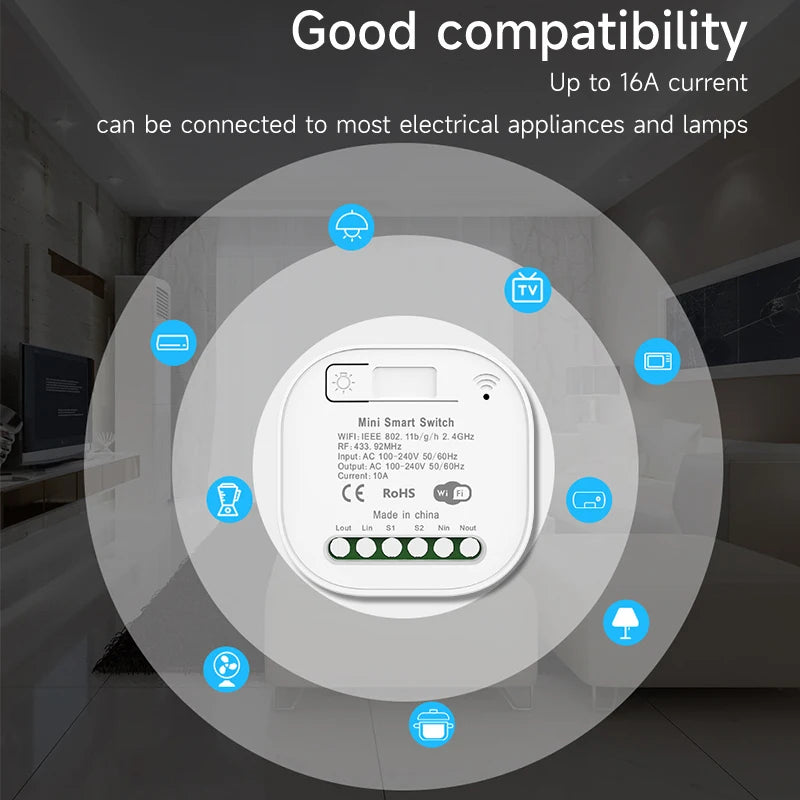

RF433 wifi receiver

1.RF433 wifi receiver can be controlled by wireless switch, mobile APP, or connected to mainstream smart speakers for voice control.

2. You can use the RF433Mhz remote control to control lights or other electrical appliances without a network, which is more practical than the controllers with only wifi on the market and suitable for the elderly, children.

3. The receiver adopts zero fire wiring, no flicker, stable and reliable

4. The receiver comes with overload protection and is made of PC flame-retardant material for greater safety

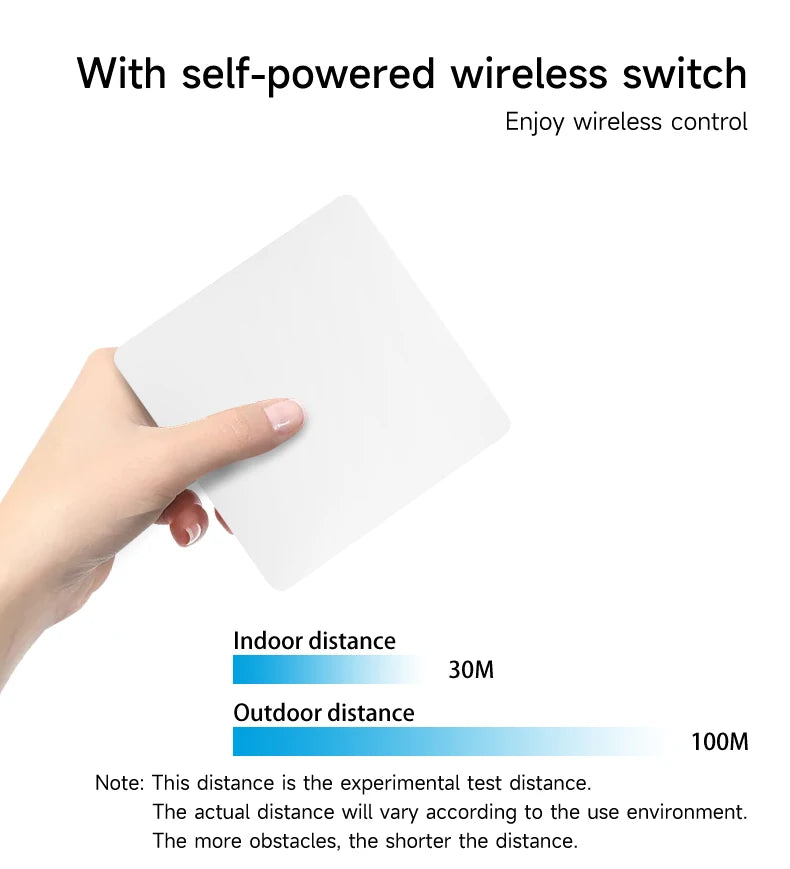

5. Long Control Distance
Open space is more than 150 meters.Indoor environment supports stable signal transmission up to 20-30 meters.

Self-powered Wireless Wall Panel Switch
1 Can be placed anywhere, No wiring required
Each wall switch comes with double-sided tape.You can stick it on walls, glass, etc., or you can carry it with you.
2 Self-powered Kinetic energy switch.Press itself to generate electricity, No wiring, no battery required.Self-generated electricity for self-use.
3Waterproof It can be placed in wet places such as bathrooms, accidentally soaked in water , and it will n affect the use after taking it out.

Product Application Area
Products can be used in homes, farms, factories, offices, laboratories, supermarkets and so on.
Remote control Electric  Fan \ Lamp \ LED light \ bulb \ ventilation device \ Signal transmission,
Remote control humidifiers, microwaves, coffee machines.

Technical parameters

1.Operating voltage: receiver AC 110-240V 50/60Hz,transmitter Kinetic power generation
2.Wireless distance: about 150 meters (open space) ，about 50 meters (no partition) (this data is the obstacle free test distance of the experimental open space, theactual distance will vary depending on the use environment and the obstacles, please take the actual distance as the standard)
3.Receiver size:49x48x23mm Transmitter size:86x86x12mm

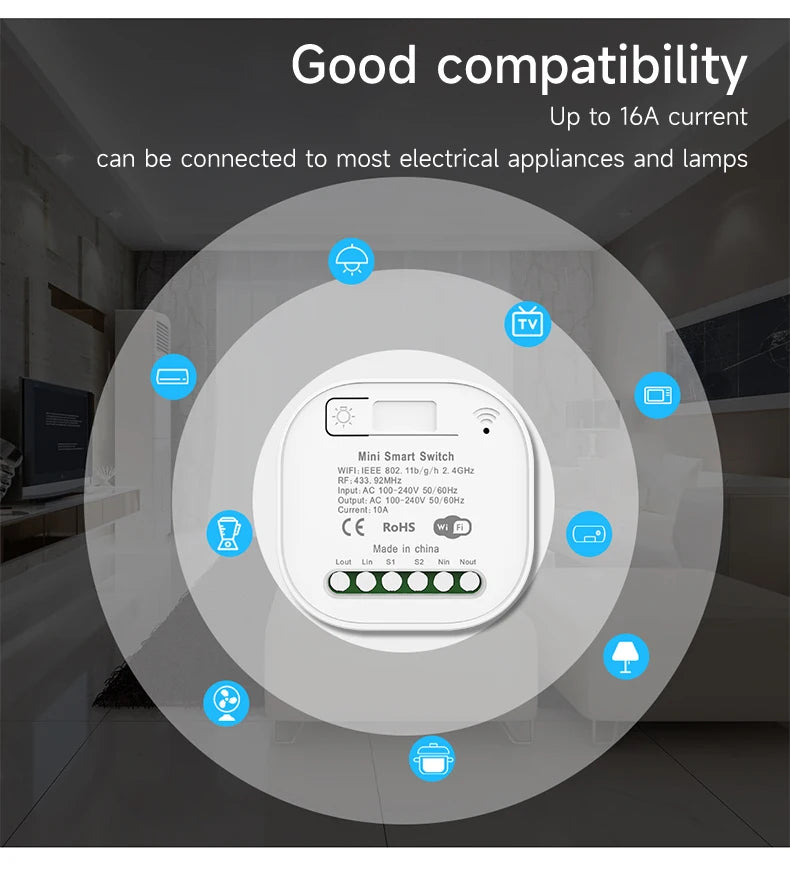

4.Rated Current:AC 16A/10A
5.Standby power:<0.25W
6.Working frequency: RF433MHZ
7.Storage switch quantity:Can store 10 wireless switch panel(can be made)
8.Working mode: self-locking (default), interlocking (requires at least two buttons, one set to only open and one set to only close)

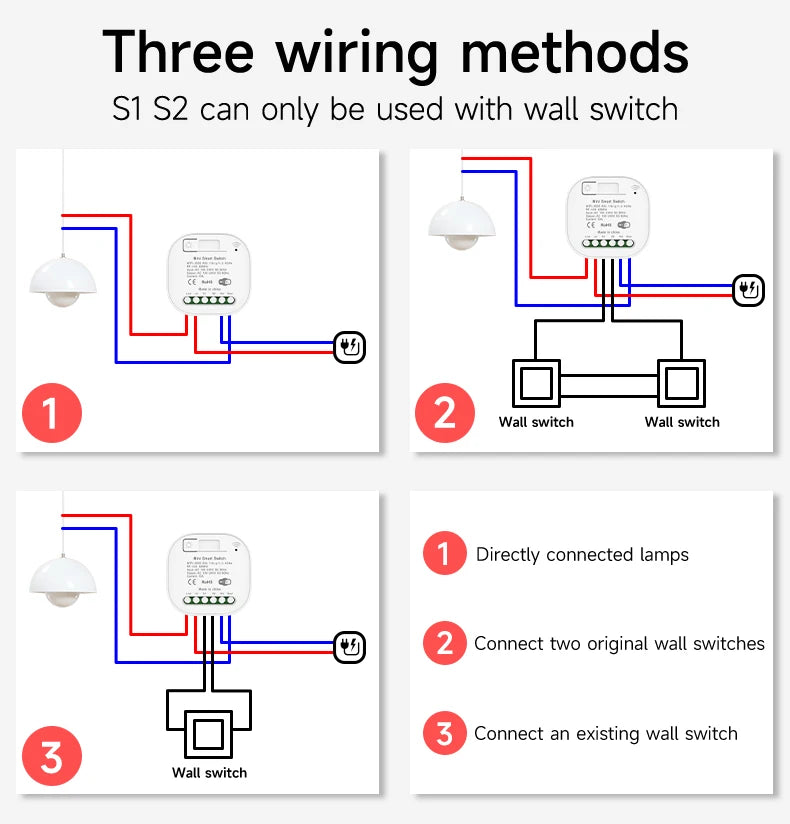

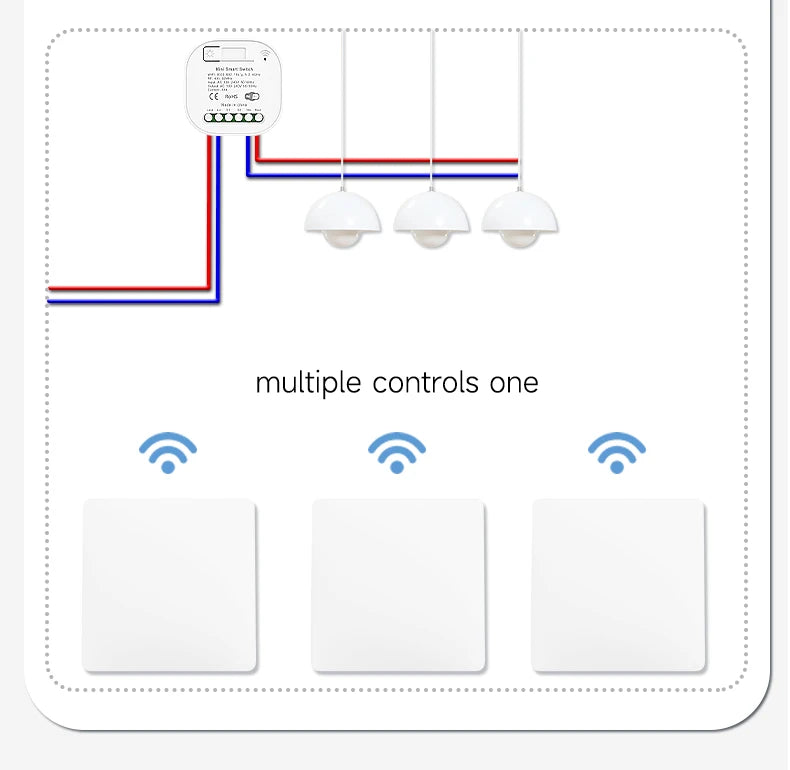

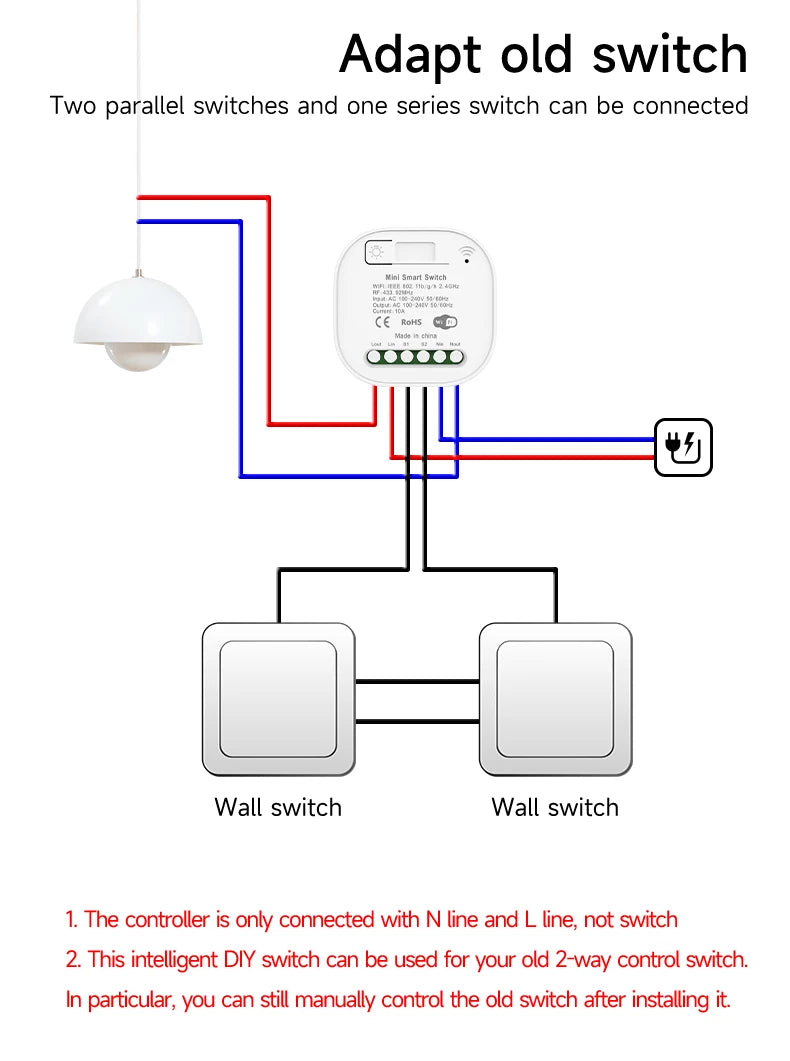

9.Wiring method：
wireless light switch receiver needs to be connected to a live wire and a neutral wire.
The (L INPUT) marked on the receiver is connected to the power live wire (incoming live wire), and the (N INPUT) is connected to the power neutral wire (incoming neutral wire).
(L OUTPUT) connects the live wire of the device that needs to be controlled (outgoing live wire), and (N OUTPUT) connects the neutral wire of the device that needs to be controlled (outgoing neutral wire).
