SPECIFICATIONS

After-sales Service Provided: Online support

Application: Woodworking

Chisel to Table(max.): 125mm

Core Components: Motor

Dimension(L*W*H): 680*470*370 mm

Key words: High Productivity

Motor Speed: 1400RPM

Place of Origin: China

Video outgoing-inspection: Provided

Warranty: 1 Year

automatic grade: Manual

brand name: Yishou

core components: Motor

dimension(l*w*h): 680*470*370mm

drill diameter: 6-16mm(1/4"-1/2")

key selling points: High Productivity

machinery test report: Not Available

motor speed: 1400rpm

place of origin: Jiangsu,China

power(w): 375W

video outgoing-inspection: Provided

voltage: 220V/110V

warranty: 1 Year

weight (kg): 42

Products Description

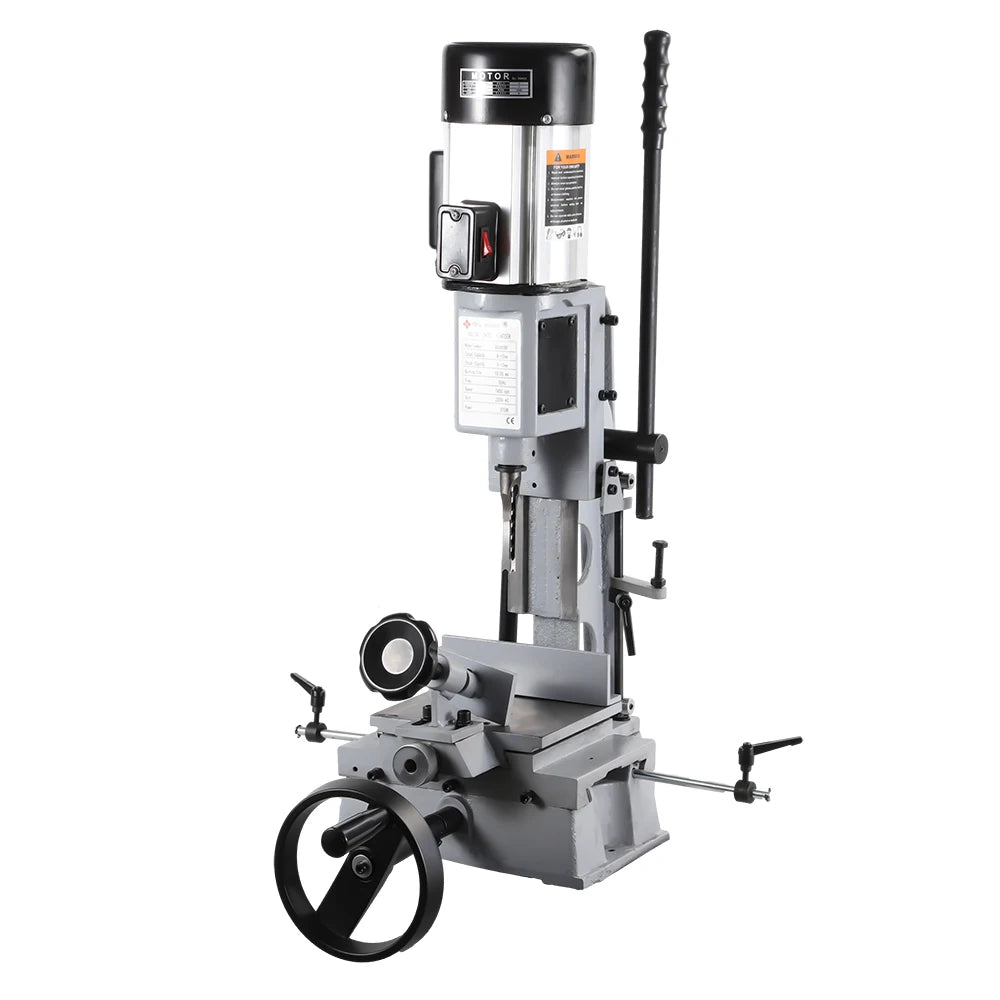

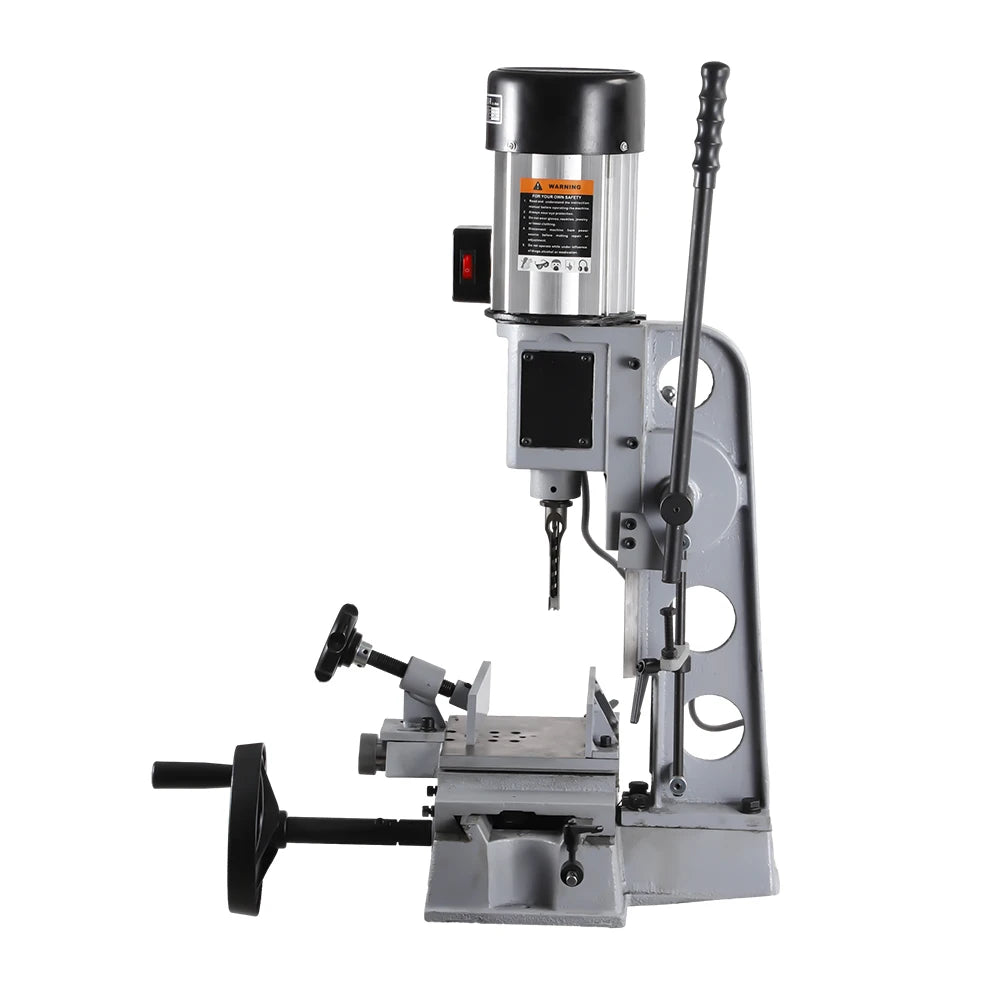

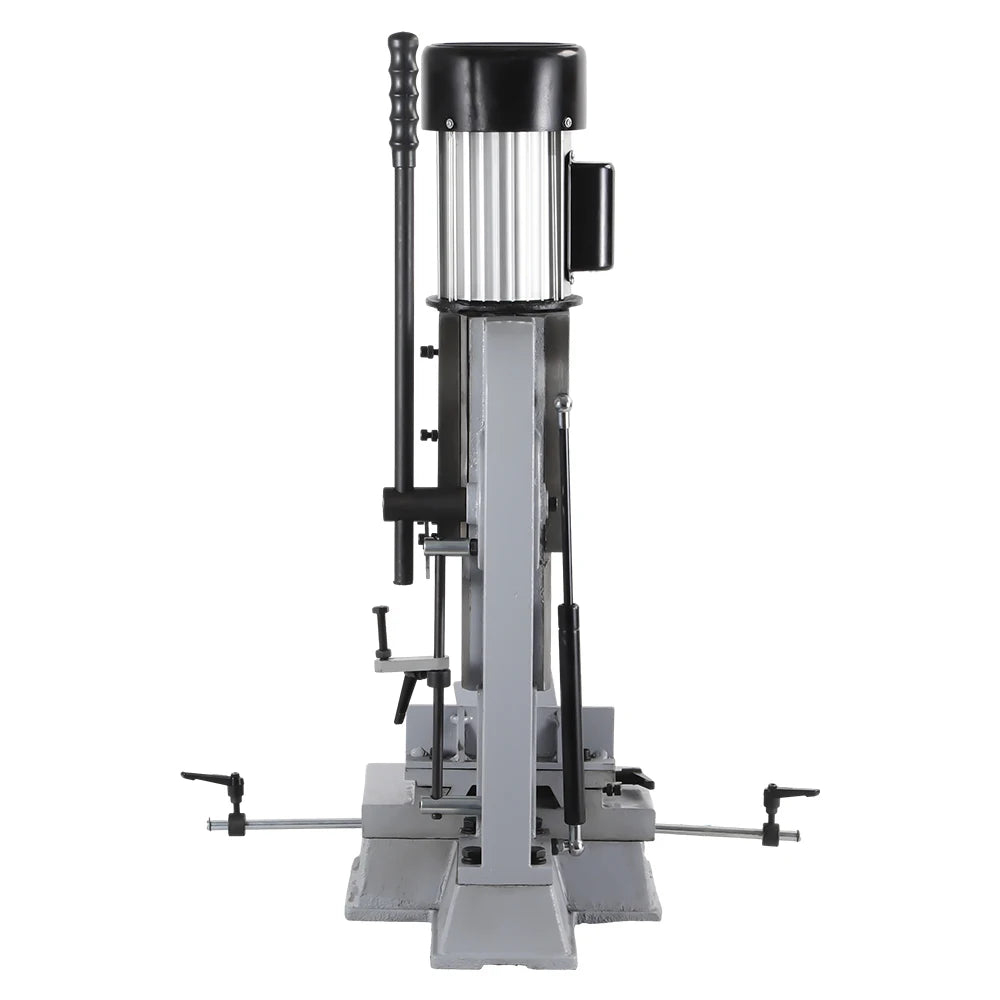

Identification (MS-3816R)

Become familiar with the names and locations of the controls and features shown below to better understand this machine

Specification
Model	MS3816R
Chisel Capacity	6-12mm(1/4"-1/2")
Max.Mortising Depth	70mm(3")
Drill Chuck Capacity	1-13mm
Chisel to Table(max.)	125mm
Chisel to Fence(max.)	55mm
Bushing Size	19.05mm
Over Height	740mm
Motor(Input)	370W(550W)
Spindle Speed	1400(2800)RPM
Packing Size&G.W/N.W.	680×470×370mm    42/38.5kg

Product Details

On/off switch, with 375W AC motor, 1400RPM can affort a high torque for woodworking

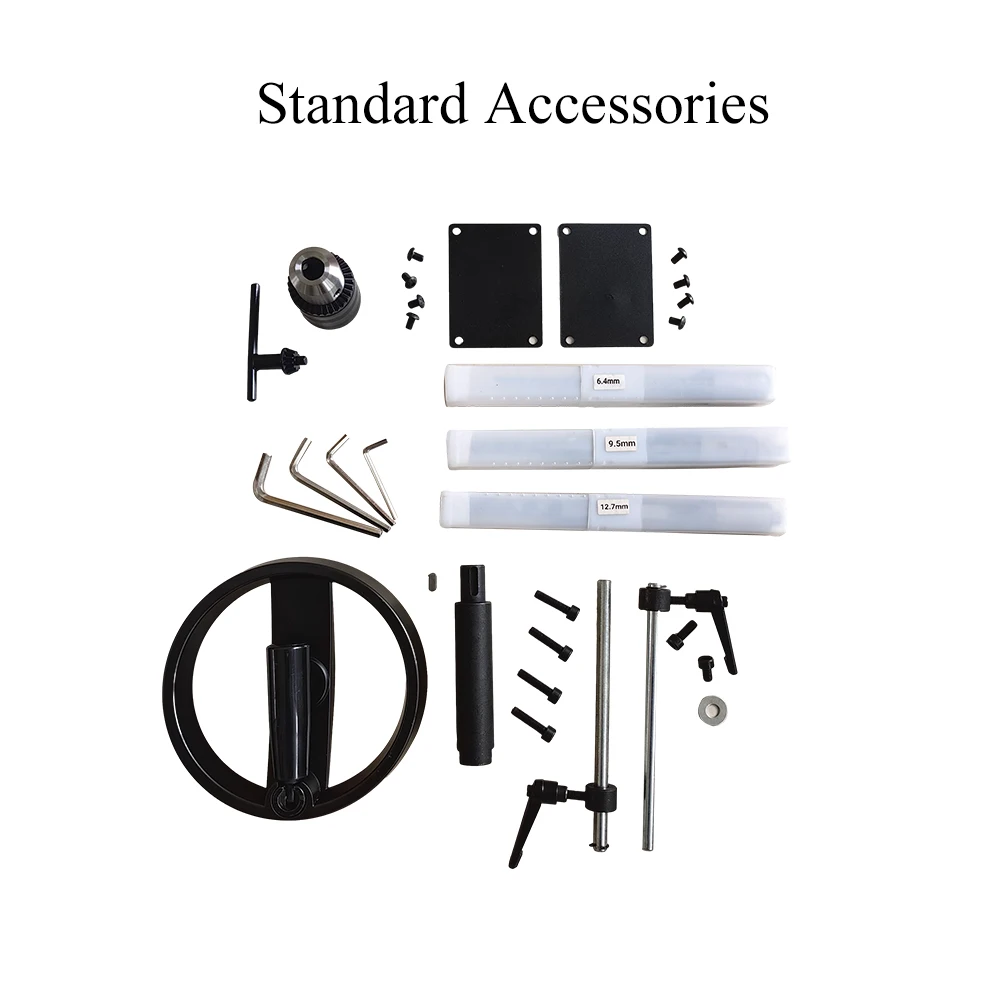

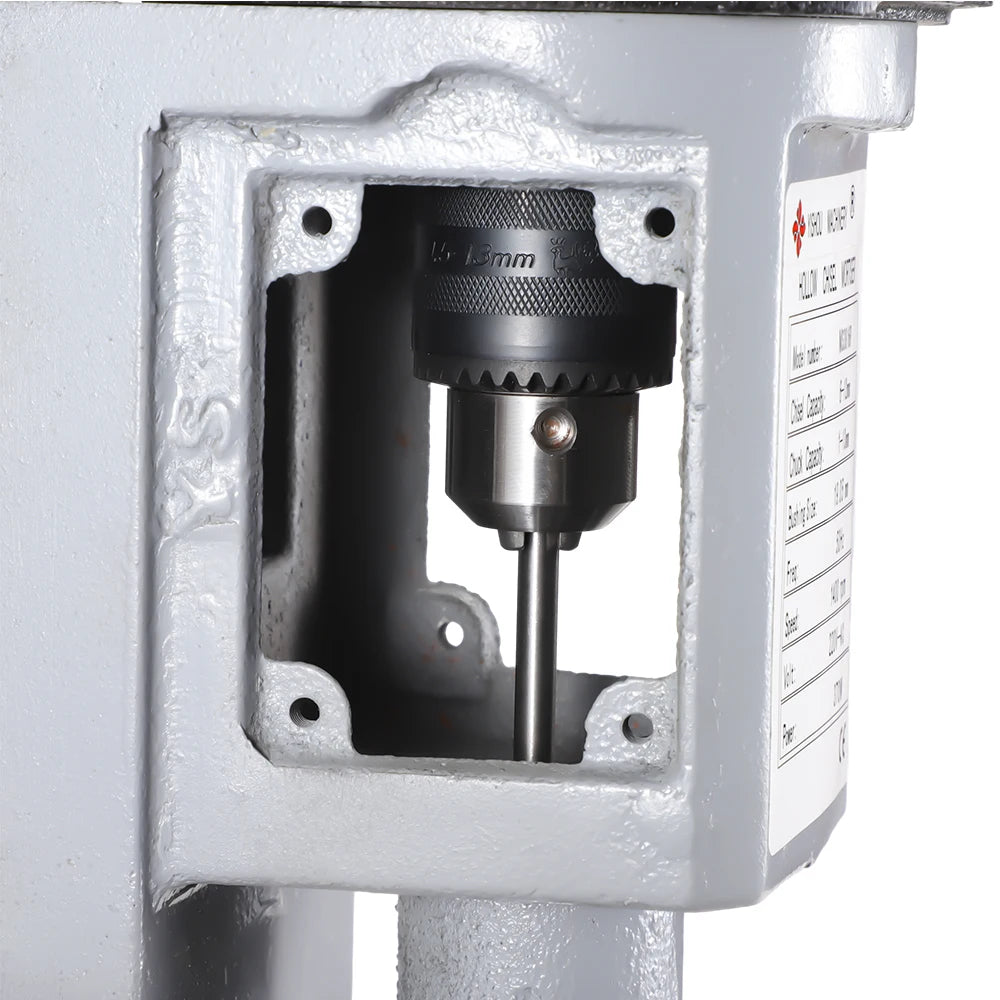

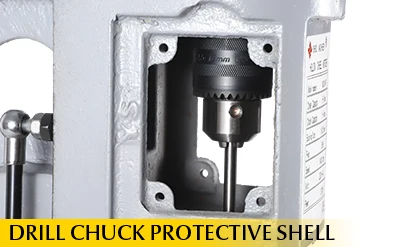

Insert the chisel into the chisel bushing and tighten the set screw, inset the bit in to the drill chuck and tighten the bit with chuck key

The handle lever can be adjustable by tightening or loosening the set screw

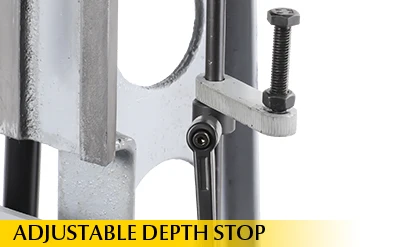

The depth stop sleeve can be move up and down by the adjustment of the locking lever

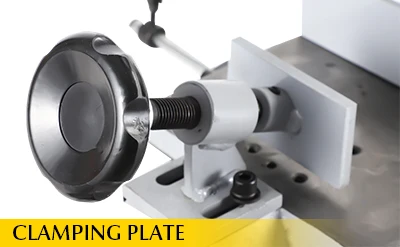

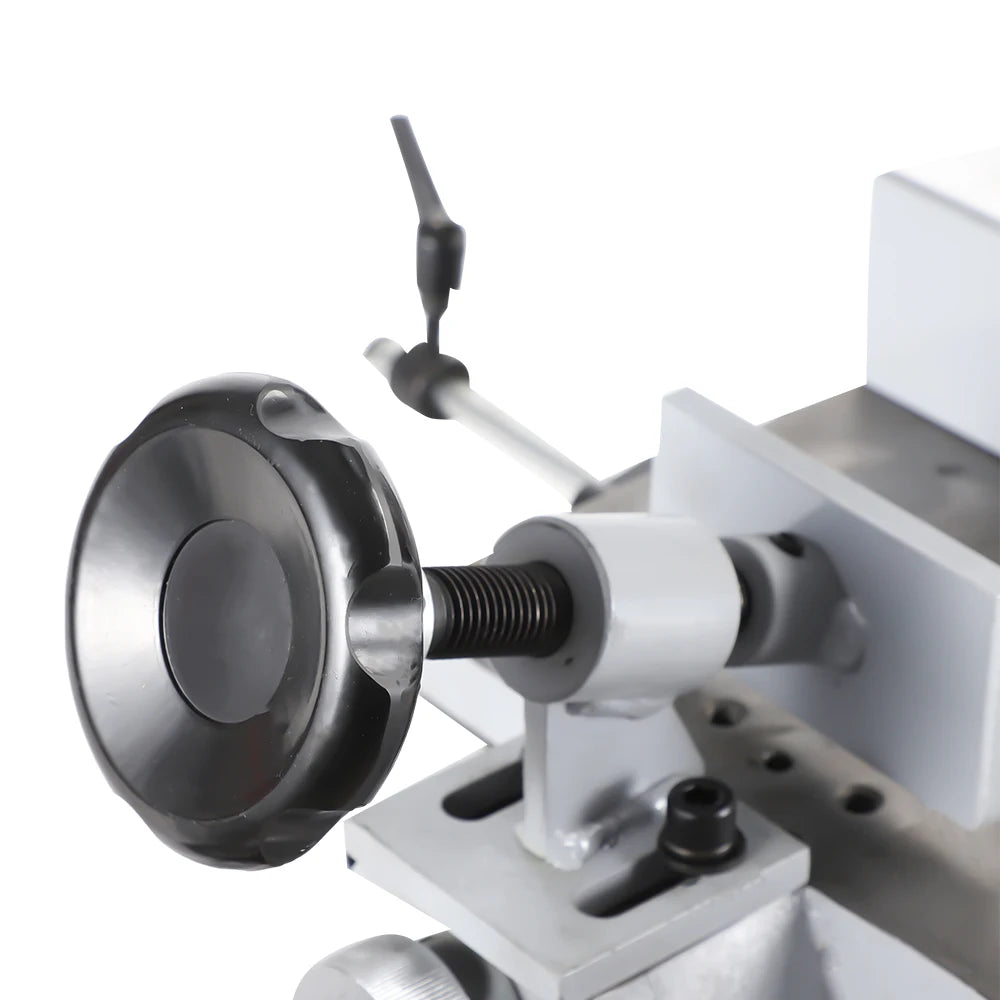

Clamping plate can move forward and backward by the handle wheel

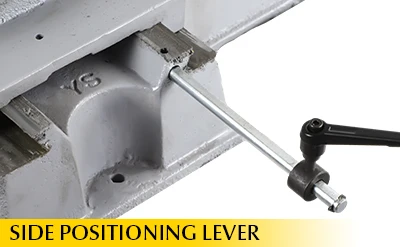

The slide positioning lever can stop the carriage left and right movement

Product Processing

Laser Cutting

Rough Milling

Finish Milling

Welding

Sanding

Assembly

Company Profile

Jiangsu Yishou Machinery Technology Co., Ltd. a professional factory that produces small household lathes, drilling and milling machines, drilling machines, hollow chisel mortiser machines, and manual arbor presses, Can produce more 10000 units of various types of machinery per month.

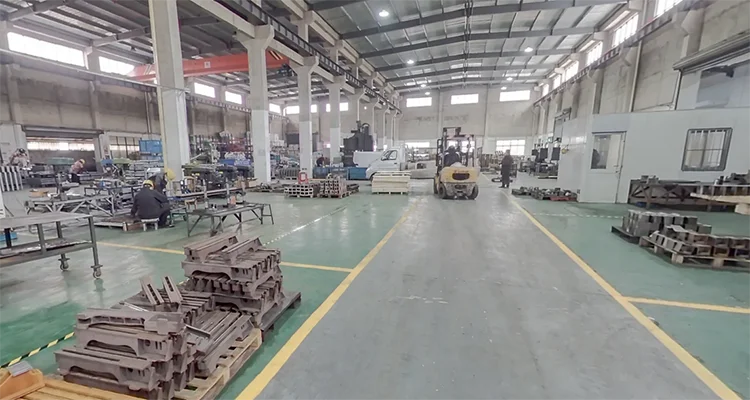

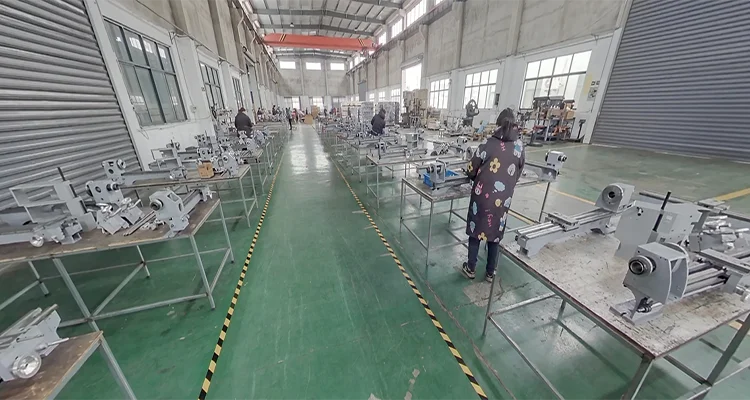

The factory workshop covers an area of 7000 square meters, We have dozens of professional processing equipment, including laser cutting machines, sheet metal bending machines, welding robots, CNC machining centers, CNC lathes, vertical milling machines, etc.
We have a comprehensive quality control system and CE and UKCA certificates,can ensure that our products meet national and customer standards. Our product development team releases new mechanical products every quarter and has applied for patent protection, These patented products have a clear competitive advantage over existing products on the market and have reasonable price, Our sales team have good English communication skills and are able to communicate production and product issues with foreign customers without barriers
After years of development, our products have not only been exported to the North American and European markets, but also achieved good sales performance in the domestic market
Our motto is to always pursue quality, product innovation, and serve customers. We hope that customers from all over the world can visit our factory and establish business relationships with us to create a better future together

Certifications

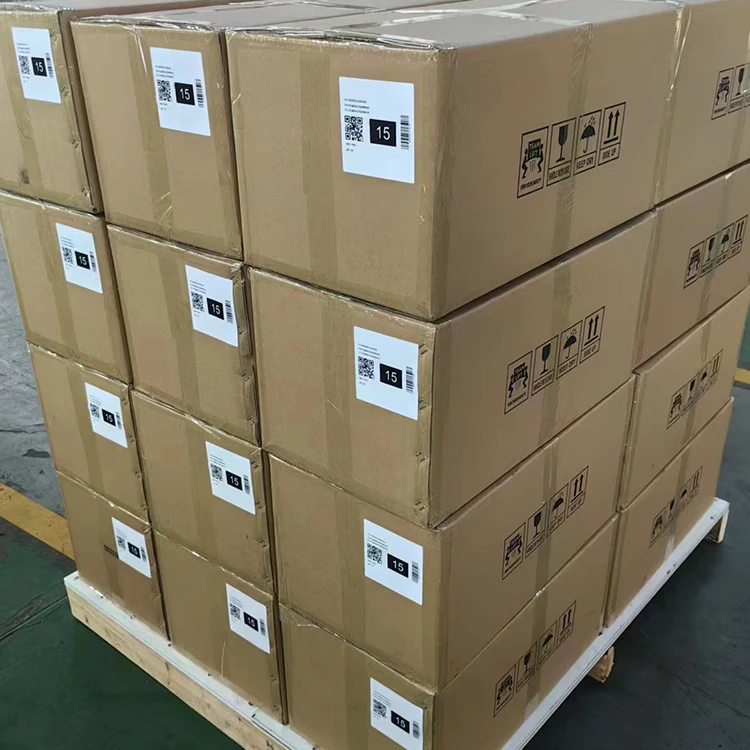

Packing & Shipping

FAQ

Q1. Are you a factory or trading company?

A1. We are a factory, factory direct sales, the price will be more favorable .

Q2. How can I choose the most suitable machines ?

A2. Please tell me your specifications ,we can choose the best model for you

Q3. What's your main products of your company?

A3. small household lathes, drilling and milling machines, drilling machines, hollow chisel mortiser machines, magnetic drill press, and manual arbor presses

Q4. What is your minimum order quantity and warranty?
A4. MOQ is one set, and warranty is one year.

Q5. What kind of package do you offer?
A5. Normally in wood case to make sure all goods in good condition.

Q6. What are your normal lead times?
A6. Our company typical lead times range from 3-4weeks after receipt of order.

Q7. What are the terms of payments you offer?
A7. We accept payment of T/T and L/C.
