SPECIFICATIONS

Advantage: (White Light Infrared Lights Red Flashing Light Blue Flashing Light)*2

Alarm system: Motion Detect/Email Alert/APP push

Audio Input/output: HDMI,VGA

Brand Name: Techage

Cable Length: 20m

Camera IR distance: Night Vision up to 30M

Camera Metial: Metal, Waterproof IP66

Customized support: Online Technical Support,Customized Logo,OEM, ODM,Software Reengineering

Data Storage Options: Cloud,NAS,HDD

Function: Waterproof / Weatherproof,Built-In Siren,Two-Way Audio,Night Vision,Reset,Built-In Mic

Hard Disk Drive (HDD): 2*SATA Port (support up to 12TB)

Logo/graphic design: Laser Engraving

Model Number: 6916K-16-605GP-AI-80N-NC-CP

NVR: 16CH H.265AI 4K POE NVR

Operation System: Android,IOS,Windows 10

Place of Origin: Guangdong, China

Remote View Phone APP: XMEye APP

Resolution: 8MP

Sensor: CMOS

Special Features: Built-In Siren,Night Vision,Two-Way Audio,Motion Detection,Waterproof / Weatherproof,Face Detection

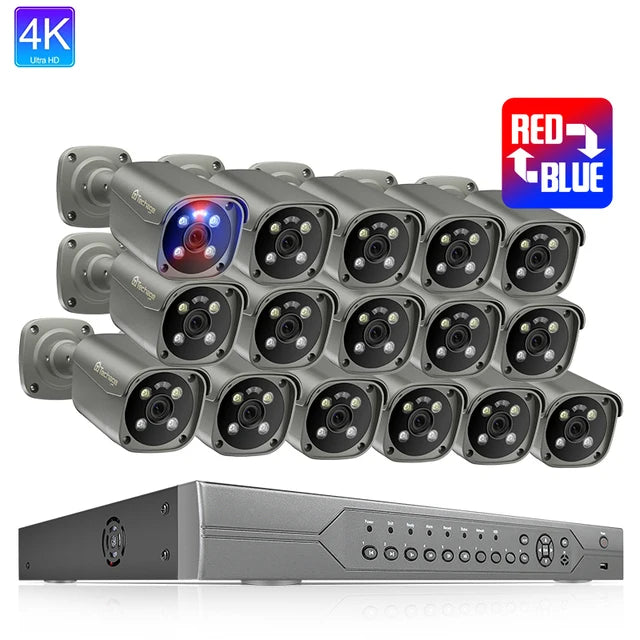

Type: 16Ch 4K Poe Nvr Kit

Video Compression Format: H.265

Warranty: 1 Year

Products Description

Warm Tips:
1.Ship from Russian/ Czech will be Received the Goods Faster.
2.Czech Warehouse can Ship to Spain, Portugal, Germany, France, Austria, Belgium, ,Italy, Luxembourg, Netherlands, Czech Republic,
Denmark, Poland, Slovenia, Slovakia, Bulgaria, Estonia, Finland, Hungary, Ireland, Lithuania, Latvia, Romania, Sweden Country.

Main Features:

* Our NVR and Cameras All are Real H.265 Ultra HD 4K/8MP

* All Cameras are Built-in Microphone and Speaker, Support Two-Way Audio Sound Recording.

* AI Function,Support Motion Detection,Human Detection,Area Detection,Face Detection

* Customized Voice Alarm: Reasonably Customize The Alarm Area You Want, Voice Alert.

* Double Light Night Vision:The Camera Can Be Set To Full Color Night Vision Like Day Vision.

* The AI Camera Support IP66 Waterproof.

Face Record/Face Detection/Face Playback
Record every face that appears on the lens, without missing any details.

How to Set in NVR?

Smart AI Red-Blue Light Alarm & Alarm Sound

When It Motion Detect , The 2pcs White Leds Will Light and with Red-Blue Light Alarm,Serve As a Warning Deterrent.

Note: Only when the app is opened will received the alarm

9 Kinds Alarm Sound for Option ( Only Support English Sound )

When Someone Breaks Into Shooting Area,

The Camera Will Make Alarm Sound Alarm Messages Will Be Pushed To Your Phone App.

Human Detection & Smart E-mail Alerts

when motion is detected the NVR will save the footage into hard disk without missing any important events. You can even ensure that false alarms are avoided by setting the motion detection "mask" to block areas with constant movement.

When Someone Breaks Into Shooting Area,The Camera Will Alarm Messages Will Be Pushed To Your Phone App.

Real-Time Two-Way Audio Communication

Camera Has Built In Microphone And Speaker, Never Miss a Moment With Your Family.

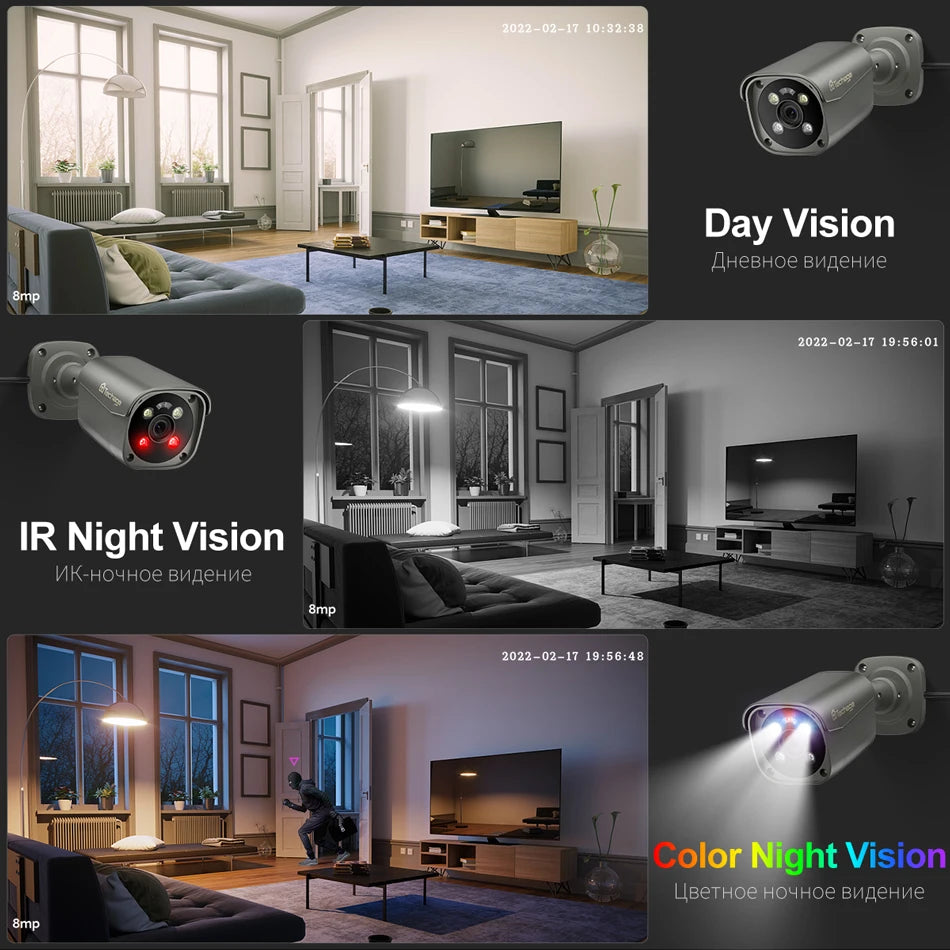

Full Color Night Vision

When the 2 white LEDs are lit, the surveillance video at night will show a colorful picture.

Three night vision modes for you to choose: IR infrared night vision, dual warning lights, full color night vision.

IP66 Outdoor Waterproof & Dustproof

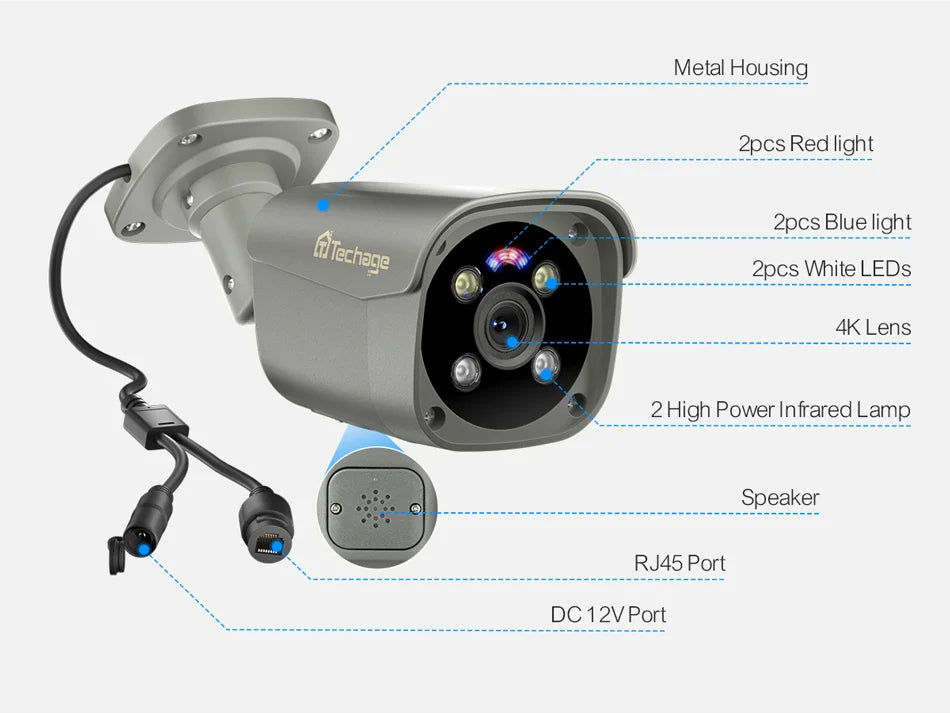

The camera has a metal body and housing, with an IP66 waterproof rating.

It can stand harsh weather conditions, including rain, snow, intense cold and heat.

Advanced H.265 Video Compression

NVR Kits Adopts advanced H.265 video compression,reduces 50% file size and keep same quality compared to H.264 one.

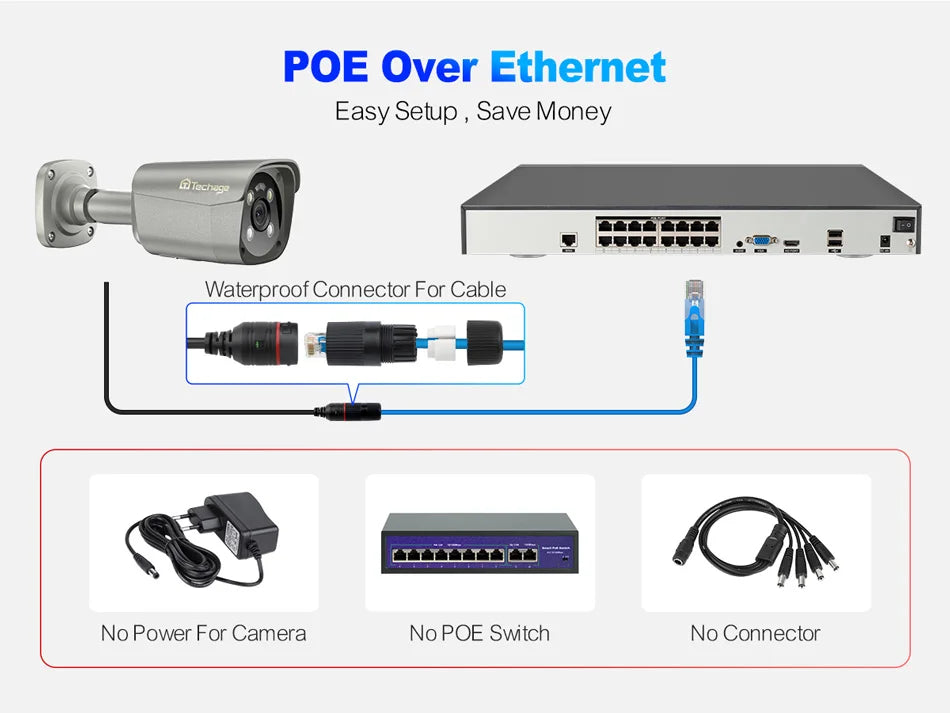

POE Advantage, Why Choose POE?

Don't need extra power cables or adapters or switch.Plug And Play and easy setup.

Save Money and Convenient, POE NVR = NVR + POE Switch.

Each camera comes with a Waterproof connector for cable.

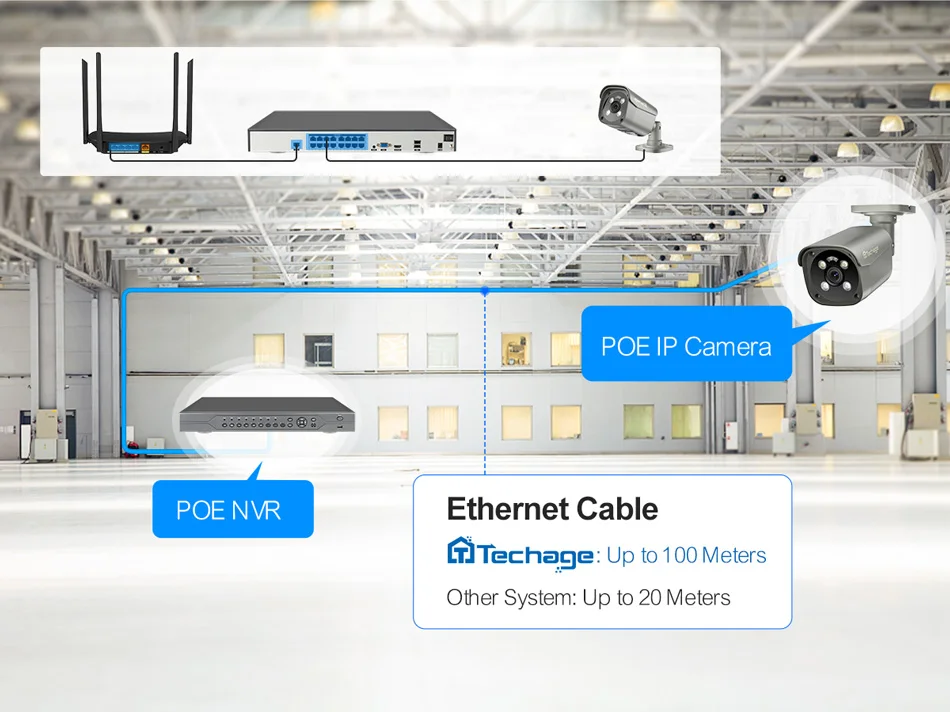

4K POE CCTV System Max 100Meters Connection

Cat5,Cat5e,Cat6,Cat6e,Cat7 Network Cable is Good For The 4K Poe Camera System.Long-distance monitoringotion.The distance can up to 100 meters between NVR and cameras

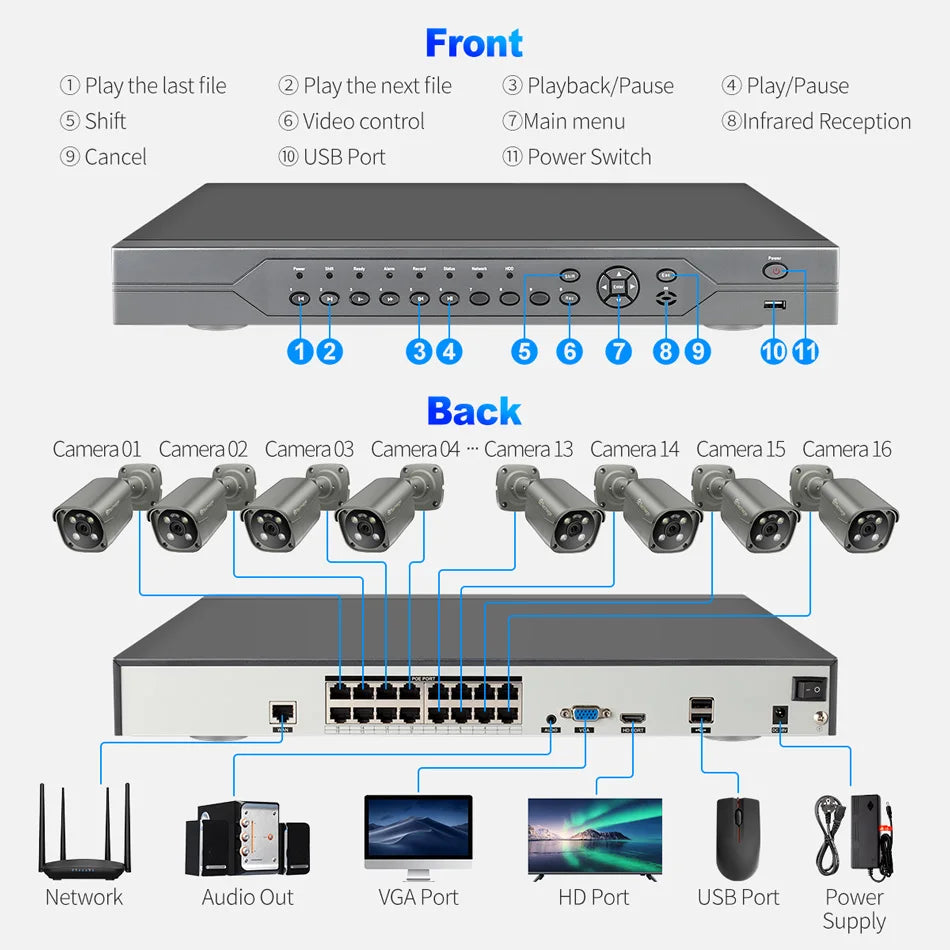

Install and Connect it

It can be quickly and easily setup by anyone. Instantly see live video using your computer, tablet, or phone from anywhere.

Mobile App Connection

How to Connect Mobile Phone App

Specification

Camera	Tpye	16CH 4K POE CAMERA KIT
		Sensor type	1/2.7" black-light CMOS sensor
		Minimum illumination	Color: 0.0001Lux @f1.2
				Black and white: 0.0001Lux @f1.2
		Shutter	1/50(1/60) second to 1/10000 second
		Lens	Hd lens 3.6mm @F2.0
		Lens contact type	M12
		Day-night switch mode	Support IR-CUT
Image	Maximum image size	3840*2160
		Frame rate	Main stream 8MP(3840*2160)@15fps 5MP(2880*1616)@25fps; 4MP(2560* 1440)@25fps; 2MP(1920*1080)@25fps:
				Auxiliary stream: (800*448)@25fps:
		Image set	Saturation brightness and contrast are adjustable by client or browser
Compression	Compression standard	H.265AI/H.265+(Compatible with H.265/H.264 )Video coding
		Compressed output bit rate	0.1Mbps~8Mbps Adjustable
		Audio compression standard	G711a
Network function	Storage	Network storage
		Intelligent alarm	Face detection, human motion tracking detection, video loss, network cable broken,IP address conflict
		Support agreement	TCP/IP HTTP, DHCP DNS, DDNS, PPPoE, SMTP,NTP
		General function	Anti-flicker, double code stream heartbeat, password protected
Interface	Operation interface	16 - bit true color graphical menu operation interface, support mouse operation
		Screen display	1 / 2 / 4 / 6 / 8 / 9 / 16 screen
Video	Video access mode	16 channel 4K (access bandwidth 72 Mbit/s, connected to 100 MBIT/s POE module)
		Image decoding	H.265AI/H.265+(compatible with H.265/H.264)
		Monitoring quality	Max: 4K
		Playback quality	4K/5MP/4MP/3MP/1080P
		VR function	Not support
		Human face detection	Support (rely on XM front end camera)
Audio	Audio compression	G.711A
		Language intercom	Not support
Video and playback	Video mode	Manual > Alarm > Dynamic Detection > Timing
		Local playback (real time + non real time)	4K (1* real-time) /5MP (1+1) /4MP (2+1) /3MP (3+1) /1080P (5+1)
		Video query	Time point retrieval, calendar retrieval, event retrieval, channel retrieval, face query
		Video preservation	Local hard disk, network
		Backup mode	Network backup, USB mobile hard disk, USB recording, SATA recording

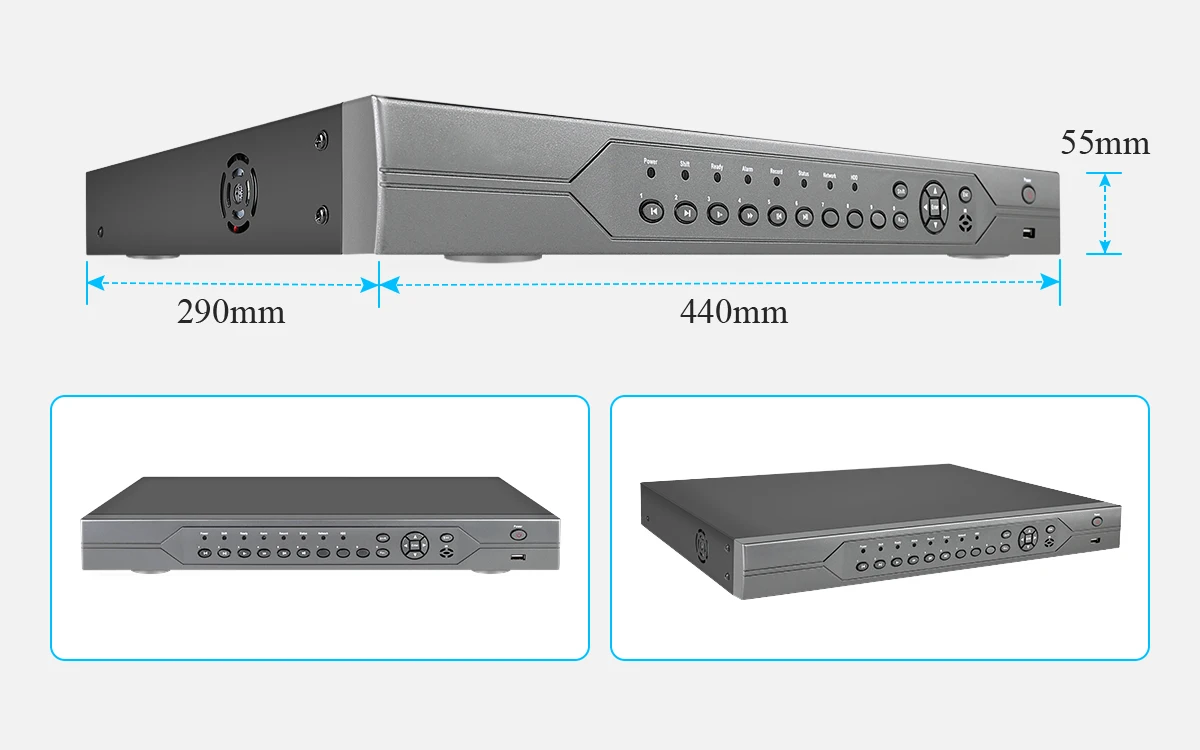

Details Images

Packing & Delivery

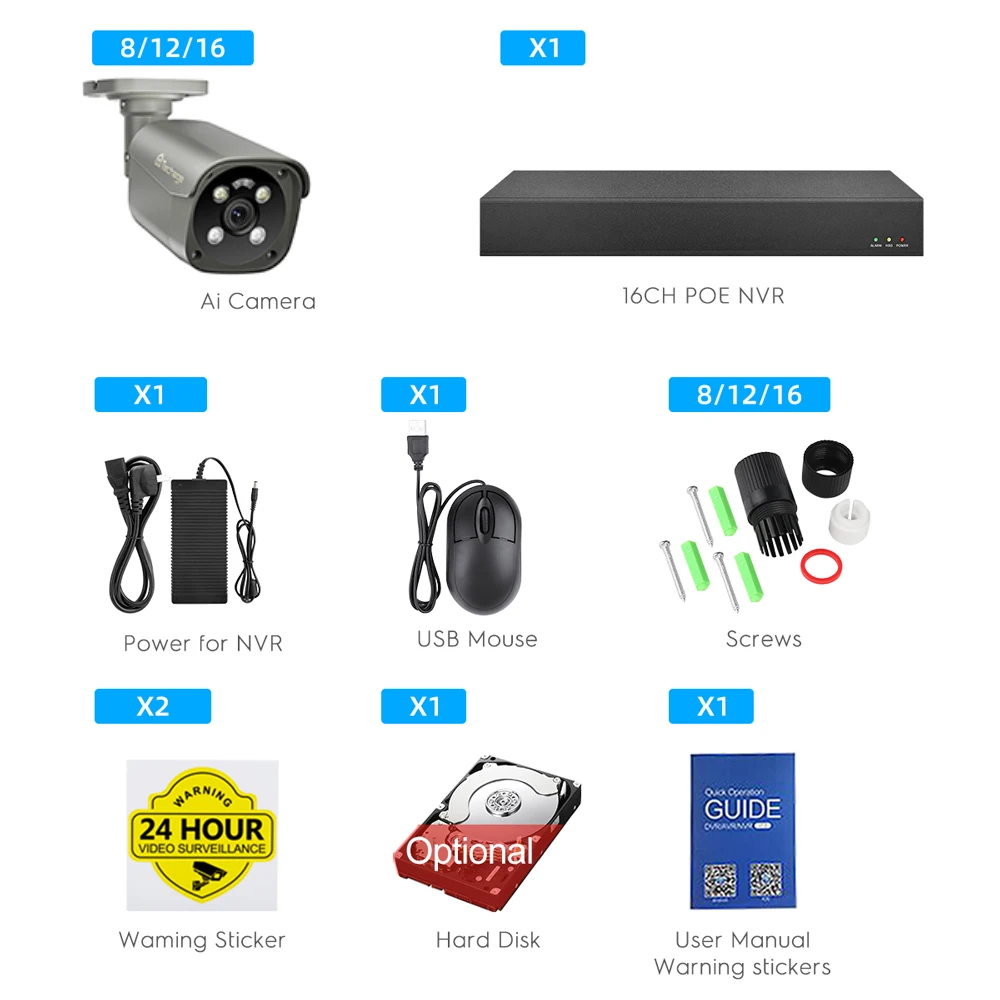

Packing Details

1 x16CH 4K 48V POE NVR
16 x 8MP/4MP Outdoor POE Cameras
16 x 20M Power Network Cable for Camera
1 x Power Supply for NVR
1 x Mouse for NVR
1 x User manual
2 x Warning Sticker ( gift )
NO HDD or 1TB,2TB,3TB,4TB HDD for Optional

Company Profile

FAQ

Q: What is your company’s competitive advantage?
A: 1)TinoSec is a professional manufacturer of R&D, Production, and Marketing (3 in 1) in security camera system more than 10 years.
2).Certificates:CE,FCC,RoHS and ect.
3).Service:OEM/ODM orders are welcomed!

Q: How about your company's production capacity?
A: Complete HD Camera: 5,000pcs/Week.

Q: What's the MOQ?
A: Online order:No moq,
OEM/ODM:Our minimum order qty is 50pcs each model, but we support small test order for all customer.

Q: What is your delivery time?Complete HD Camera system:
1) Within 3-5 working days for samples order,
2) Within 7-15 working days for bulk order.

Q: What shipping method can i choose? How about the shipping time?
1) For RU / CZ order, by local express about 1-3 days.
2)For small order, by air express like DHL, UPS, TNT, FedEx and etc, about 3-7days.
3)For big order, by air about 7-12 days, by sea about 15-35 days.

Q: How about your warranty?
A: Warranty is 24 months, life-time maintain!

Q:What is your method of payment?
A:Support T/T, LC, Western Union, Paypal, Trade Assurance and more.
