TUYA wifi RF433 Self Powered Wireless Switch Without Battery Remote Control waterproof home Wall panel Light Switch AC110V 220V
only 1--1gang
€22,95
Sale price
€22,95
Regular price
€0,95
Skip to product information
TUYA wifi RF433 Self Powered Wireless Switch Without Battery Remote Control waterproof home Wall panel Light Switch AC110V 220V
€22,95
Sale price
€22,95
Regular price
€0,95
SPECIFICATIONS
Application 1: Led Light Lamp Switch, Home Security Alarm System Home Appliances
Application 2: Water Heater, Fan, Fish tank, Diy Home electrical equipment
Brand Name: Diese
Certification: RoHS,CE
Channel: 1
Choice: yes
Frequency: 433 MHz
High-concerned chemical: None
Material: Plastic
Model Number: Rf +wifi no need battery wall switch
Modulation Mod: ASK
Origin: Mainland China
Package: Yes
Receiver feature 2: Timing/Countdown
Receiver feature 3: High power for water heater,pump etc
Receiver size: 49*48*23 mm
Receiver type: wifi control,rf control and voice control
Receiving Sensitivity: 97dbm
Shell: Yes
Support APP: Yes
Use: Universal,Lighting,Switch,Accessories for Remote Controls,home,light,led
Wall switch color: White
Wall switch size: 86*86*13 mm
Wall switch type: Kinetic,no battery need
Wireless Communication: RF,WiFi
Work with: Google home,Alice,Alexa
Work with app: Tuya,Smart life
Working temperature: -30 ~ +80 celsius
Working voltage: AC 100V-240V
semi_Choice: yes
Before buying:
1.The wall switch is kinetic,self powered.The smart switch is rf+wifi function.If you want to control it in Rf way,you must use our kinetic wall switch
1.The wall switch is kinetic,self powered.The smart switch is rf+wifi function.If you want to control it in Rf way,you must use our kinetic wall switch
2..There is only 1/2 gang wall switch in this link.If you want to use 3 gang wall switch,you can click this link
https://www.aliexpress.com/item/1005003449475559.html
Main Features:
1.Receiver is wifi+rf,wall switch is rf and kinetic. They use special code,they cannot work with other rf codes (1527 learning,2262fixed for example)
2.Receiver work with Tuya,Smart Life,Google Home,Alexa and Alice
3.Receiver has timing,countdown function.
4.Receiver supports rf control,wifi control and voice control
5.Wall switch is kinetic,no battery need
6.Receiver supports multi control.Many phones can control one receiver at the same time. But for wall switch,it cannot more than 5pcs

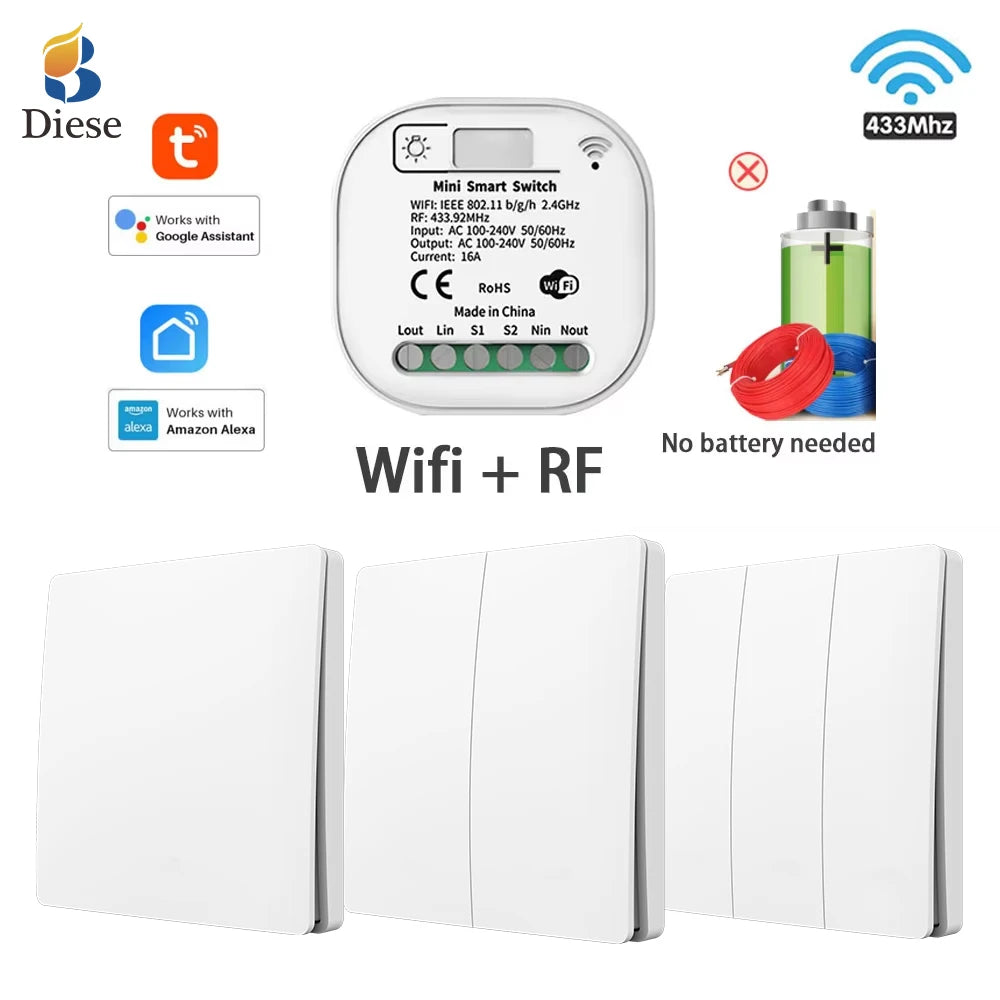

Relay Receiver Parameter:
Working voltage:AC85~240V
Size:49*48*23mm
Max Load:16A
Control mode: RF remote control / App control / Voice control
RF frequency:433MHz
Wi-fi Standard:IEEE 802.11 b/g/n
Working temperature:30~+80 Celsius
Receiving Sensitivity:97dbm
Amount of storage remote controls:5pieces
RF Operating mode:ASK superheterodyne wireless reception
Compatibility:APP for IOS and Android.
Access intelligent speaker:Amazon Alexa / Google home / Alice
Remote operating mode:Toggle Mode(Press button,on,press same button,off)

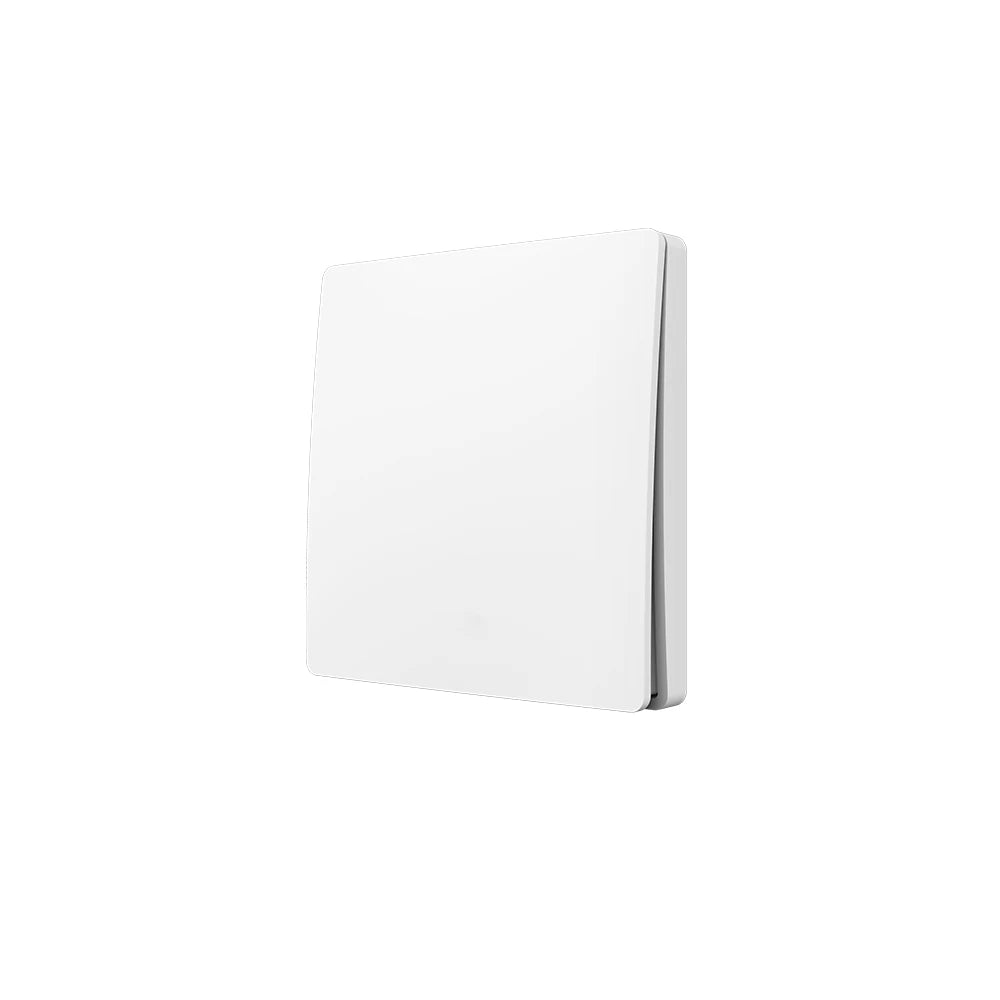

Self-powered Panel Switch Parameter
RF frequency : 433MHz
Transmitting range : Open space is more than 50 meters
Battery : no battery needed
Size:86*86*13mm
Color:white

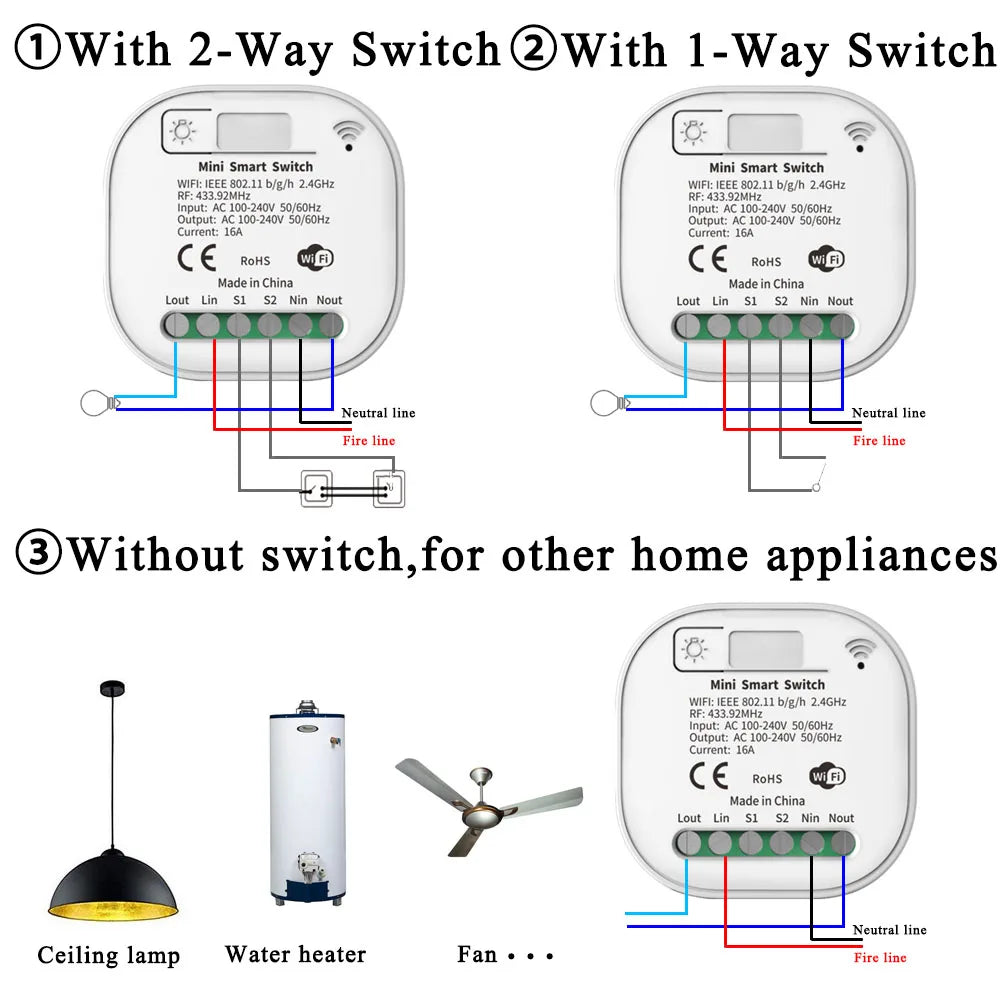

How to Connect:
There are three ways to control this receiver,depends on if there is a traditional wall switch.If you connect with other home appliances,please donot overload
1.Receiver is wifi+rf,wall switch is rf and kinetic. They use special code,they cannot work with other rf codes (1527 learning,2262fixed for example)
2.Receiver work with Tuya,Smart Life,Google Home,Alexa and Alice
3.Receiver has timing,countdown function.
4.Receiver supports rf control,wifi control and voice control
5.Wall switch is kinetic,no battery need
6.Receiver supports multi control.Many phones can control one receiver at the same time. But for wall switch,it cannot more than 5pcs
Relay Receiver Parameter:
Working voltage:AC85~240V
Size:49*48*23mm
Max Load:16A
Control mode: RF remote control / App control / Voice control
RF frequency:433MHz
Wi-fi Standard:IEEE 802.11 b/g/n
Working temperature:30~+80 Celsius
Receiving Sensitivity:97dbm
Amount of storage remote controls:5pieces
RF Operating mode:ASK superheterodyne wireless reception
Compatibility:APP for IOS and Android.
Access intelligent speaker:Amazon Alexa / Google home / Alice
Remote operating mode:Toggle Mode(Press button,on,press same button,off)
Self-powered Panel Switch Parameter
RF frequency : 433MHz
Transmitting range : Open space is more than 50 meters
Battery : no battery needed
Size:86*86*13mm
Color:white
How to Connect:
There are three ways to control this receiver,depends on if there is a traditional wall switch.If you connect with other home appliances,please donot overload
Four Control Method
Wifi control+Wireless rf kinetic wall switch control+Wired traditional wall switch control+Voice control
WiFi Control,no matter where you are,control it via your phone
You need to pair this smart switch with your phone in wifi network.After that,you can use your phone to control this smart switch all over the world(If there is a 2.4GHz network)
Rf Control,after you set up with wall switch,you can control it wirelessly
After you set up with rf wall switch,you can remote control smart switch wirelessly
Voice Control,work with google home,alice and alexa
Smart switch can work with google home,alice and alexa perfectly.Say a word,control lights on/off automatically
Timing,Countdown
You can set up several plans on APP to make your life smarter.Also,you can make a countdown to on/off device

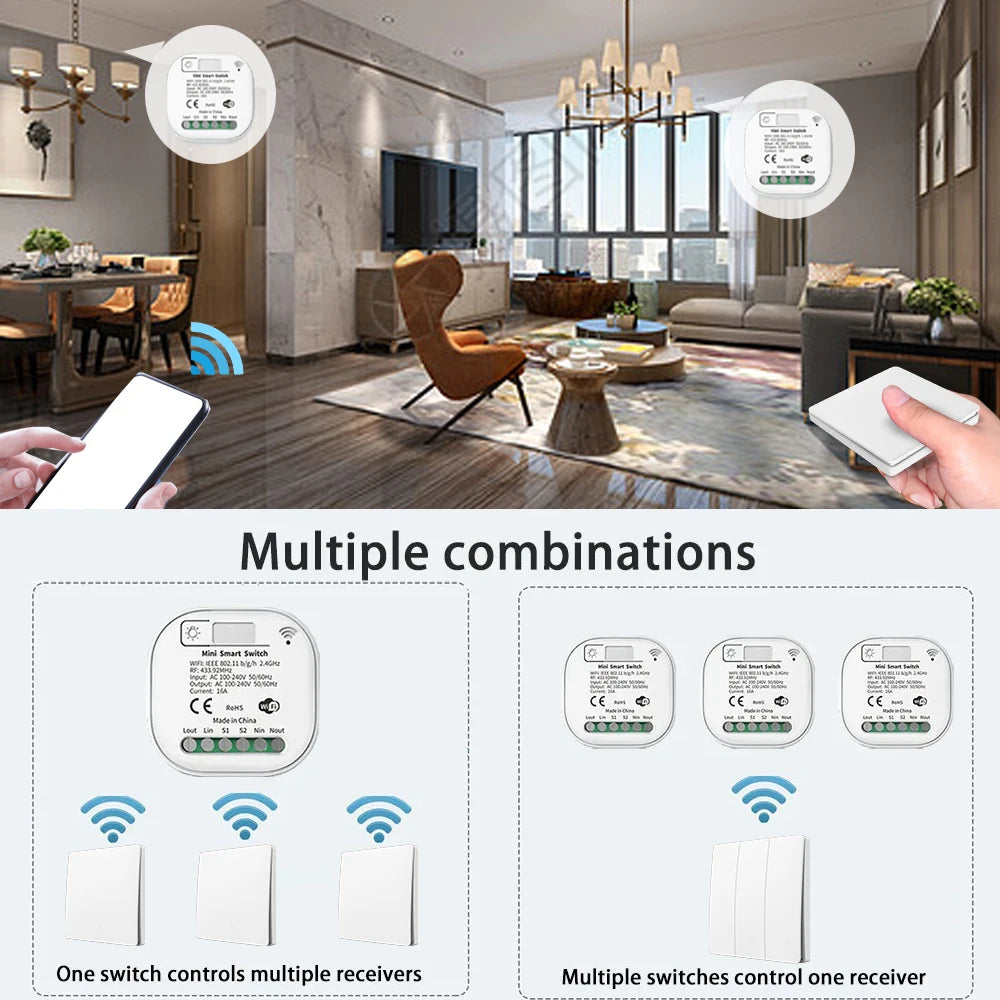

Multi Control
1-5pcs rf wall switch control one receiver,many phones control one smart switchFor rf control,one smart switch supports 5pcs kinetic wall switch most.For wifi control,you can use many phones to control same smart switch
Product Application Area
Products can be used in homes, farms, factories, offices, laboratories, supermarkets and so on
Remote control Electric curtain \ Fan \ Lamp \ LED light \ bulb \ ventilation device \ Signal transmission
Remote control humidifiers, microwaves, coffee machines
Remote control Taking Care for the elderly, children

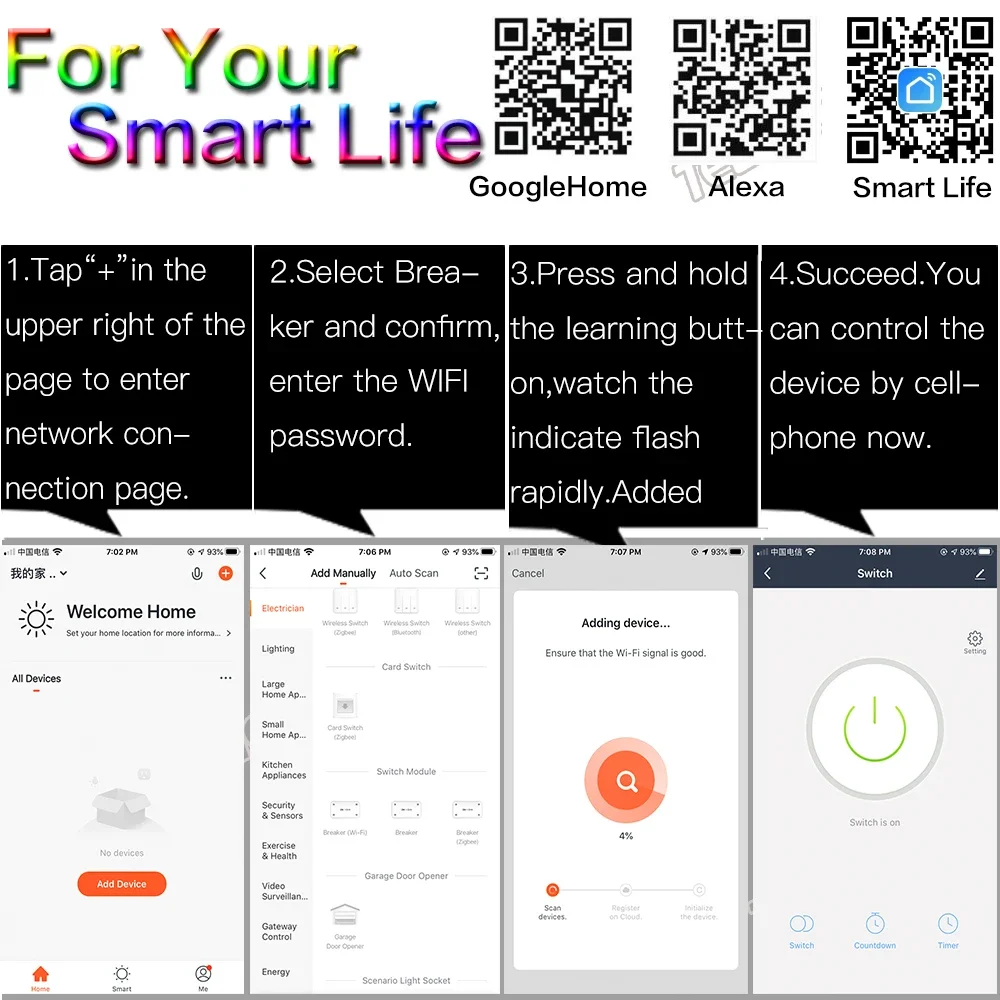

How to set up in WiFi
1: Search "Smart Life or Tuya Smart" on APP store, Google Play or scan the QR code on user manual to download and install it.
2: Press the button on switch until the indicator light flash. You can also hear a voice too.
3: Open "Smart Life or Tuya Smart App", discovery and add device in the app, and then finish configuration according to the guide.
How to set up in Voice Control
1. Modify device name so your Amazon Alexa can easily recognize the name. For Example: Living Room Lamp, Bedroom Light.
2. Use Alexa App or Computer to set up your Amazon Alexa.
3. Select 'Skills' and search for 'Smart Life' on Menu. Enable Skill and type in your login info to link the account
4. Ask Alexa to discover devices. Then you can control your devices by voice

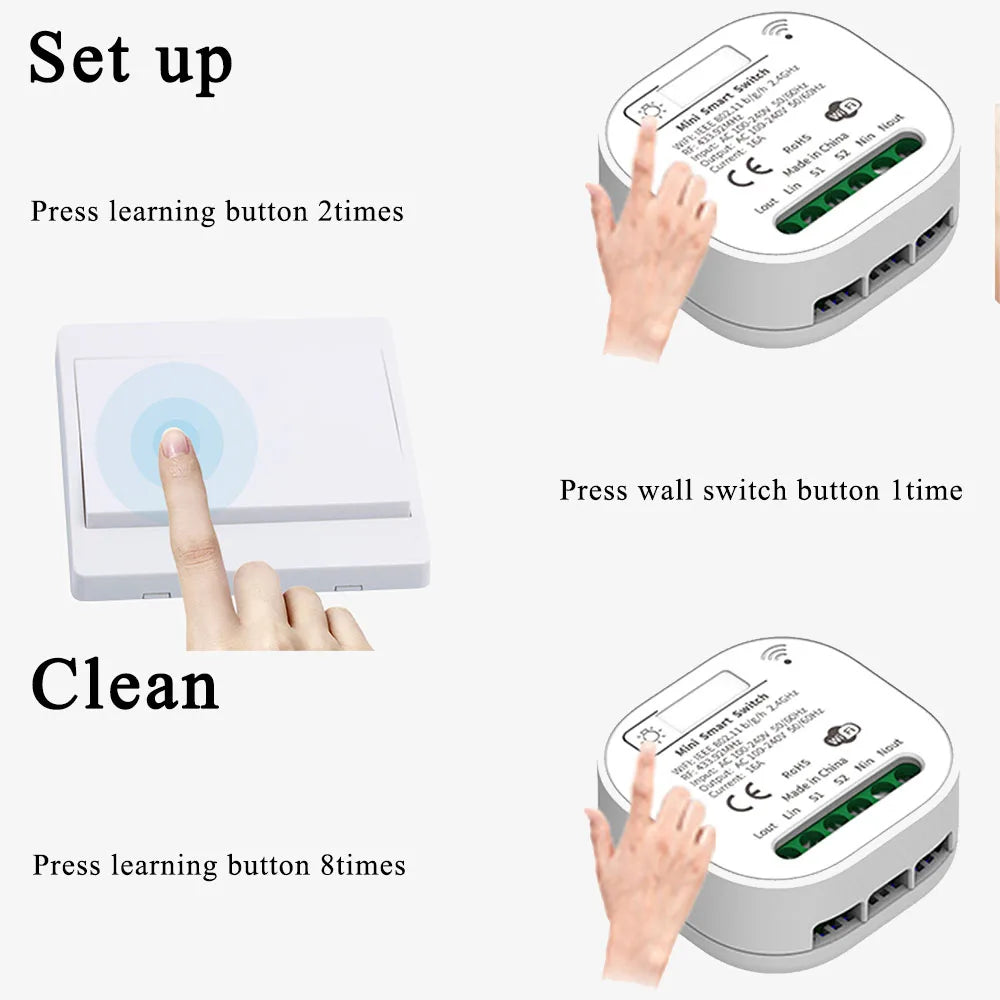

How to set up in Rf
Please connect with power first.
1.Press receiver learning button 2times,you will see the blue indicate light,release
2.Press wall switch button 1time,succeed
How to clean Rf
Press receiver learning button 8times.After that,all wall switch cannot control this receiver,but wifi still work
About shipping
We usually use al standard shipping to ship your parcel.We will ship out within 48 hours after you paid the order.
Questions and Answers
1.Can i use my wall switch to control this rf receiver?
No sir.This receiver only works with kinetic wall switch,they are using special code.It is different,even the frequency are same
2.When the power off and comes again,does the receiver work still?
It depends on your choice.You can set up on/off in your phone
3.When the power off and comes again,do i need to set up with wall switch again?
No,the receiver has momenry.It can remember the data you set up before.Press 8times,it will clear
