SPECIFICATIONS

Brand Name: OEM

Channel: 10CH

Cloud Storage: Support

Feature: Motion Detection

HDD: Support 1 SATA HDD

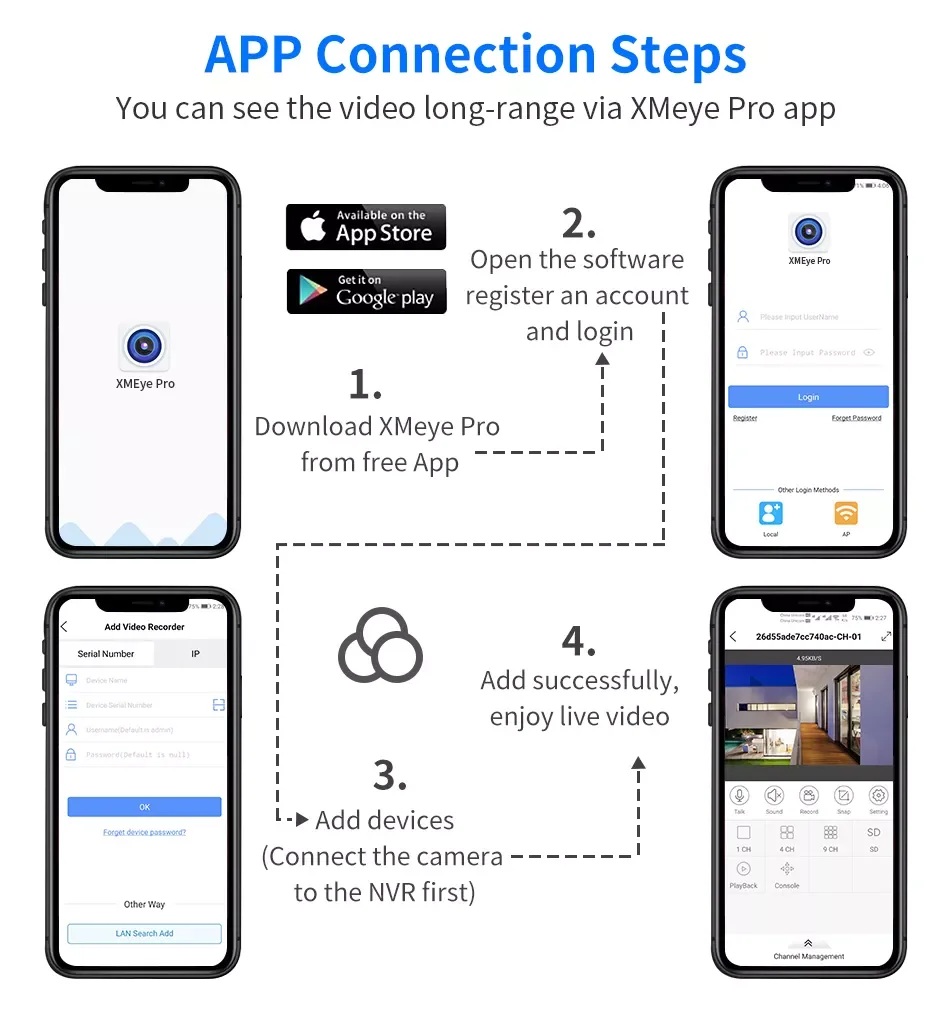

Mobile App: Xmeye Pro

Model Number: N6010KL

Place of Origin: shenzhen

Power Supply: DC12V 2A

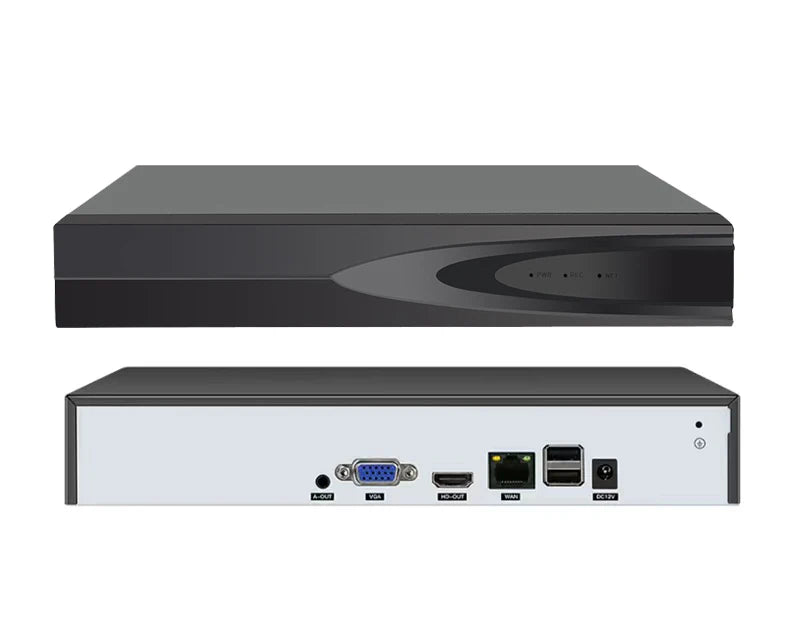

Product name: Network Video Recorder

Storage: Support up to 6TB

Video Compression Format: H.265+

compression format: H.265

video/audio output: HDMI,VGA

Product Description

	Model	N6016KL
System	Main processor	Hi3536E
		Operating System	Embedded Linux
		System resources	Simultaneous multi-channel real-time recording, playback, network operation, USB backup

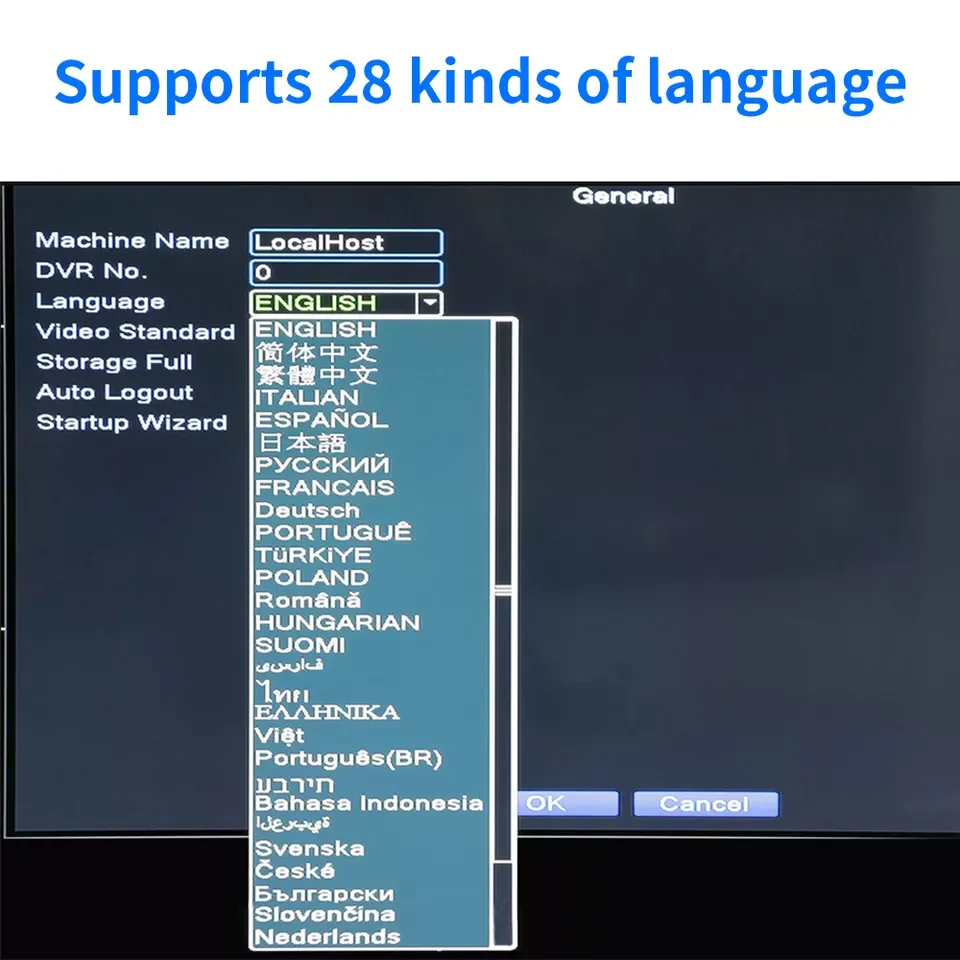

Interface	Operator interface	16-bit true color graphic menu operation interface, support mouse operation
		Preview	1/2/4/6/8/9/10
Video	Video input (IP)	10*4K（Access bandwidth 72Mbps）
		Video compression	H.265AI/H.265+(compatible H.265/H.264)
		Display quality	Max:4K
		Playback quality	4K/5M/4M/3M/1080P
		VR	Unsupport
		human shape / Face	Support(depend on camera)
Audio	Audio compression	G.711A
		Intercom	unsupport
Record & playback	Recording mode	Manual>Alarm>Dynamic Detection>Timing
		Localpayback(real-time+ Un real-time)	4K（1*real-time）/5M（1+1）/4M（2+1）/3M（3+1）/1080P（5+1）
		Search mode	Search by Time/Calendar/Event/Channel/Face
		Record storage	HDD、Network
		Backup mode	Network backup, USB hard disk, USB burner, SATA burner

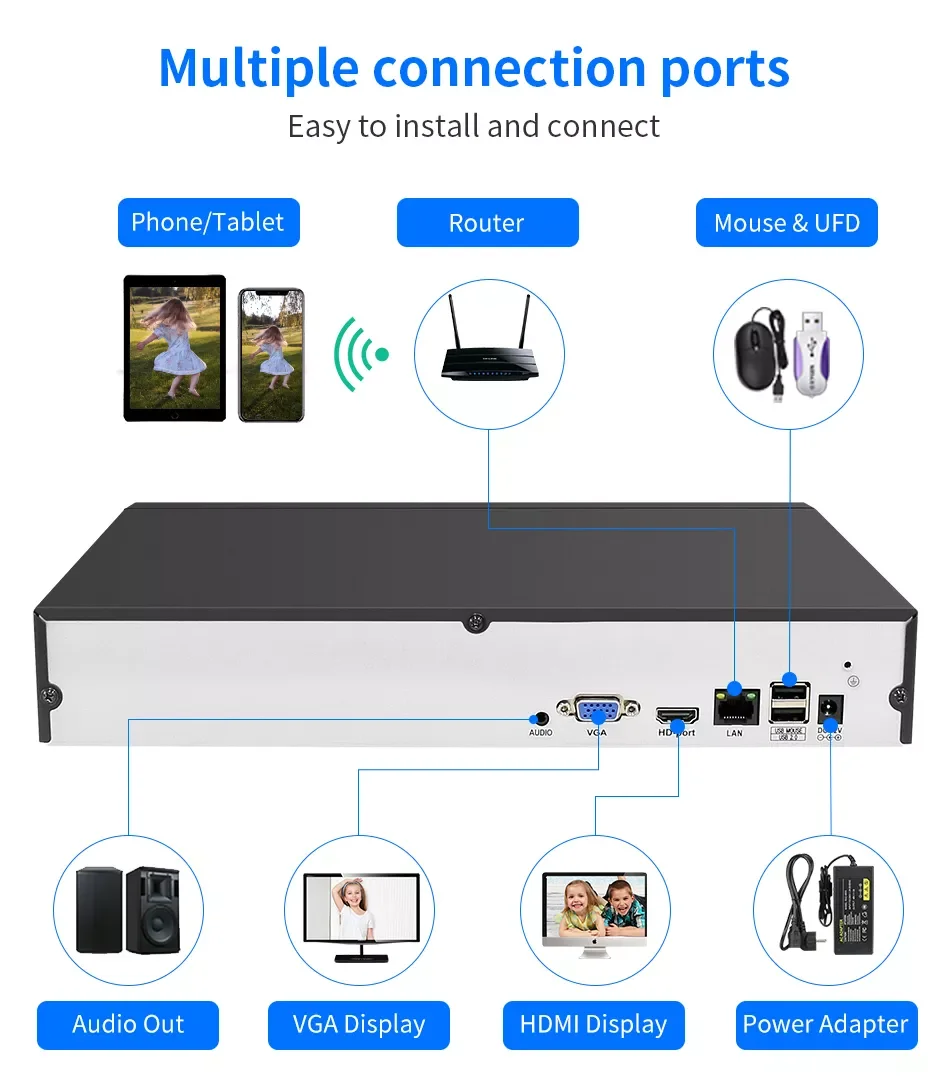

External interface	Video output	1ch VGA，1ch HDMI HD output
		Audio I/O	0/1（3.5MM audio output）
		Alarm I/O	0/0

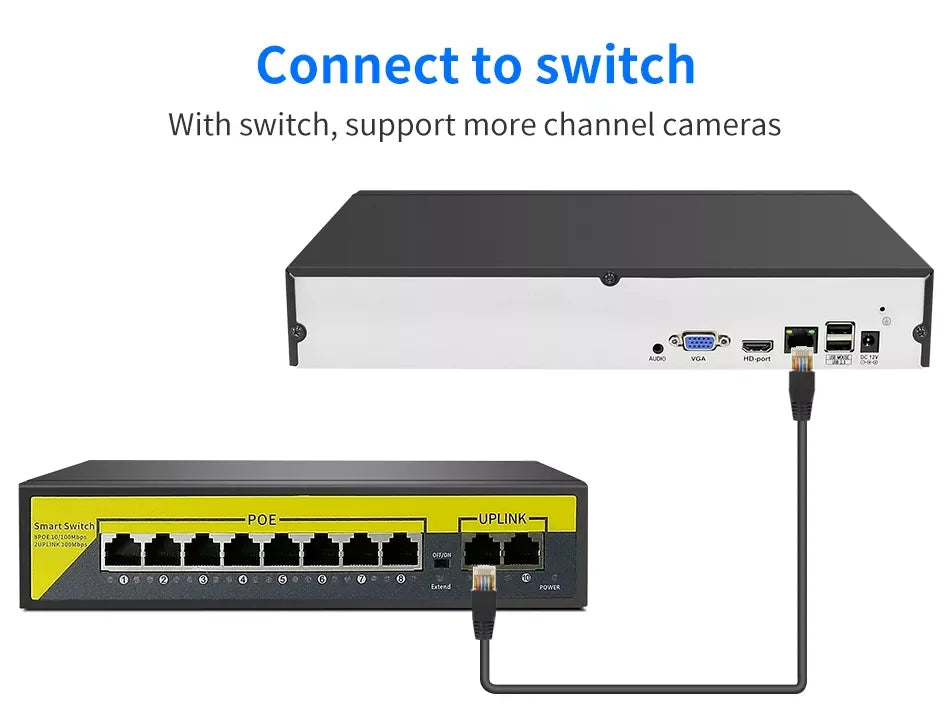

		Network interface	1*RJ45 10M/100M Adaptive Ethernet port
		USB interface	2*USB2.0 ports(one USB extension interface is reserved)

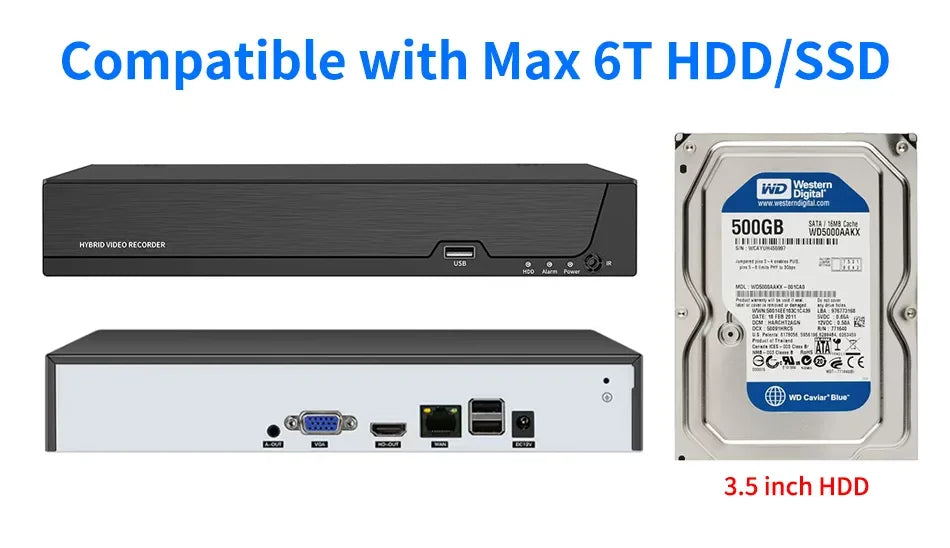

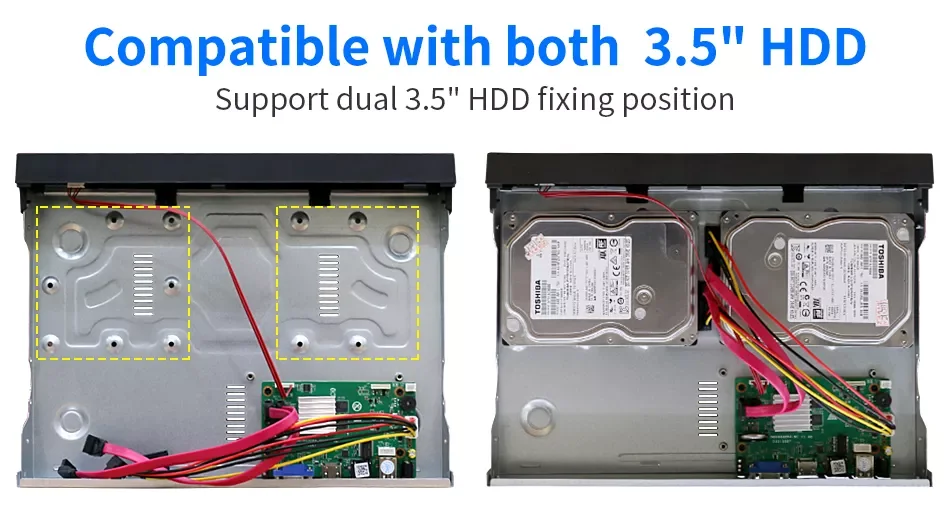

		HDD	1 SATA(Up to 14TB for each disk)
		ESATA	No
		Serial interface	No
Other	ONVIF	Support
		Power supply	12V/2A
		Power Consumption	<10W(Without HDD)
		Work environment	Temperature:0℃ －55℃ , Humidity:10%－90%RH , Atm:86kpa－106kp

Features

* Support HDMI 4K,VGA1080P HD output;
* Support ONVIF;access third party;
* Support web, CMS, center platform management software MYEYE, provide SDK development;
* Support multiple cloud technology, network penetration, alarm information pushed to your phone and other functions;
* Support multiple network services (support DHCP, FTP, DNS, DDNS,NTP, UPNP, EMAIL, IP searches, Alarm Center, etc.);
* Support GB28181 protocol access to third-party platforms.
